WTC-1300-1

Features & Benefits

This Wire Termination tool can be used, with the appropriate interchangeable Crimp Die Set, to terminate wires into any of the family of Crimp terminals in low volumes or in the field. These terminals include:

Crimping Instructions:

  • Place wires into the 1300-T terminal, making sure the wires sit relatively flat in the terminal

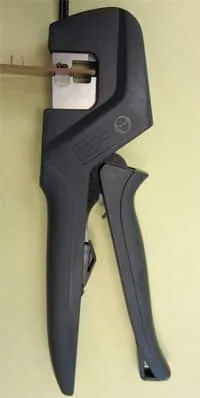

  • Place wires with crimp terminal into the tool as shown below
  • Squeeze the tool handle to crimp the terminal and terminate the wire to the crimp terminal.
Item added to cart View Cart Checkout
Information
SKU: WTC-1300-1
Categories:
Share:

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
