MP 1000

Features & Benefits

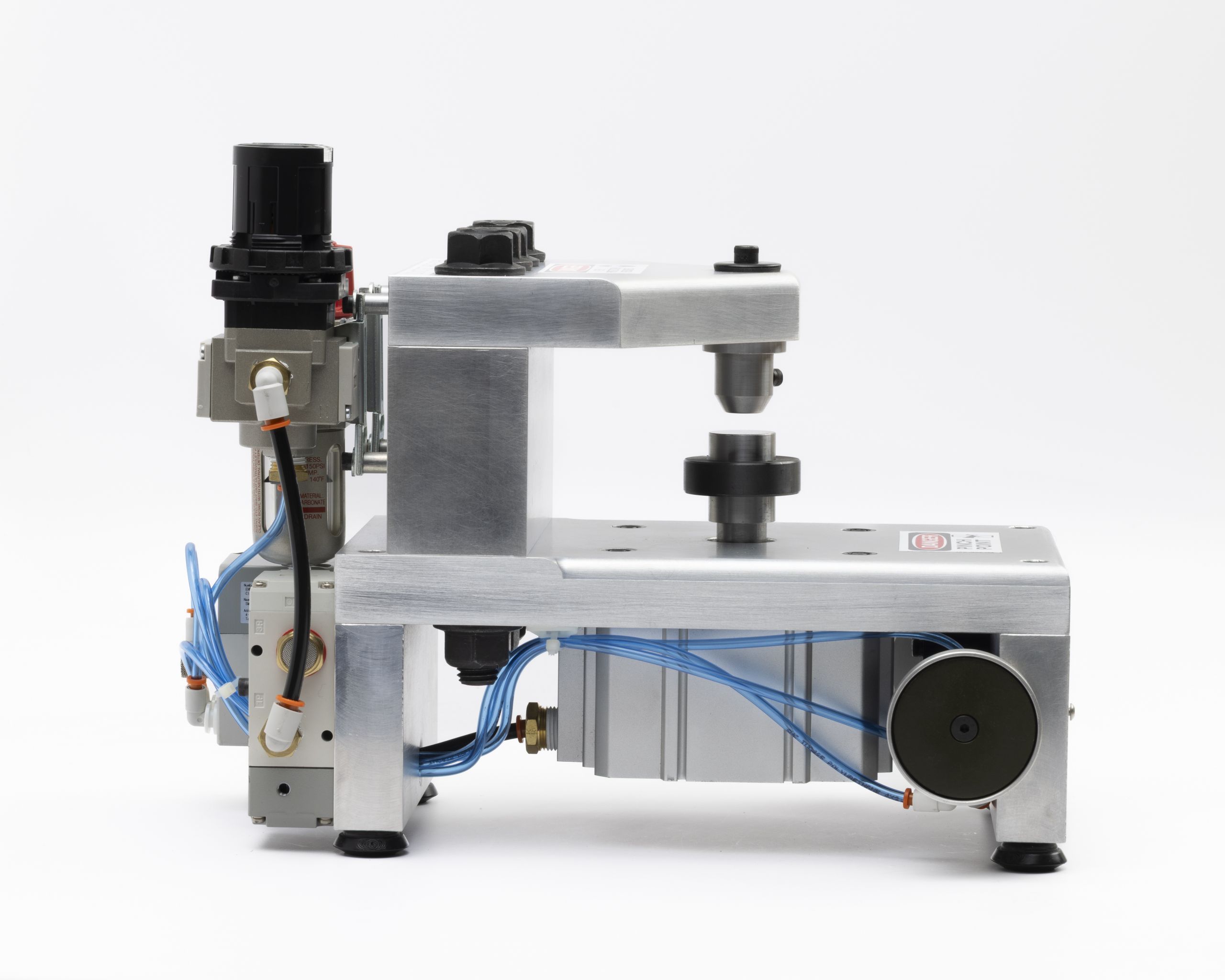

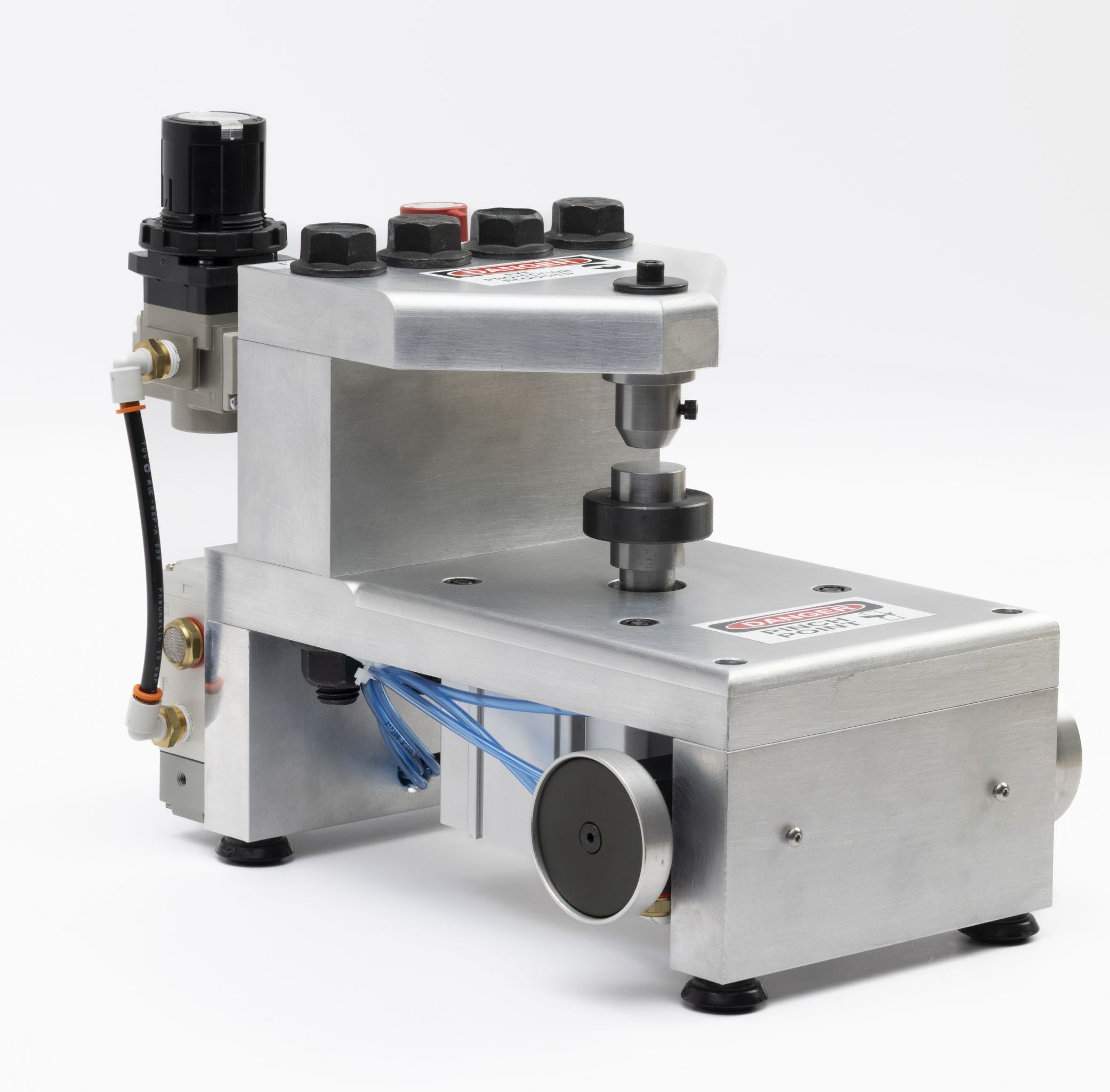

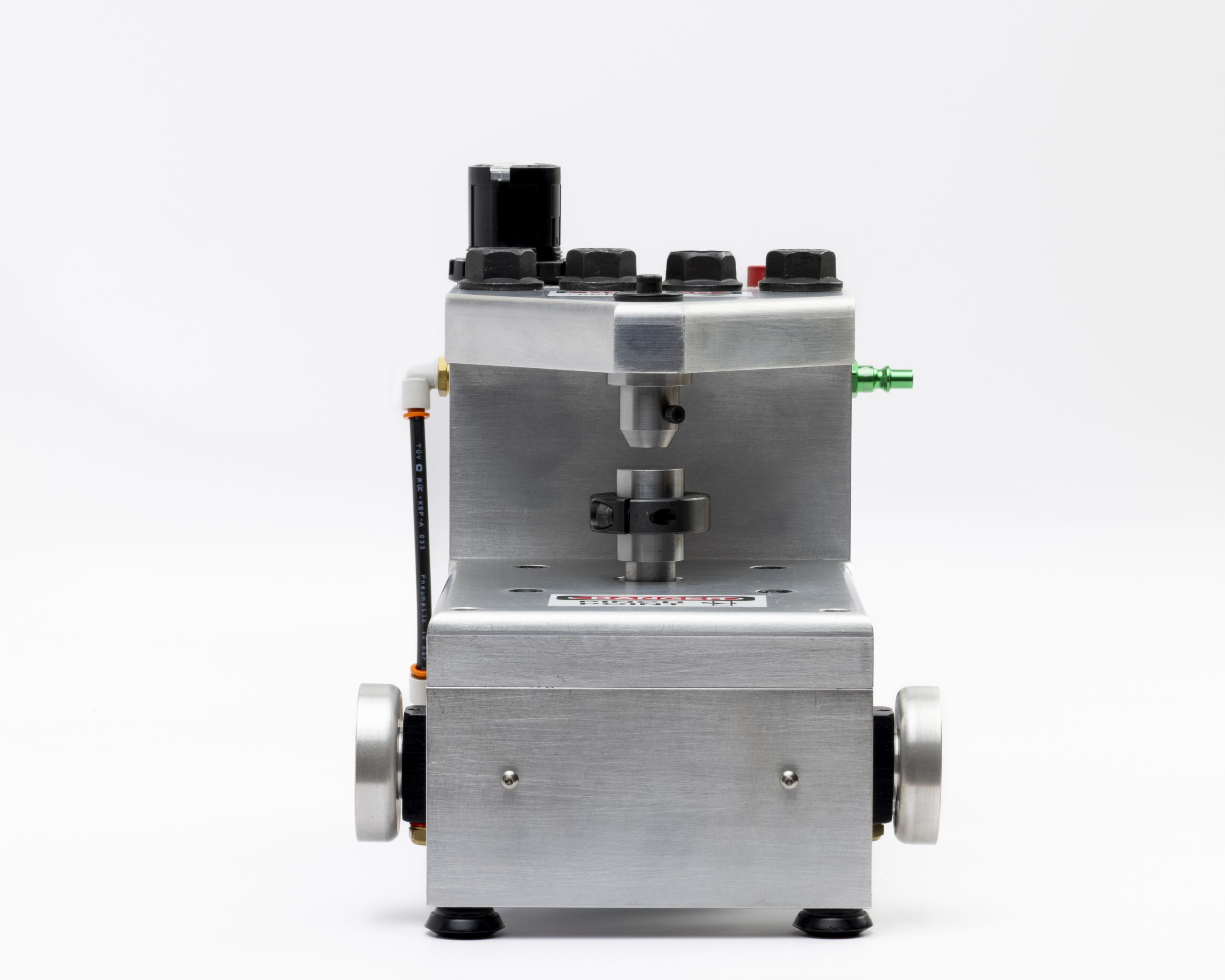

The MP 1000, along with the appropriate interchangeable Crimp Die Set, is designed for medium to high volume applications. It delivers cost-effective, pneumatic wire terminations of the Zierick family of Insulation Piercing Crimp Terminals, PNs 1286, 1293, 1295, 1300-T, IPC-2-1 and IPC-4-xx.

This powerful bench-top machine provides an output range that is dependent on application and operator.

For a quick outline of how this easy-to-operate unit works, see the Insulation Piercing Crimp Terminal Technology Overview.

Basic Features:

Base Width 6″
Base Depth 11″
Height (max. opening, anvil to crimp die) 1/2″
Depth of throat, max. 3″
Weight 30 to 35 lb.
Air Required 20 to 95 psi



Part Numbers for available single position Crimp Dies used on the MP 1000 for termination of Zierick Crimp Terminals:

  • MP1-CRIMP-1286 for PN 1286
  • MP1-CRIMP-1293 for PN 1293
  • MP1-CRIMP-1295 for PN 1295
  • MP1-CRIMP-1300 for PN 1300-T
  • MP1-PIP for PN IPC-4-xx
  • Recommended Center-Center Spacing

This small LCD Video Screen & Camera System (sold separately) can be attached to the MP 1000 in order to insure proper positioning of the PCB, to monitor the application, and for quality control.

Item added to cart View Cart Checkout
Information
SKU: MP 1000
Categories:
Share:

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
