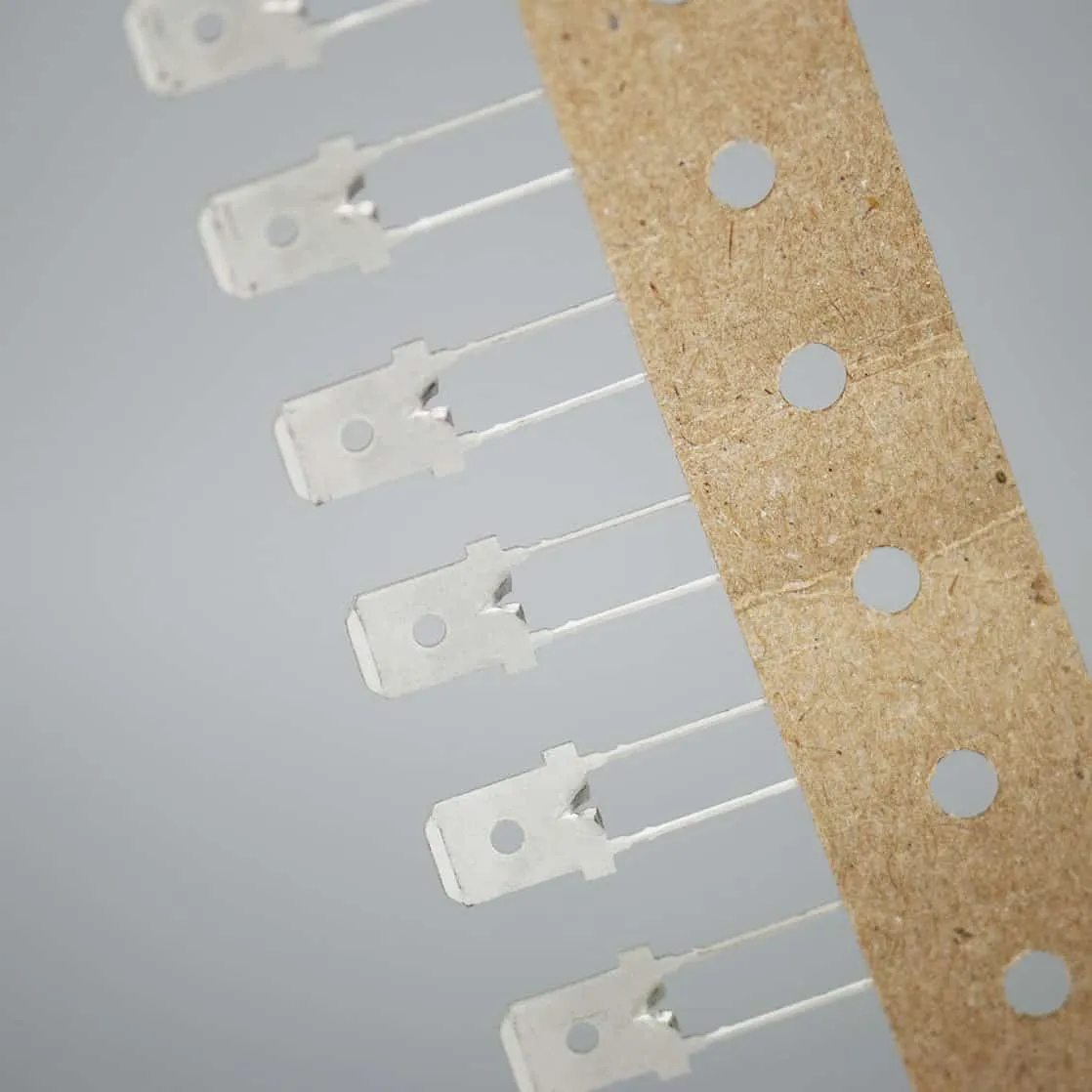

6.35mm (.250") Stable Lok Tab

Features & Benefits
Item added to cart View Cart Checkout
Information
SKU: K82237-22
Resources

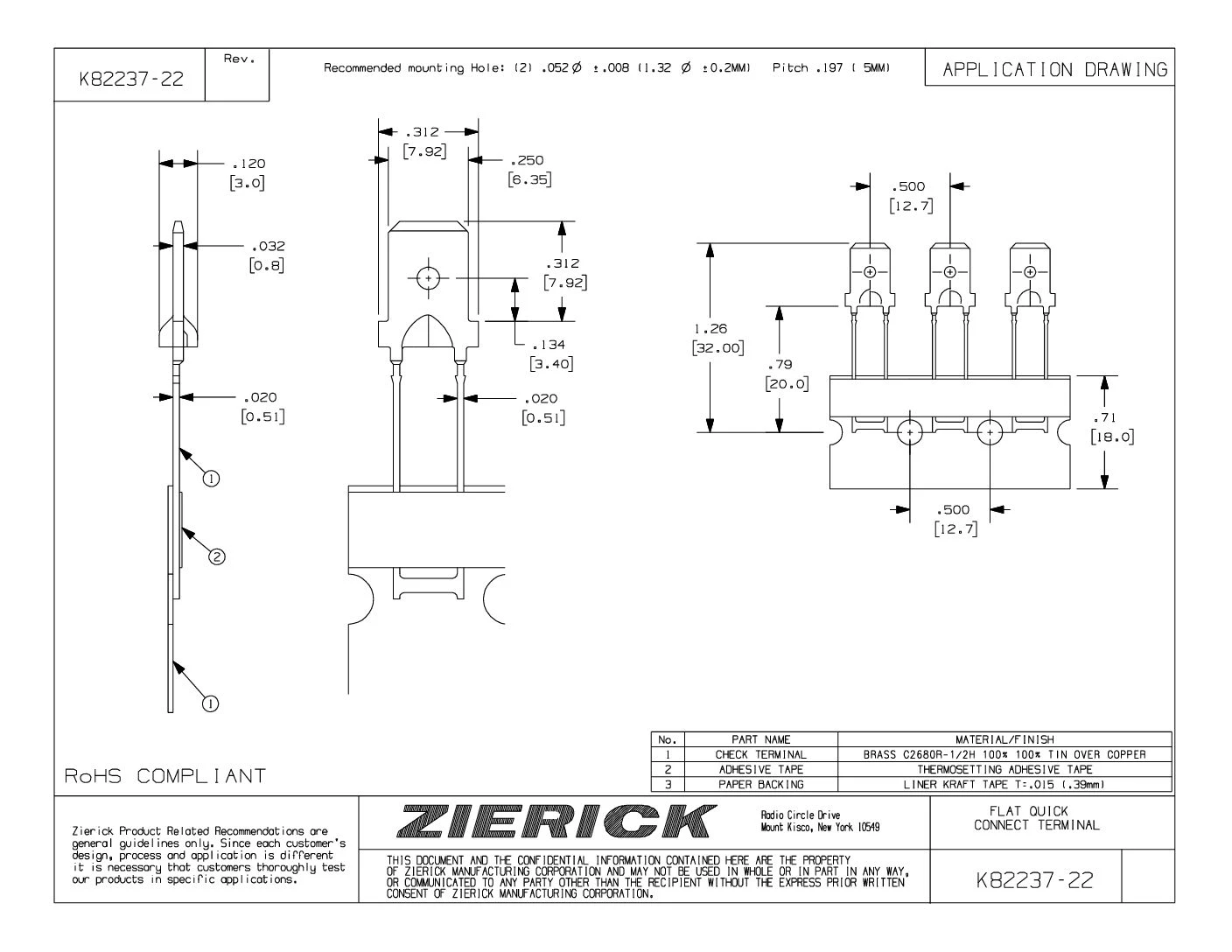

Prints
Share:
Specification
Legs

2

Dim 'W'

.315" (8.0mm)

Dim 'H'

.392" (9.95mm)

Dim 'T'

.032" (0.8mm)

Dim 'P'

.200" (5.0mm)

Material

Brass

Tin

1

20A MAX

1

1.6 ± 0.1mm - 0.062"± 0.004"

1

Consult factory for board layout information.

1

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
