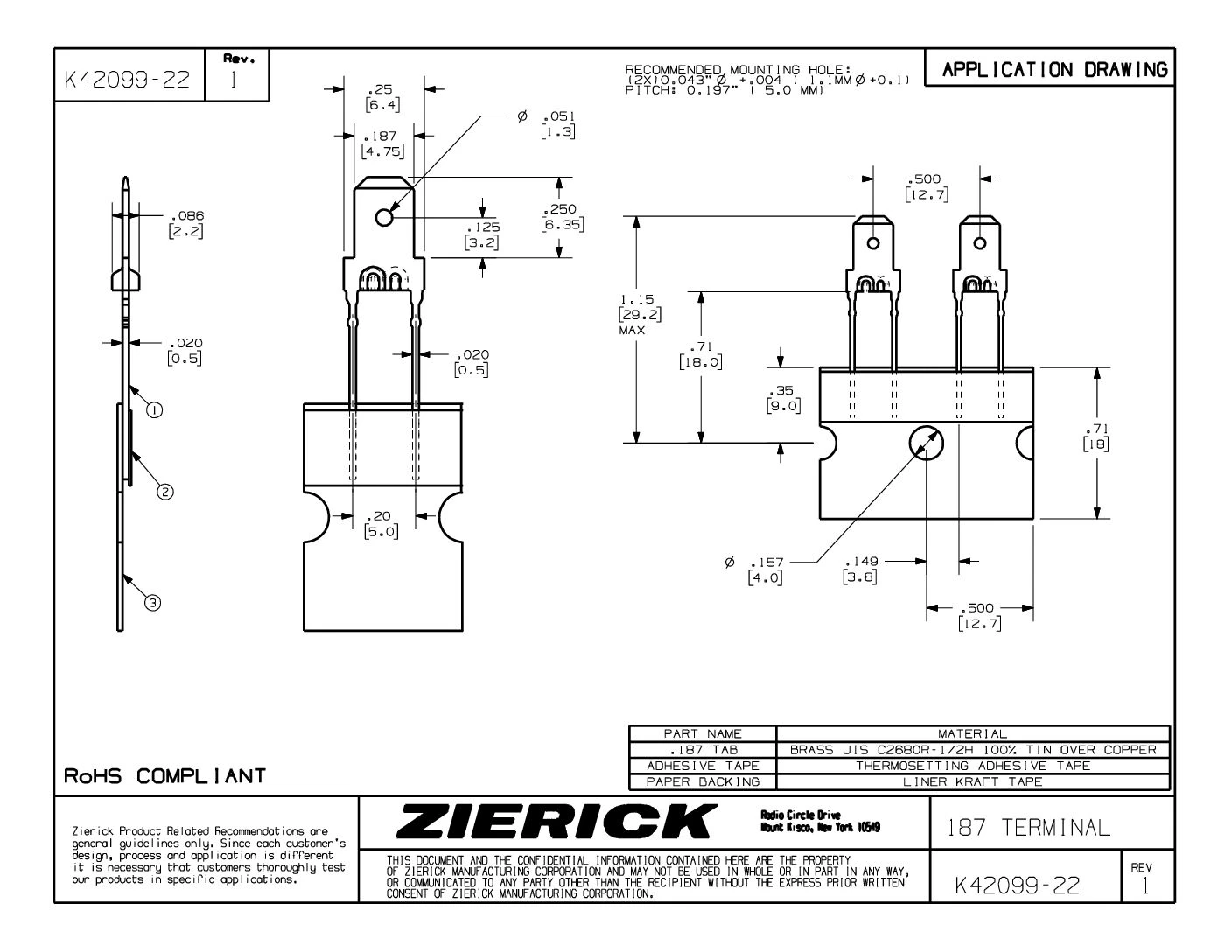

4.75mm (.187") Tab
Features & Benefits
Specification
| Legs | 2 |
|---|---|
| Dim 'W' | .252" (6.4mm) |
| Dim 'H' | .354" (9.0mm) |
| Dim 'T' | .020" (0.5mm) |
| Dim 'P' | .200" (5.0mm) |
| Material | Brass |
| Tin | 1 |
| 12A MAX | 1 |
| 1.6 ± 0.1mm - 0.062"± 0.004" | 1 |
| Consult factory for board layout information. | 1 |
