For .100"-.200" Paired #18 AWG
Features & Benefits
CURRENT RATINGS
| Wire Size – AWG (Type) | Current Rating/Amps |
| 18 AWG Stranded | 9 |
FEATURES AND BENEFITS
- This Zierick product is one of the most economical ways to terminate wire to a surface mount board.
- Part placement can be automated.
- It has high resistance to shock and vibration.
- There is no need to strip the cord.
- The wire is terminated by using a Zierick crimping press.

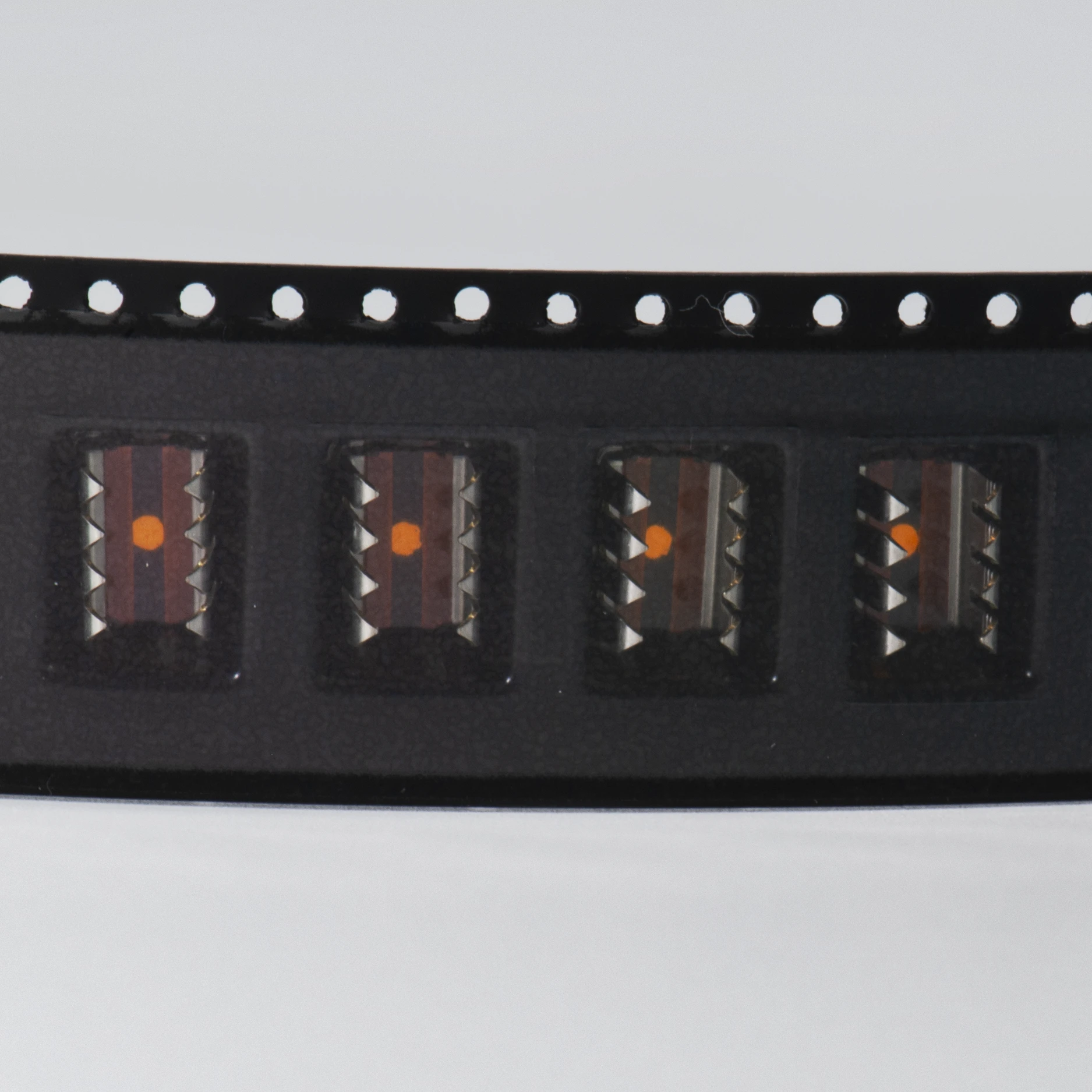

- The part is available in taped format.
Specification
| Packaging Type | Taped |
|---|---|
| Material Thickness / Type | 0.012" C26000 Brass |
| Standard Finish | Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16) |
| Crimping System | MP-1000 Crimping Machine (for high volume applications) Versa-Crimp (for low volume applications) WTC-1300-1 (for low volume and/or field terminations) |
| UL File Number | E361770 |
| Wire Size | Approximately .100"x.200" 18 AWG paired conductor wire |
| Standard 24mm Tape Feeder | 1 |
| U.S. Patent No. 9\\,246\\,247 and other U.S. and international patents | 1 |
| Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses\\, call Zierick's product development department. | 1 |
