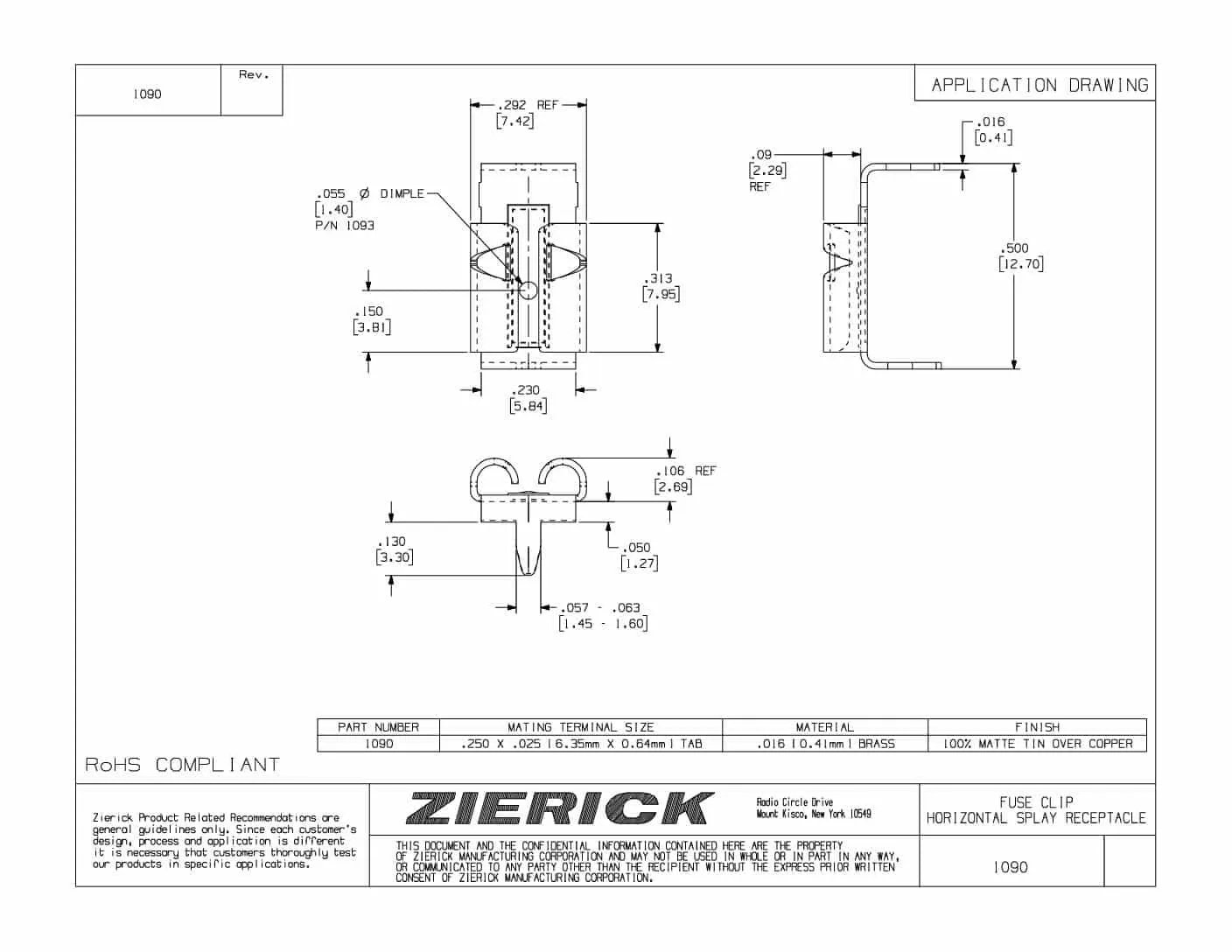

For .250" x .025" Tab
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Insertion Force-Max. | 5.0 lbs. (22.24N) (With Steel Test Tab) |
| Resistance Rating | 10mOhm Max |
| 0.250" x 0.032" (6.35mm x 0.81mm) Tab / 0.205" x 0.032" (5.21mm x 0.81mm) Tab | 1 |
| 1.0 lb. (4.45N) (With Steel Test Tab) | 1 |
| Horizontal | 1 |
| Outward or Inward Splay | 1 |
| -65° to 85°C | 1 |
| 2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers | 1 |
