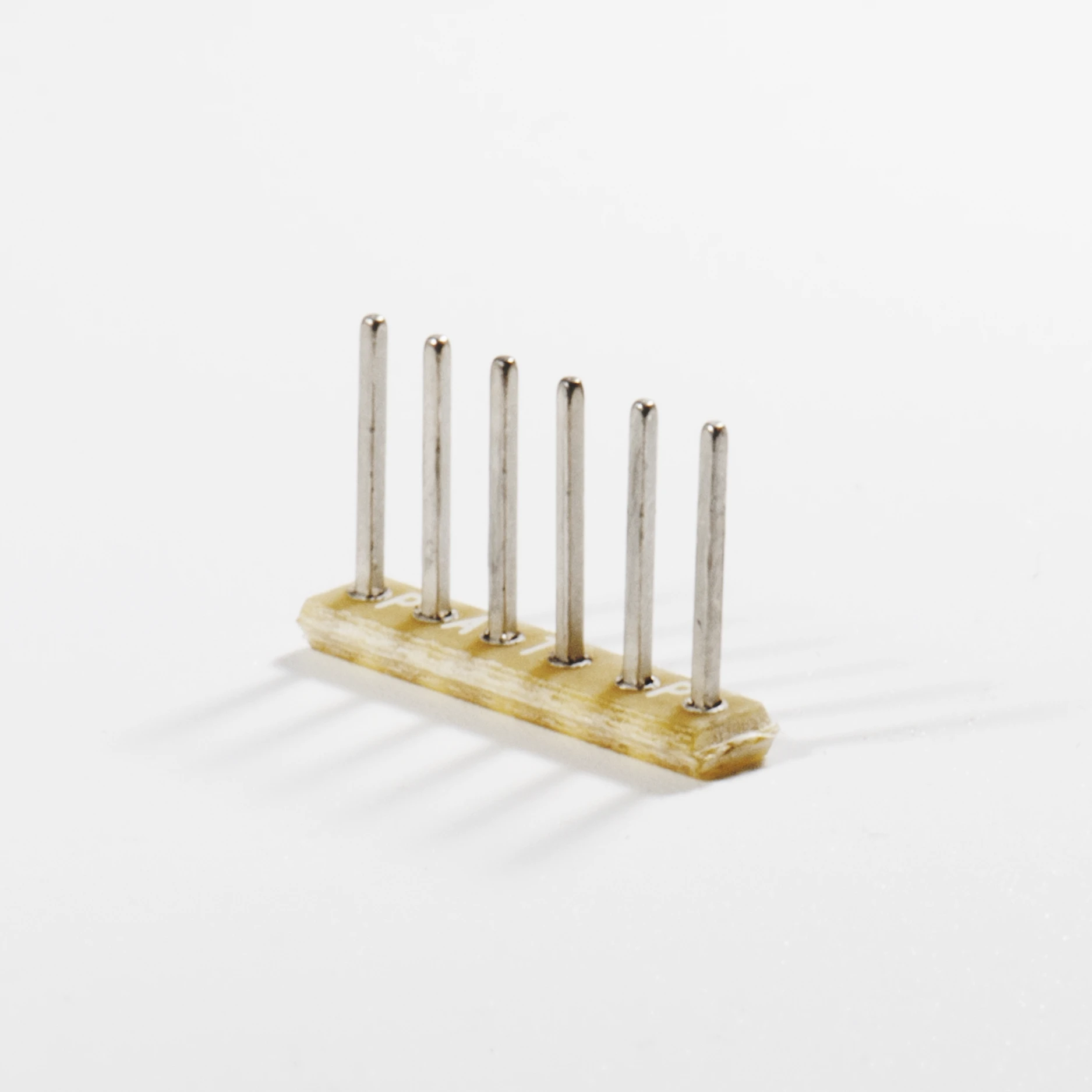

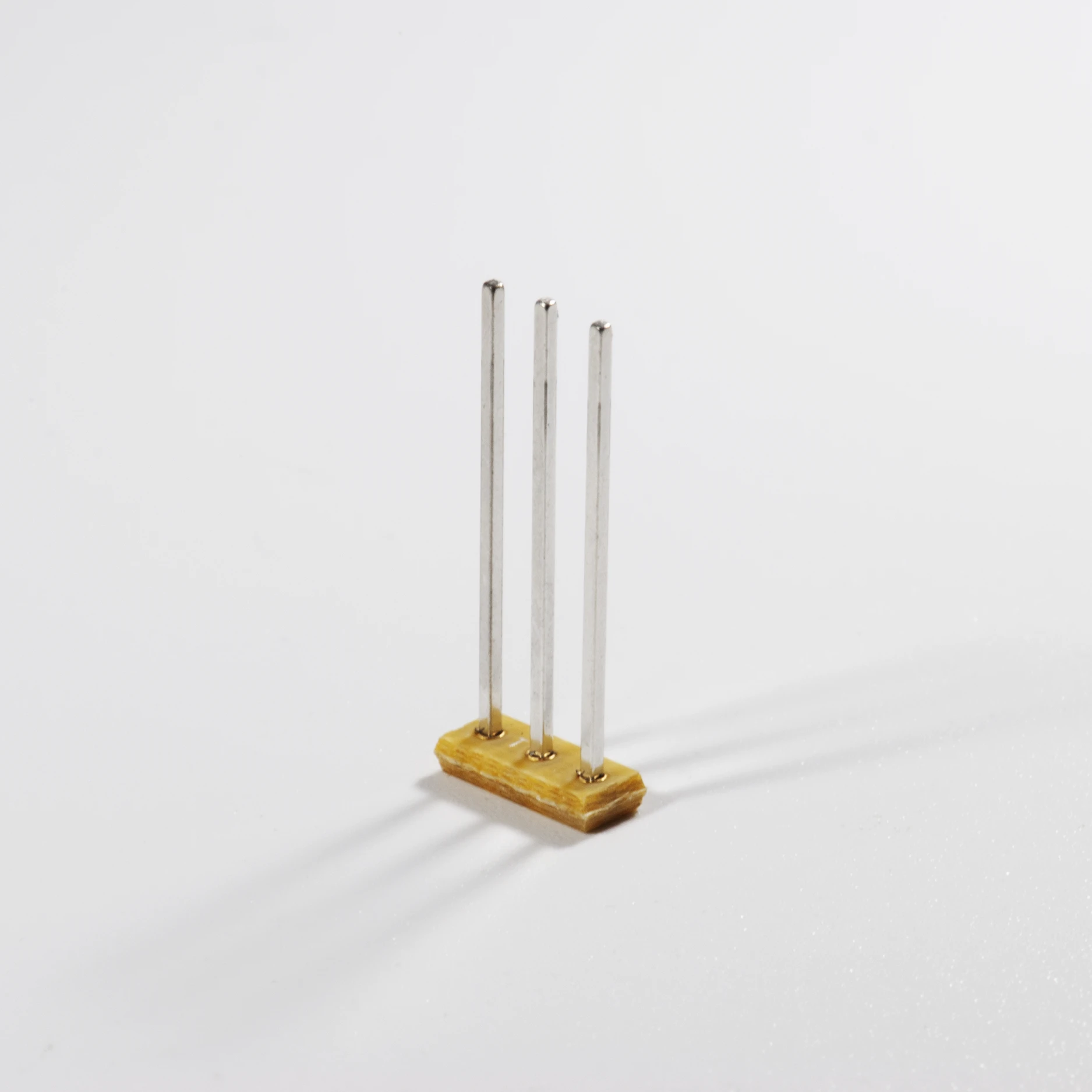

Vertical Pin Headers
Features & Benefits
- Designed for demanding applications with shock, vibration, and elevated temperatures
- Capillary Action is utilized to improve solder joint strength and pin retention force – 50% higher than J-lead headers
- High resistance to thermal shock and thermal cycling due to material selection
- Co-planarity problems eliminated
- Very forgiving board placement tolerances
- Minimal real estate required on board

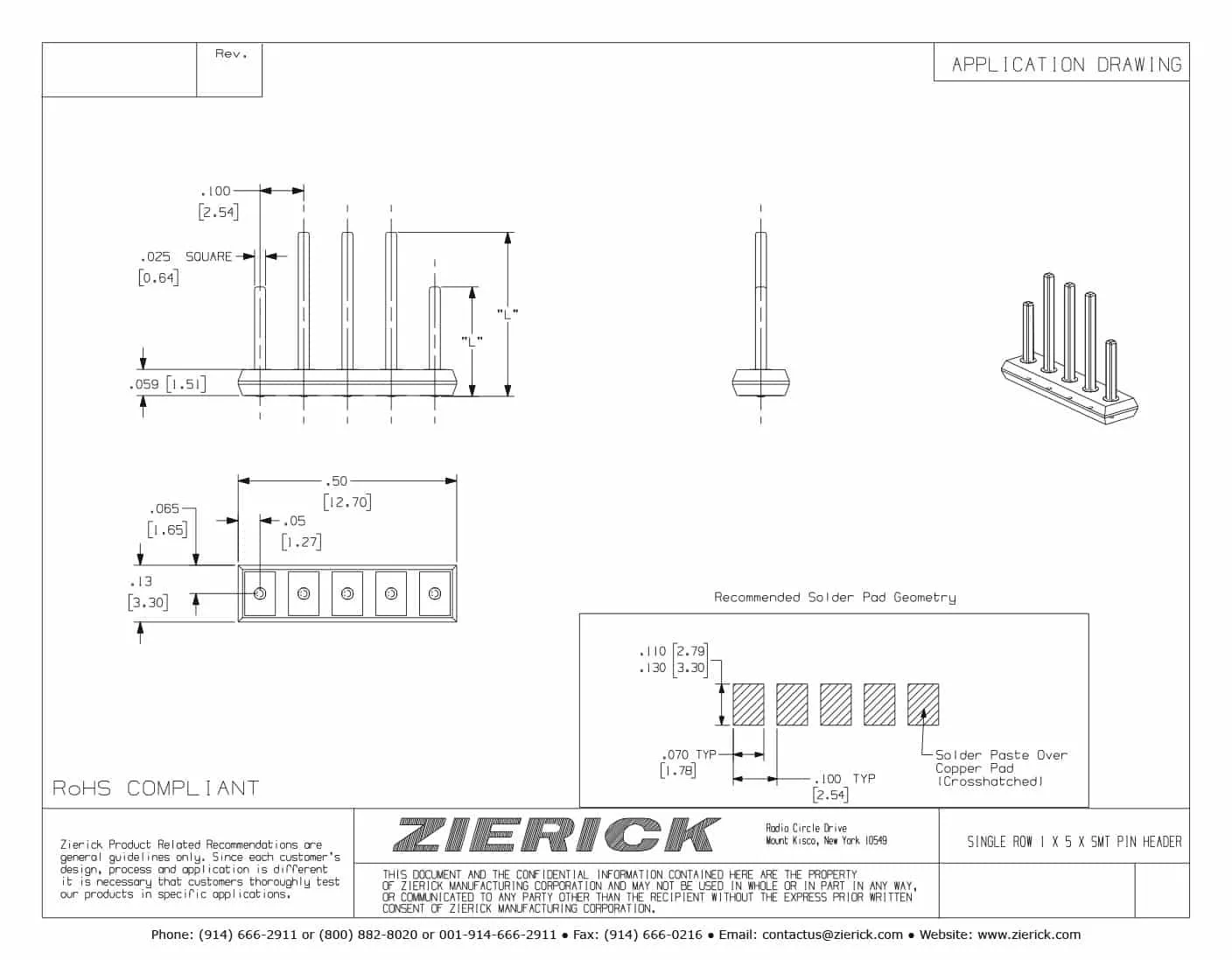

Specification
| Finish Specification | Tin Plated |
|---|---|
| Current Rating | 8/Pin |
| Number of Rows | 1 |
| Pins per Row | Dependent on PN |
| Pin Length (L) | Dependent on PN |
| Pins | 0.025" (0.64mm) Square |
| Patent | U.S. Patent Nos. 6, 402, 531 B1 and 5, 816, 668 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
