Versa-Crimp

Features & Benefits

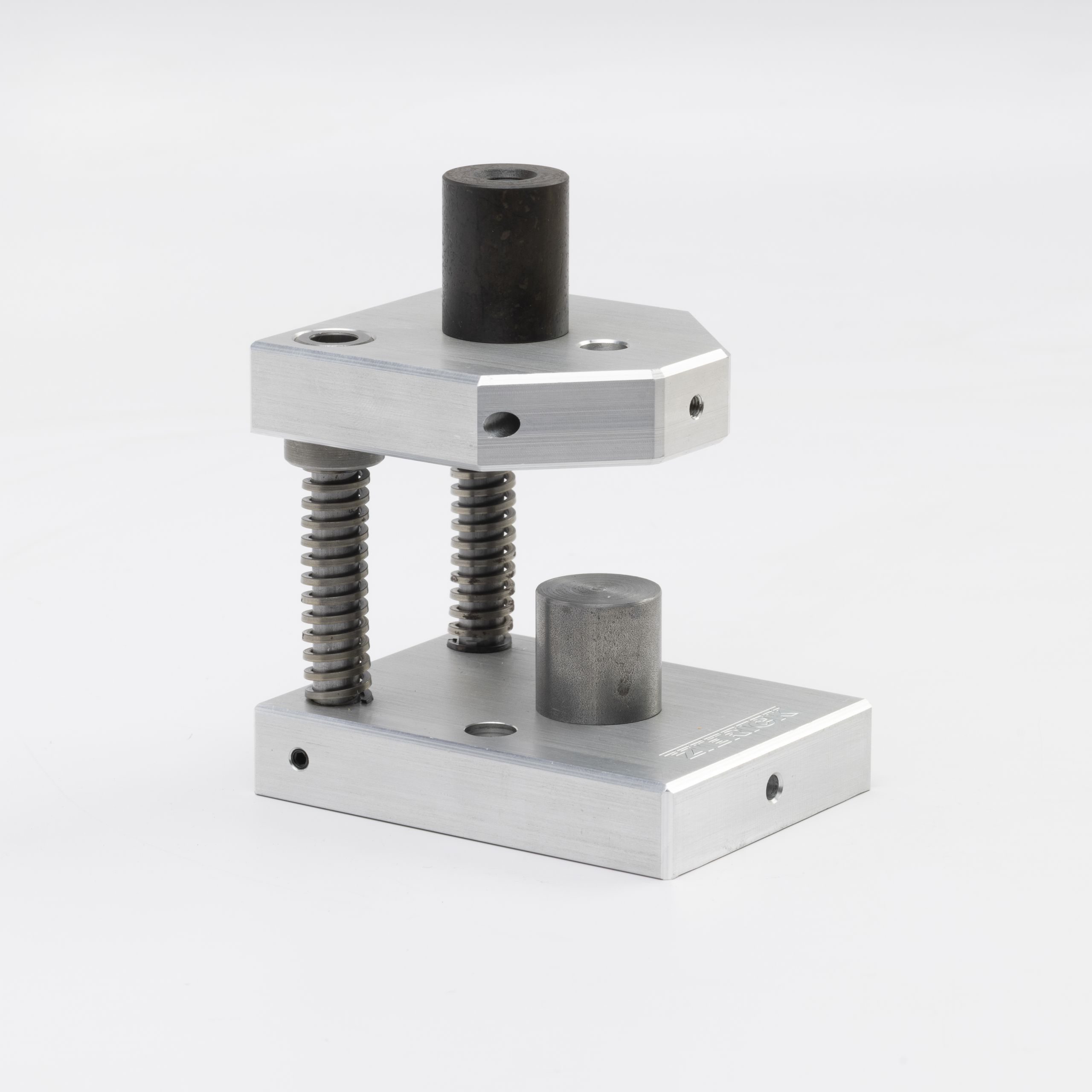

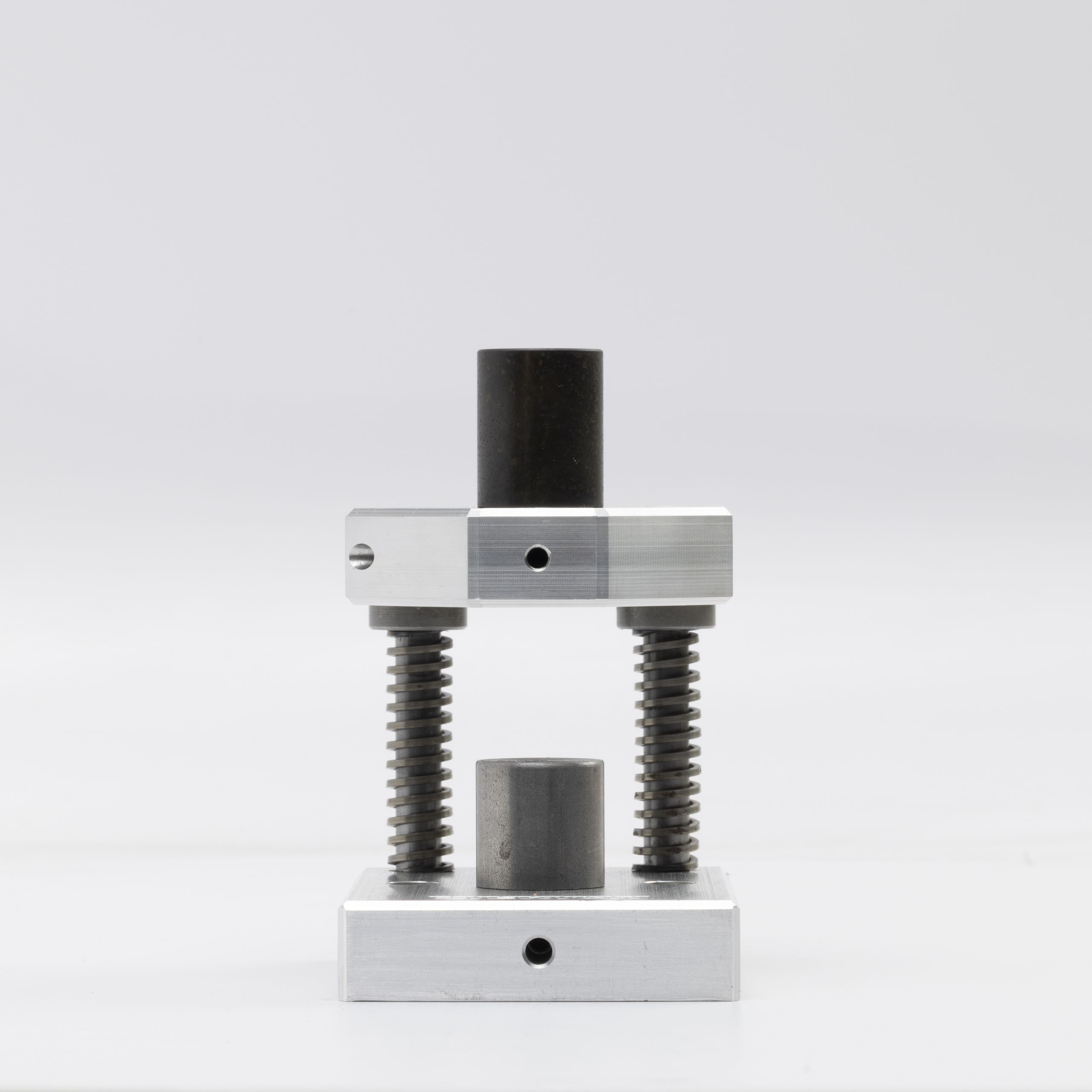

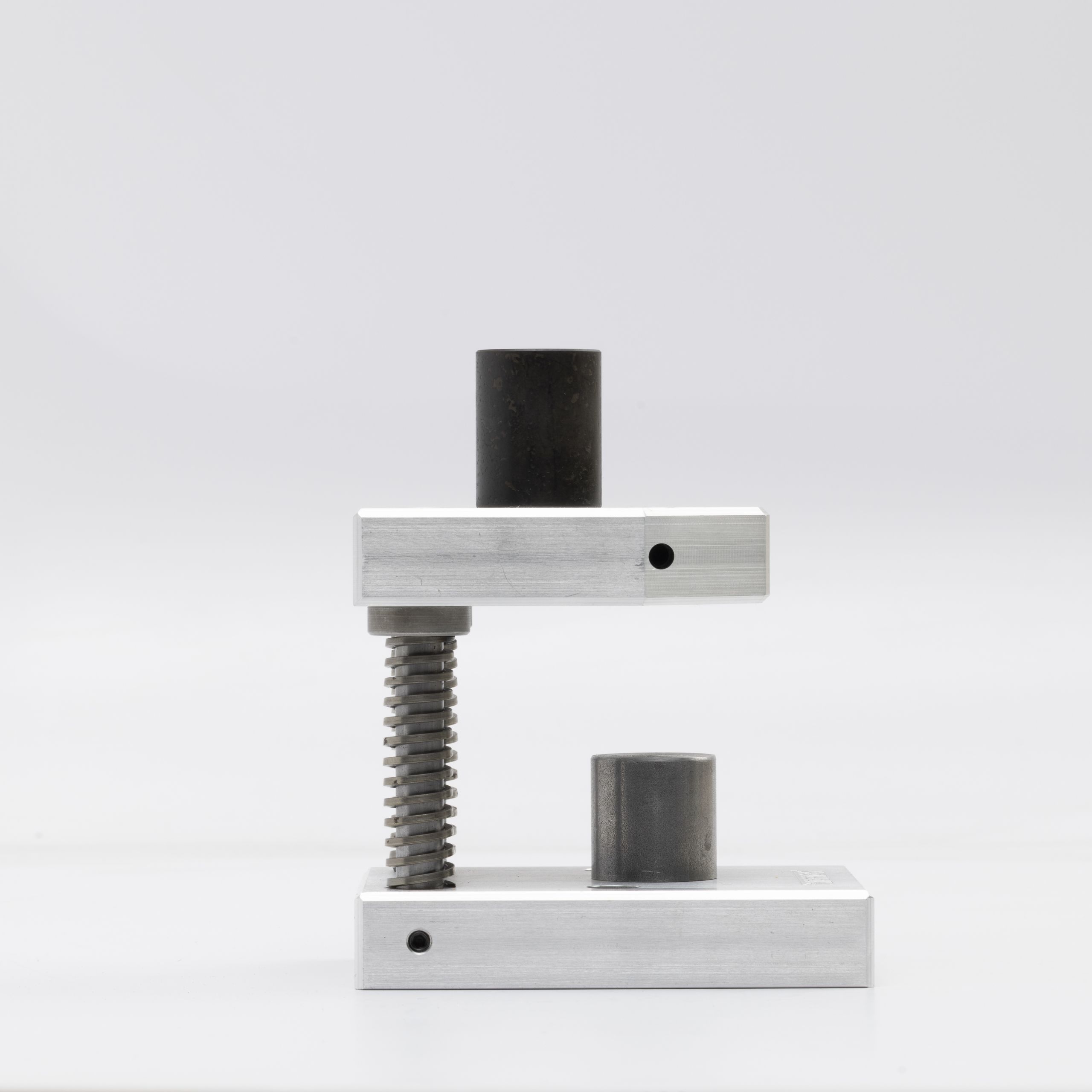

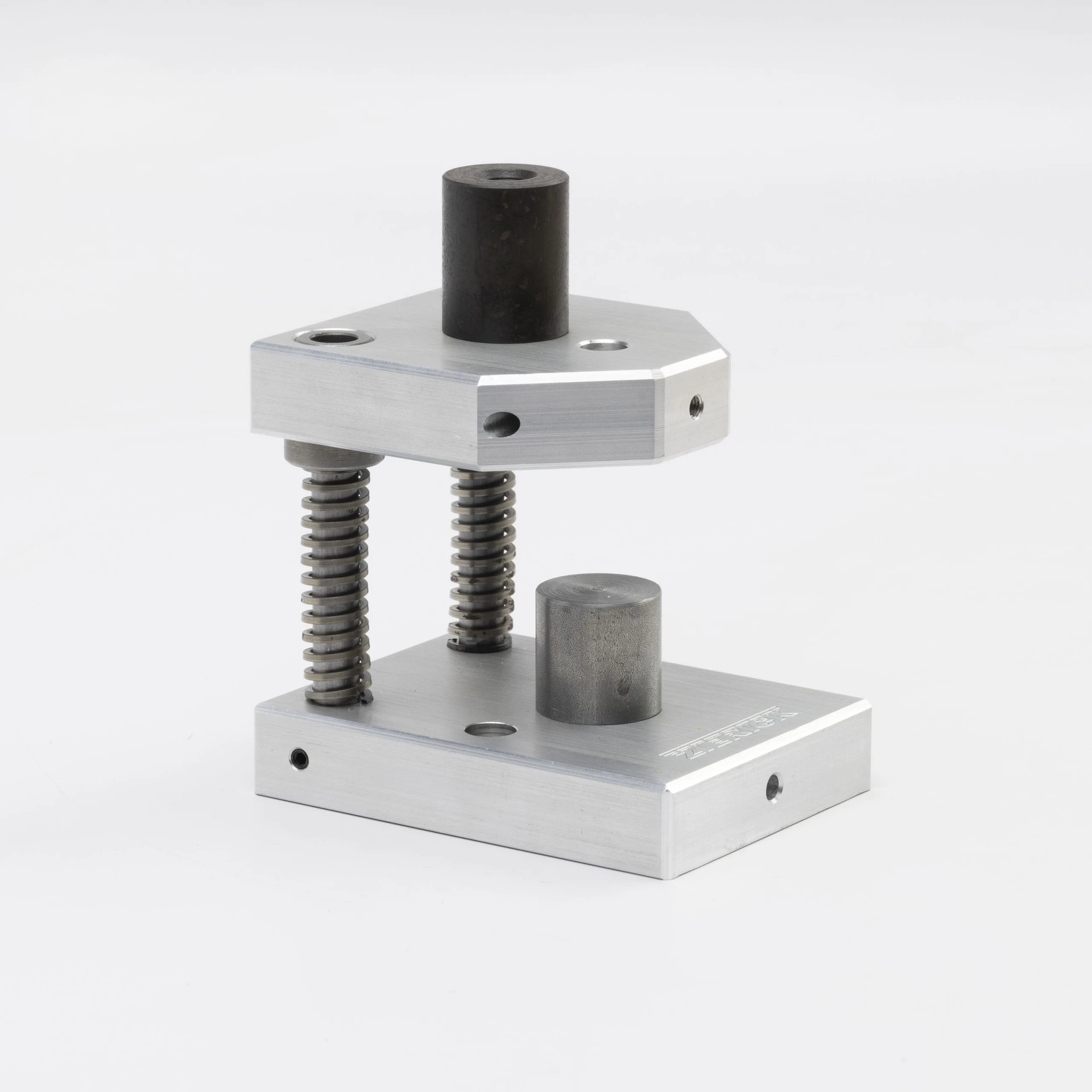

The Versa-Crimp is a small portable tool which, using the appropriate interchangeable Crimp Die Set, is designed for low volume applications, with options for different Part Numbers. It can be used with an arbor press, a bench vice or anything that will create enough force to make an adequate crimp.

Specifications for the Versa-Crimp 1.5:

Base Width 3″
Base Depth 4″
Height when Open 3.650″
Height
(from top of mounting base to bottom of crimp die)
4.710″
Center of Tool to Pin Springs 1.500″
Weight 2.35 lbs.
Item added to cart View Cart Checkout
Information
SKU: VERSA-CRIMP
Categories:
Share:

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
