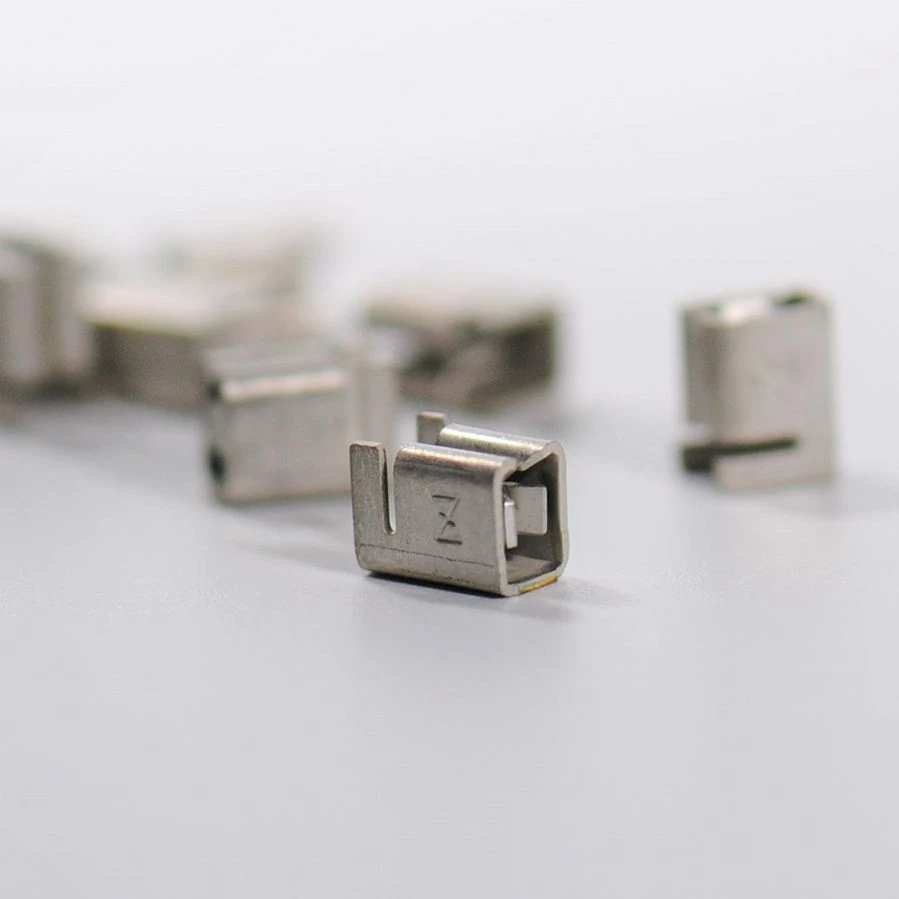

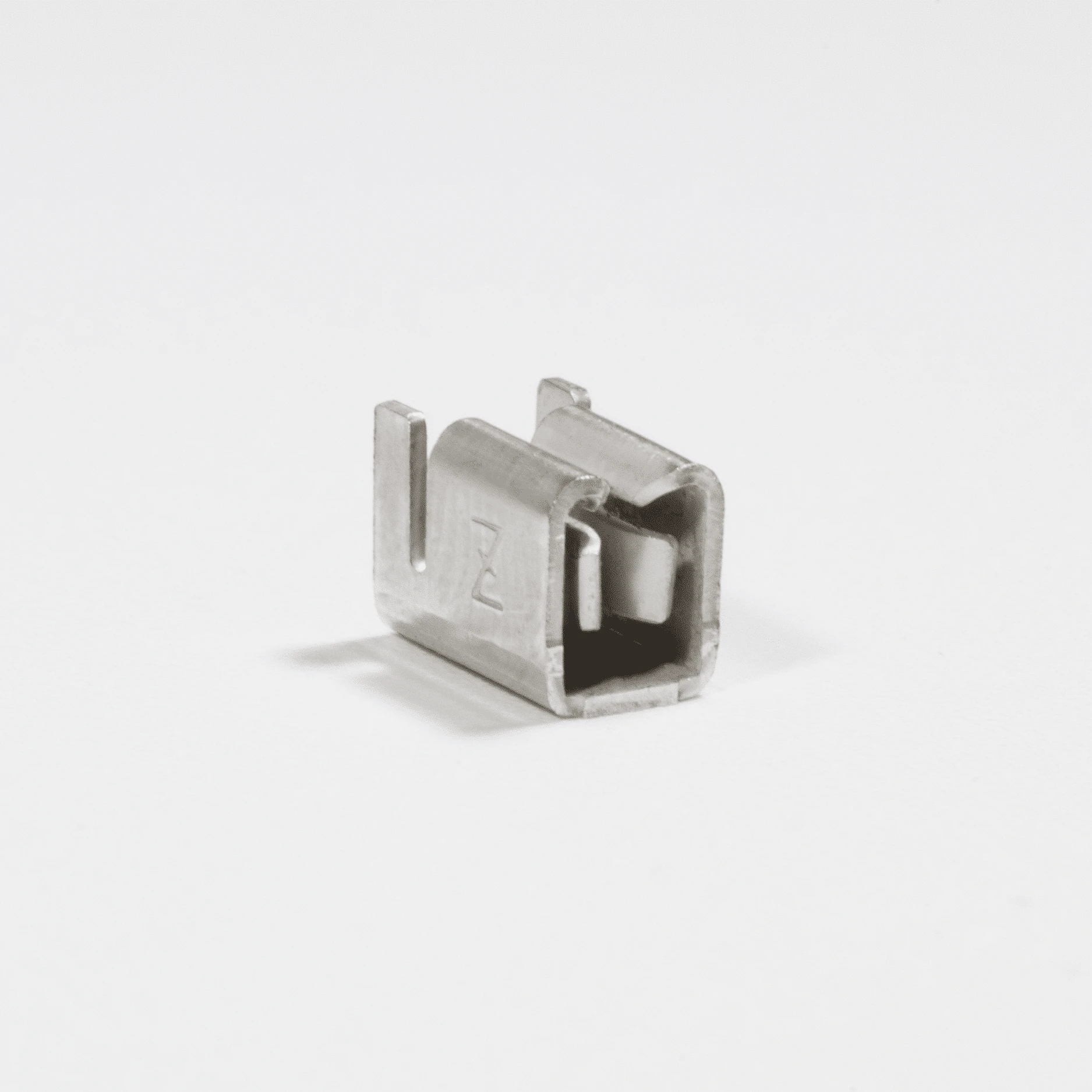

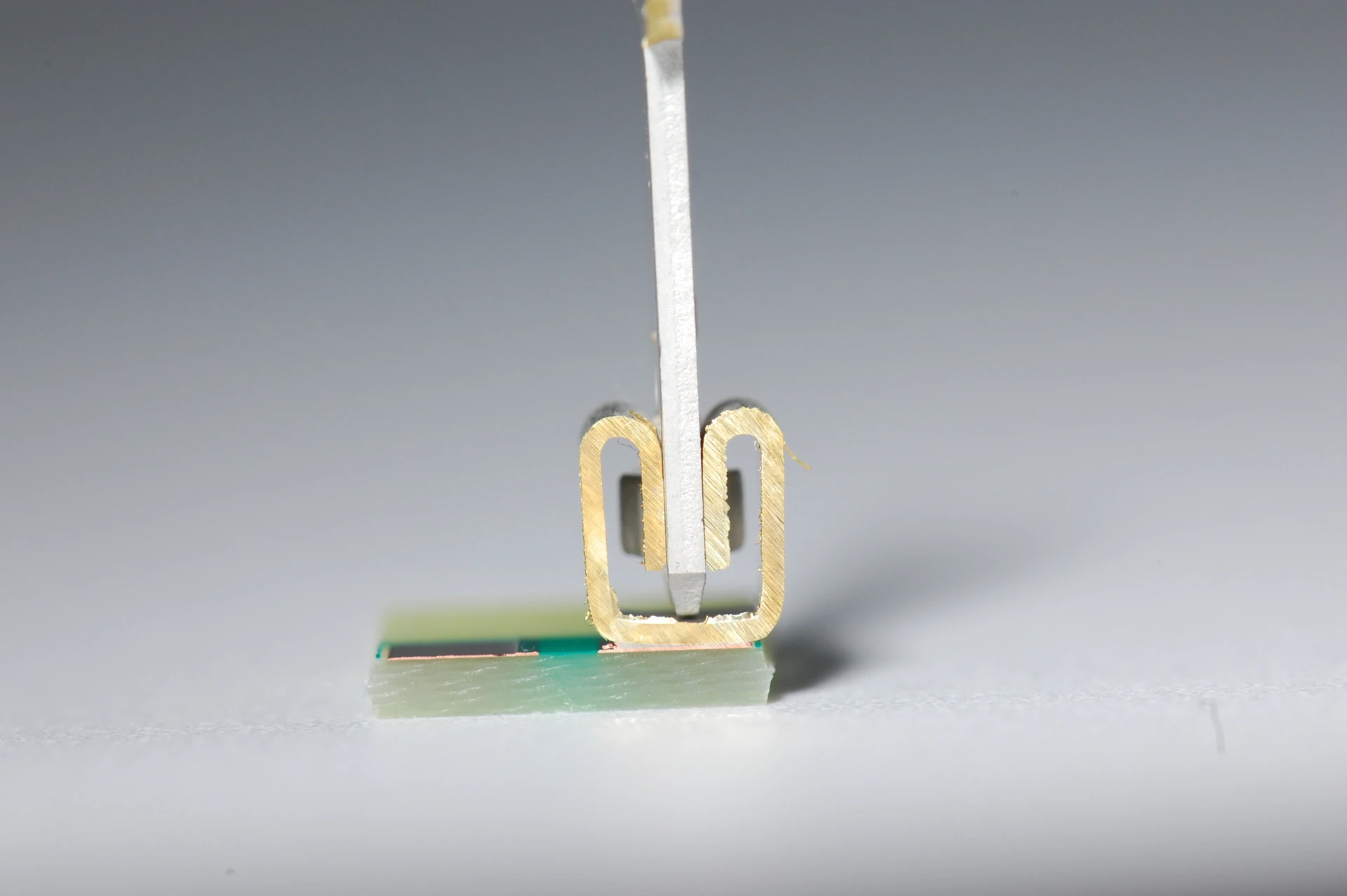

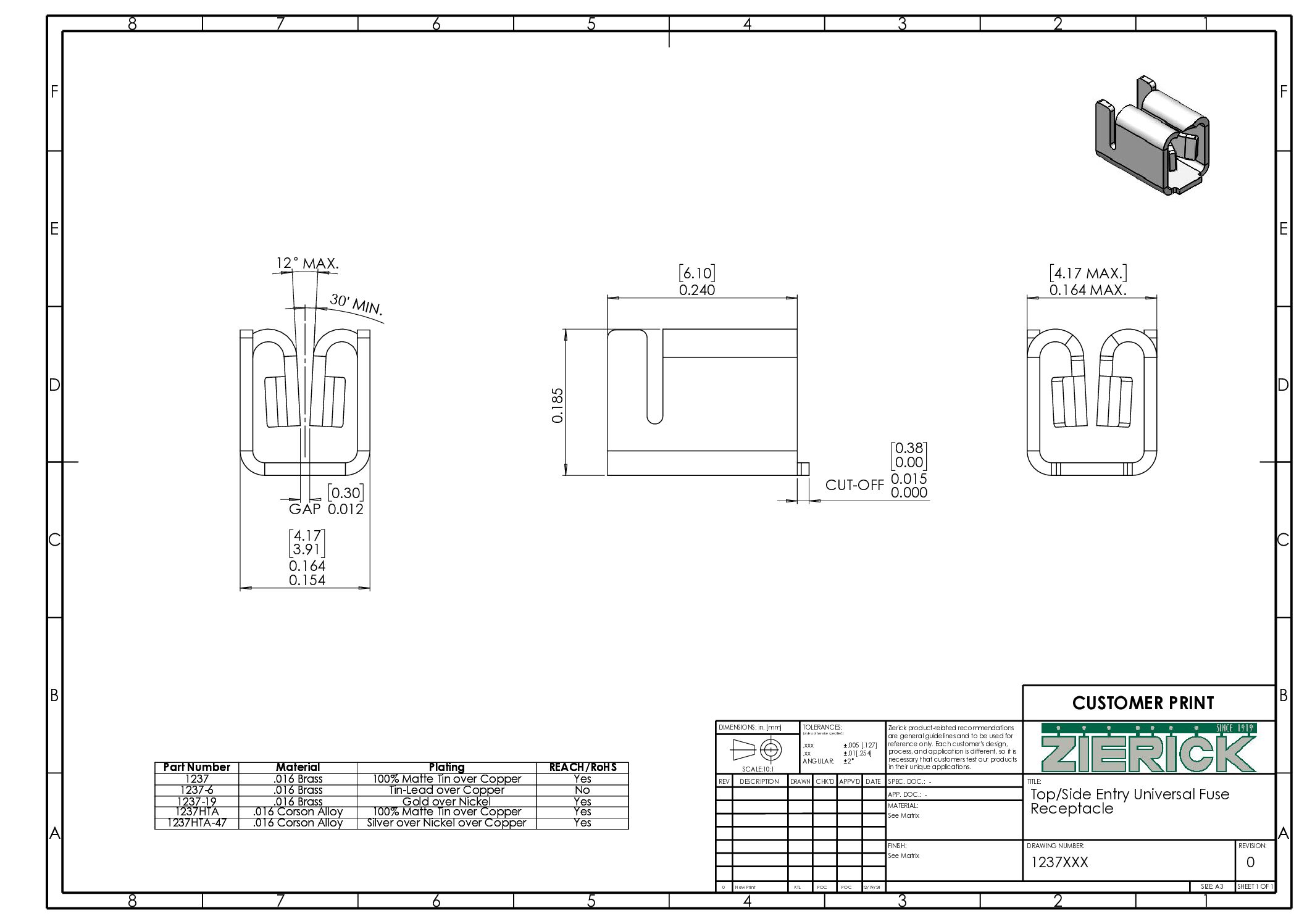

Top & Side Entry
Features & Benefits
- Forgiving for mating misalignment
- Mates with a range of tab thicknesses and widths
- Low insertion force
- High current rating (25 Amps)
- High mating cycle (12 cycles)
- Performs well in extreme environments (e.g. shock, vibration, elevated temperatures)
- Designed for automation using pick and place equipment
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.016in (0.41mm) |
| Finish Code | 0 |
| Current Rating | 25 Amperes |
| Mating Terminal Size | 0.025in (0.64mm) to 0.032in (0.81mm) thick |

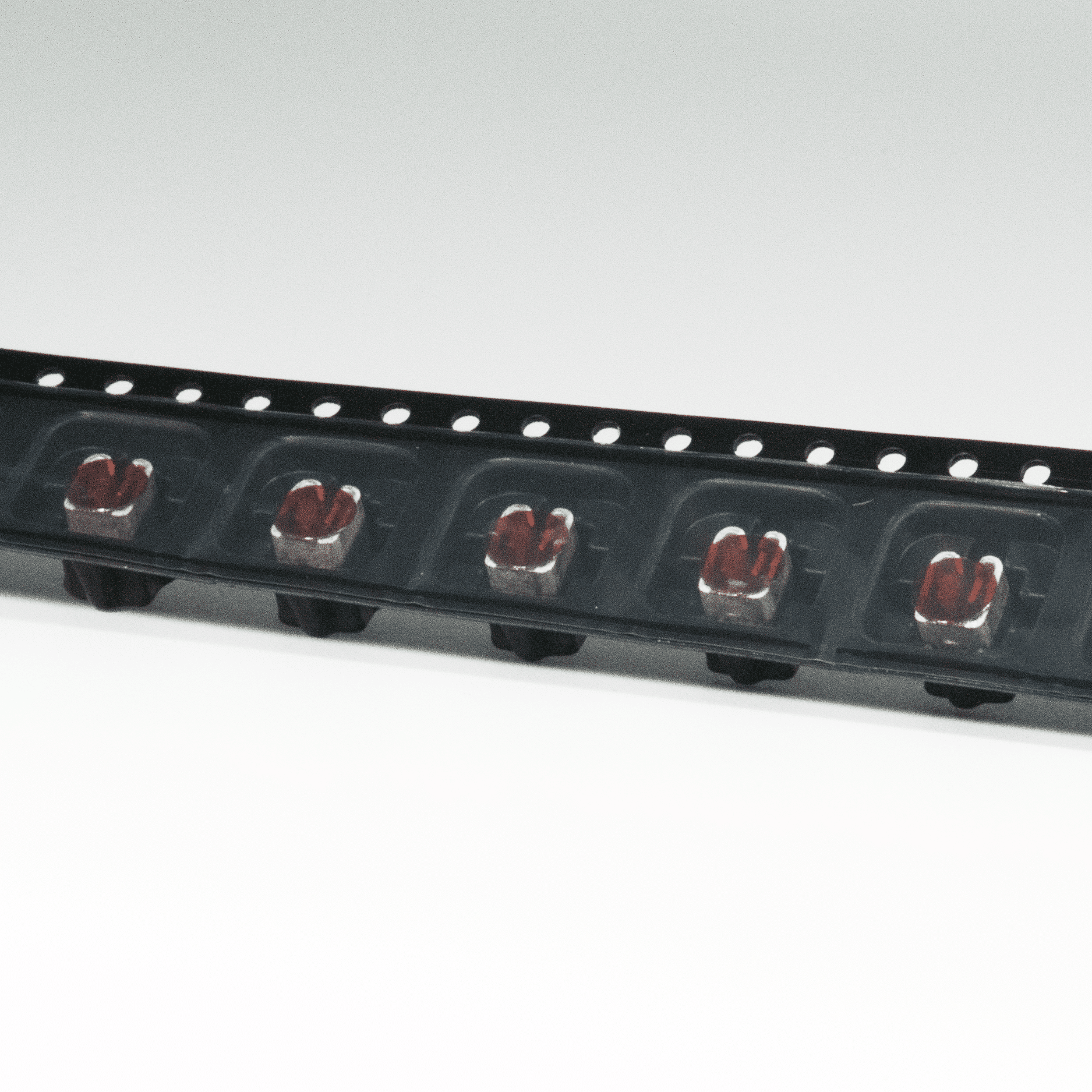

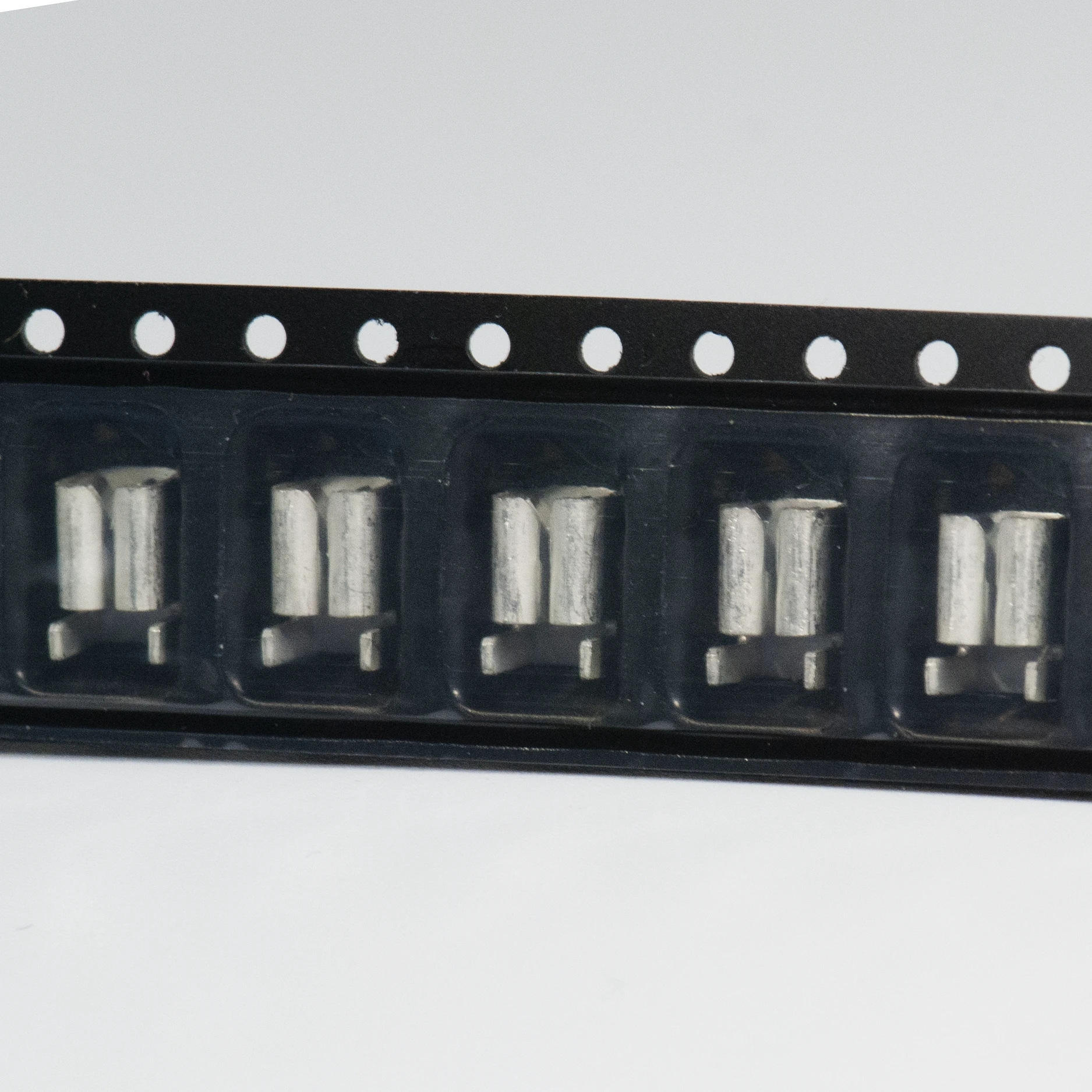

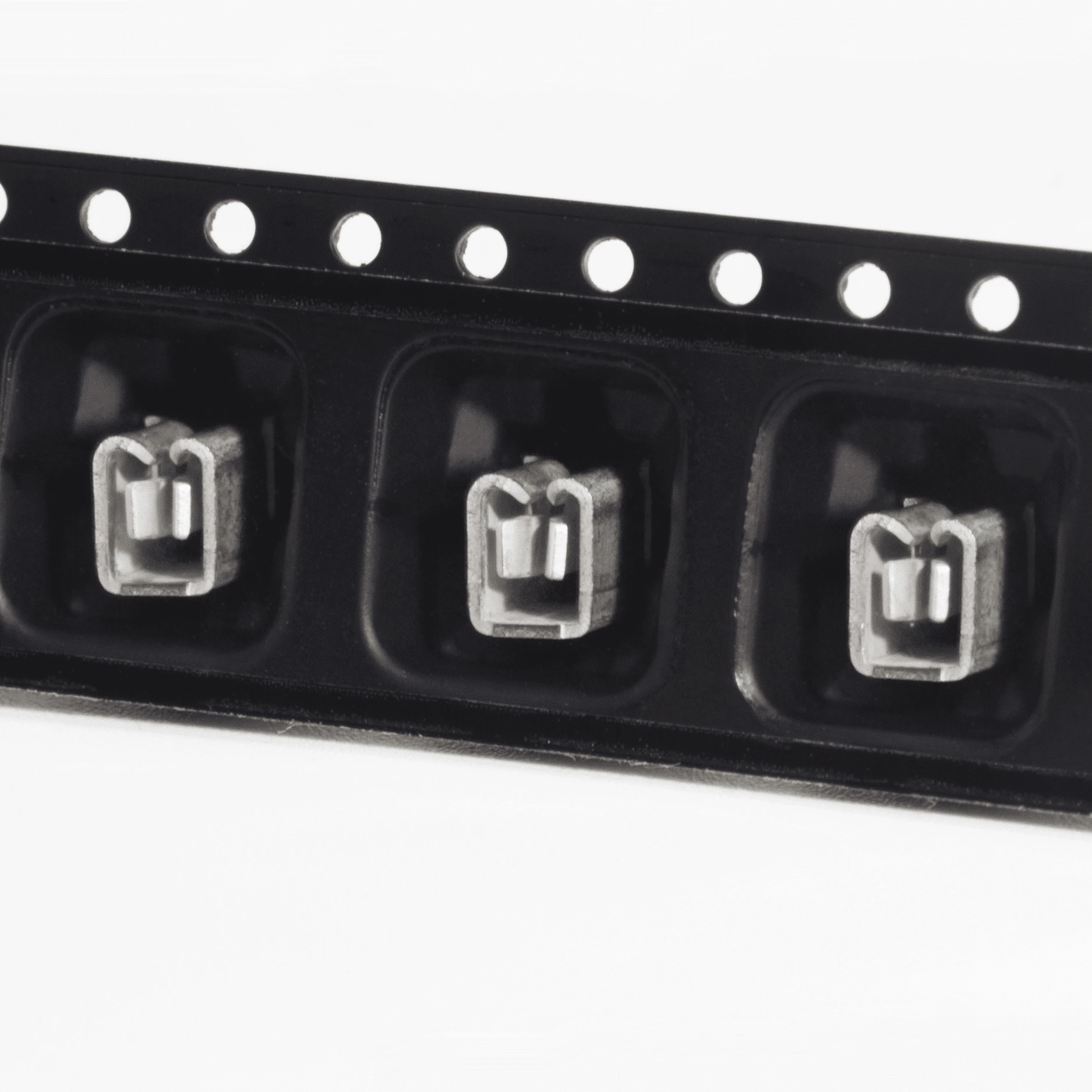

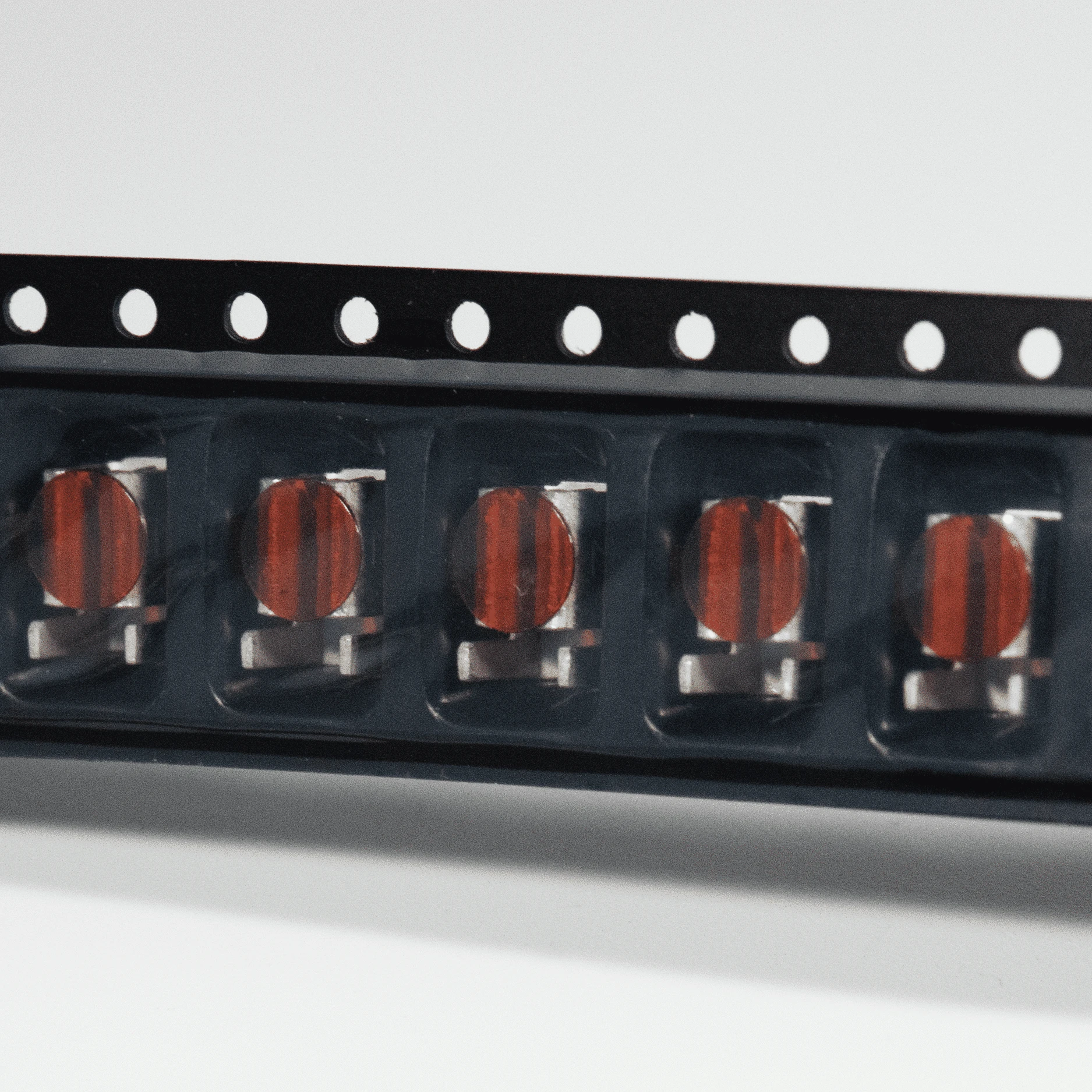

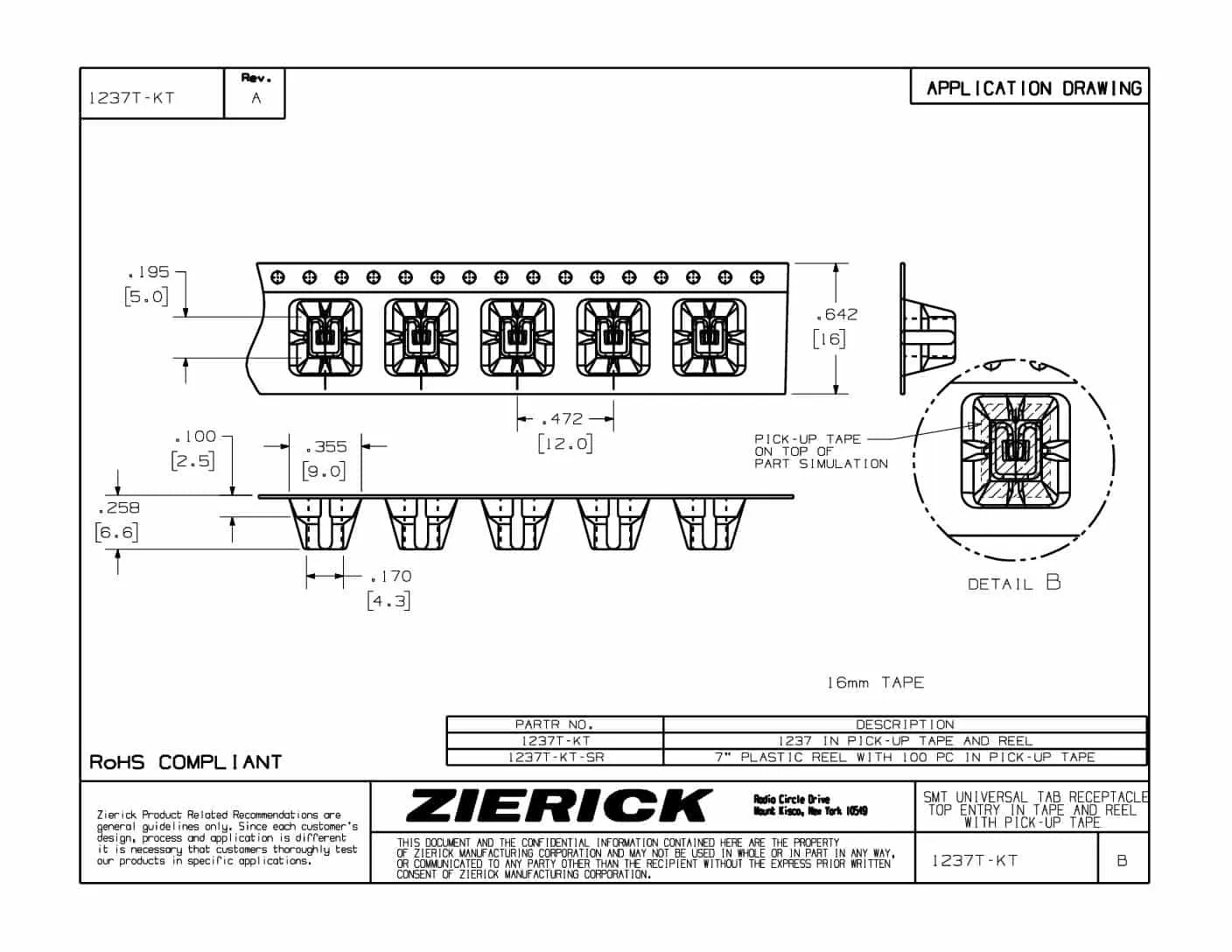

| Feeder System | Consult factory for continuous strip P/N 6237 |
| Patent | U.S. Patent No. 5, 730, 608 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
