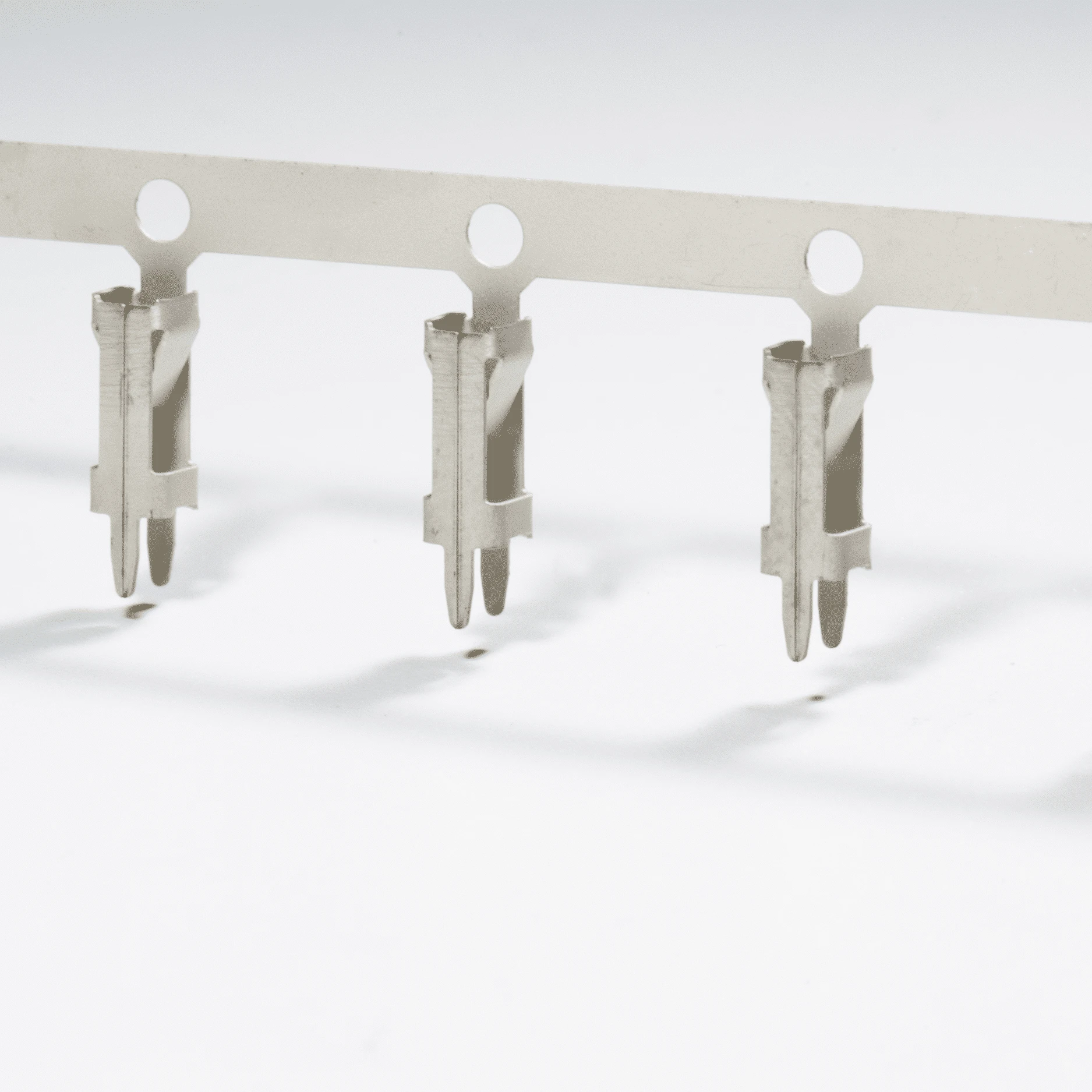

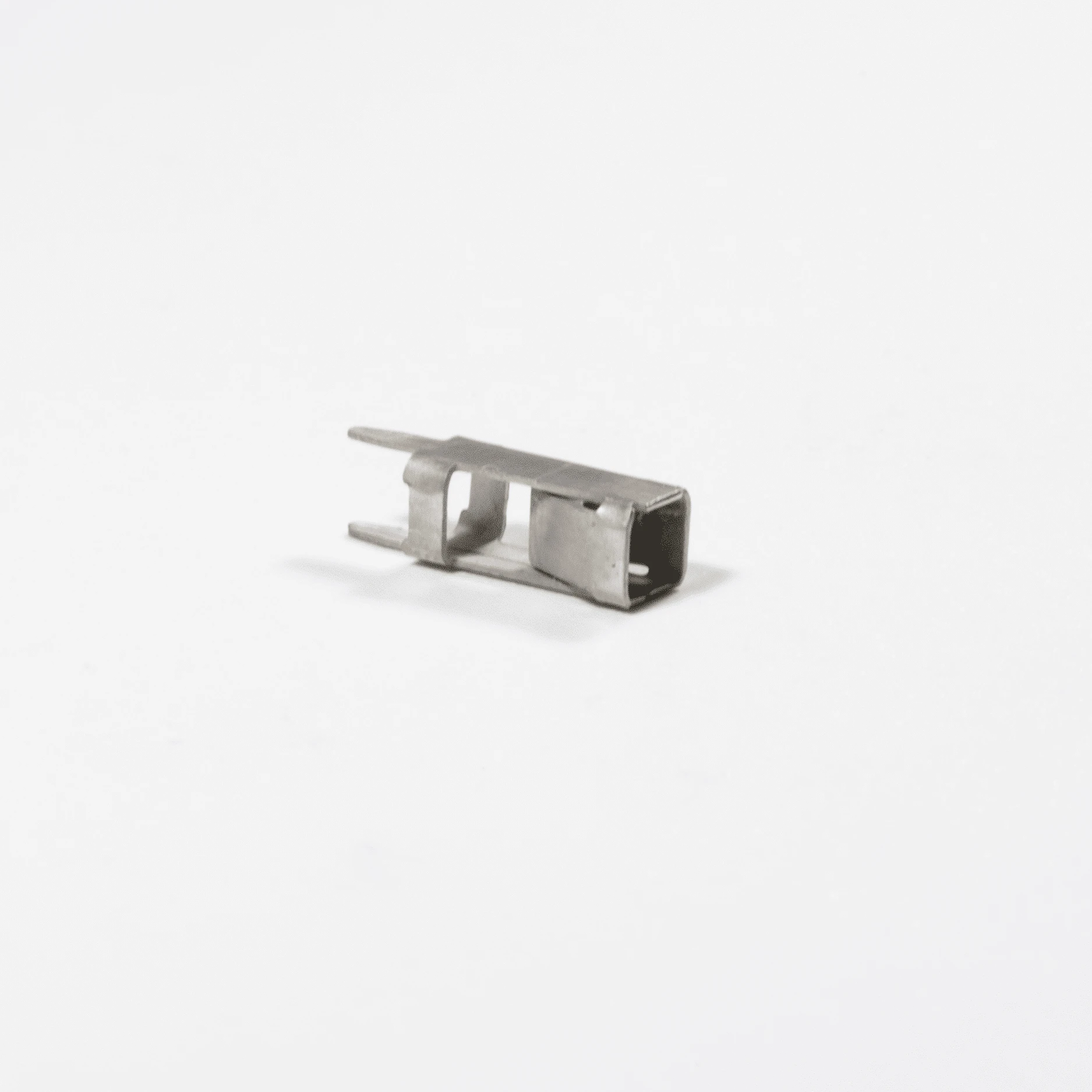

Top Entry

Features & Benefits
Item added to cart View Cart Checkout
Information
SKU: 6187X
Categories:
Resources

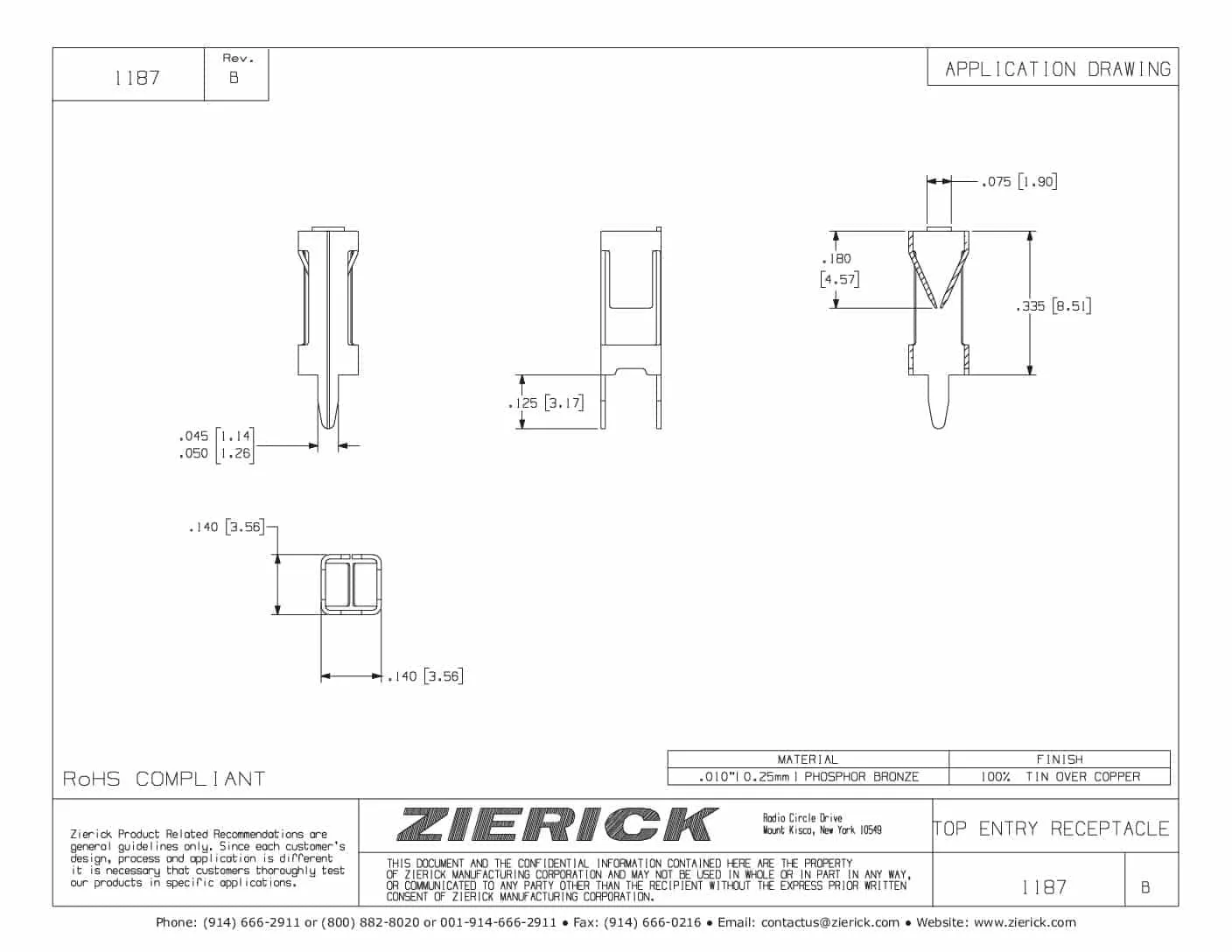

Prints: Additional:
Share:
Specification
Material Type

C51000 Phosphor Bronze

Material Thickness

0.010in (0.25mm)

Standard Finish

100% Matte Tin over Copper (0)

Current Rating

10 Amperes

Mating Type

Vertical

Insertion Force-Max.

Application Dependent / Submit Mating Terminal Sample to Factory.

Withdrawal Force-Max.

Application Dependent / Submit Mating Terminal Sample to Factory.

Resistance Rating

10mOhm Max

Mating Terminal Size

0.025" (0.64mm) to 0.095" (2.41mm) Round or Square and 0.032" x 0.110" Blade

Mating Entry

Top

Mounting Type

Outward Splay

Temperature Rating

-65° to 105°C

Mounting Hole Diameter

2 holes 0.050" ±0.003" (3.81mm ±0.076mm) on 0.130" ±0.003" (3.302mm ±0.003mm) centers

Applicator System

Model 9700, 9700 XY

UL File Number

E361770

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
