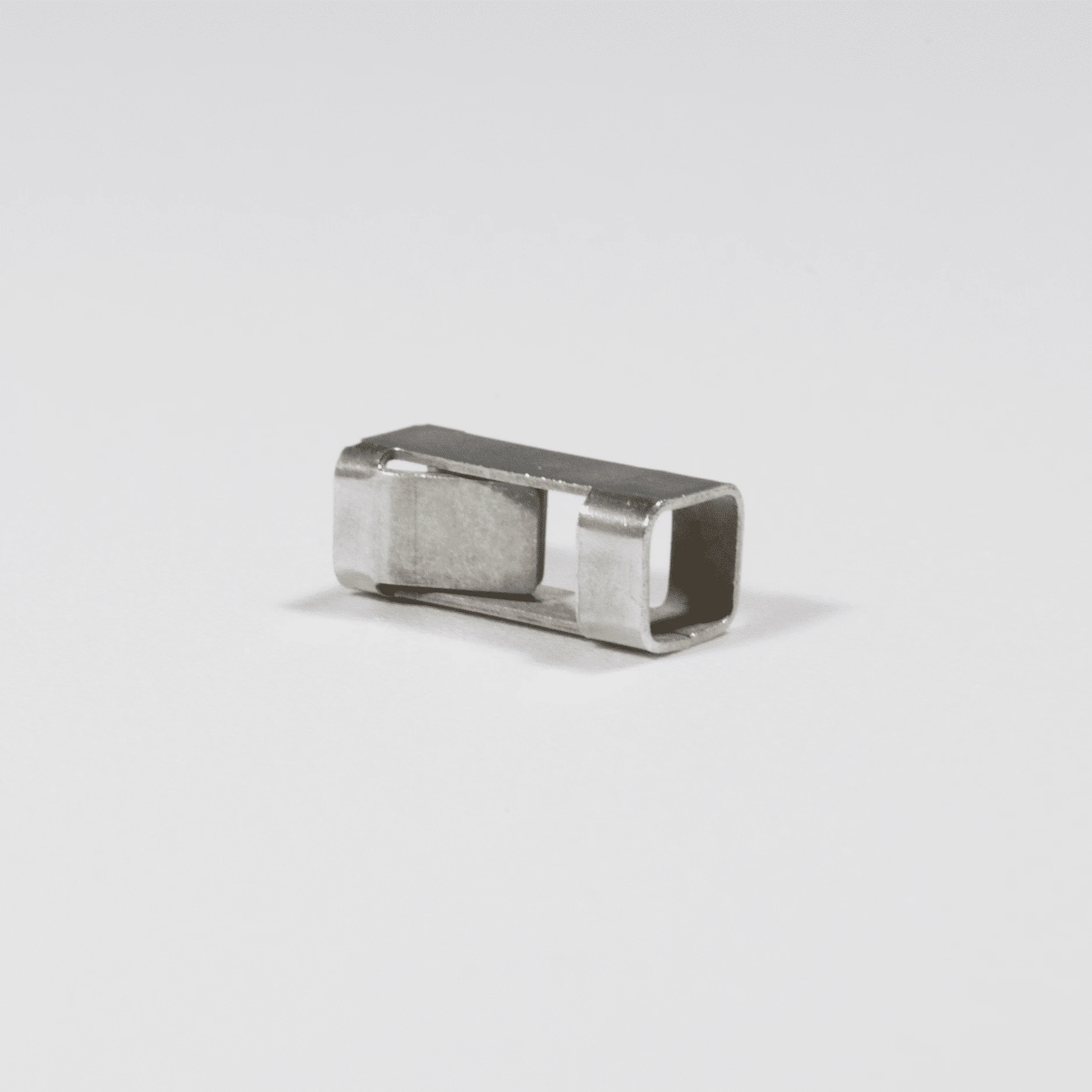

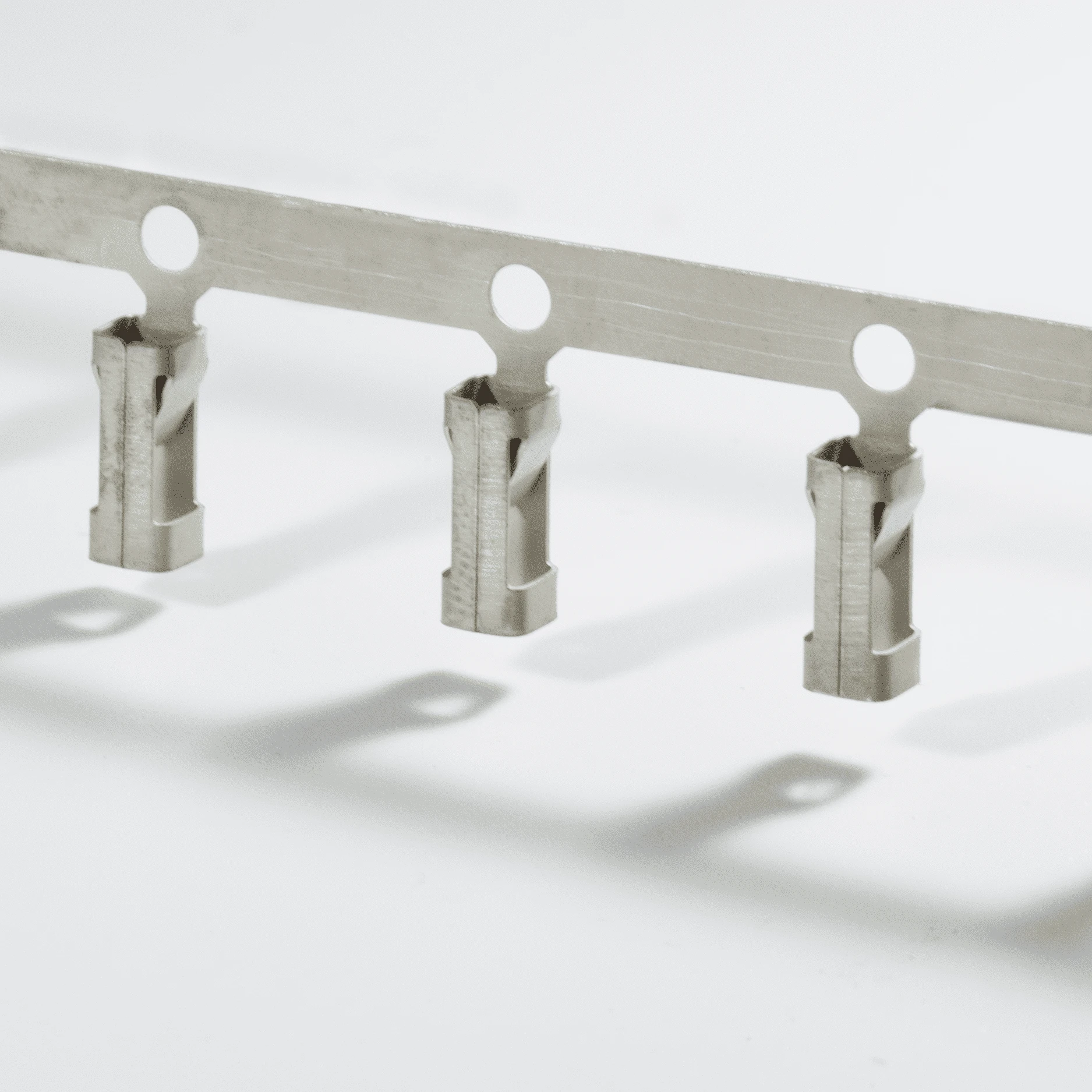

Top Entry
Features & Benefits
- Mates, top entry, with a pin from 0.025″ to 0.095″ and blades to 0.032″ x 0.110″
- High current rating

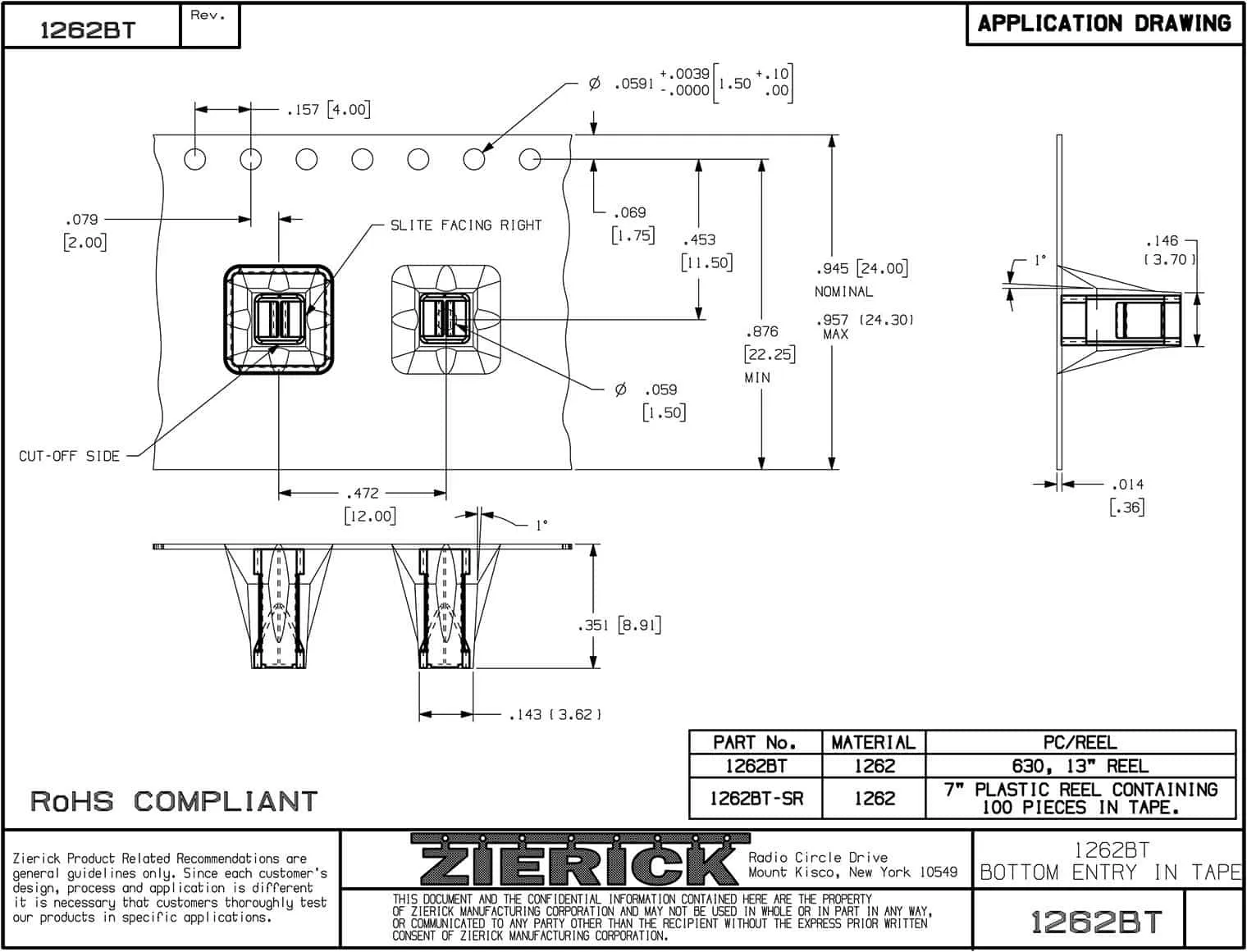

- Can also be placed upside down on the board to mate with a through-board pin
- Low insertion force
- High pressure contact area for reliable gas tight connection
- A dozen mating cycles (higher mating cycle version available)
- Small footprint
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required

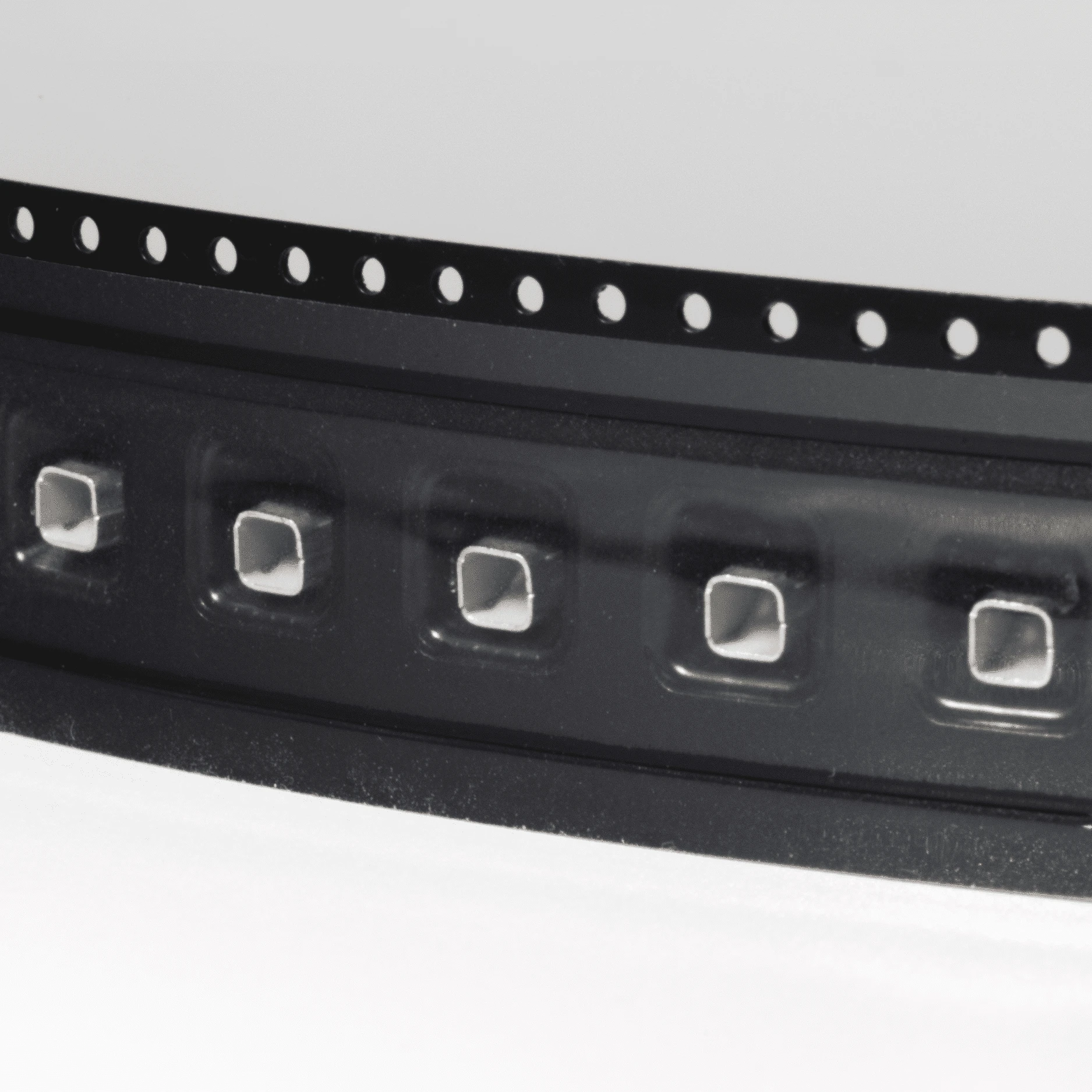

- Can be automated using standard tape feeders
Specification
| Material Type | C51000 Phosphor Bronze |
|---|---|
| Material Thickness | 0.010in (0.25mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 17 Amperes |
| Mating Terminal Size | 0.025in (0.64mm) to 0.095in (2.41mm) Round or Square and 0.032in x 0.110in Blade*UL Recognition based on these mating terminals |

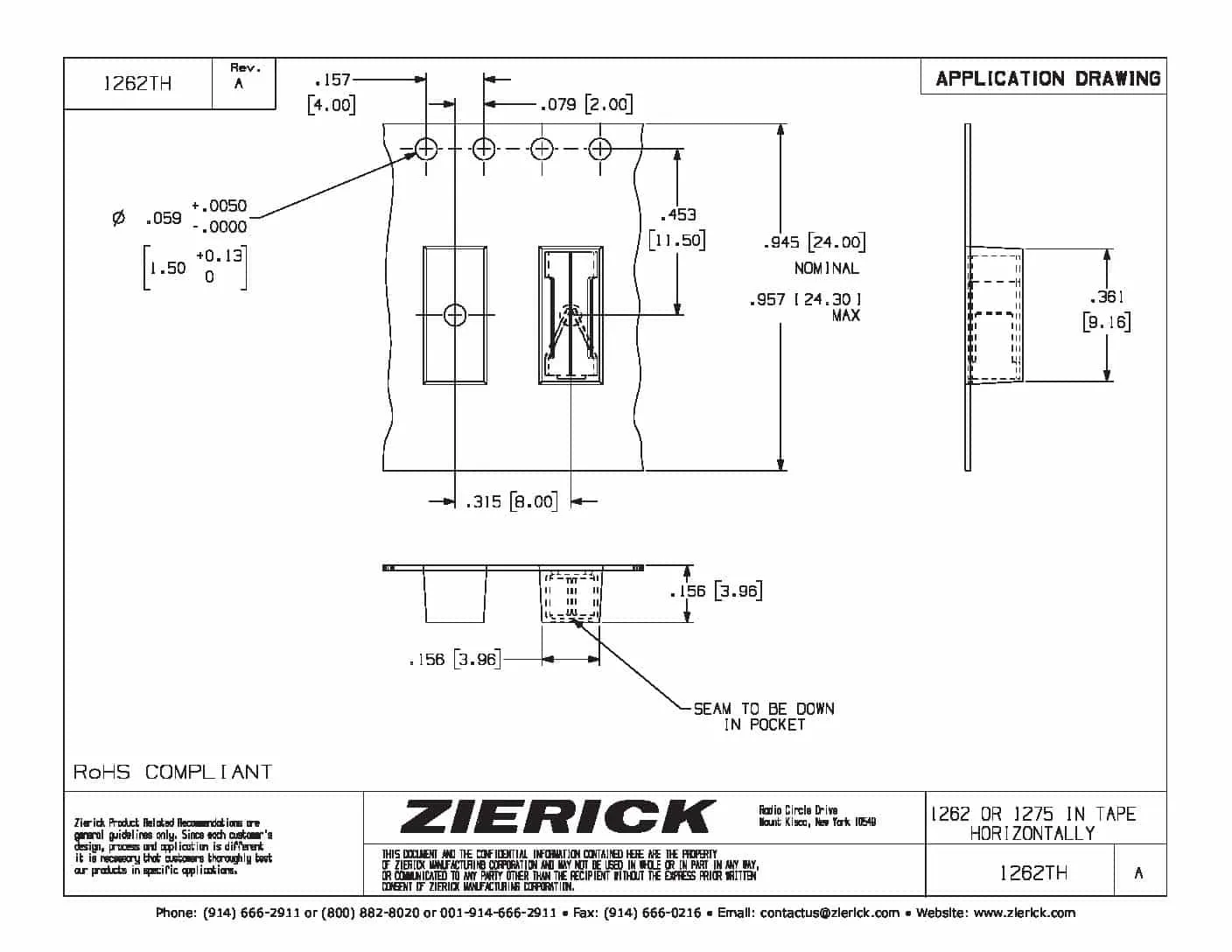

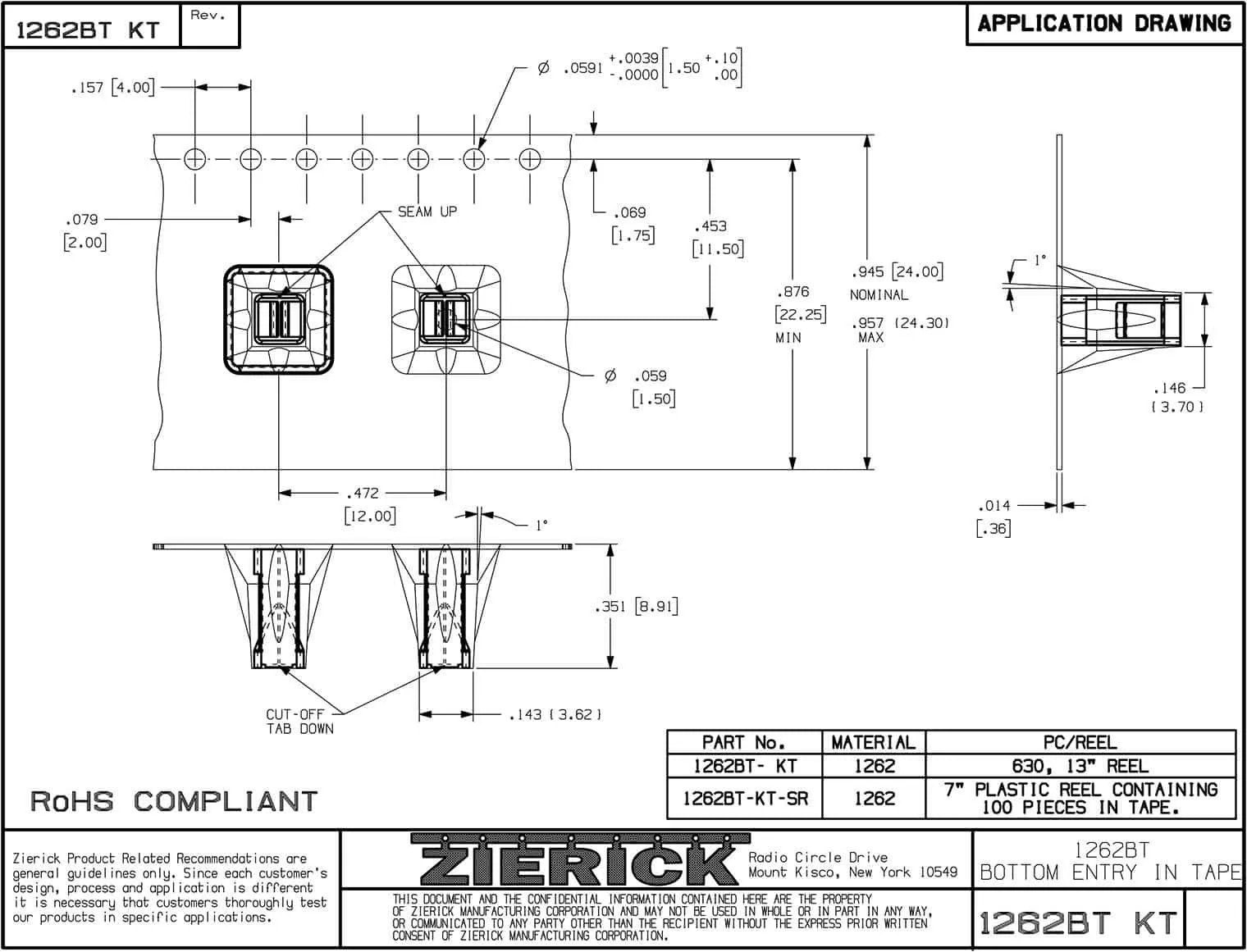

| Feeder System | Standard 24mm Tape Feeder (1262TH and 1262T) |
| UL File Number | E361770 |

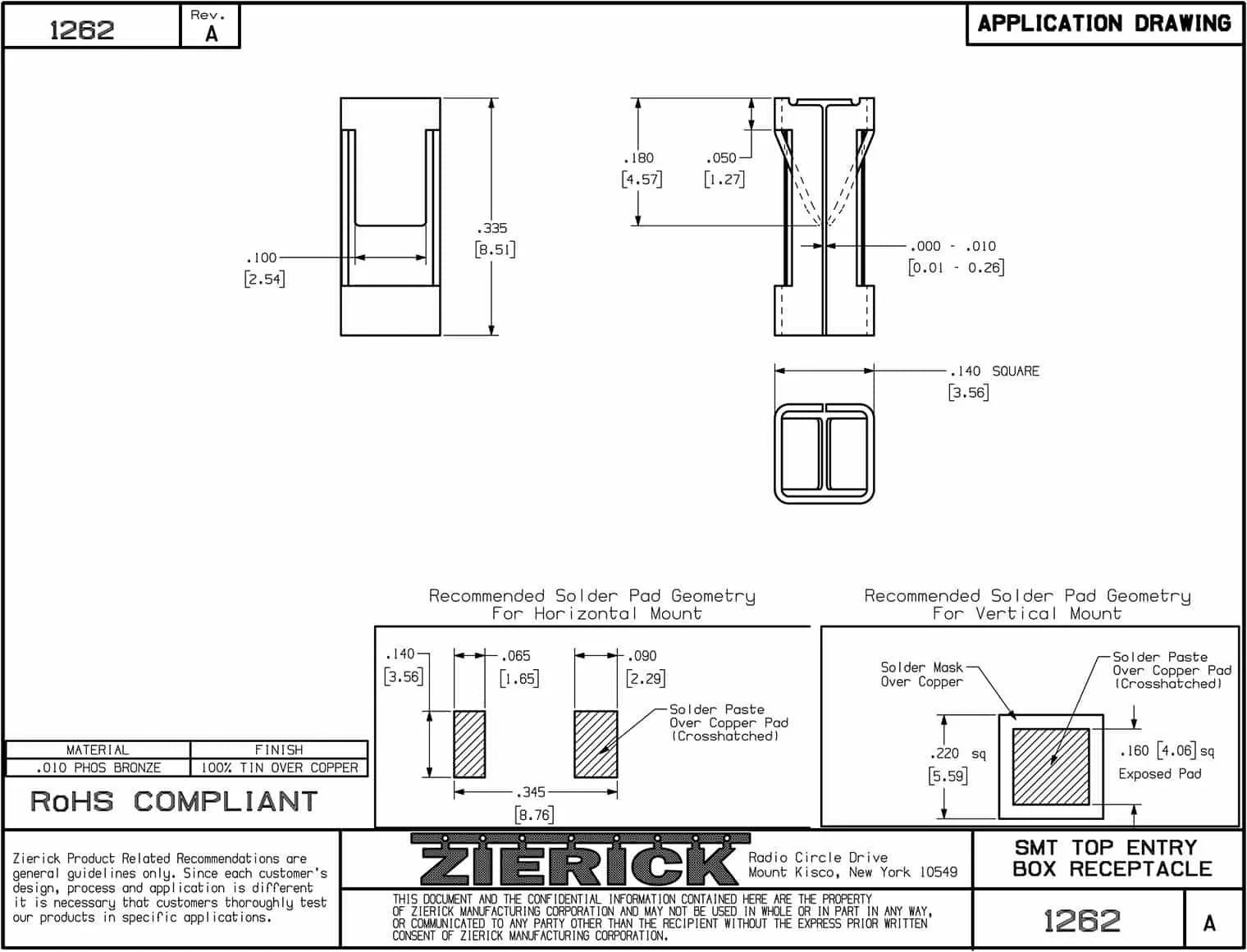

| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
