Split Leg, Series 6201
Features & Benefits
Information
SKU: 6201X
Categories: Vertical .110" (2.79mm) Faston Tabs
Resources

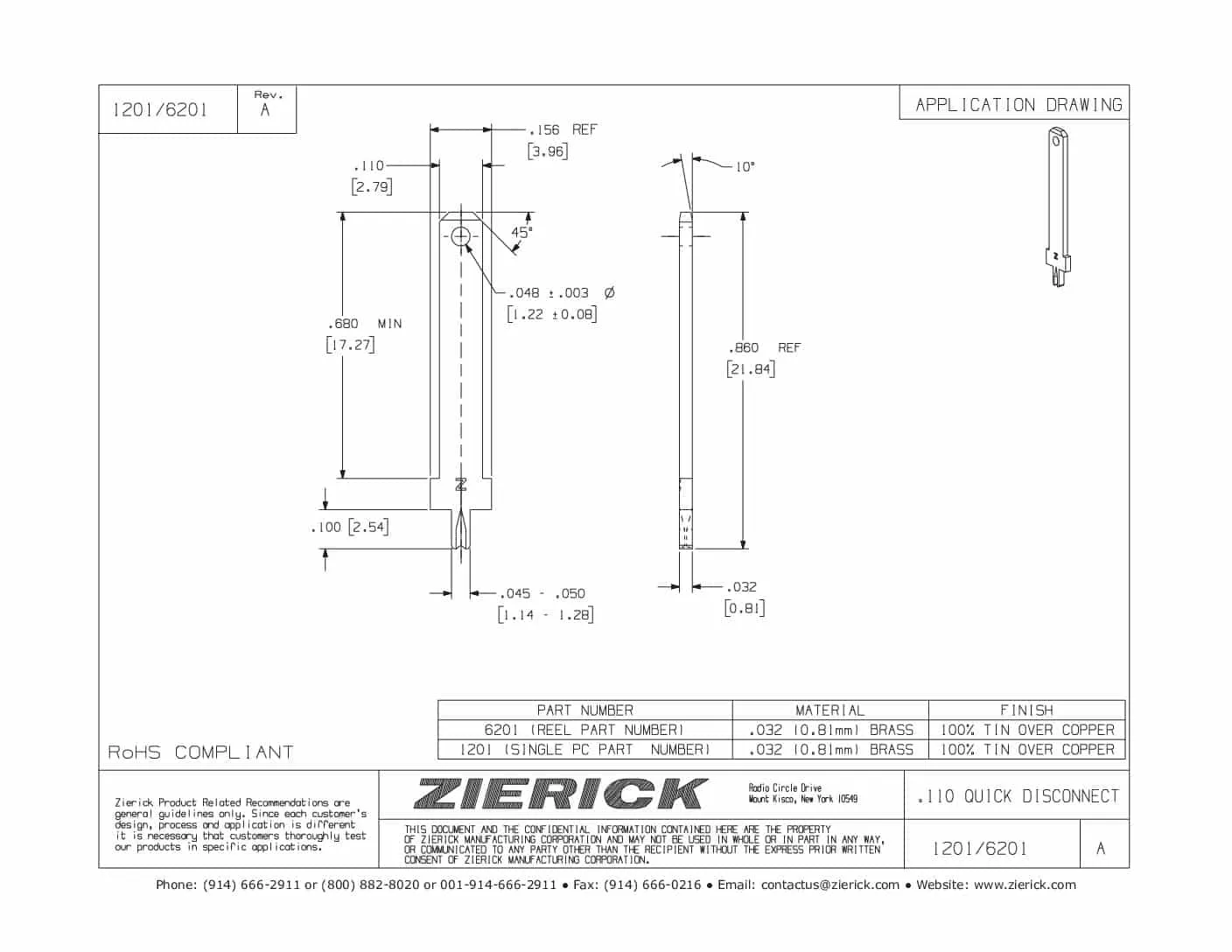

Prints: Additional:
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.032in (0.81mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mounting Type | Split Leg Splay |
| Mounting Hole Diameter | 0.055" ±0.003" (1.40mm ±0.076mm) |
| Applicator System | Model 9700, 9700 XY |
| UL File Number | E146208 |
