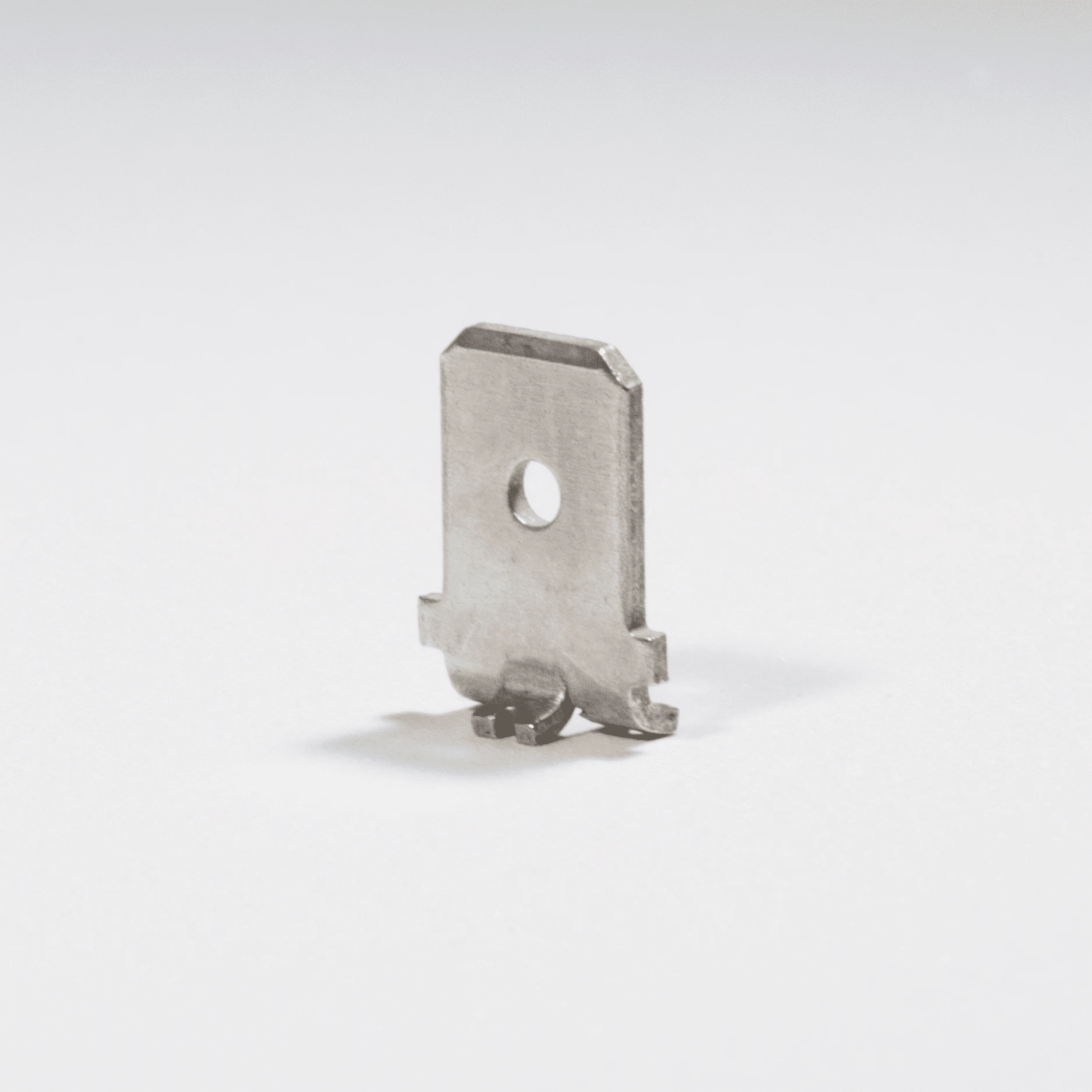

SMT
Features & Benefits
- High retention forces
- Shoulder on part provides a stand-off for the mating part from the PCB
- Retains typical through-hole Quick Disconnect Tab features
- Doesn’t float during reflow
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
- Can be automated using standard tape feeders

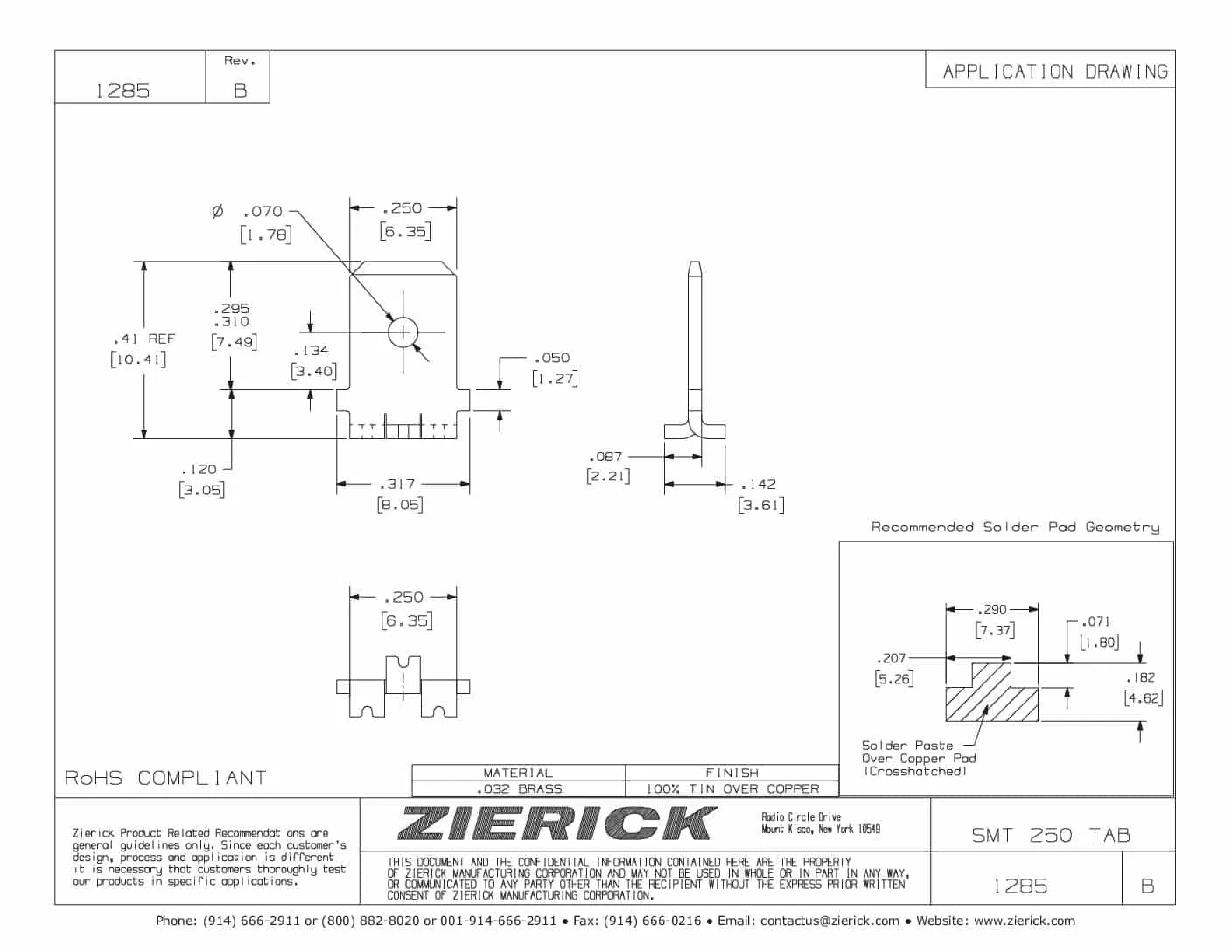

Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.032in (0.81mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 25 Amperes |
| Hole Dimnsion | 0.070in (1.78mm) hole |
| UL File Number | E146208 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
