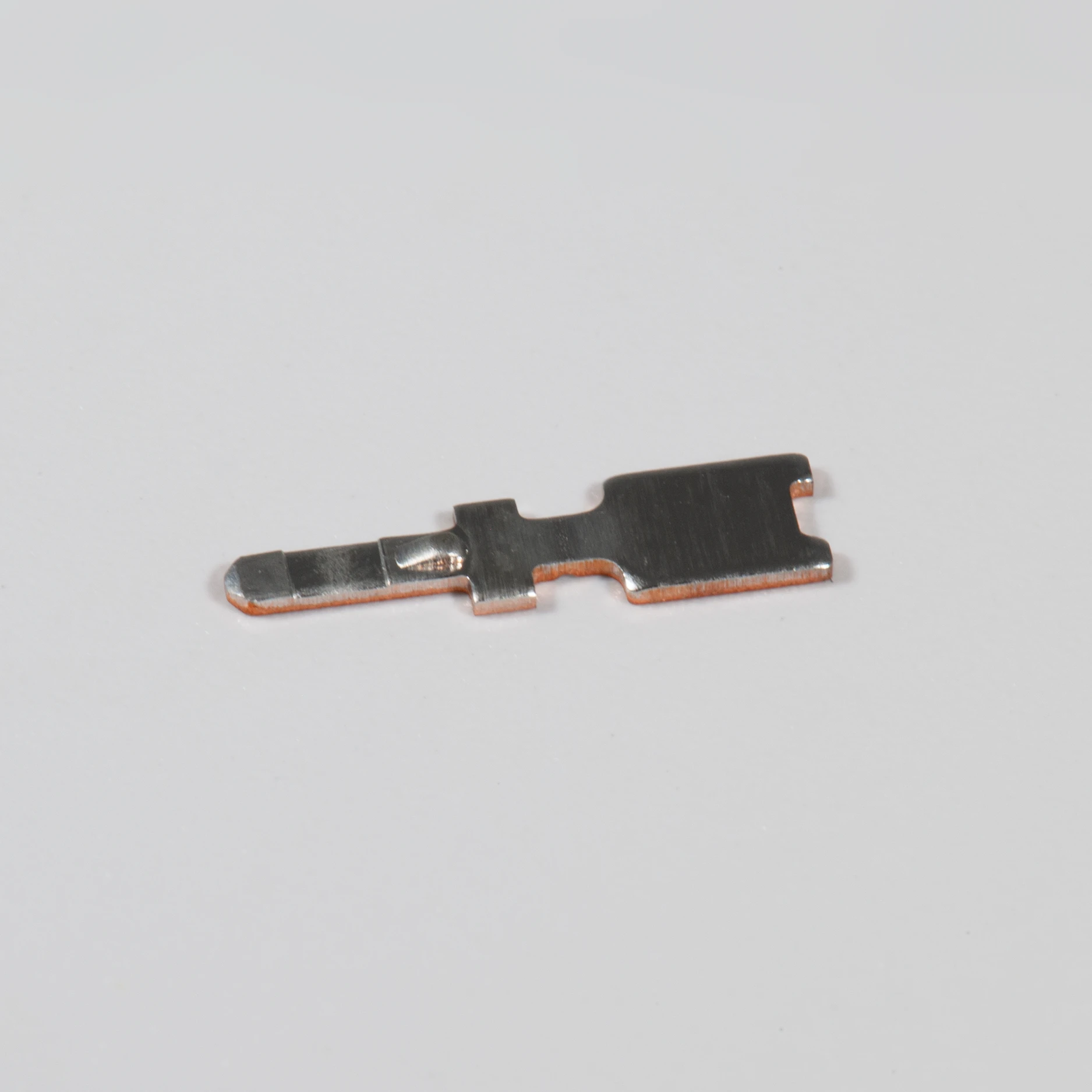

Plug Connector
Features & Benefits
FEATURES AND BENEFITS
- Allows for Board Edge Connection
- Extremely Low Profile
- Designed for multiple mating cycles
- Low Insertion Force
- Can be automated using standard tape feeders.
Specification
| Packaging Type | Taped |
|---|---|
| Mating Terminal Size | Designed to mate with Zierick P/N SD01700 |
| Material Thickness / Type | 0.020" (0.51mm) Copper C1100R |
| Standard Finish | 100% Pre-Tin over Copper Flash (16) |
| Current Rating | 2 Amperes |
| Feeder System | Standard 24mm Tape Feeder |
| Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses\\, call Zierick's product development department. | 1 |
