Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.

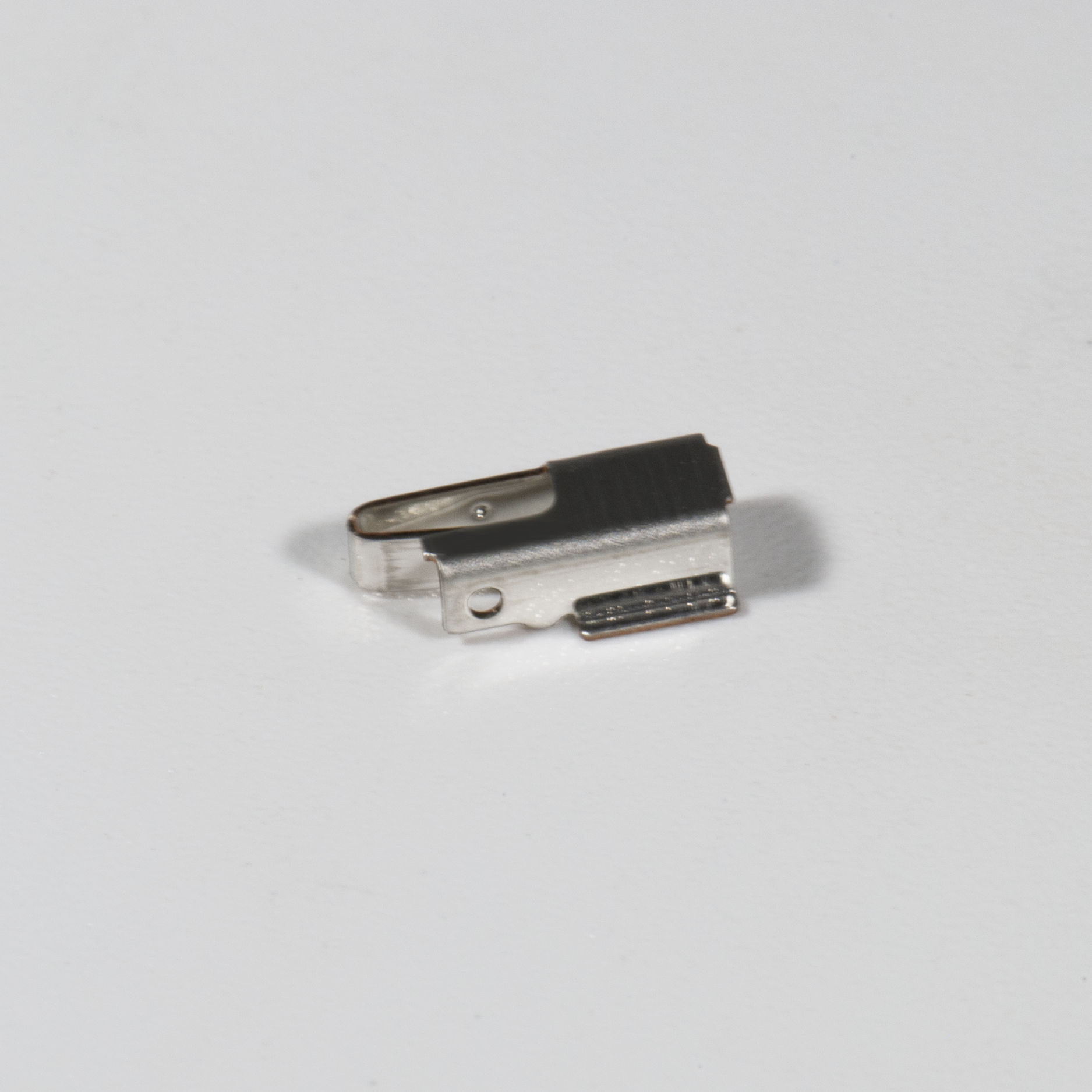

Plug-Receptacle Dual Connector
Features & Benefits
FEATURES AND BENEFITS
- Allows for Board Edge Connection
- Low Profile
- Designed for multiple mating cycles
- Low Insertion Force
- Can be automated using standard tape feeders.
Specification
| Packaging Type | Taped |
|---|---|
| Mating Terminal Size | Used in pairs as 'hand shake' arrangement |
| Material Thickness / Type | 0.008" (0.2mm) Phosphor Bronze |
| Standard Finish | 100% Pre-Tin over Copper Flash (16) |
| Current Rating | 2 Amperes |

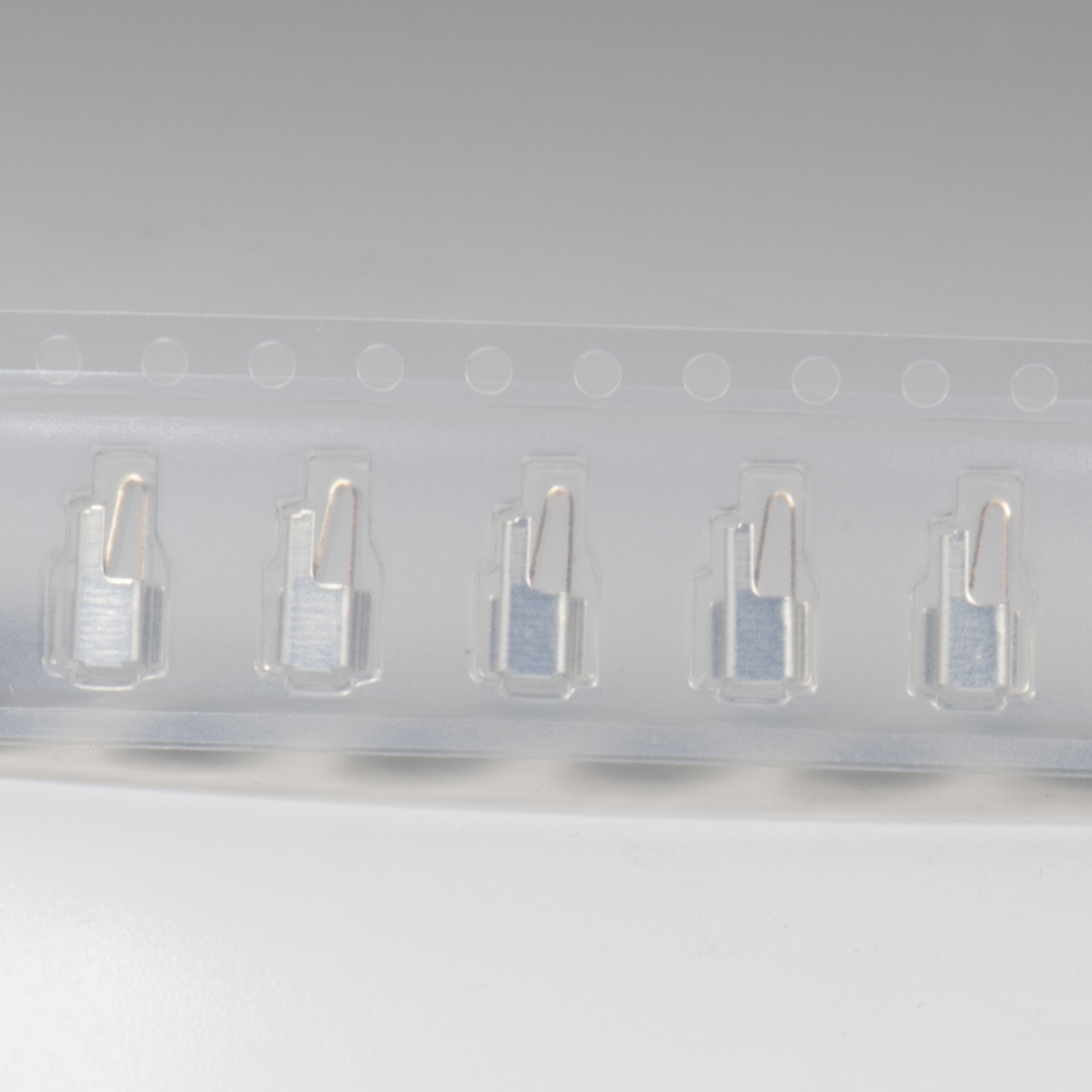

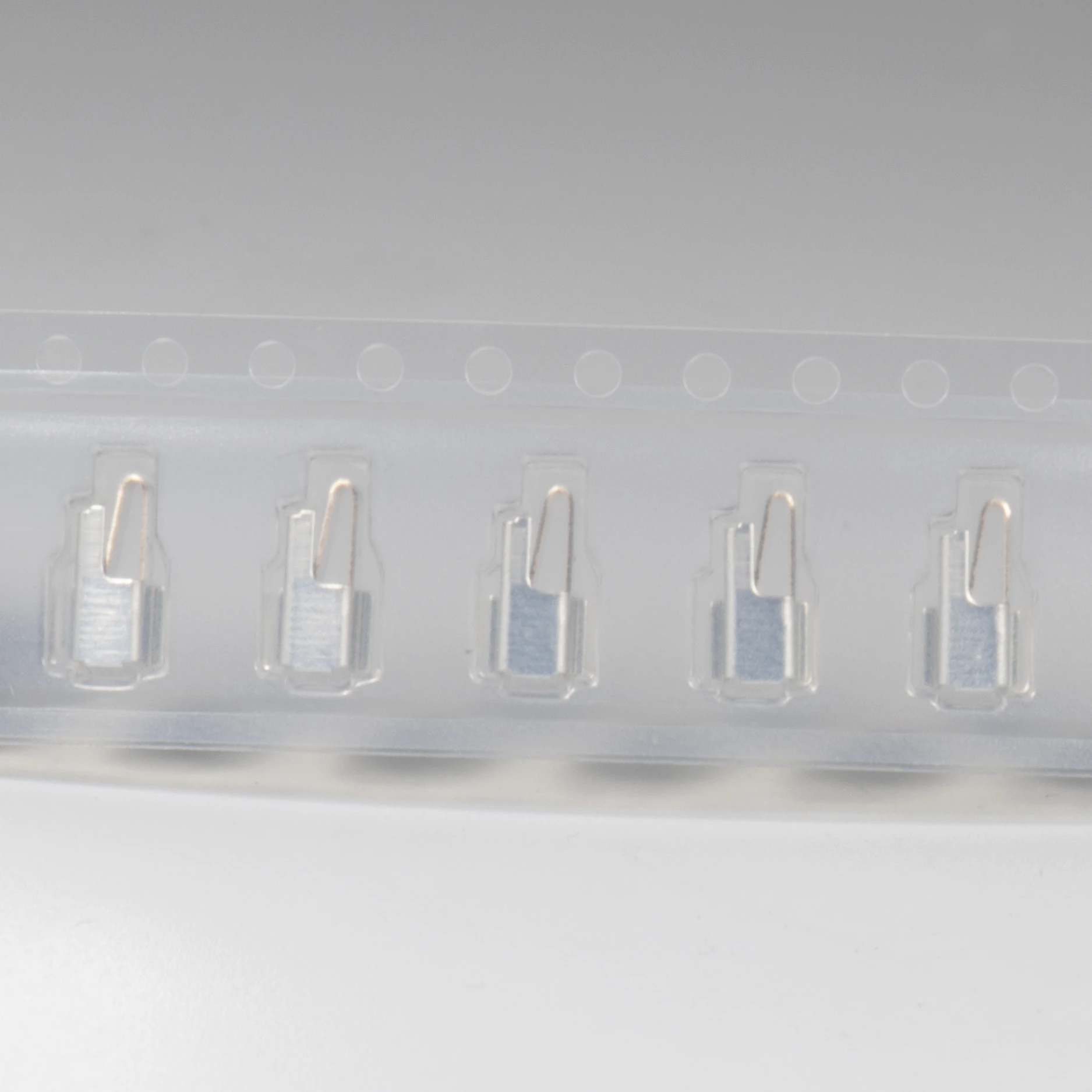

| Feeder System | Standard 16mm Tape Feeder |

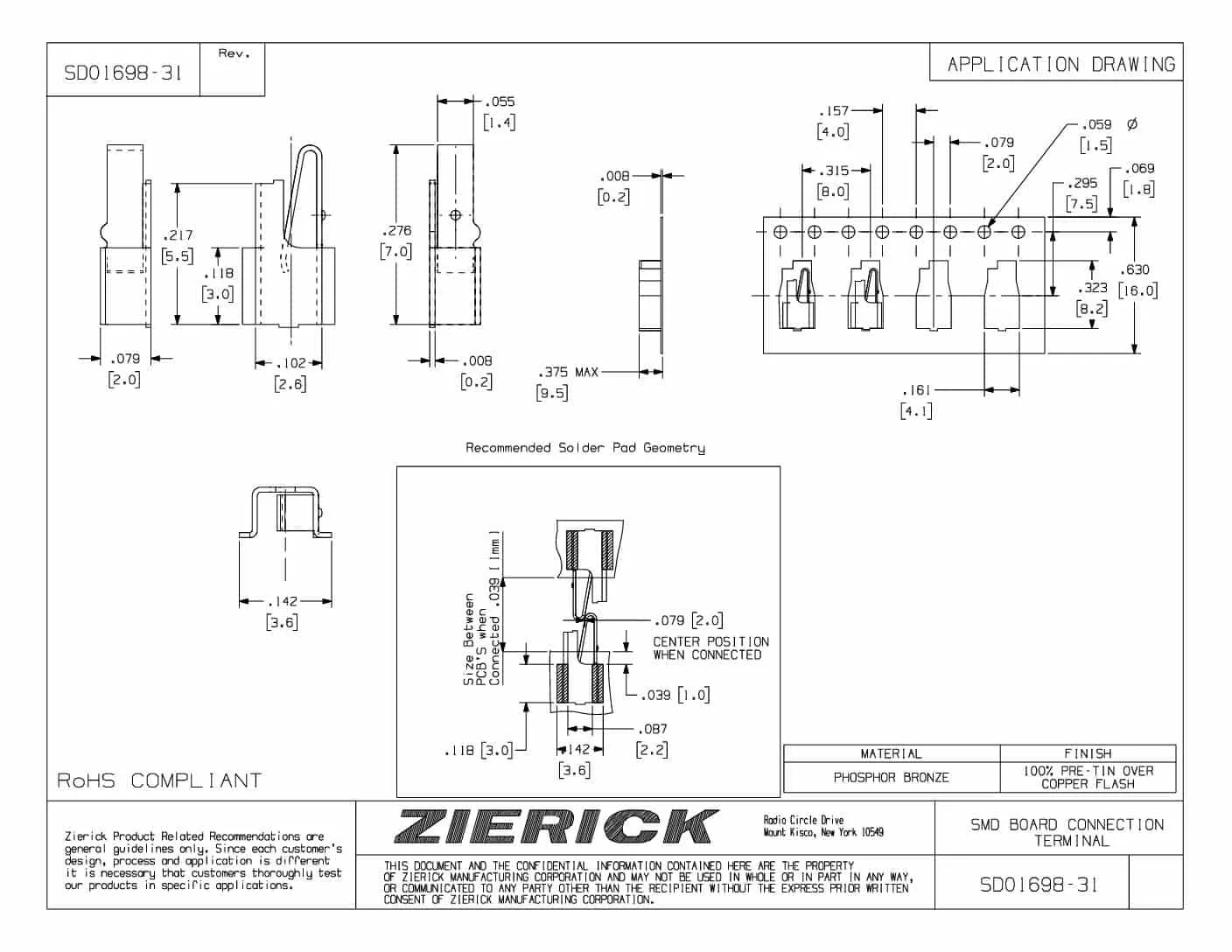

| Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses\\, call Zierick's product development department. | 1 |
