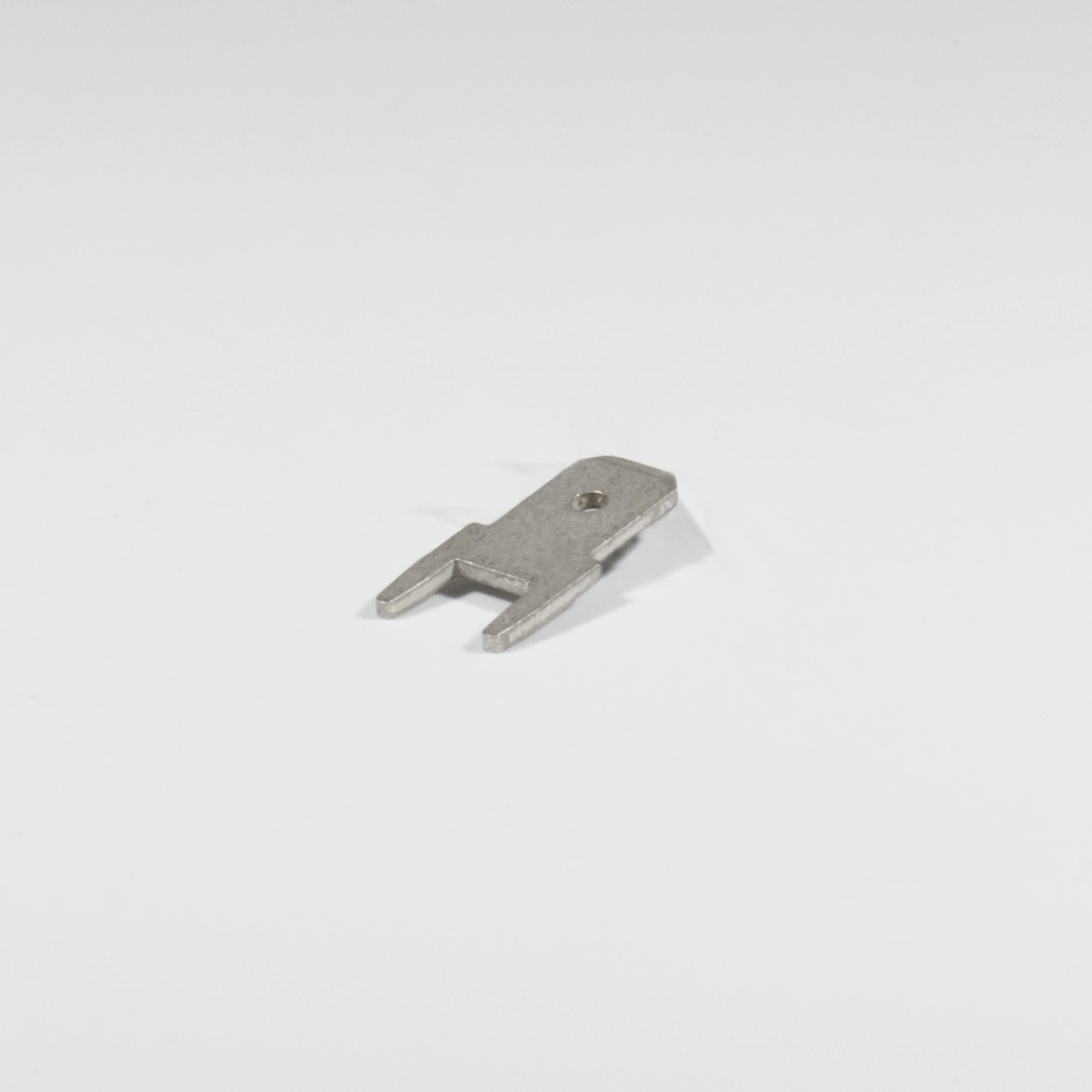

Press Fit, Series 894
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Type | C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076) |
| Applicator System | ZPT81-A |
| UL File Number | E146208 |
