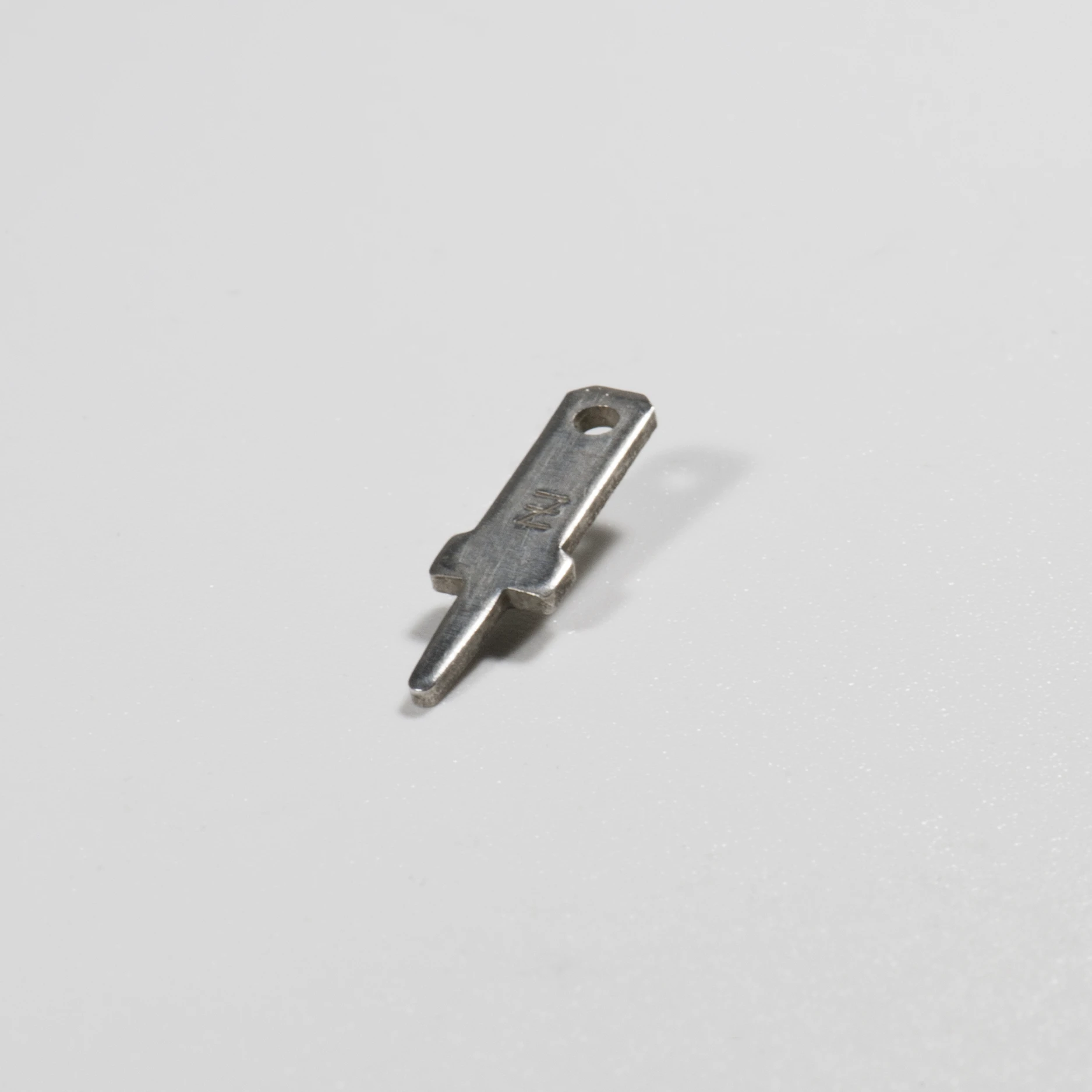

Press Fit, Series 6835
Features & Benefits
Specification
| Material Type | C26000 Brass |
|---|---|
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mounting Type | Press-Fit |
| Mounting Hole Diameter | 0.050" ±0.003" (1.27mm ±0.076mm) |
| Applicator System | Model 9700, 9700 XY |
| UL File Number | E146208 |
