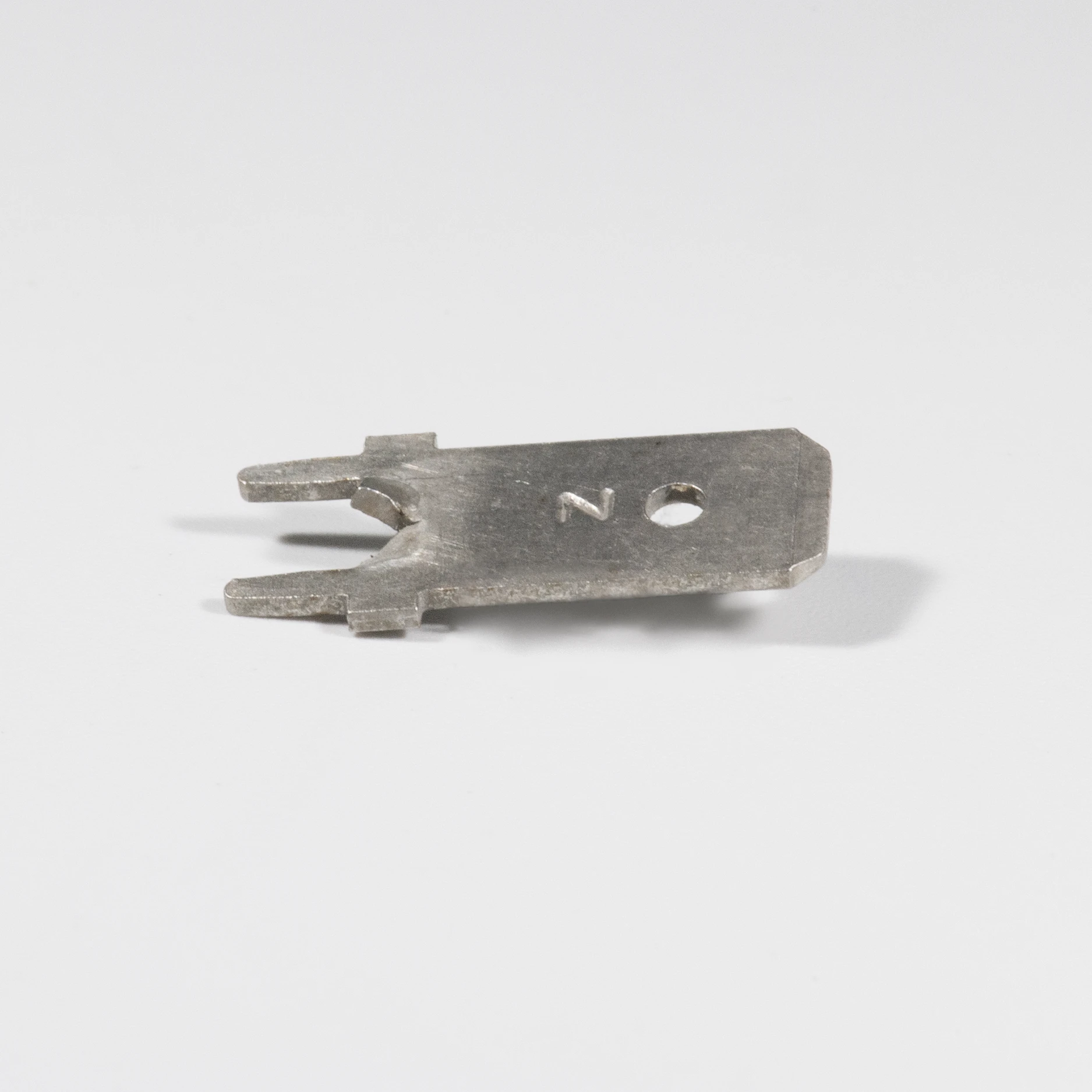

Press Fit, Series 6041
Features & Benefits
Information
SKU: 6041X
Categories: Vertical .250" (6.35mm) Faston Tabs
Resources

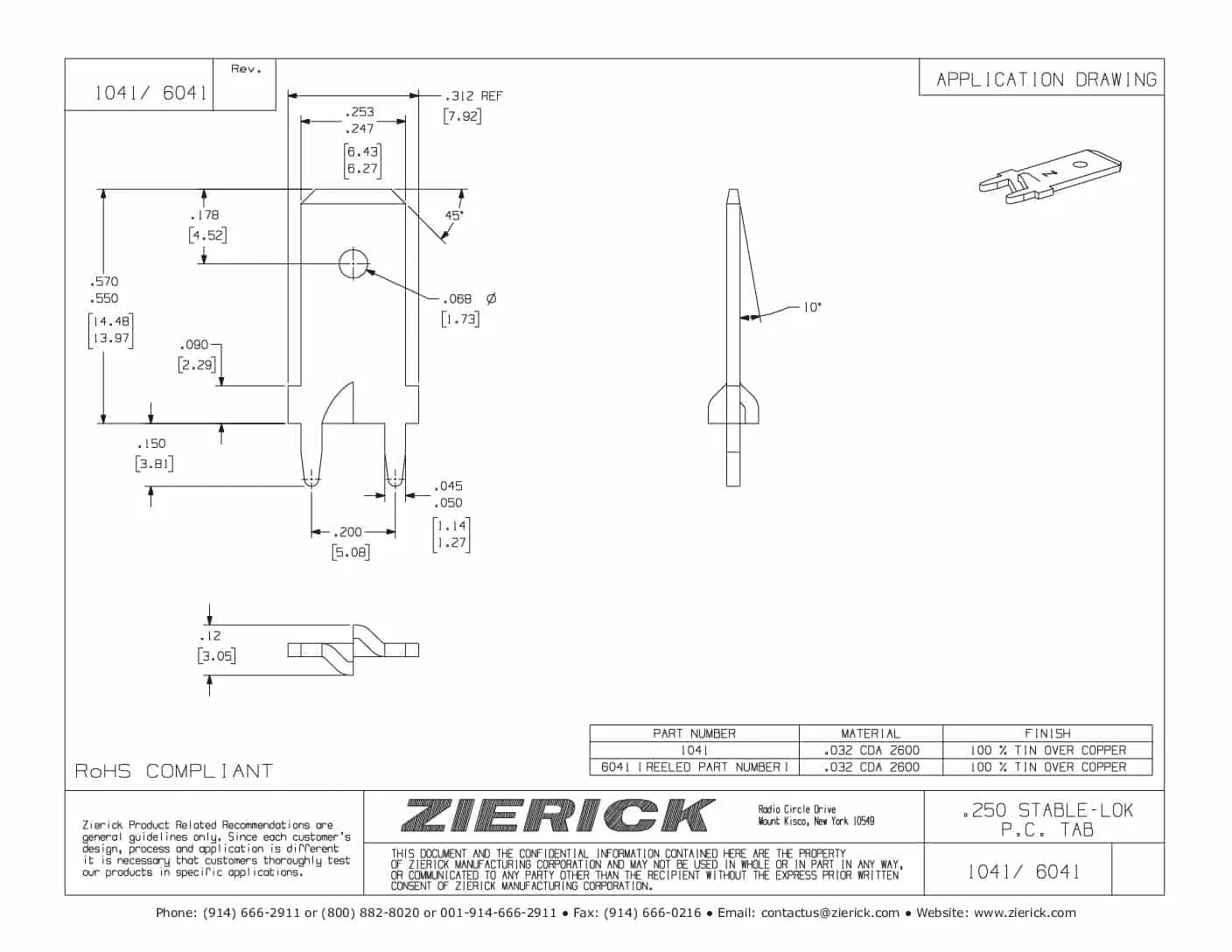

Prints: Additional:
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.032in (0.81mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076) |
| Applicator System | Model 9700, 9700 XY |
| UL File Number | E146208 |
