Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.

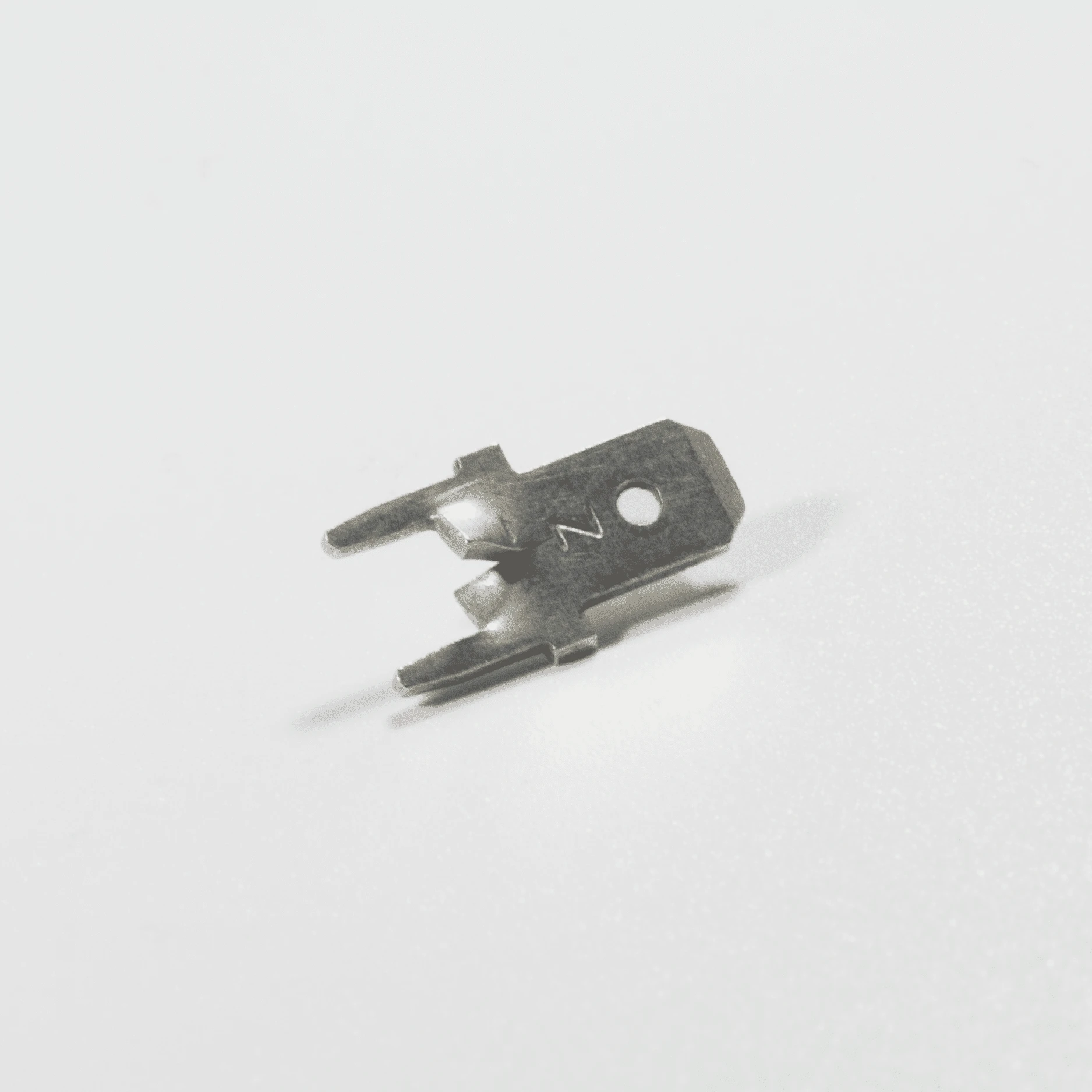

Press Fit, Series 6024
Features & Benefits
Specification
| Material Type | C26000 Brass |
|---|---|
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076mm) |
| Applicator System | Model 9700, 9700 XY |
| UL File Number | E146208 |
