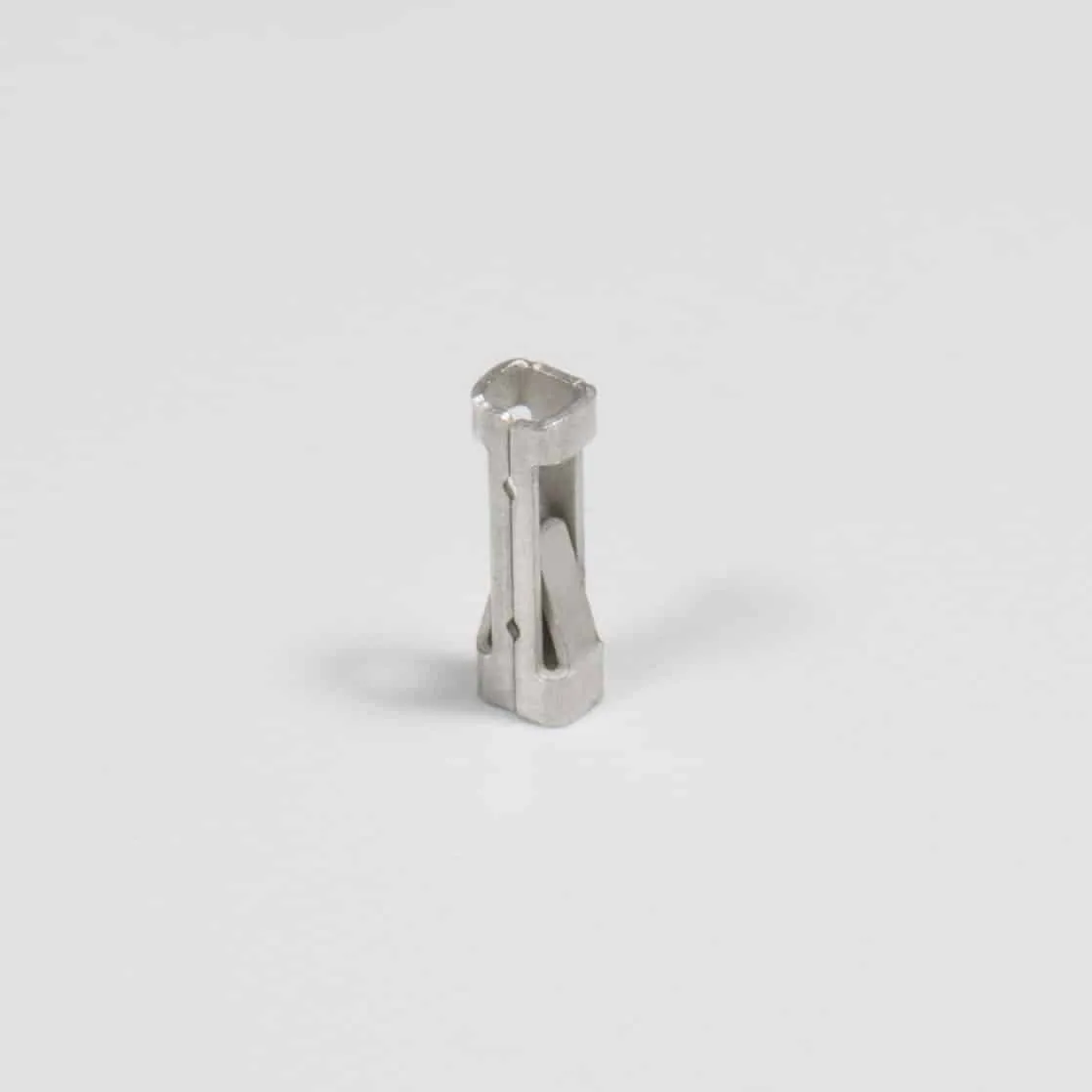

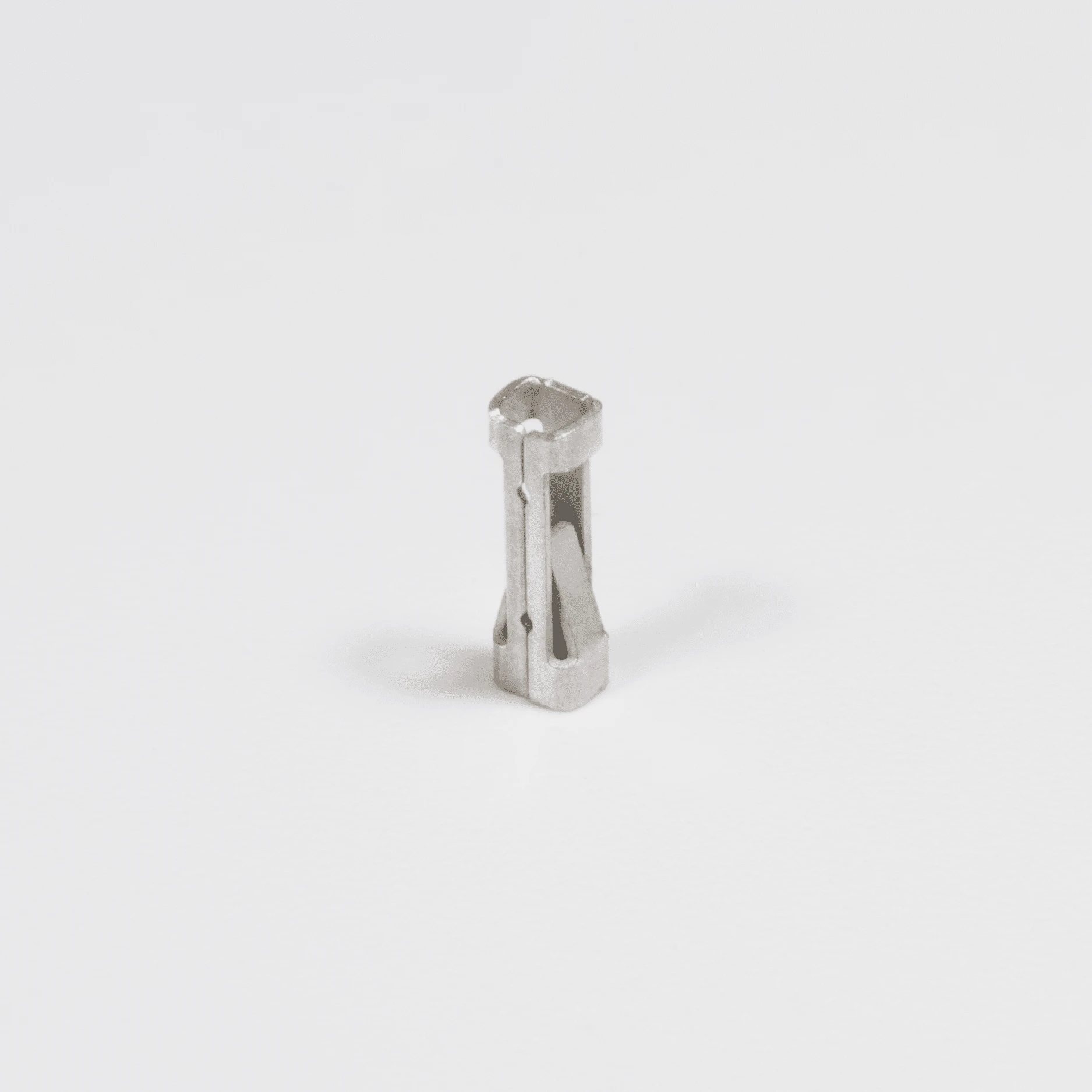

Mini Wire Gripper
Features & Benefits
- Zierick’s Box contacts offer low insertion forces.
- The high pressure contact area assures a reliable gas tight connection.
- They are forgiving for locational misalignment.
- They use a small footprint.
- These parts are designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing is required.

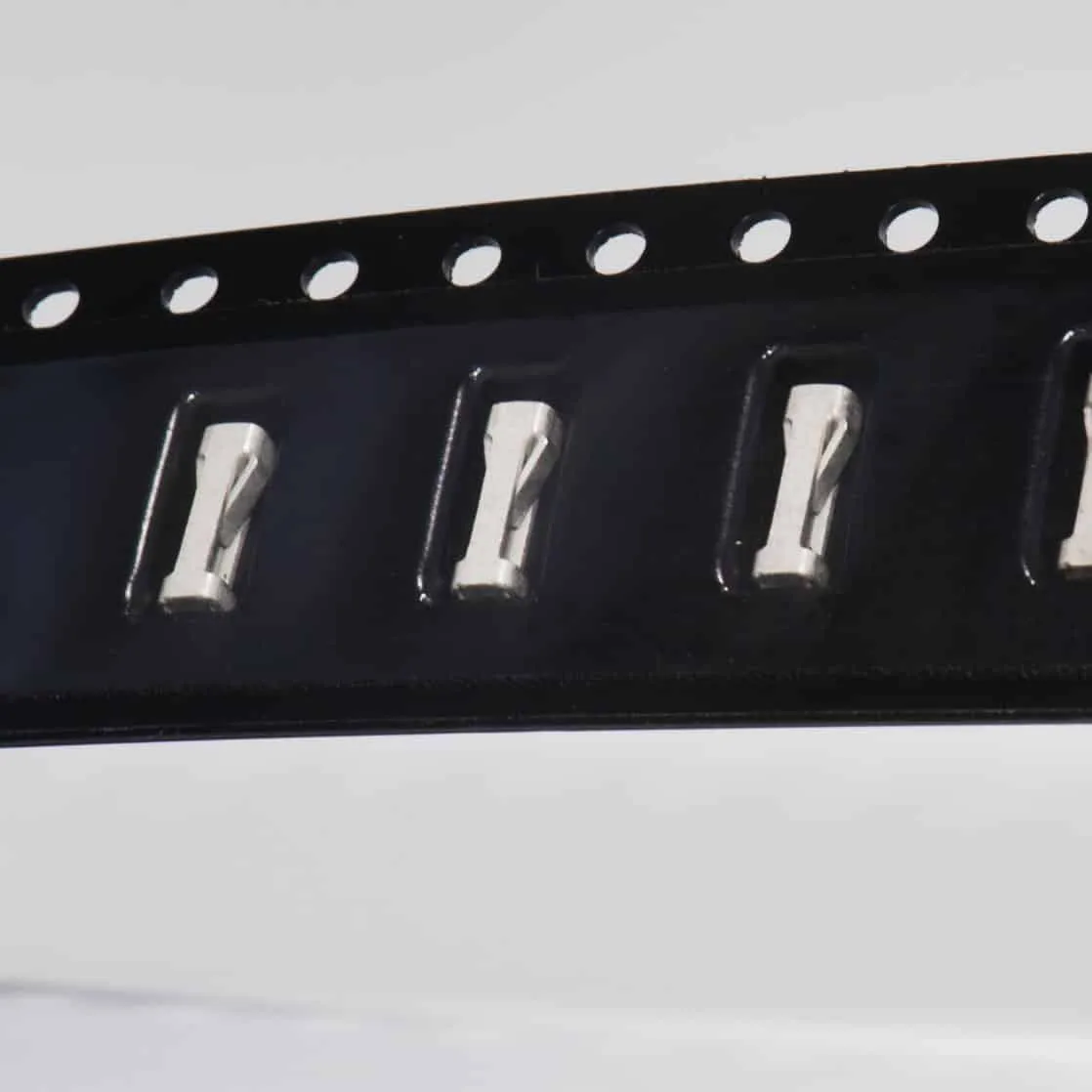

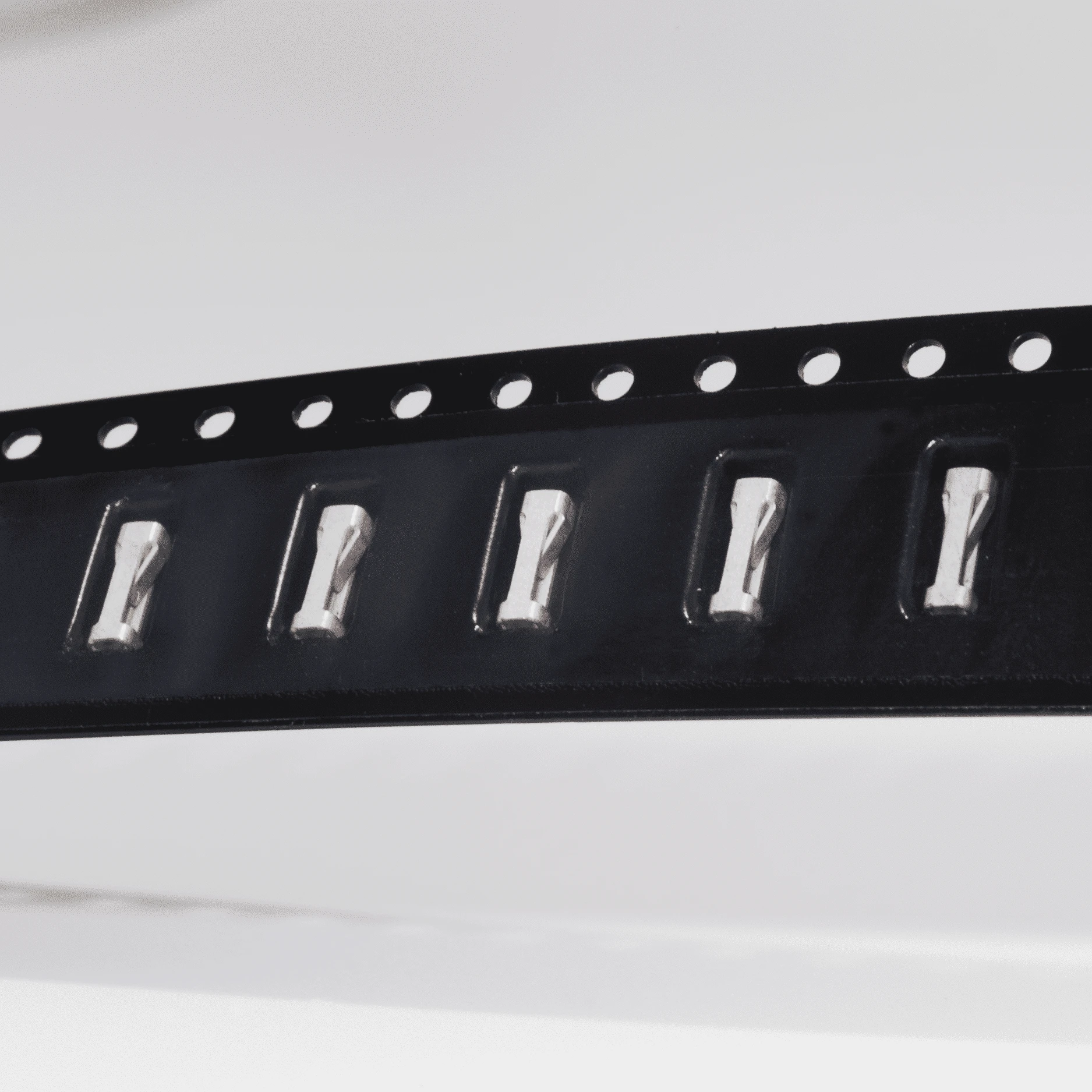

- They can also be automated using standard tape feeders.
Specification
| Material Type | C51000 Phosphor Bronze |
|---|---|
| Material Thickness | 0.008in (0.20mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 7 Amperes |
| Mating Terminal Size | 0.025in (0.64mm) square or 0.025in (0.64mm) round pin [UL Recognition based on these mating terminals] |
| UL File Number | E361770 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
