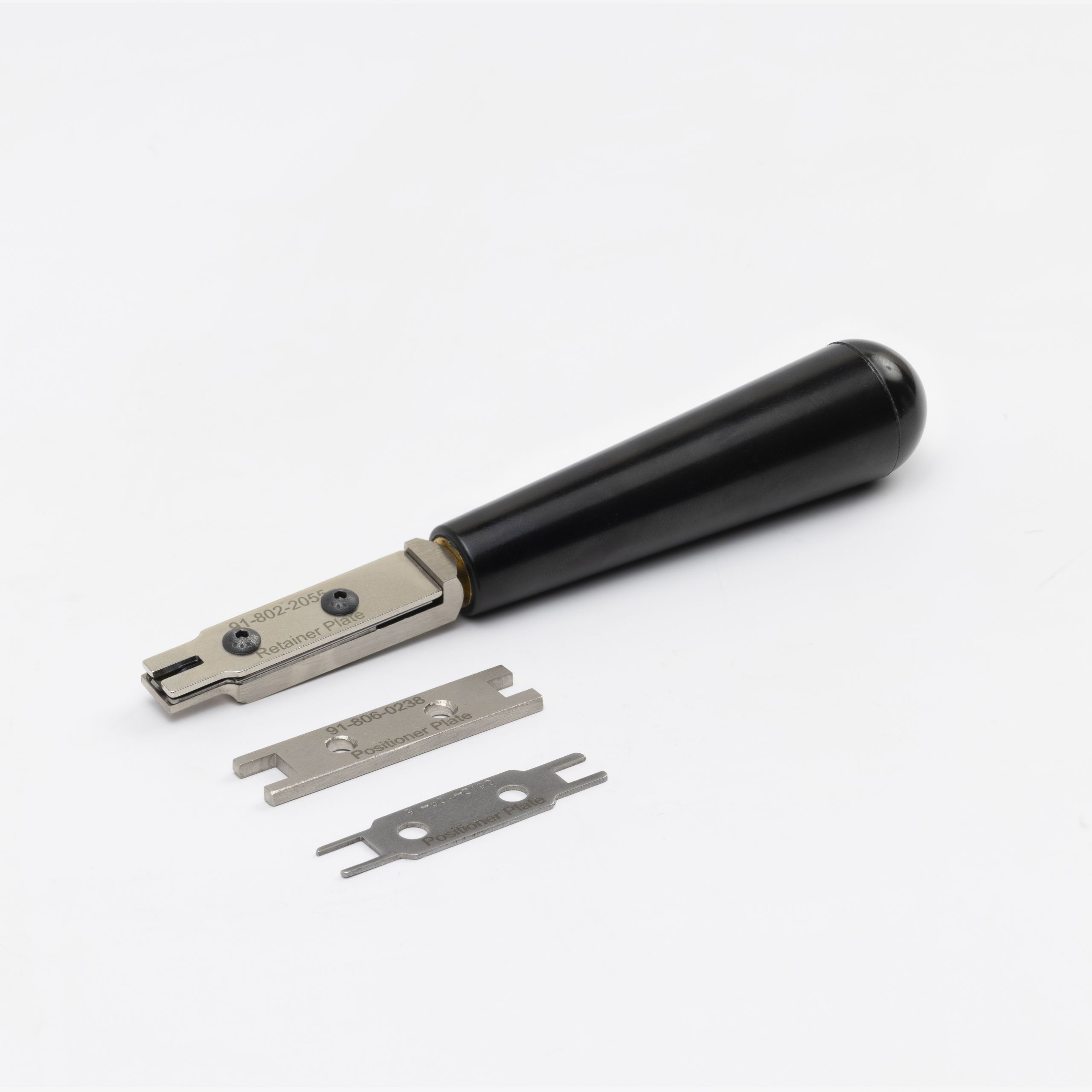

Hand Insertion Tools
Features & Benefits
Ideal for low volume, short run and prototype PCB assembly applications, Zierick’s hand tools offer a simple and reliable method for inserting press fit and splay mounted terminals.
The hand tool can be easily installed on any type of press machine for increased flexibility and faster insertion. With the addition of a lower tool die, terminals can then be splayed and locked into place to improve reliability and prevent part removal and rotation.
Zierick hand tools are available for PCB-mounted quick-disconnect terminals, quick-disconnect receptacles, post receptacles, test points and IDC terminals.
- Simple and reliable method for inserting press-fit and splay mounted terminals.
- Single tool can handle multiple terminal insertion applications.
- Tools can be installed on almost any type of manual or pneumatic press.
Please click here for a PDF user manual for Zierick’s hand tools.
| Male – Tab | Female – Receptacle | ||||
| Terminal Dimensions | Standard | Stable-Lok | Standard | Stable-Lok | Insertion Tool |
| 0.110″ x 0.020″ | 834 | 1063 | – | – | ZPT81-A |
| 0.110″ x 0.032″ | 835 | 1064 | – | – | ZPT81-A |
| 0.187″ x 0.020″ | 895 | 1027 | – | – | ZPT81-A |
| 0.187″ x 0.032″ | 894 | 1024:1042 | – | 1025 | ZPT81-A* |
| 0.205″ x 0.025″ | – | – | – | 1154 | ZPT81-A* |
| 0.205″ x 0.032″ | – | 1065 | – | – | ZPT81-A* |
| 0.250″ x 0.032″ | 836:906 972:953 953-MOD |
1021:1041 1045:1057 1060:1061 |
– – – |
1022 – – |
ZPT81-A* – – |
| 0.110″ x 0.020″ | 949 | – | – | – | ZPT92-110* |
| 0.110″ x 0.032″ | 948 | – | – | – | ZPT92-110* |
| 0.187″ x 0.020″ | 956 | – | – | – | ZPT92-187* |
| 0.187″ x 0.032″ | 957 | – | – | – | ZPT92-187* |
| 0.250″ x 0.032″ | – | 1058 | – | – | ZPT81-A* |
| 0.250″ x 0.032″ | 1059 | – | – | ZPT81-A* | |
*Available with lower tooling to effect terminal splaying. Anvil with 30° splay (standard) or 60° splay, and anvil holder are also available from Zierick Manufacturing.
