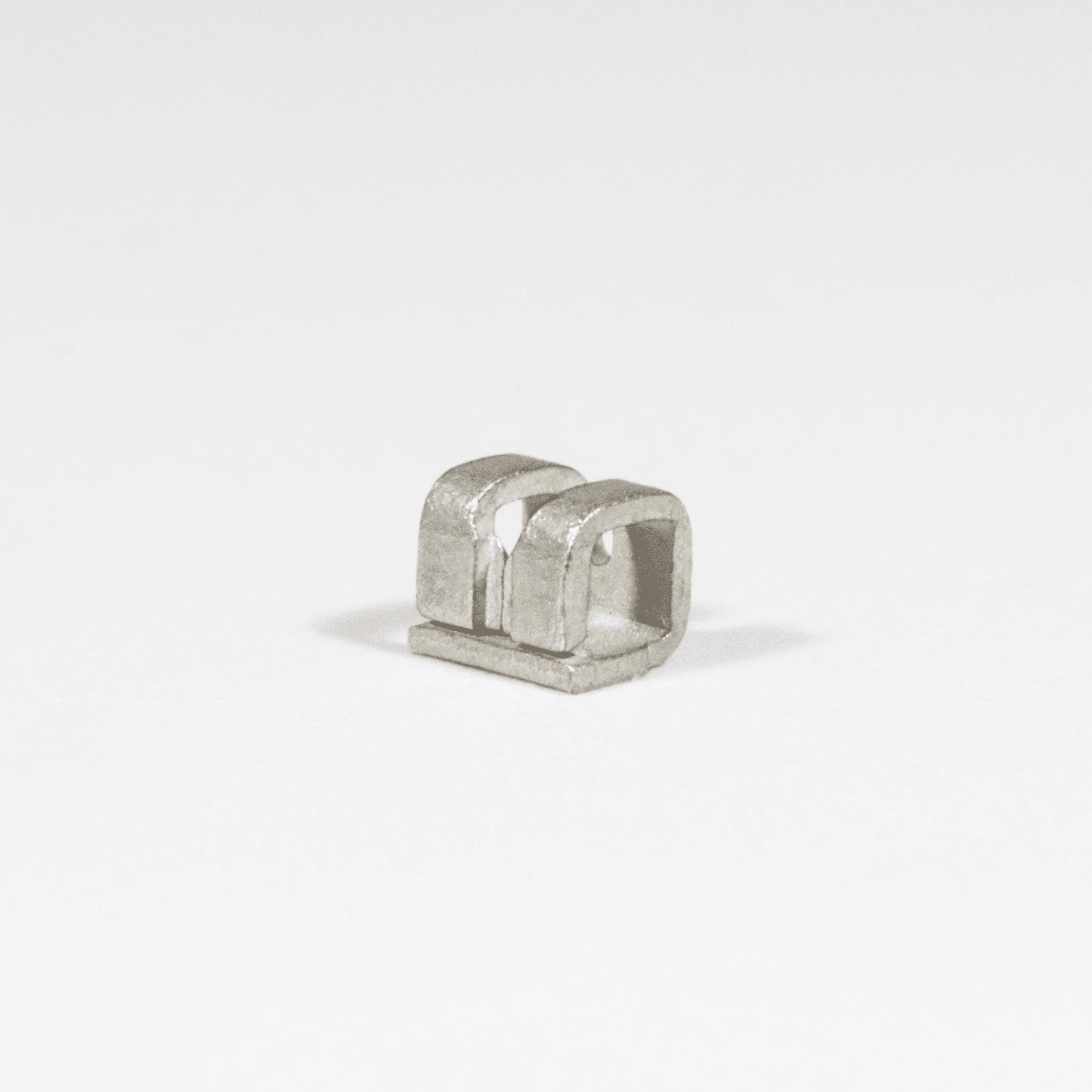

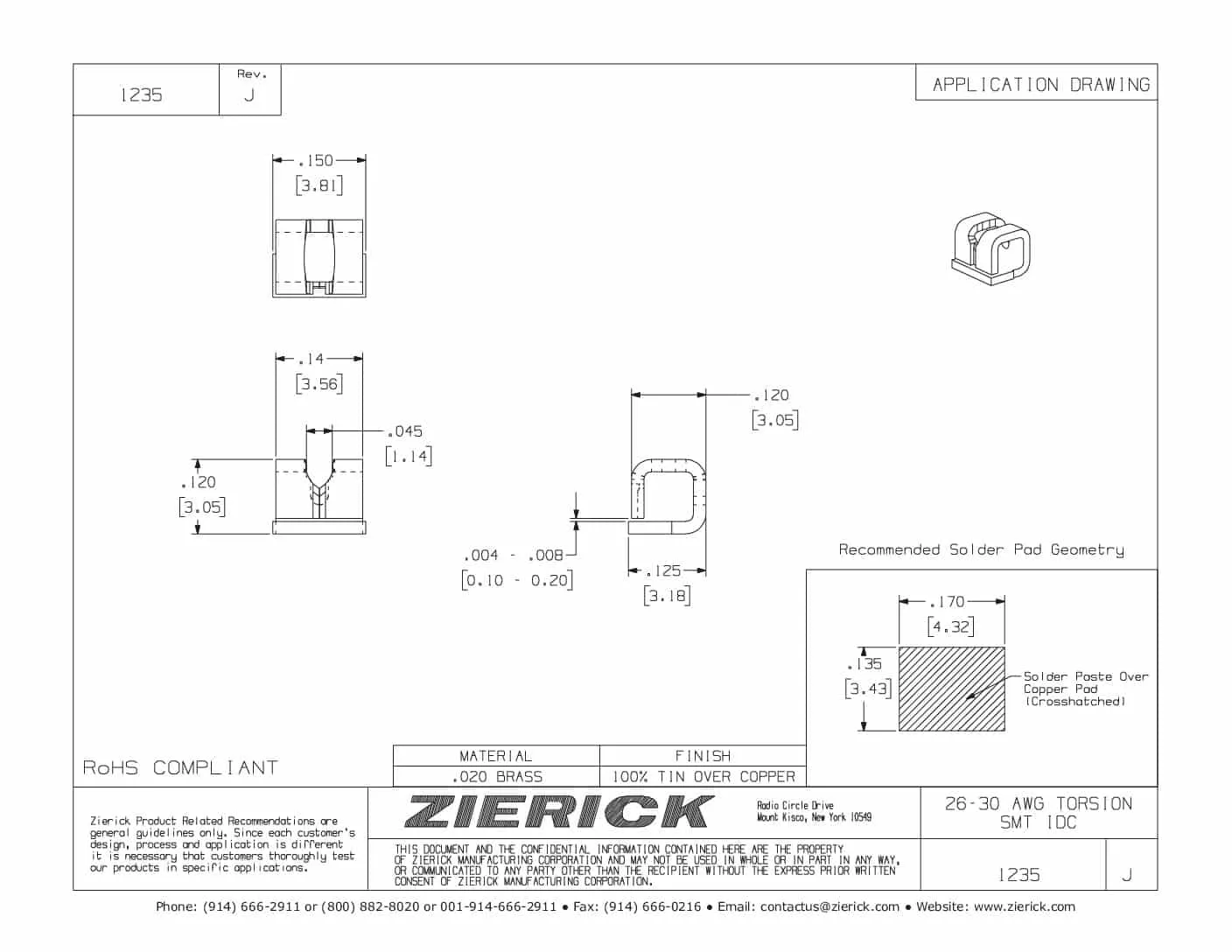

For #30-26 AWG
Features & Benefits
- Designed for demanding applications with shock, vibration, and elevated temperatures;
- Eliminates the need for hand soldering wires to the board;
- A surface mount version of a proven through-hole version;
- Low profile;
- Terminates a large range of wire gauges;
- IDCs don’t float during reflow;

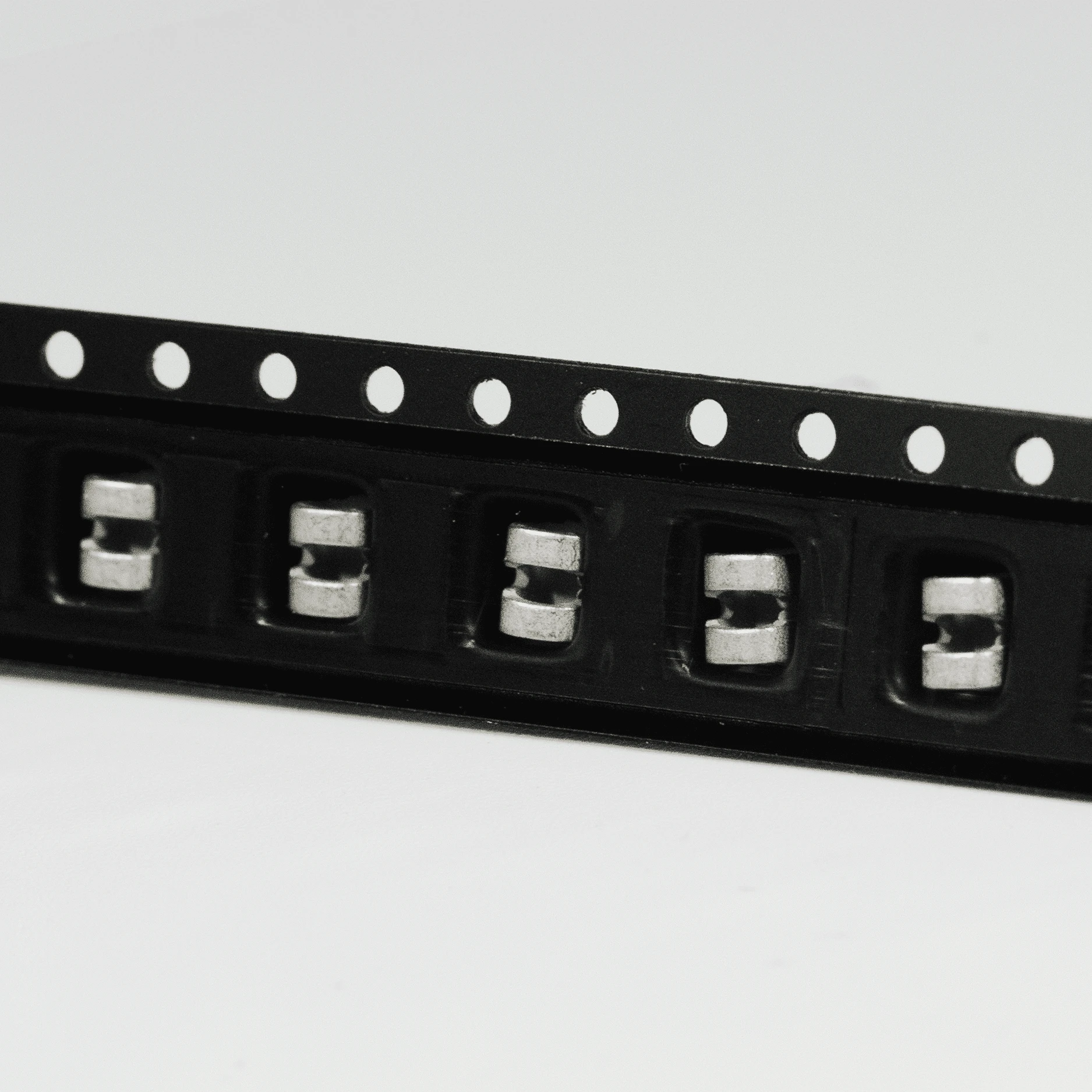

- Designed for automation using the customer’s existing pick and place equipment and a special feeder, no time consuming hand placement or costly fixturing required, or they can be;
- Automated using standard tape feeders.
Information
SKU: 1235X
Categories: Insulation Displacement Connectors (IDC)
Resources
Prints: Additional:
Specification
Material Type | C26000 Brass |
---|---|
Material Thickness | 0.020in (0.51mm) |
Standard Finish | 100% Matte Tin over Copper (0) |
Wire Gauge Range | #26-30 AWG |
Wire Insertion Tool | WTPPS-1235-1: Pnuematic Production Tool |
UL File Number | E361770 |
Patent | U.S. Patent No. 5, 695, 348 and other international patents |
Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
