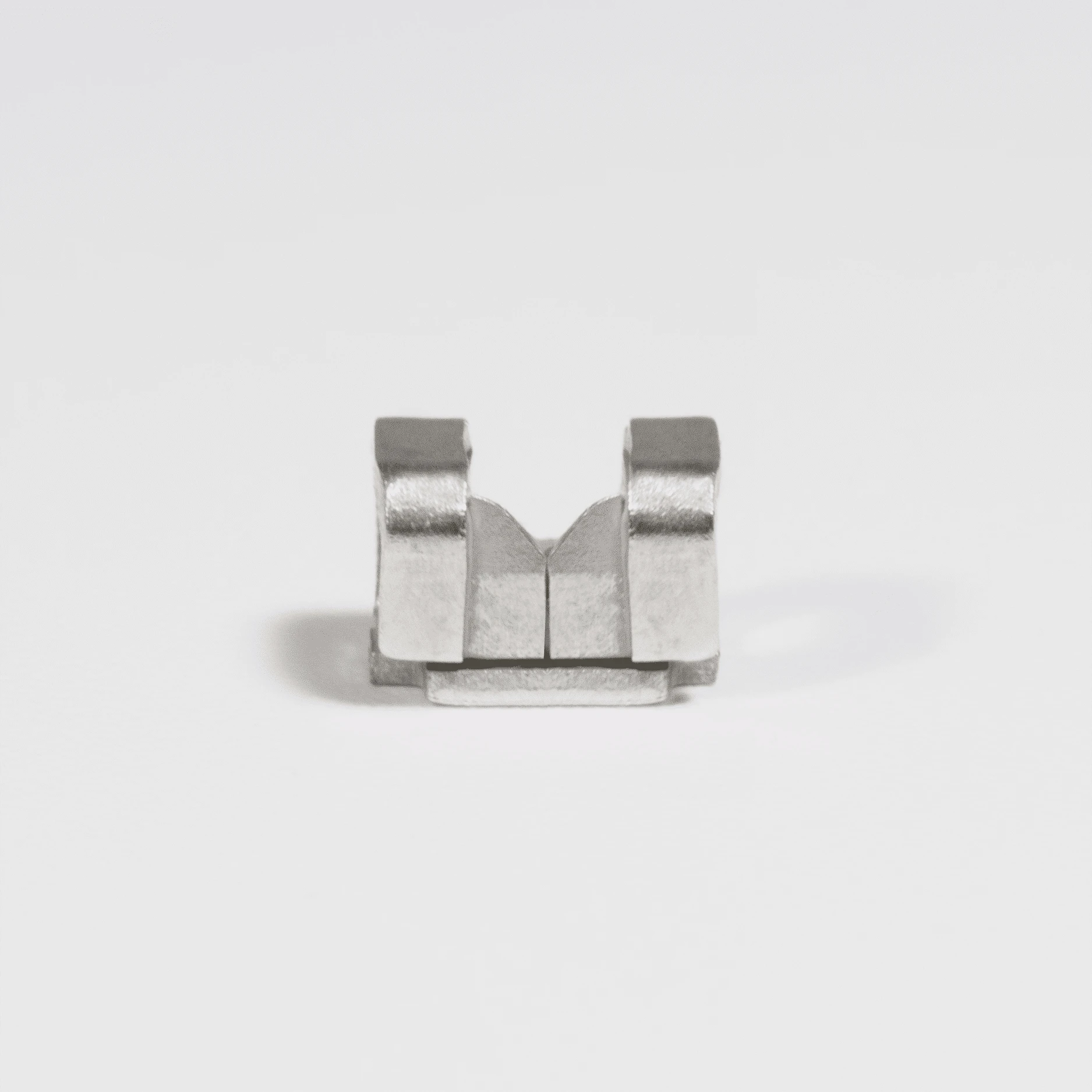

For #26-18 AWG
Features & Benefits
- Designed for demanding applications with shock, vibration, and elevated temperatures;
- Eliminates the need for hand soldering wires to the board;
- A surface mount version of a proven through-hole version;
- Low profile;
- Terminates a large range of wire gauges;
- IDCs don’t float during reflow;
- Designed for automation using the customer’s existing pick and place equipment and a special feeder, no time consuming hand placement or costly fixturing required, or they can be;
- Automated using standard tape feeders.
Information
SKU: 1245/1296X
Categories: Insulation Displacement Connectors (IDC)
Resources

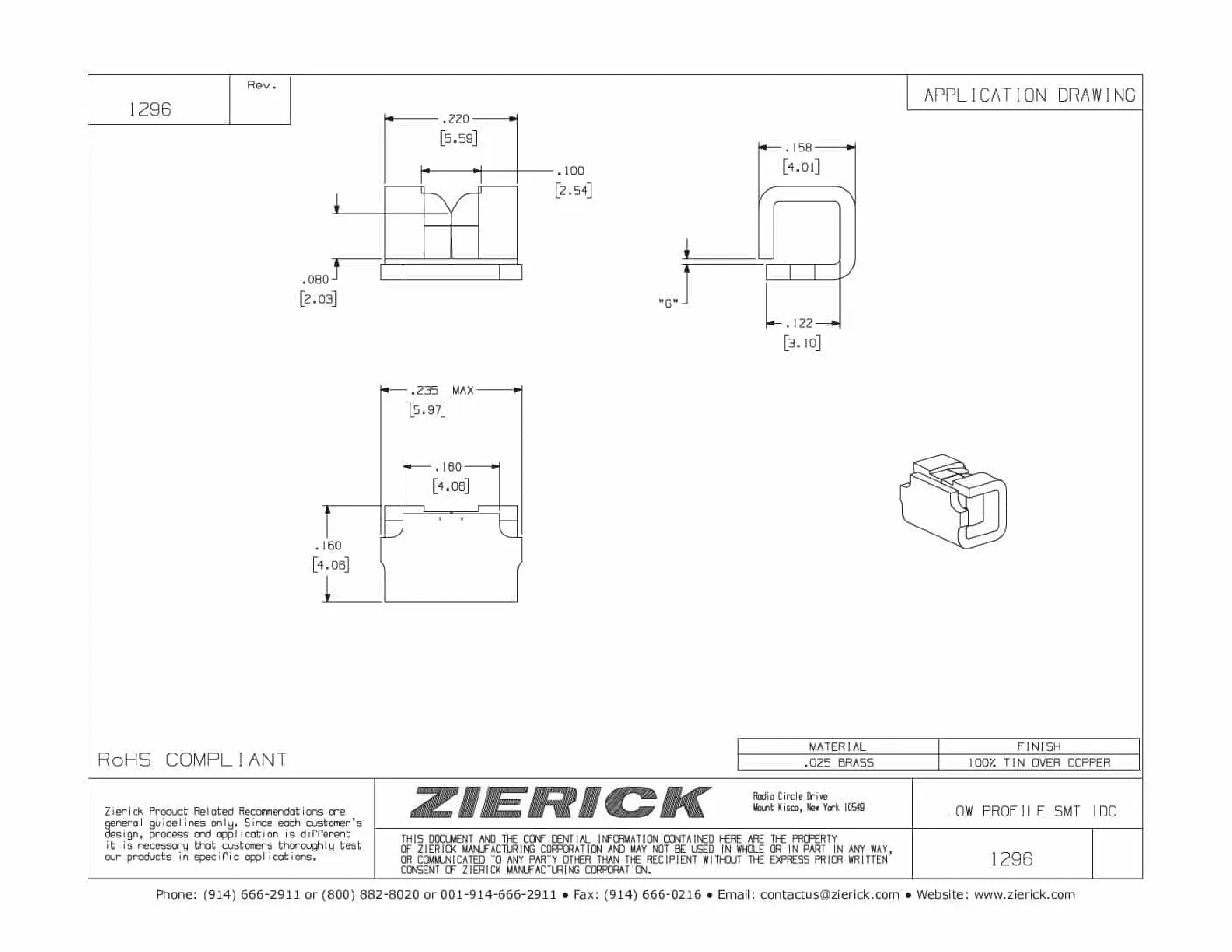

Prints: Additional:
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.025in (0.64mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Wire Gauge Range | #26-18 AWG |
| Wire Insertion Tool | WTP-4ALL: Prototype Tool WTPPS-1208-1: Pnuematic Production Tool |
| Gap Dimnsion (G) | 0.000" – 0.005" (0.00 – 0.13mm) |

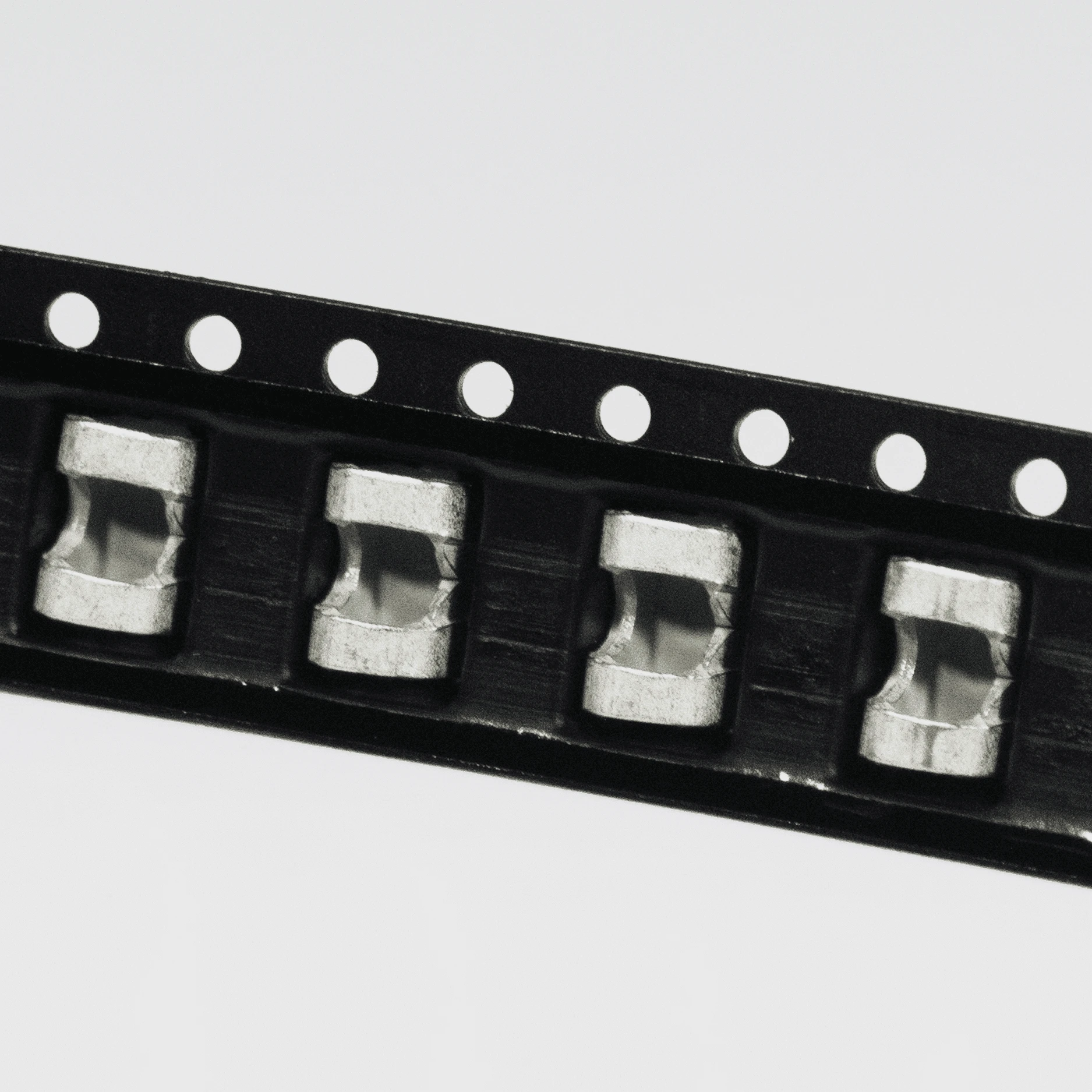

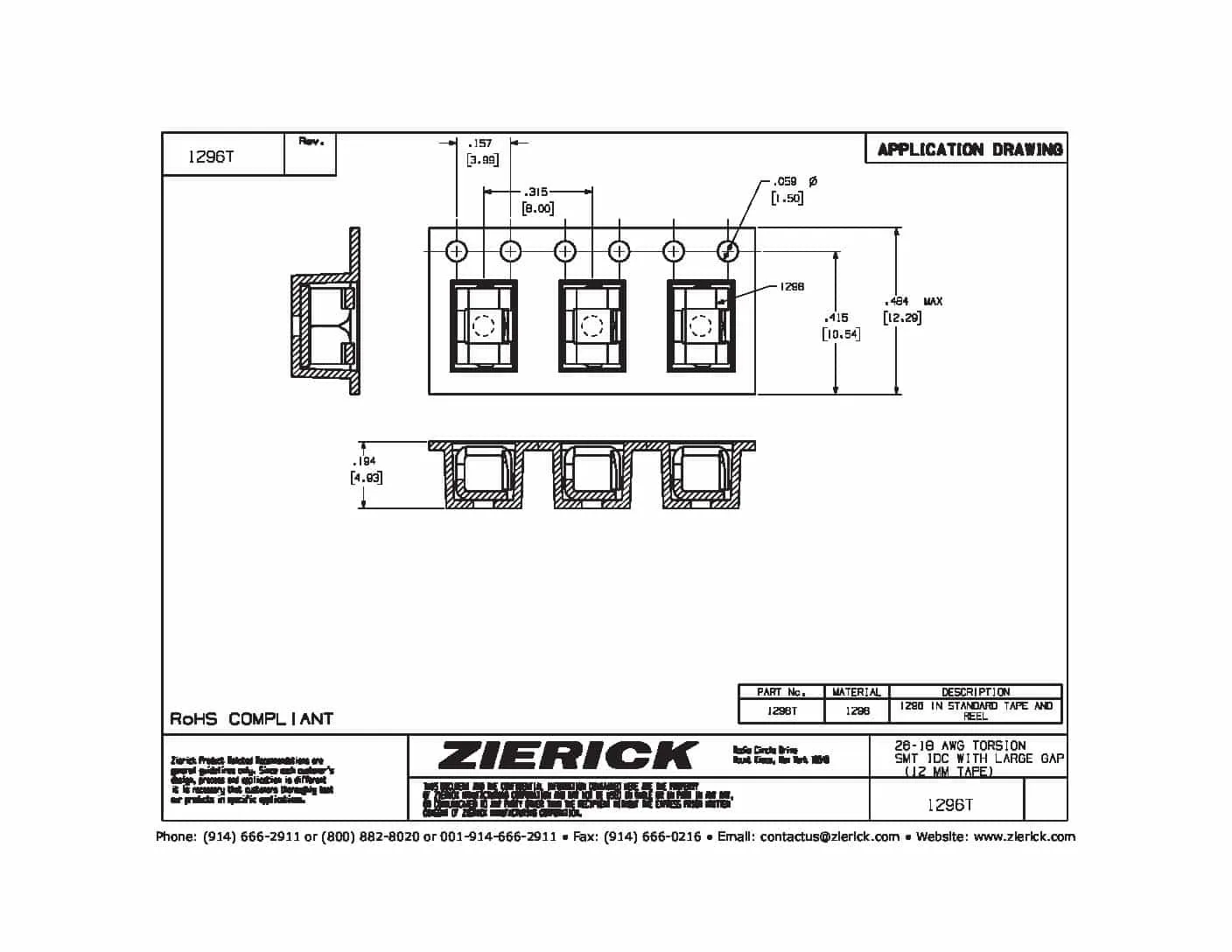

| Feeder System | Standard 12mm Tape Feeder |
| UL File Number | E361770 |
| Patent | U.S. Patent No. 5, 695, 348 and other international patents |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
