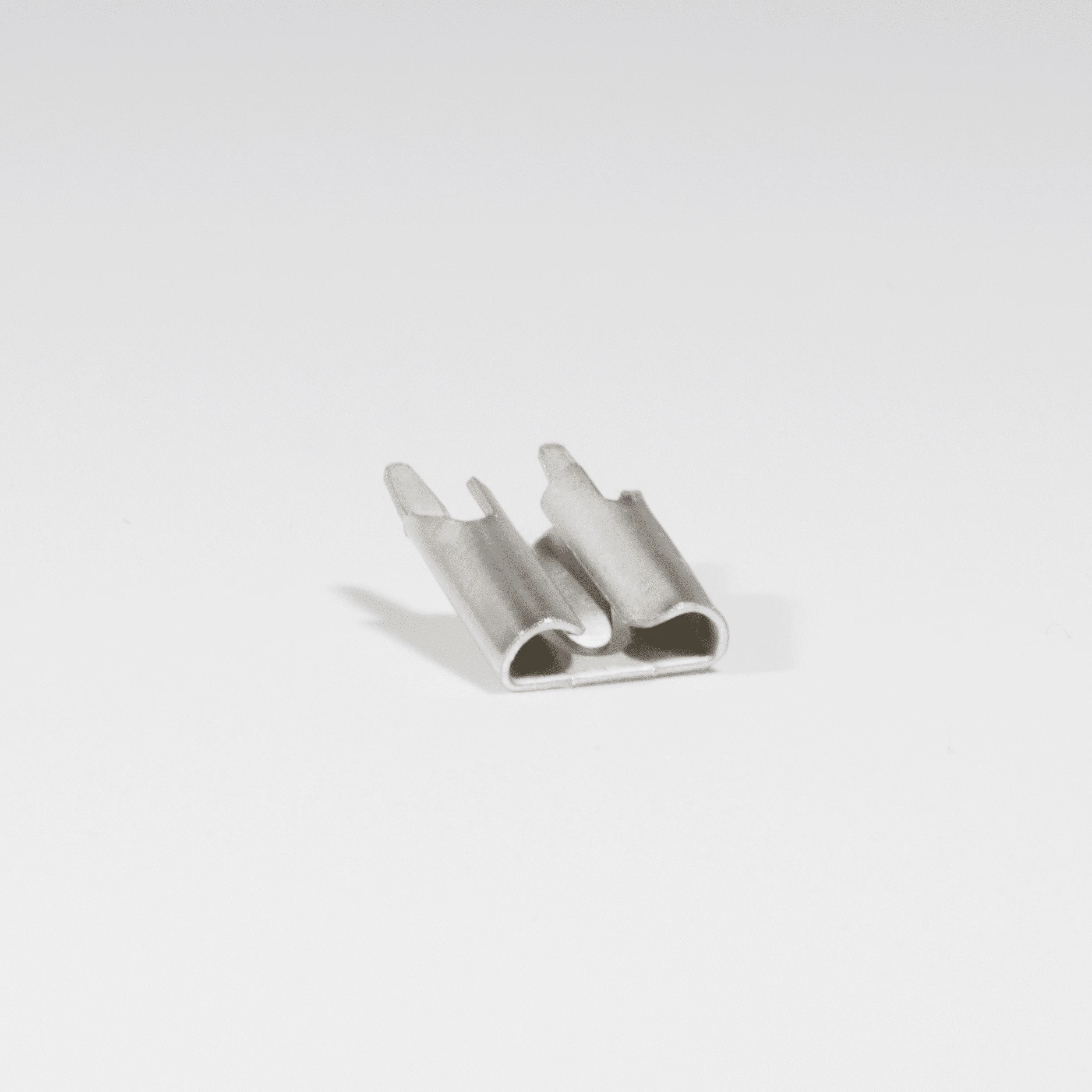

For .250" x .025" Tab

Features & Benefits
Item added to cart View Cart Checkout
Information

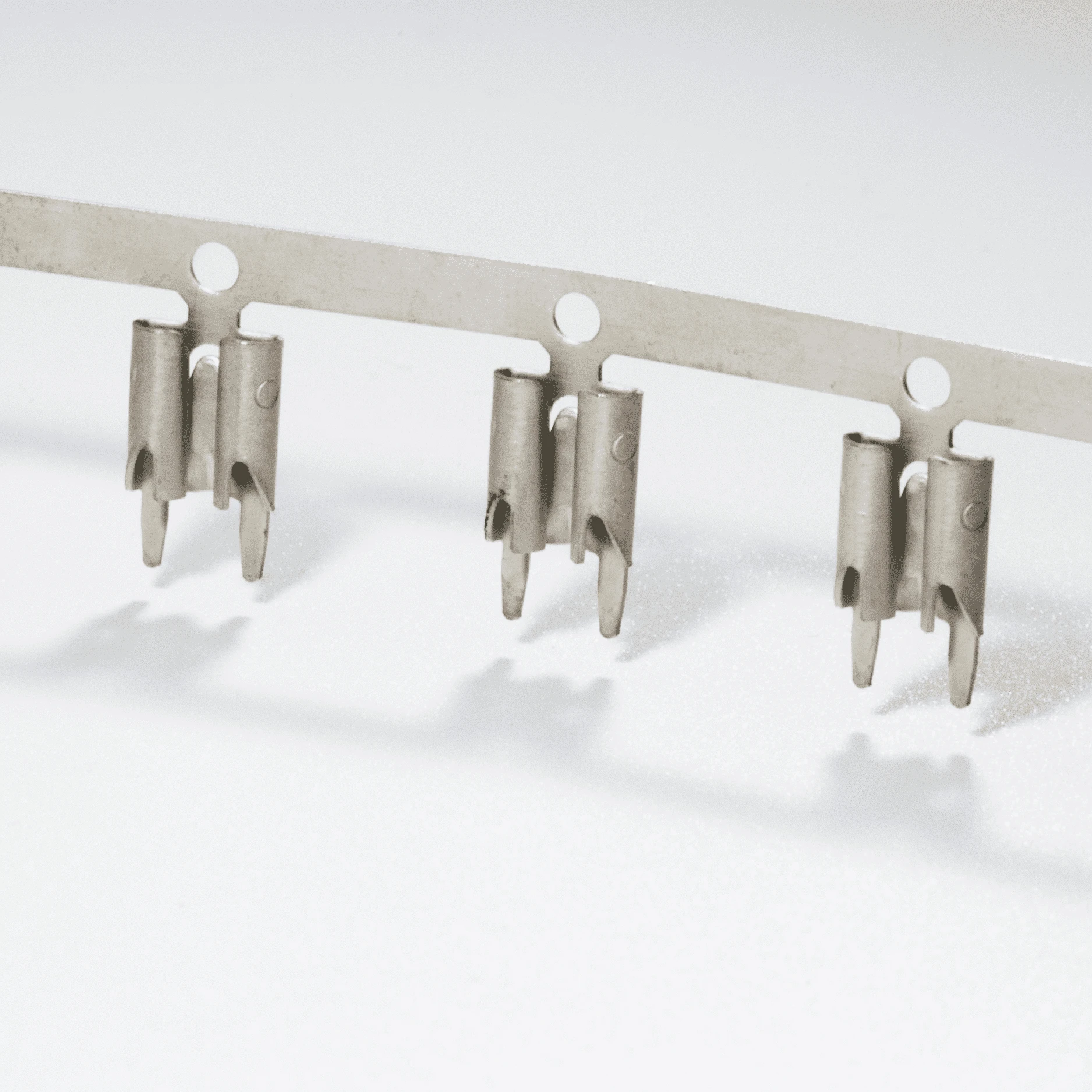

SKU: 6154X
Categories:
Resources

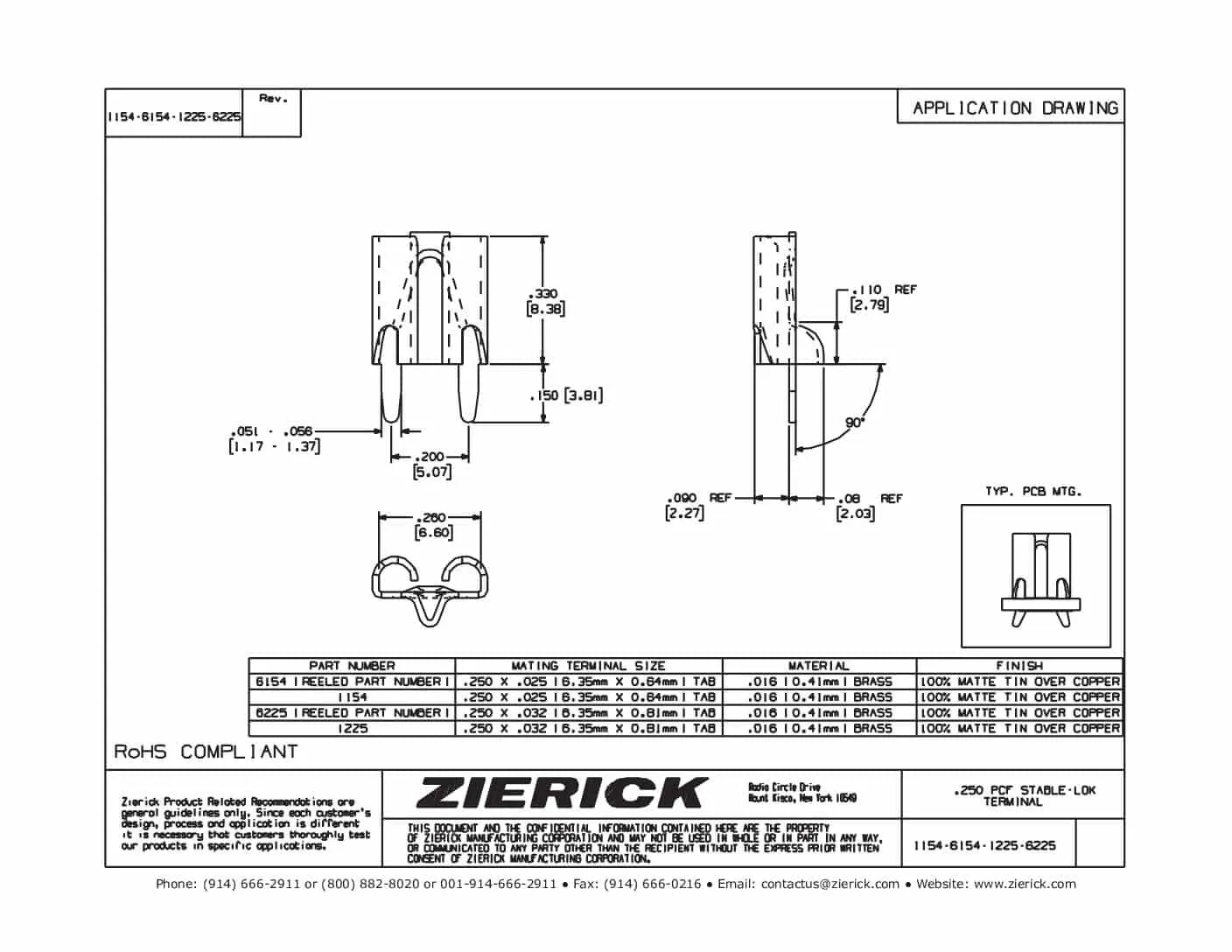

Prints: Additional:
Share:
Specification
Material Type

C26000 Brass

Material Thickness

0.016in (0.41mm)

Standard Finish

100% Matte Tin over Copper (0)

Current Rating

20 Amperes (with Brass Tab)

Resistance Rating

10mOhm Max

Mating Entry

Top

Mounting Type

Outward or Inward Splay

Temperature Rating

-65° to 85°C

Mounting Hole Diameter

0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers

Applicator System

Model 9700, 9700 XY

Mating Terminal Size

0.250" x 0.025" (6.35mm x 0.64mm) Tab or Fuse

Insertion Force-Max.

5.0 lbs. (22.24N) (With Steel Test Tab)

Withdrawal Force-Min.

1.5 lbs. (6.73N) (With Steel Test Tab)

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
