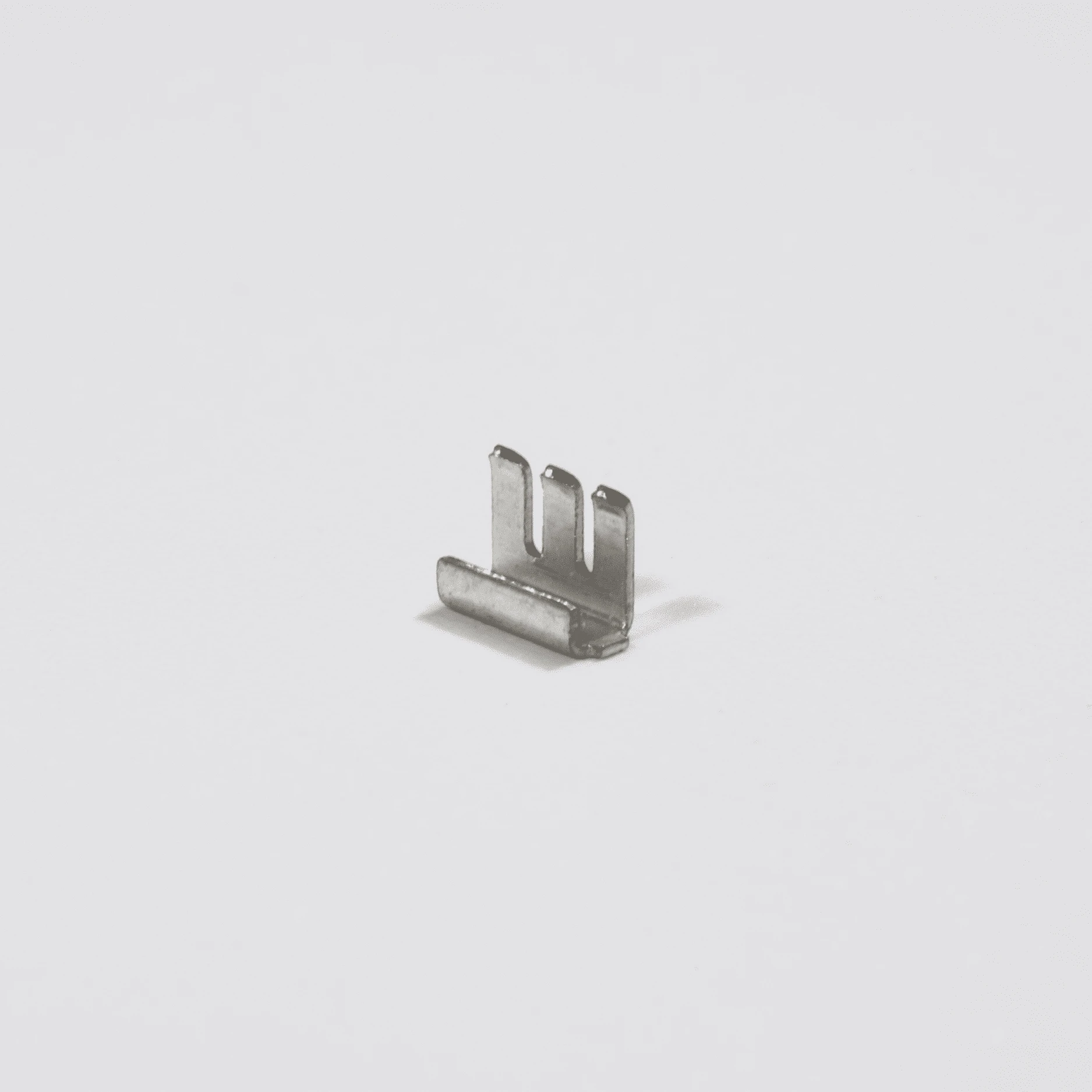

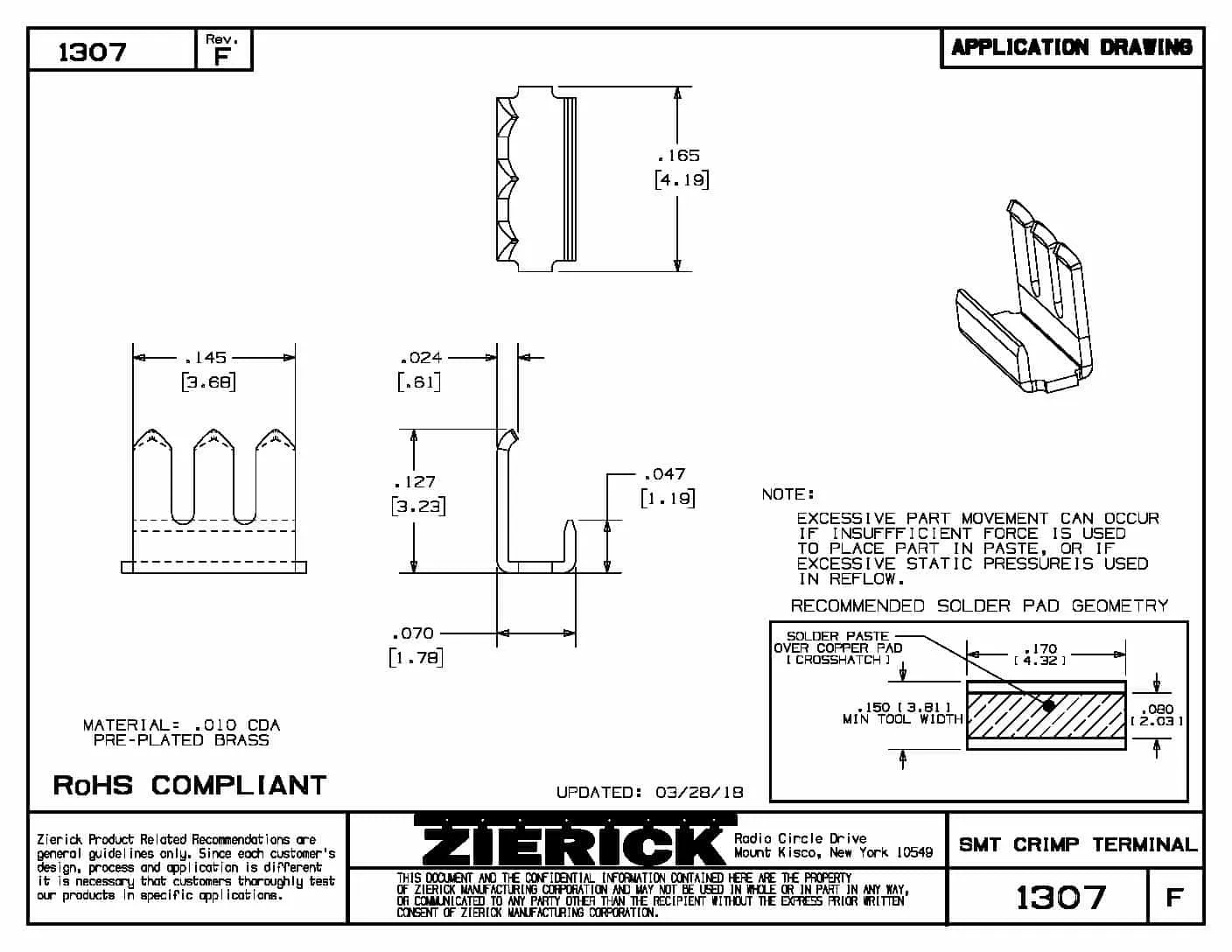

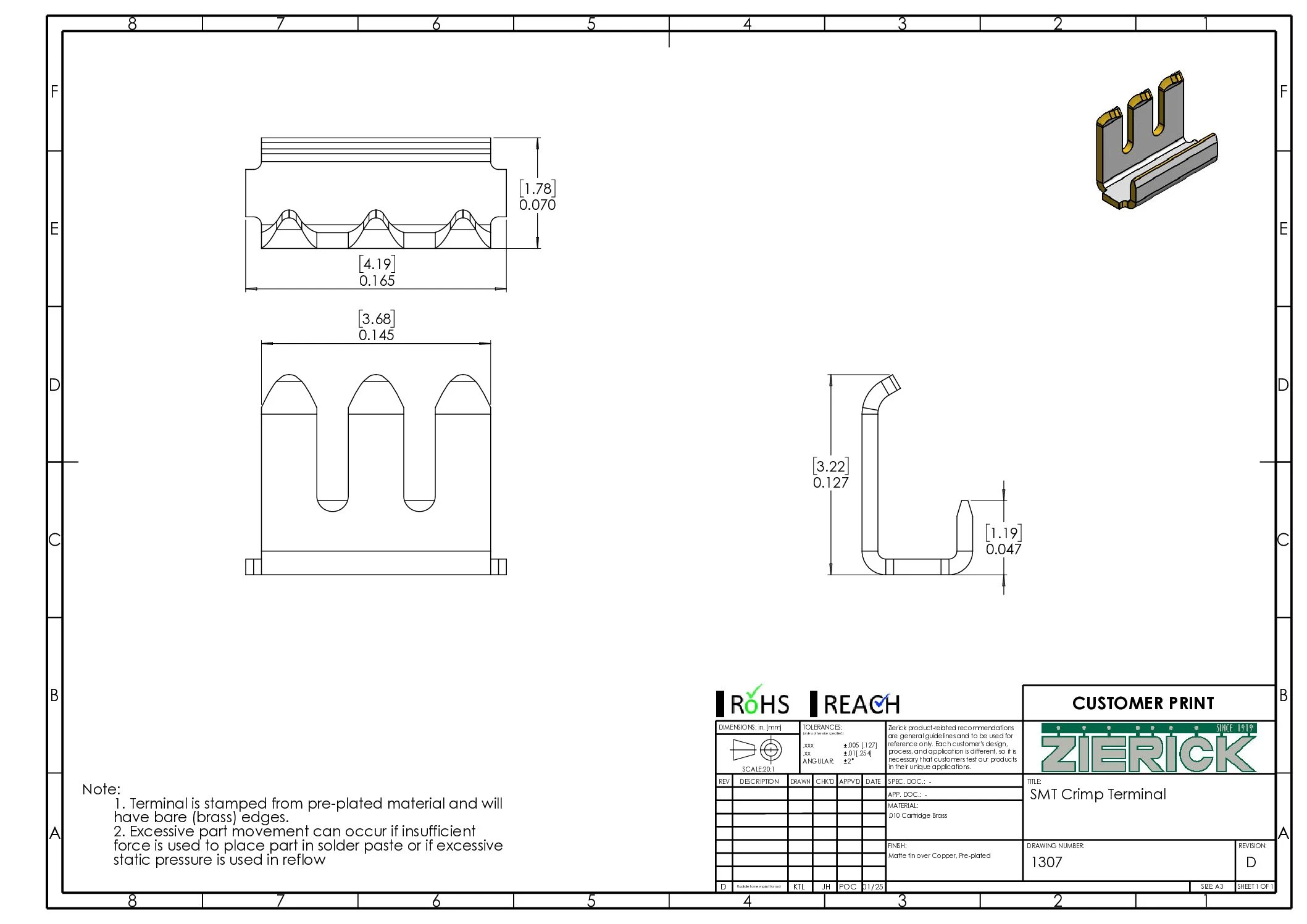

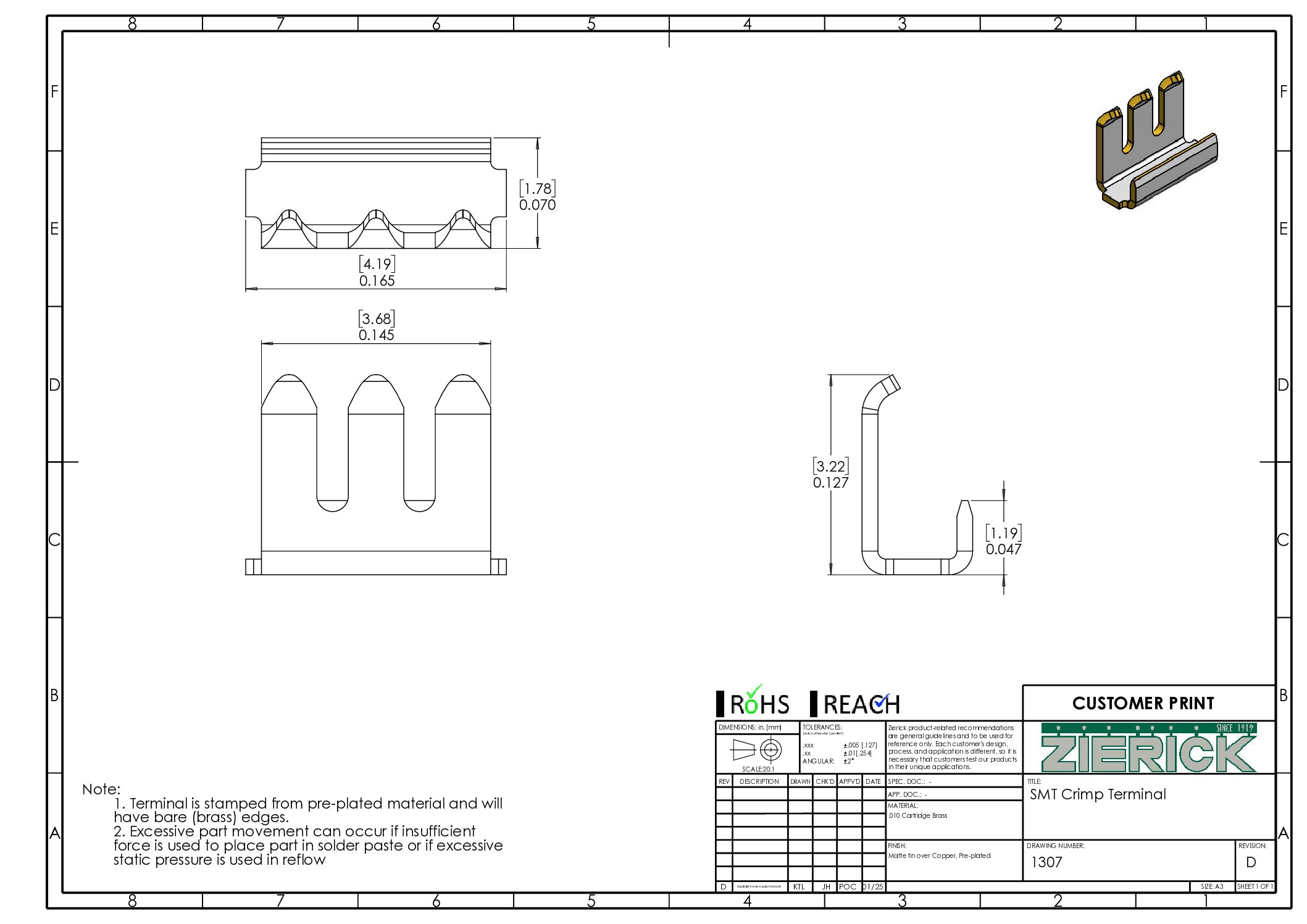

For #24 AWG
Features & Benefits
- Most economical way to terminate wire to board
- Smallest Footprint
- No additional strain relief required
- No additional wire preparation required
- Terminal lends itself to high speed automated termination
- Available in taped format – no need for additional assembly equipment
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.010in (0.254mm) |
| Standard Finish | Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16) |
| Insulation Outside Diameter | .045 in. (Nominal) |
| Crimping System | Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1307-1 (for low volume and/or field terminations) |
| Wire Size | 24 AWG |
| UL File Number | E361770 |
| Patent | Patent Pending |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
