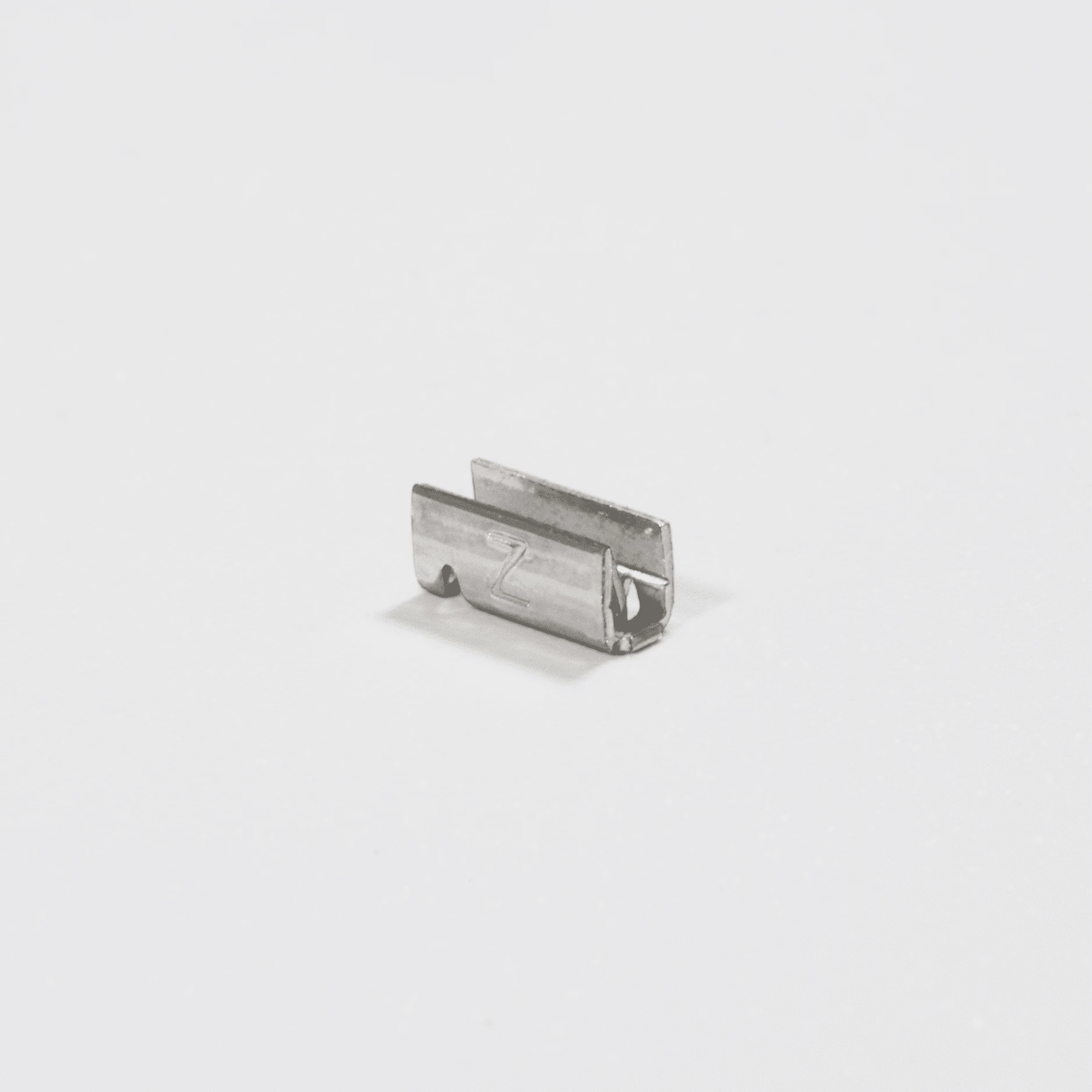

For #22-20 AWG
Features & Benefits
- Most economical way to terminate wire to board
- Smallest footprint
- High current carrying capability
- No separate strain relief required
- High resistance to wire flexing and axial and radial pull forces
- Lends itself to high speed automated termination
- Designed to be bulk fed with a special feeder

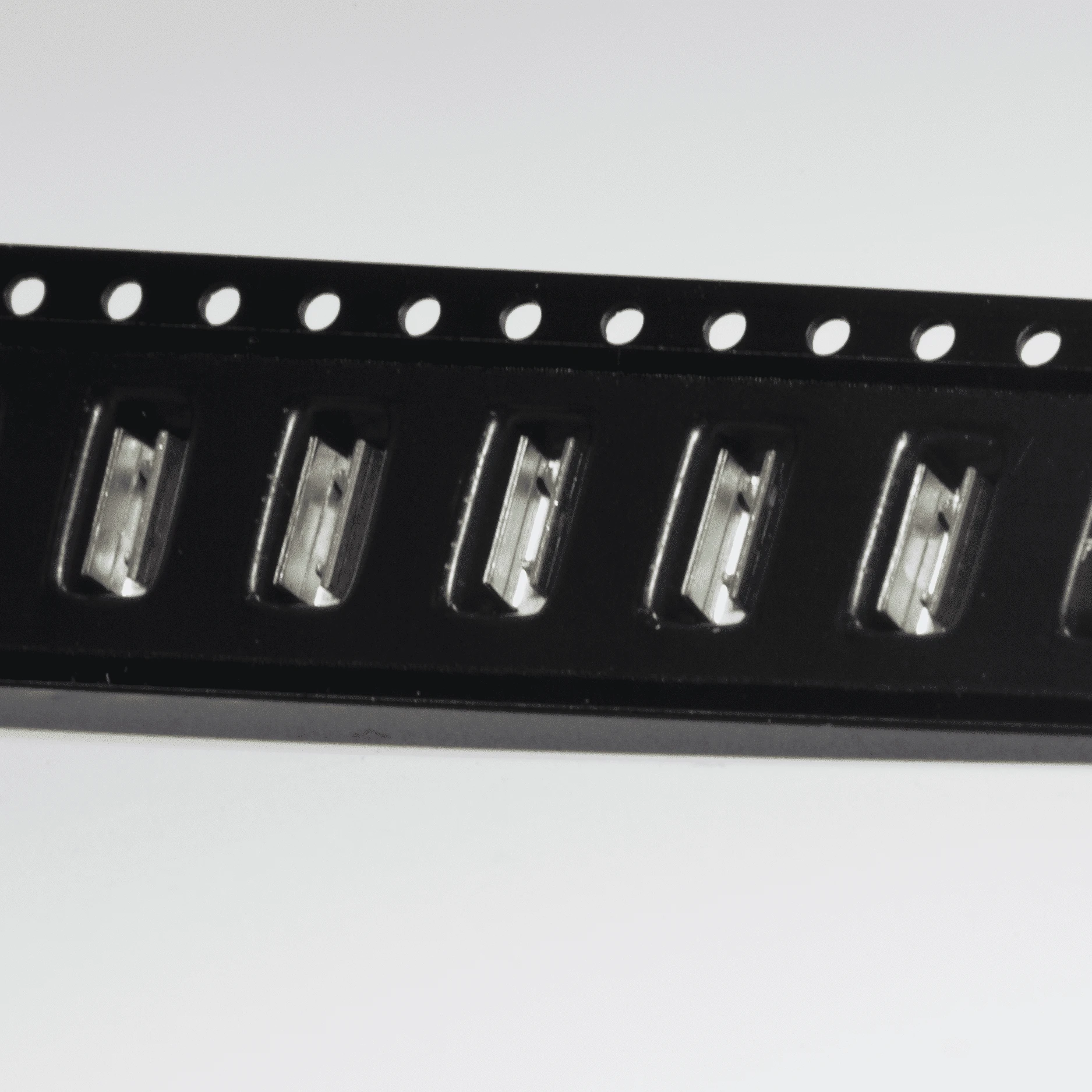

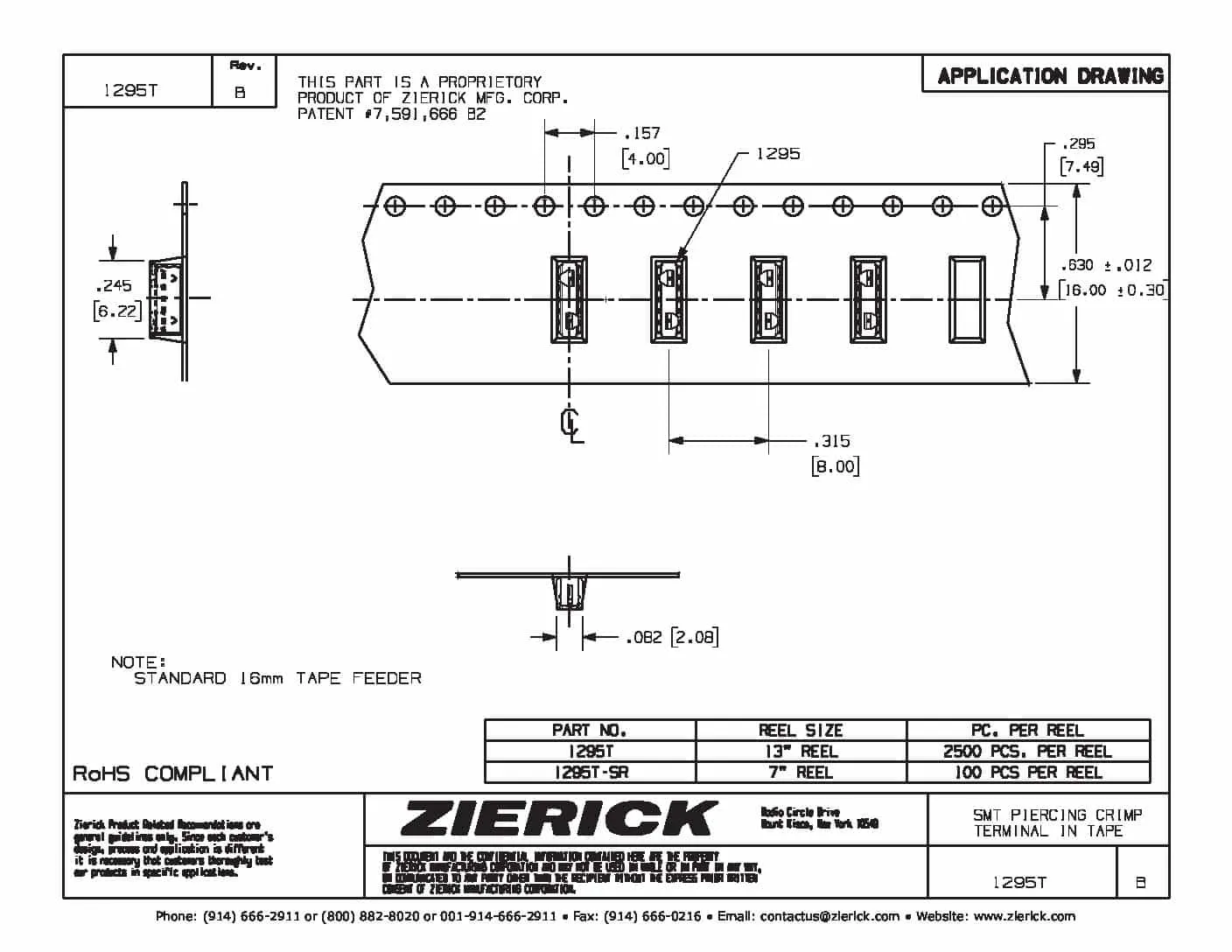

- Available in taped format
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.012in (0.30mm) |
| Standard Finish | Pre-finished 100% Matte Tin over Copper. Edges will be bare. (16) |
| Current Rating | 6.5 Amperes |
| Crimping System | Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1295-1 (for low volume and/or field terminations) |
| UL File Number | E361770 |
| Patent | U.S. Patent No. 7, 591, 666 B2 and other U.S. and international patents |

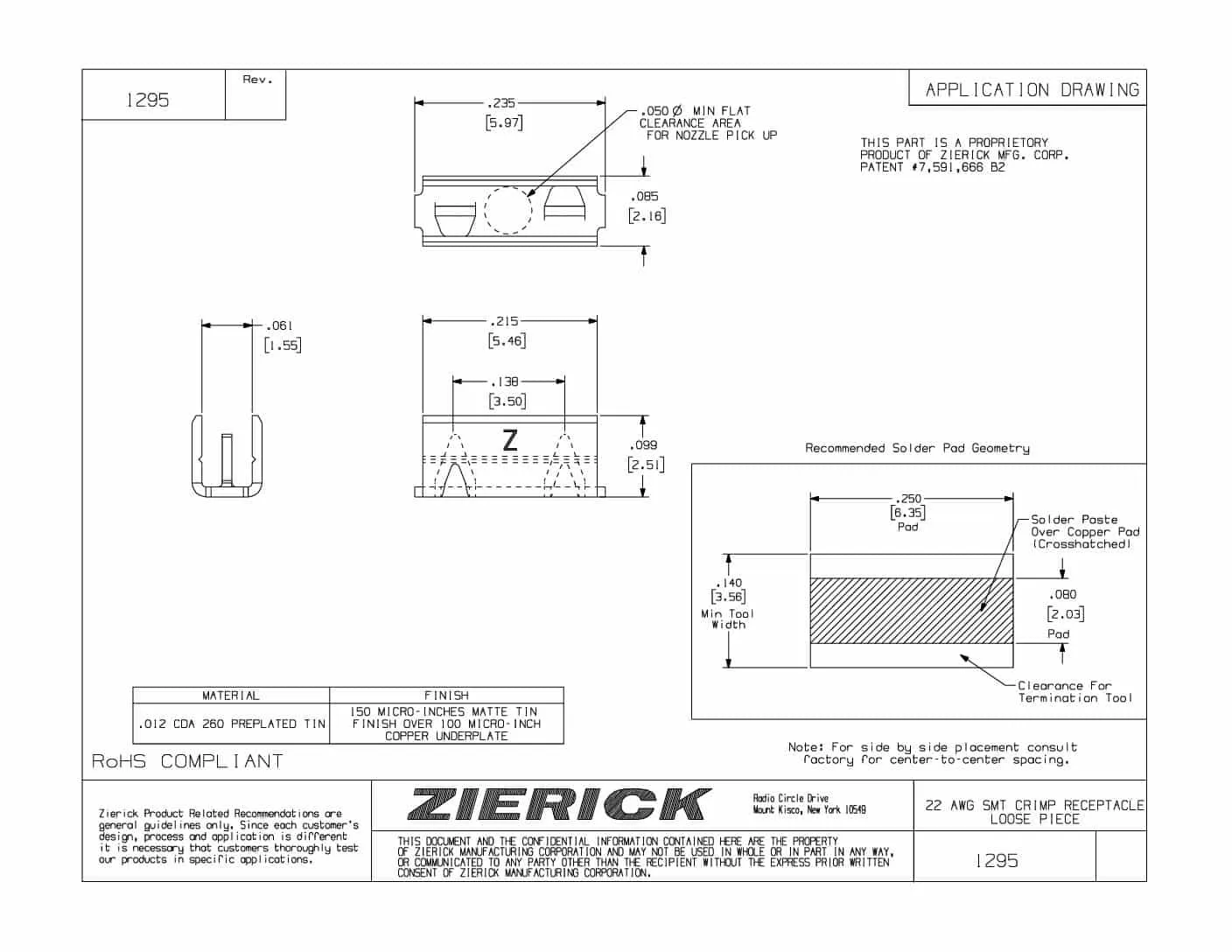

| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
