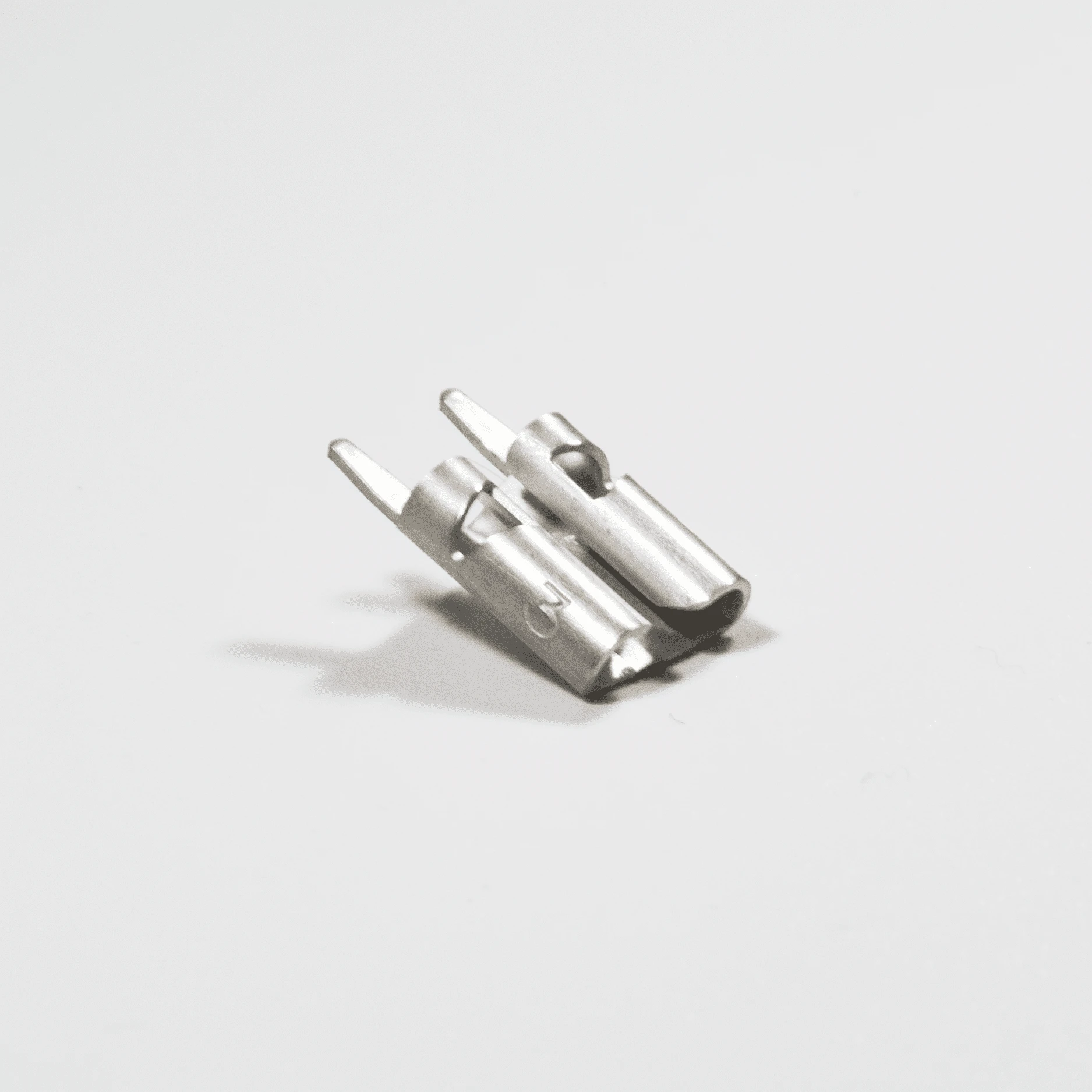

For .205"-.250" x .032 Tab
Features & Benefits
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.016in (0.41mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes (with Brass Tab) |
| Resistance Rating | 10mOhm Max |
| Mating Terminal Size | 0.250in x 0.032in (6.35mm x 0.81mm) Tab* 0.205in x 0.032in (5.21mm x 0.81mm) Tab* |
| Mating Entry | Top |
| Mounting Type | Outward or Inward Splay |
| Temperature Rating | -65° to 85°C |
| Mounting Hole Diameter | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers |
| Applicator System | Model 9700, 9700 XY |
