Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.

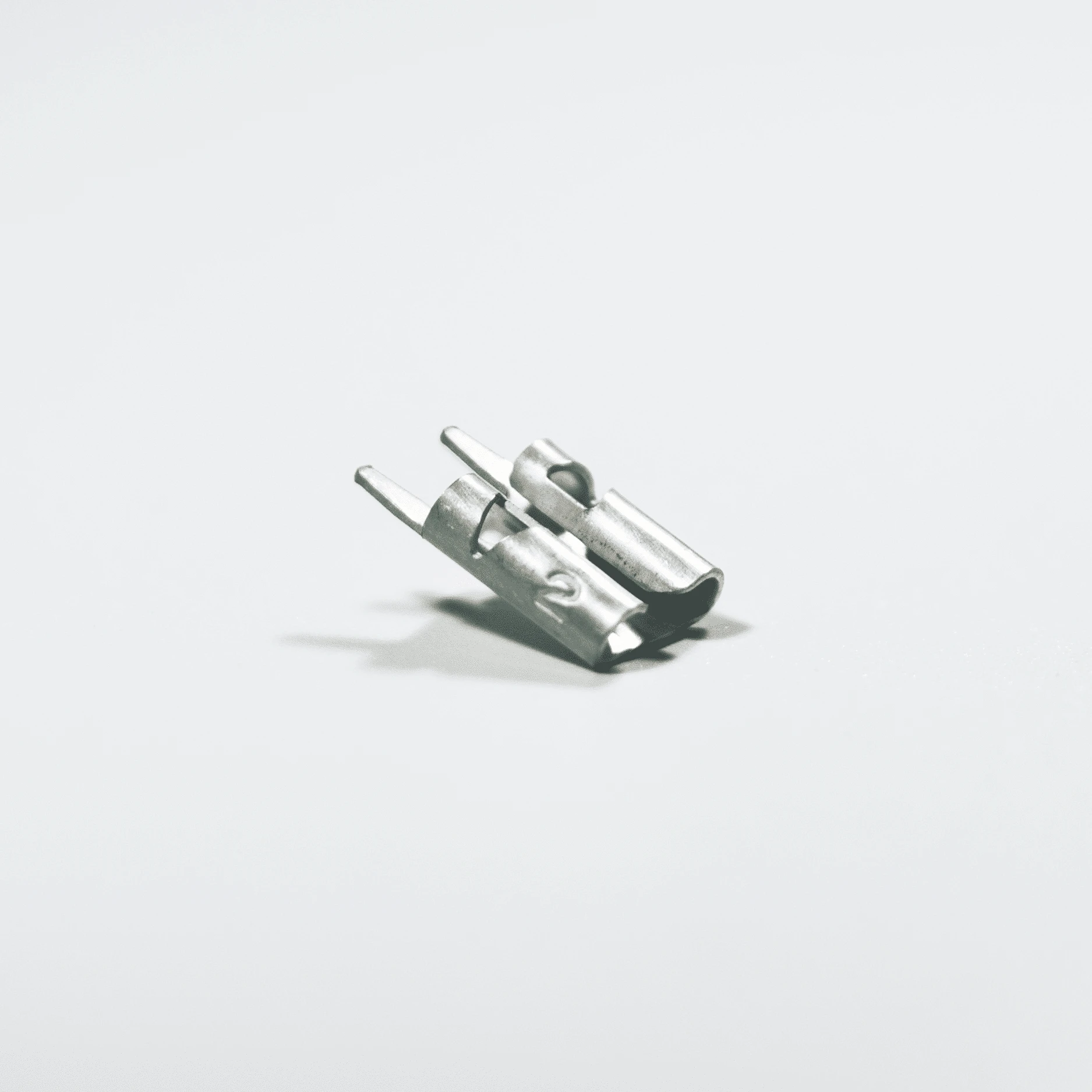

For .205"-.250" x .032 Tab
Features & Benefits
Specification
Material Type | C26000 Brass |
---|---|
Material Thickness | 0.016in (0.41mm) |
Standard Finish | 100% Matte Tin over Copper (0) |
Current Rating | 20 Amperes (with Brass Tab) |
Resistance Rating | 10mOhm Max |
Mating Terminal Size | 0.250in x 0.032in (6.35mm x 0.81mm) Tab* 0.205in x 0.032in (5.21mm x 0.81mm) Tab* |
Mating Entry | Top |
Mounting Type | Outward or Inward Splay |
Temperature Rating | -65° to 85°C |

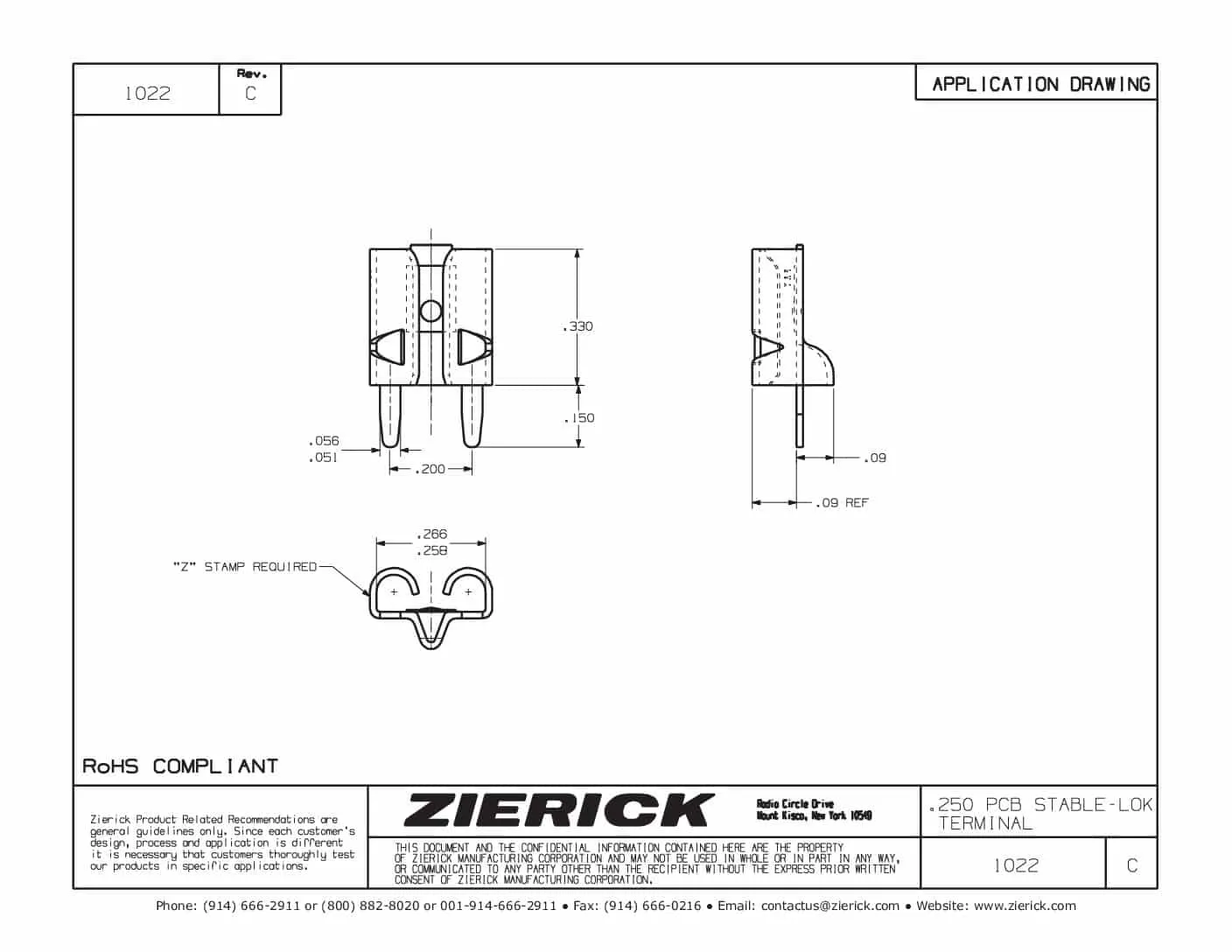

Mounting Hole Diameter | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers |
