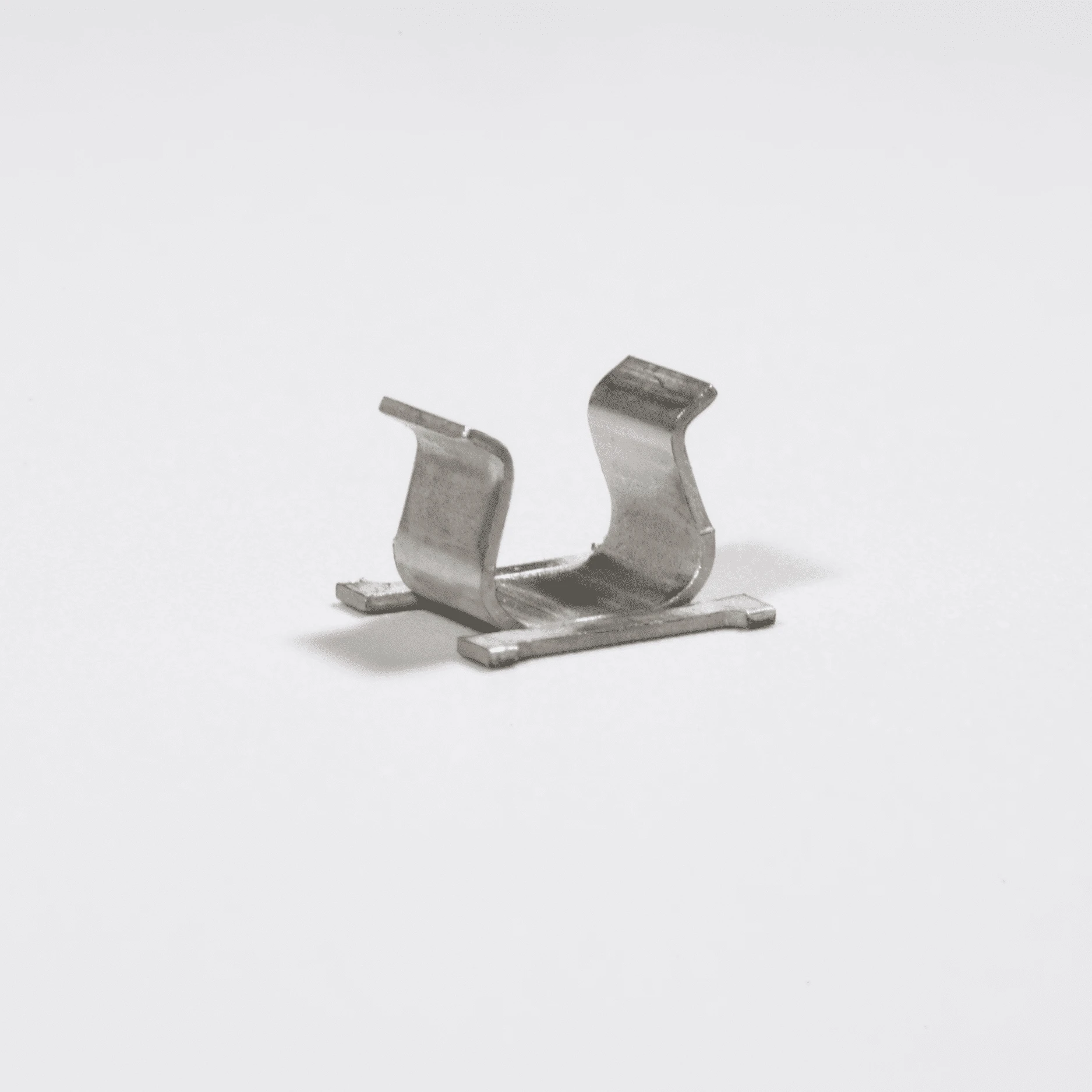

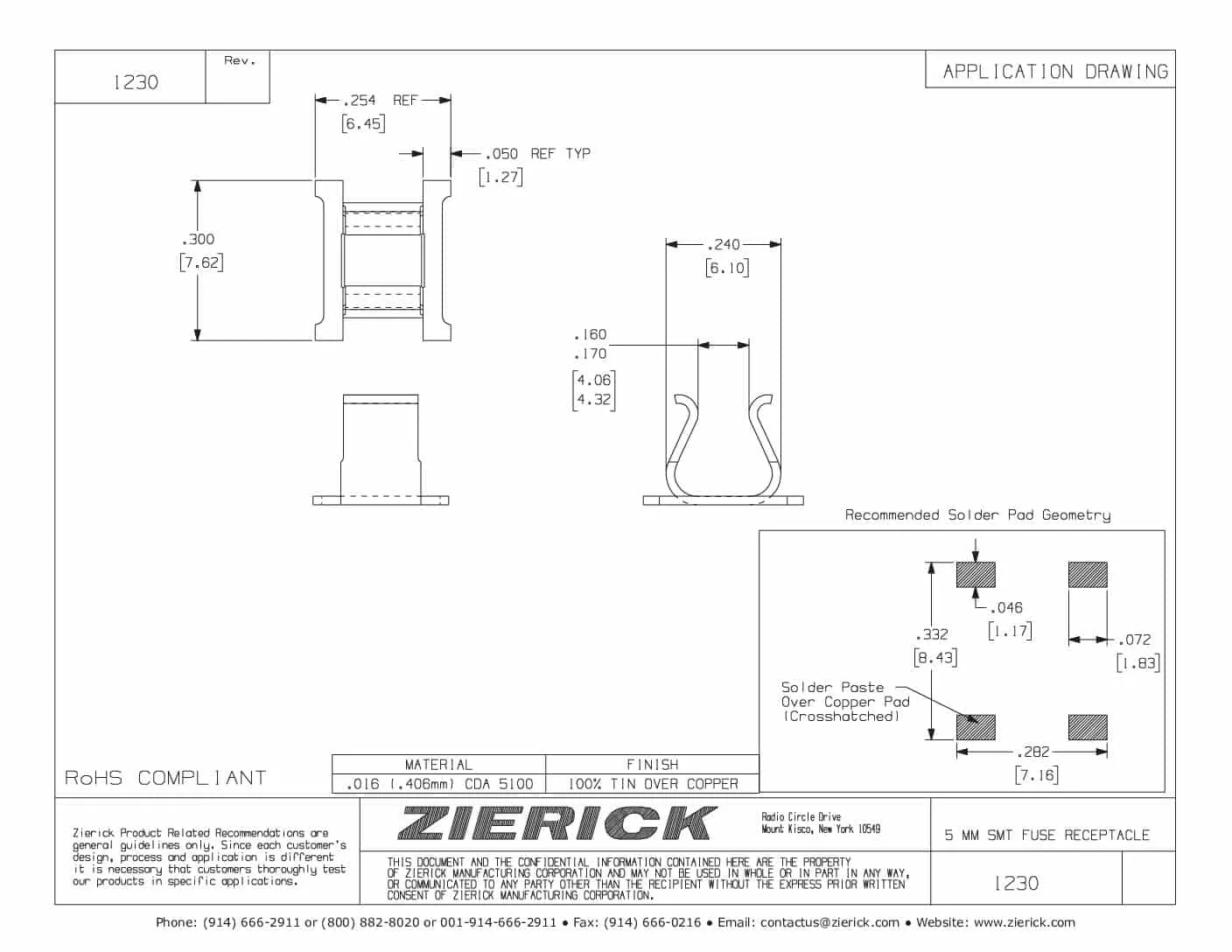

For .197" Fuse

Features & Benefits
  • Individual clips can be randomly placed;
  • Clips don’t float during reflow;
  • Available in two gap widths: the 0.165” gap is for use with a standard 5mm fuse or the 0.090” gap is for use as a 1/8th inch (.125”) pin receptacle;
  • Gap dimension / contact force can be optimized for your specific application depending on mating cycles, voltage current and operating environment;
  • High pressure, gas tight connection;
  • Designed for automation using the customer’s existing pick and place equipment and a special feeder, no time consuming hand placement or costly fixturing required, or they can be automated using standard tape feeders.
Item added to cart View Cart Checkout
Information
SKU: 1230X
Categories:
Resources
Prints: Additional:
Share:
Specification
Material Type

C51000 Phosphor Bronze

Material Thickness

0.016in (0.41mm)

Finish Code

0

Current Rating

15 Amperes

Dim

0.165in (4.19mm)

Feeder System

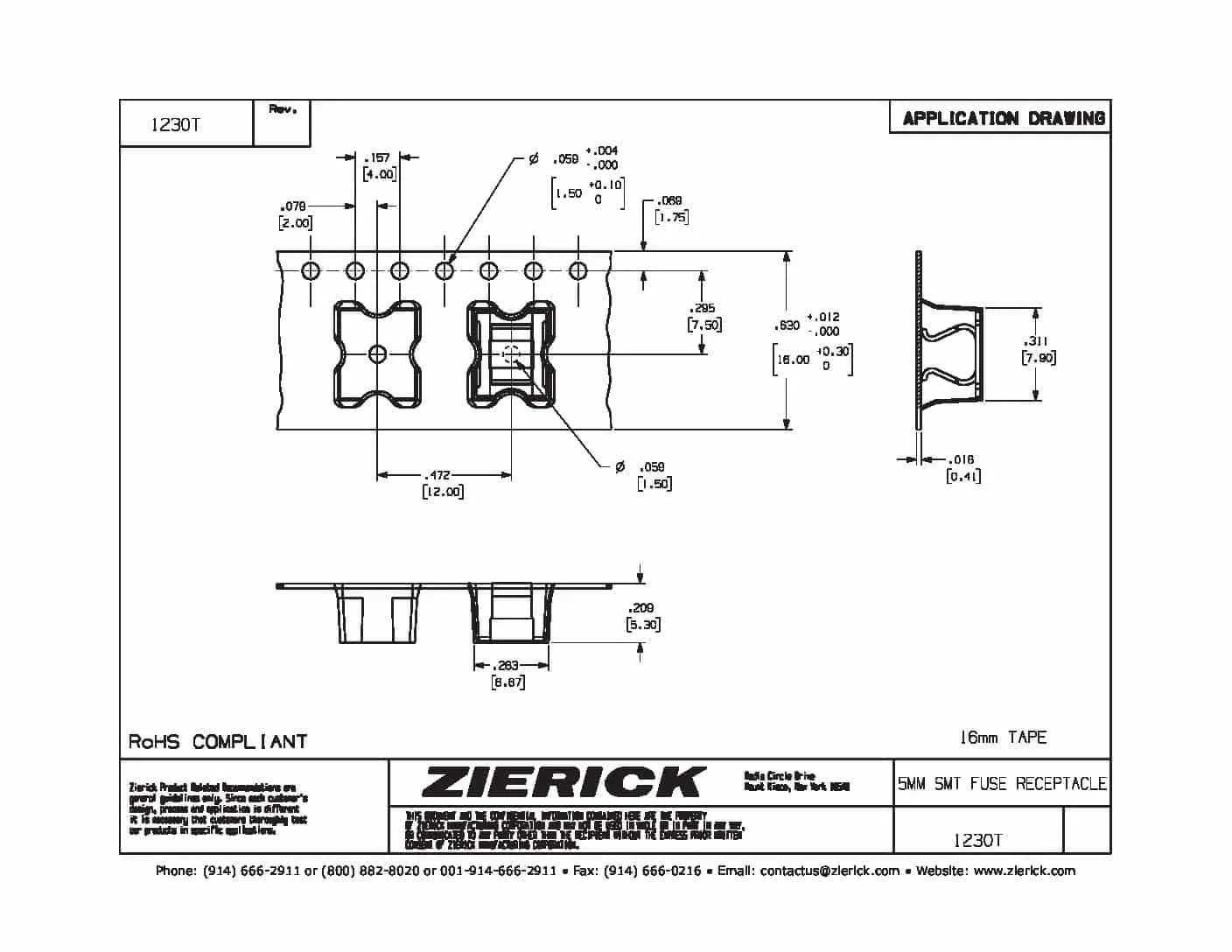

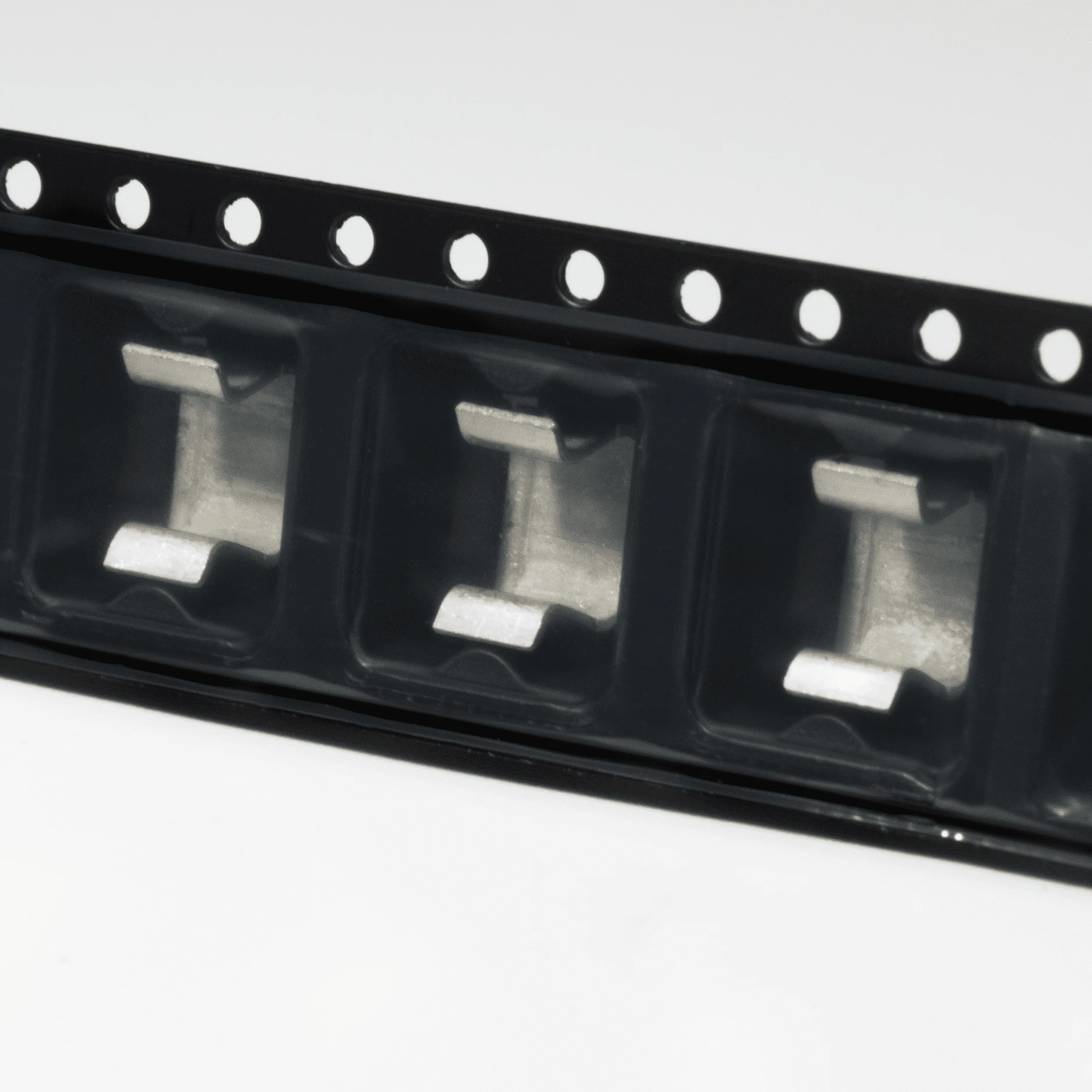

Standard 16mm Tape Feeder

Patent

U.S. Patent Nos. 5, 695, 348, 5, 730, 608 and other U.S. and international patents

Notes

Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department.

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
