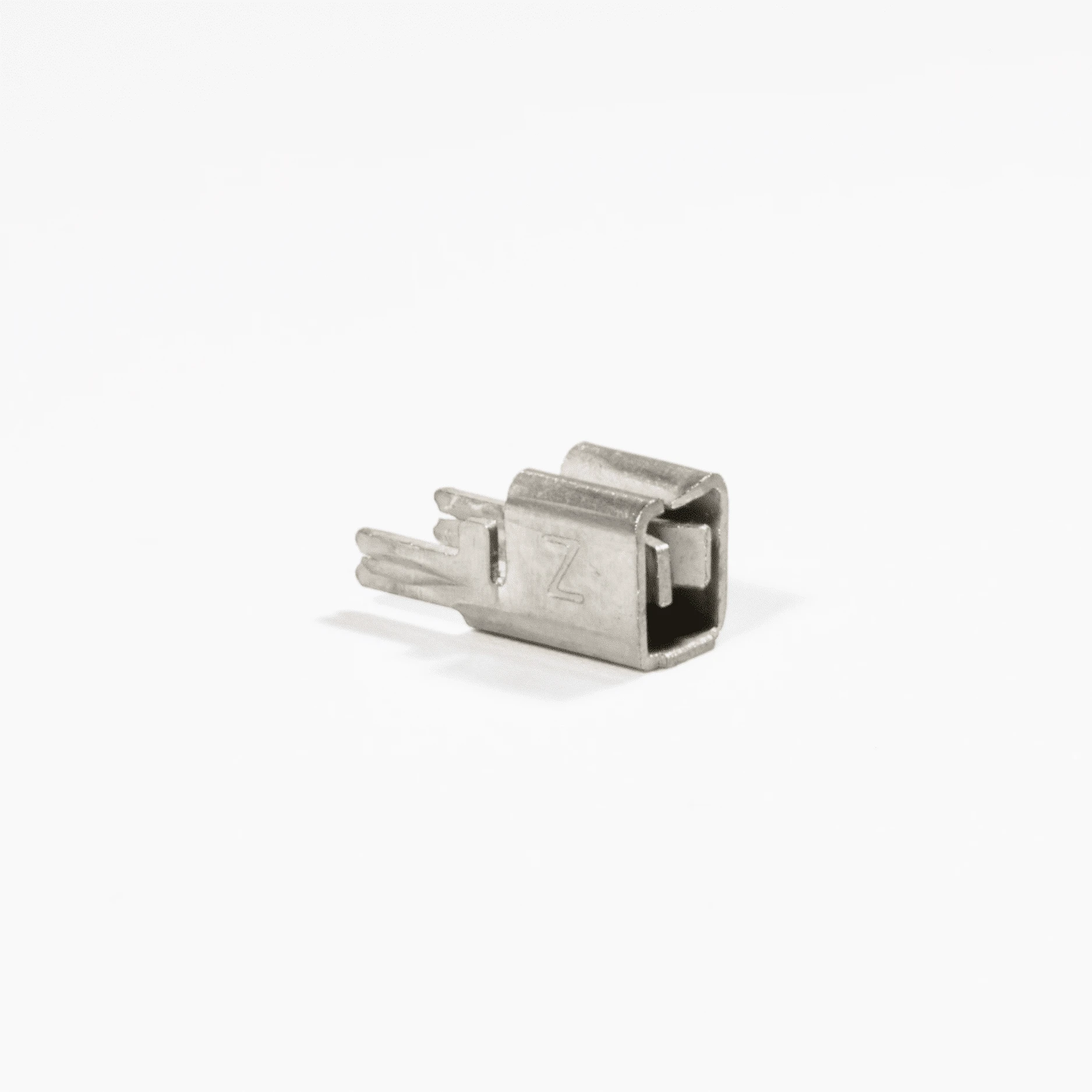

For .020" x .032" Tab
Features & Benefits
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.016in (0.41mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Resistance Rating | 10mOhm Max |
| Mating Terminal Size | 0.020in (0.51mm) and 0.032in (0.81mm) |
| Mating Entry | Top and Horizontal |
| Mounting Type | Split Leg Inward Splay |
| Temperature Rating | -65° to 85°C |
| Applicator System | Model 9700, 9700 XY |
