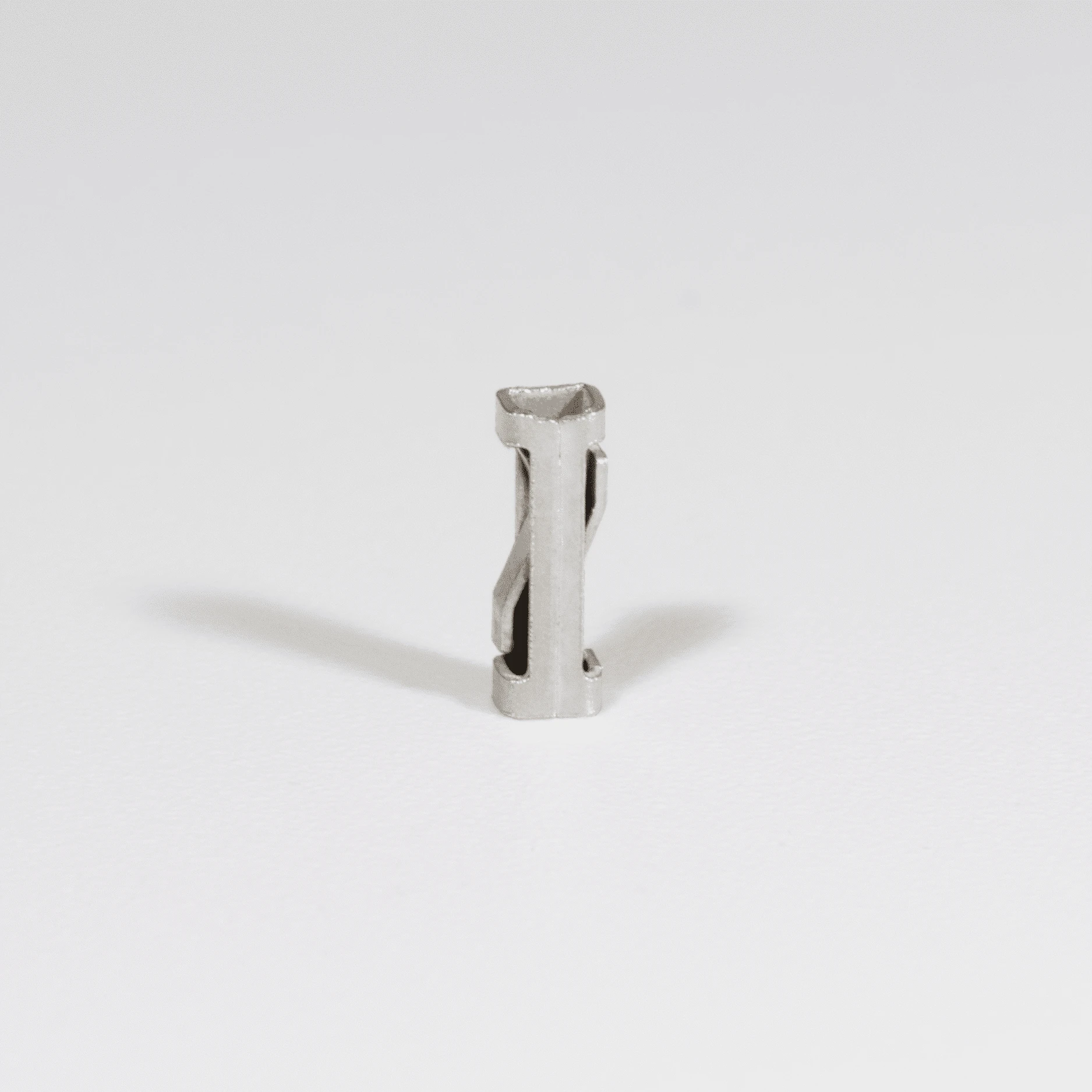

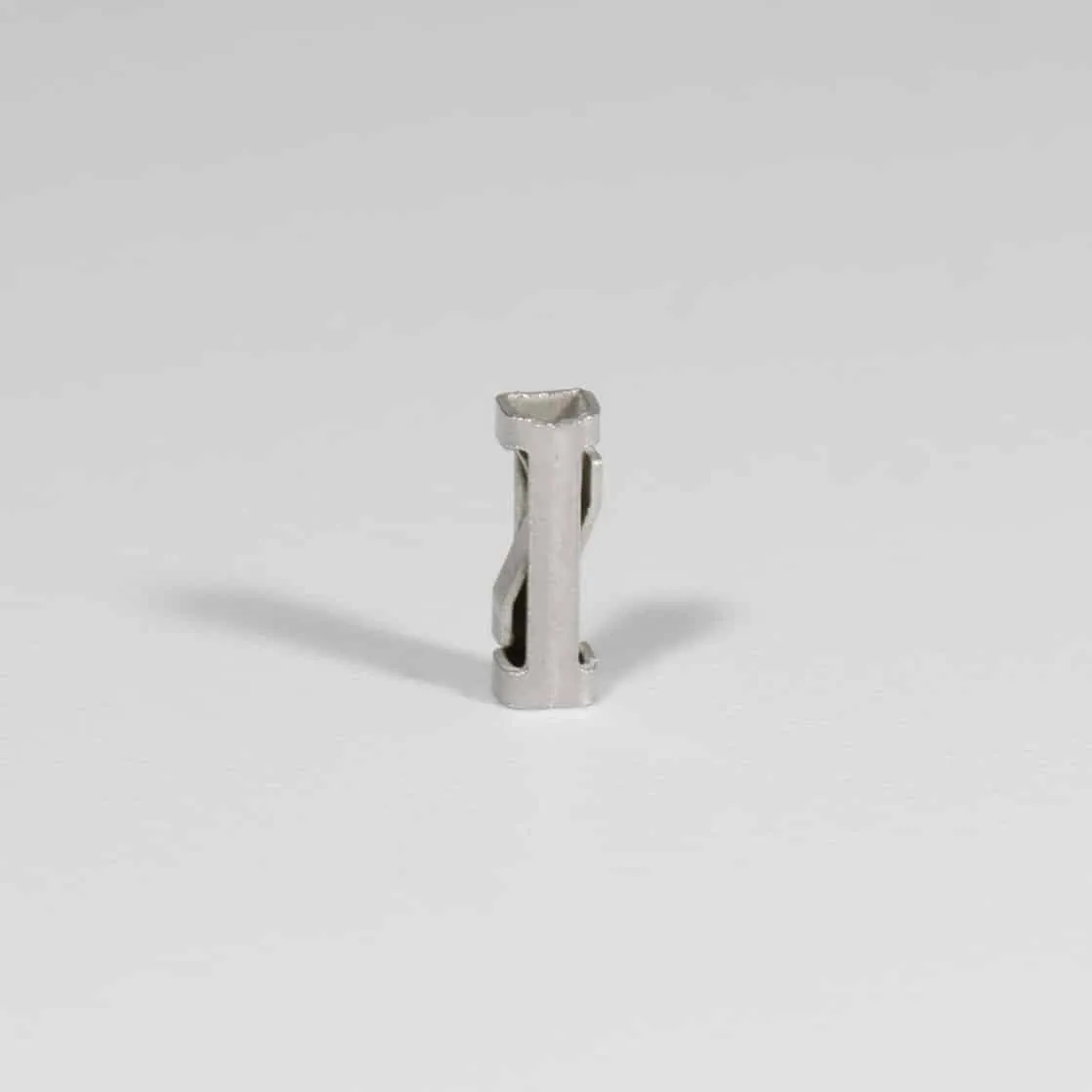

Dual-Entry Mini Wire Gripper
Features & Benefits

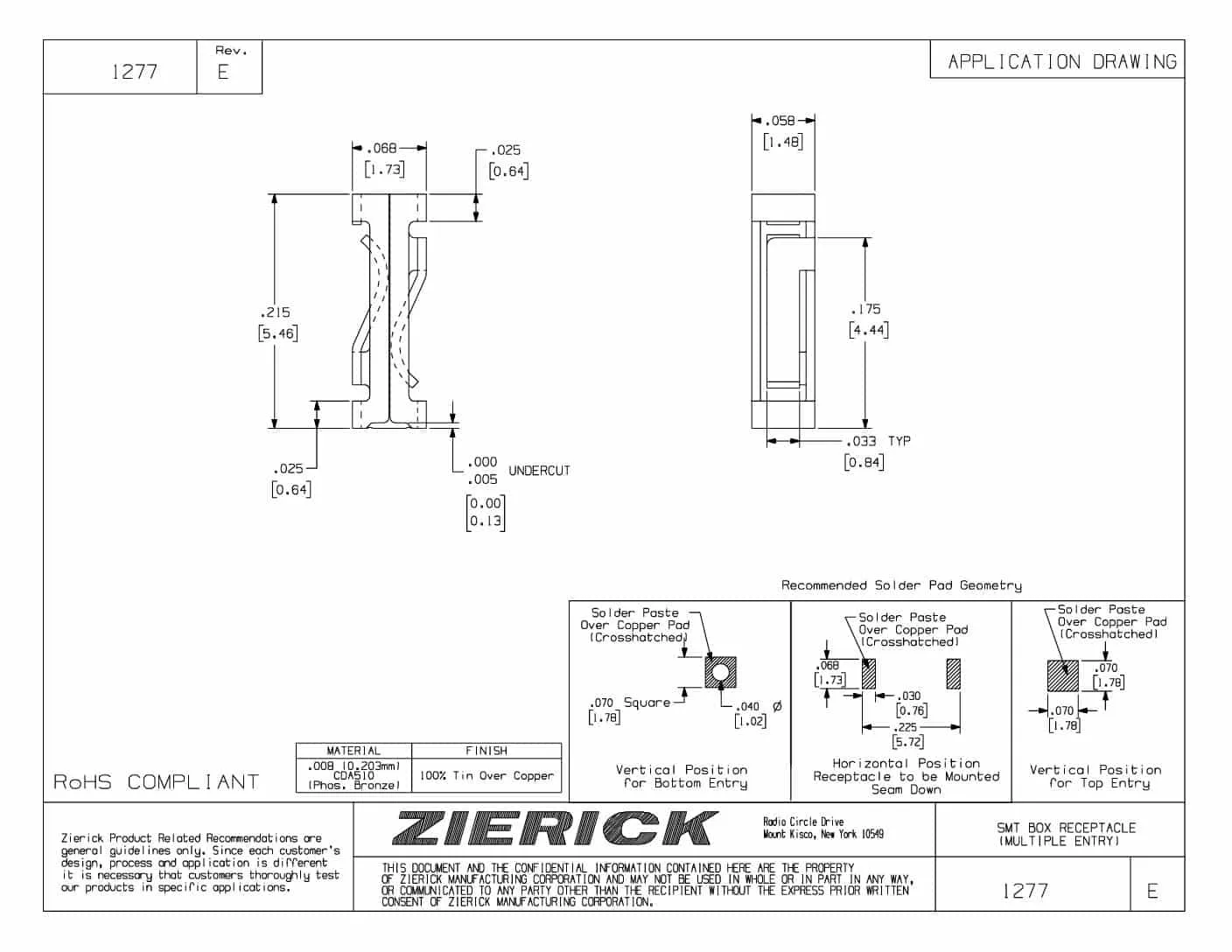

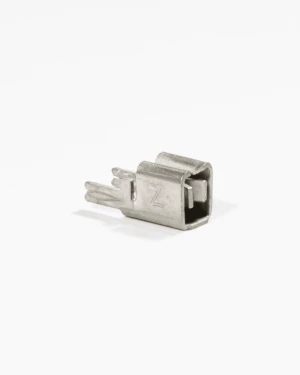

- PN 1277 mates with an .025” square or round pin, from top or bottom, and has a 10 Amp current rating. This SMT Box Receptacle can be placed as a vertical terminal on the pc board, or as a horizontal terminal, mating at either end;
- Low insertion force;
- High pressure contact area for reliable gas tight connection;
- Forgiving for locational misalignment;
- A dozen mating cycles (higher mating cycle version available);
- Small footprint;
- Boxes don’t float during reflow;

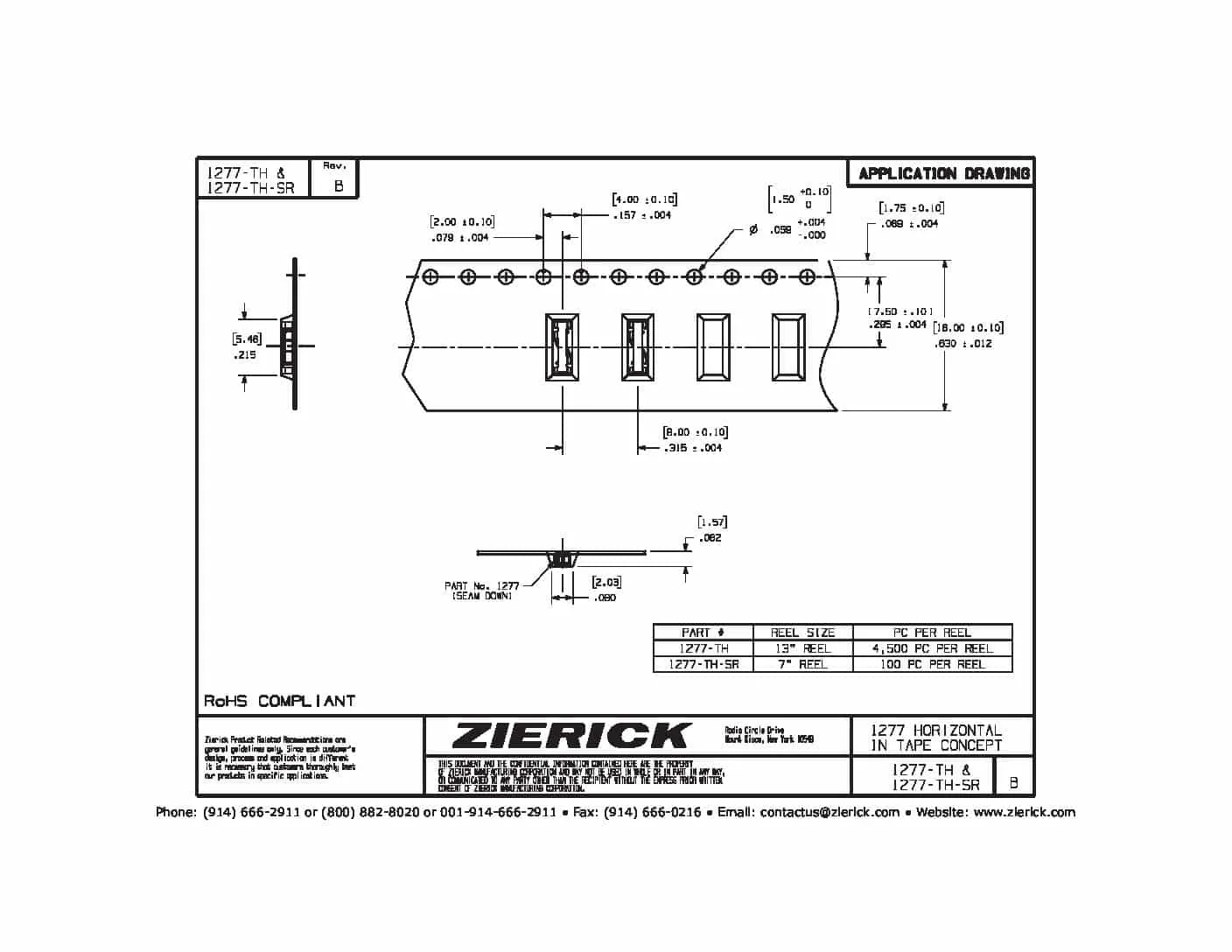

- Designed for automation using the customer’s existing pick and place equipment and a special feeder, no time consuming hand placement or costly fixturing required, or they can be automated using standard tape feeders.
Specification
| Material Type | C51000 Phosphor Bronze |
|---|---|
| Material Thickness | 0.008in (0.20mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mating Terminal Size | 0.025in (0.64mm) square or round pin |
| Feeder System | Standard 16mm Tape Feeder |
| UL File Number | E361770 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
