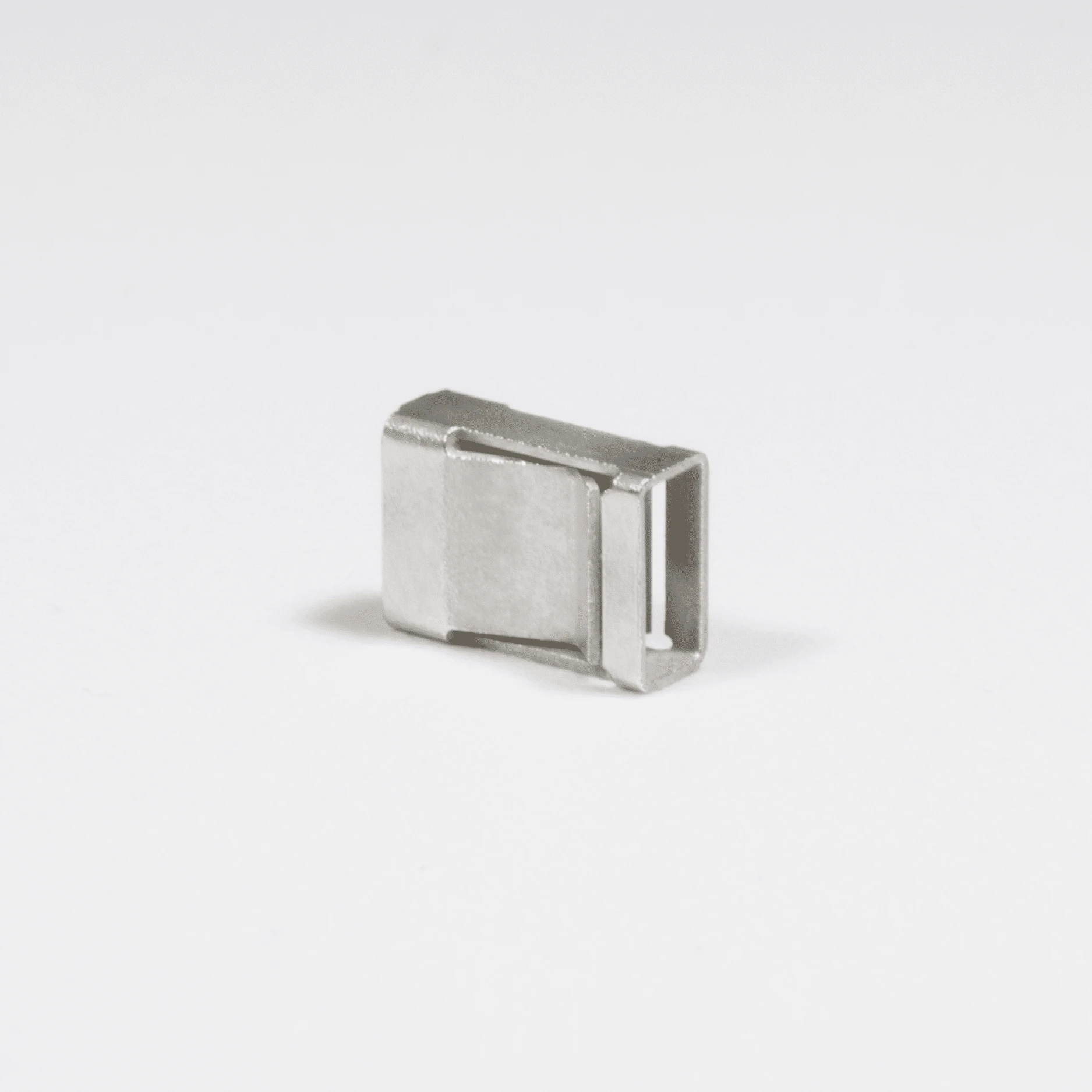

Dual-Entry
Features & Benefits
- Can mate with a range of posts/tabs with a thickness of .020” to .025” and width of .020” to .120”
- High current rating – Low insertion force
- High pressure contact area for reliable gas tight connection
- Top or bottom (through board) entry
- A dozen mating cycles (higher mating cycle version available)
- Small footprint
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
- Can be automated using standard tape feeders

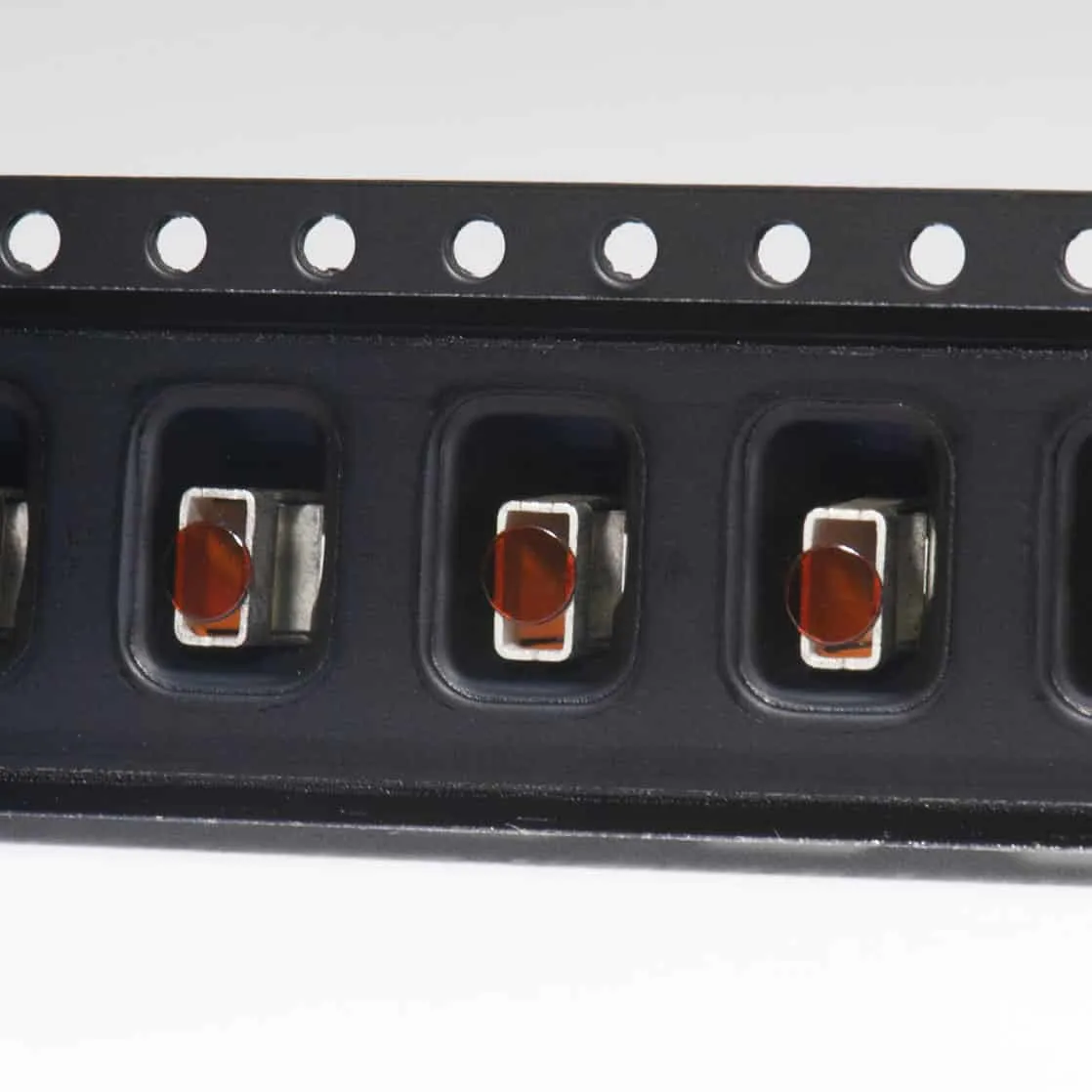

- Kapton provides a flat surface which allows the part to be picked up with a vacuum pick-up nozzle
Specification
| Material Type | C51000 Phosphor Bronze |
|---|---|
| Material Thickness | 0.008in (0.20mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 12 Amperes |
| Mating Terminal Size | 0.020in (0.51mm) to 0.025in (0.64mm) thick |

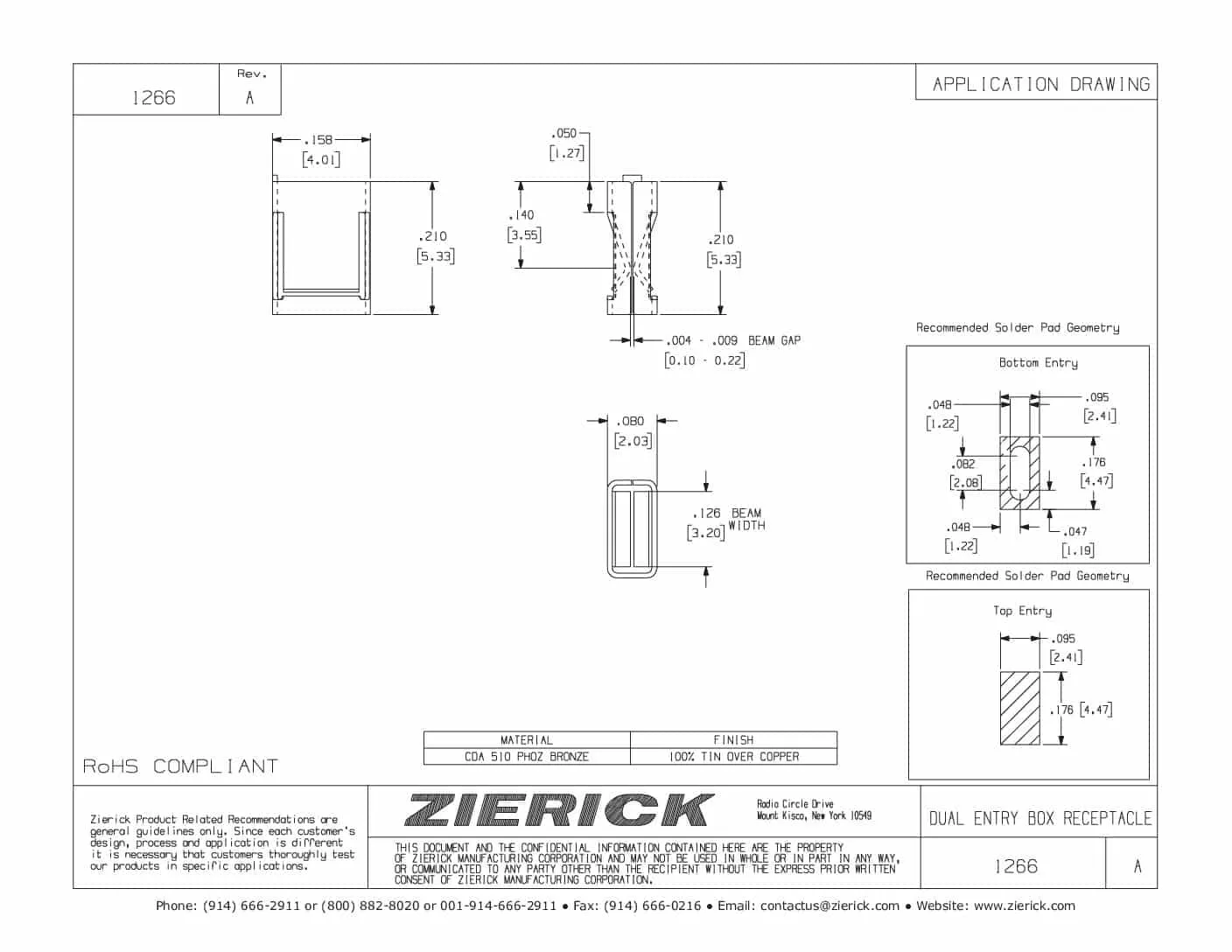

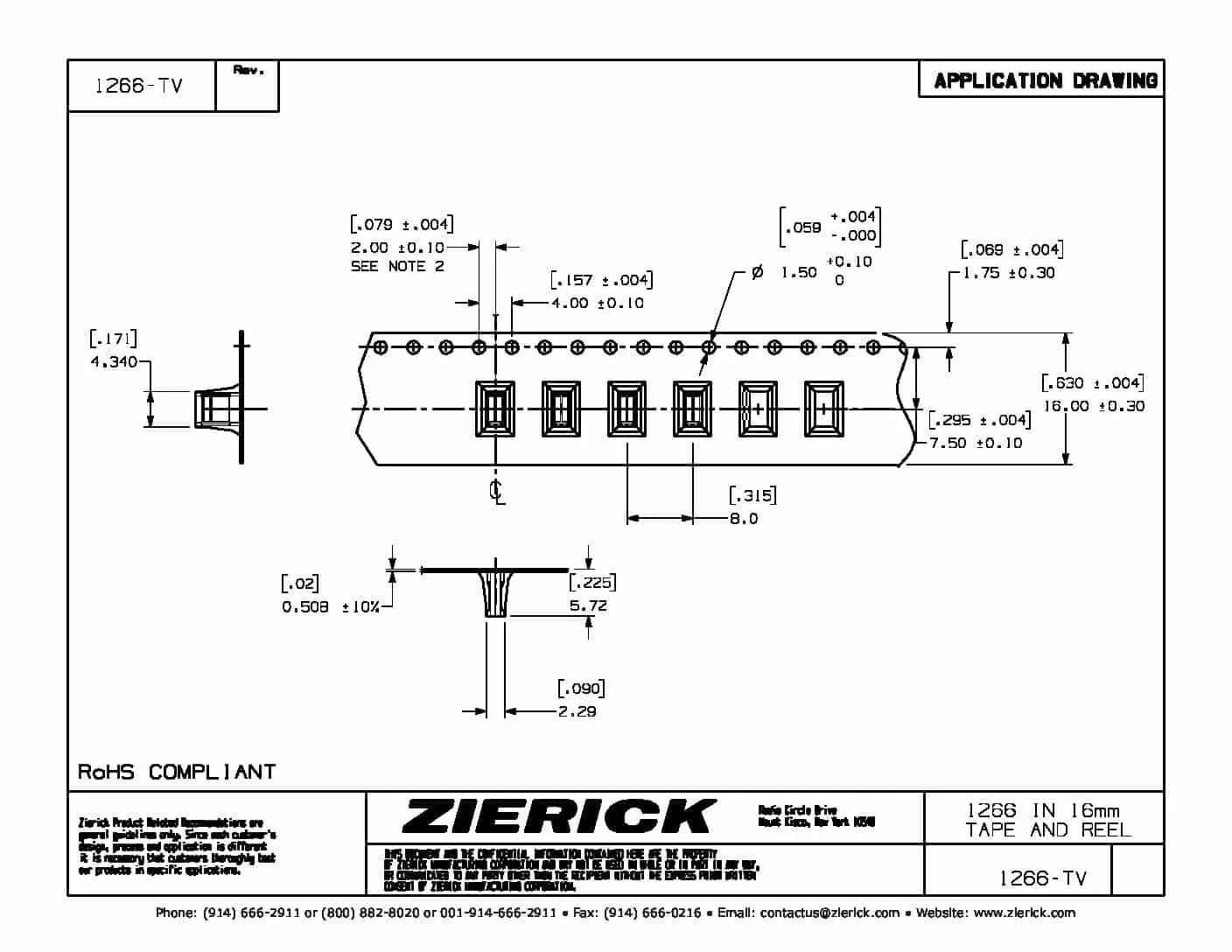

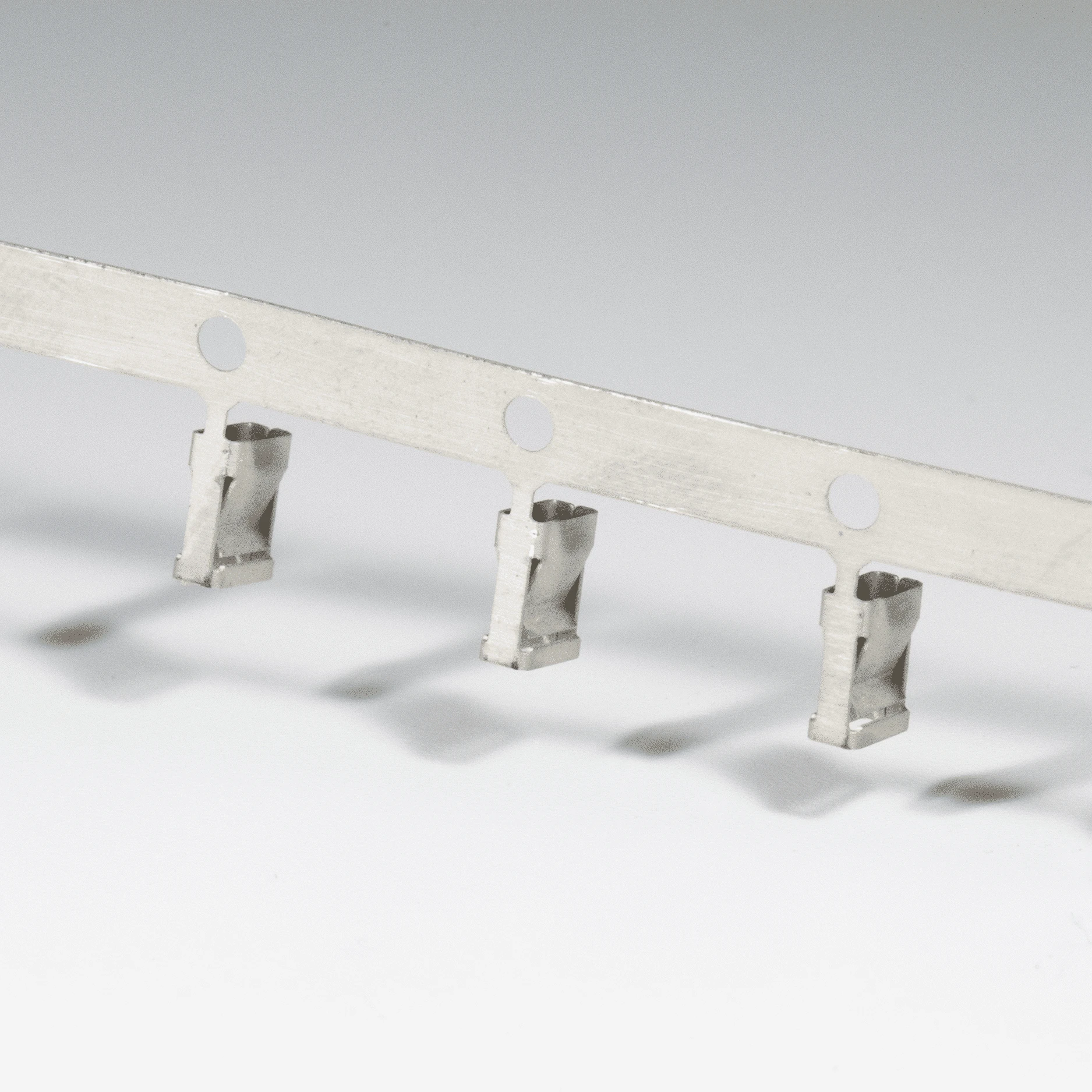

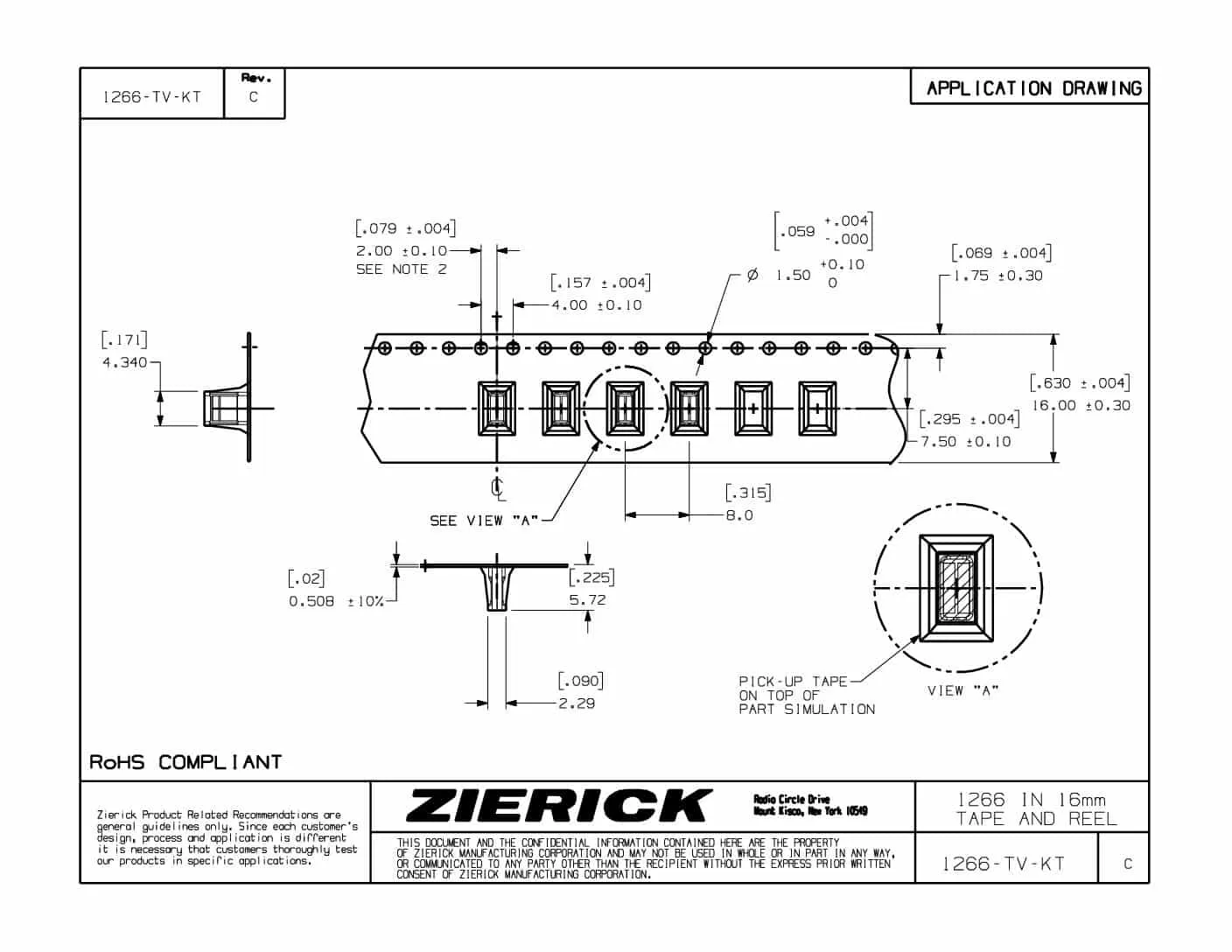

| Feeder System | Standard 16mm Tape Feeder for PNs 1266-TV and 1266-TV-KT |
| UL File Number | E361770 |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
