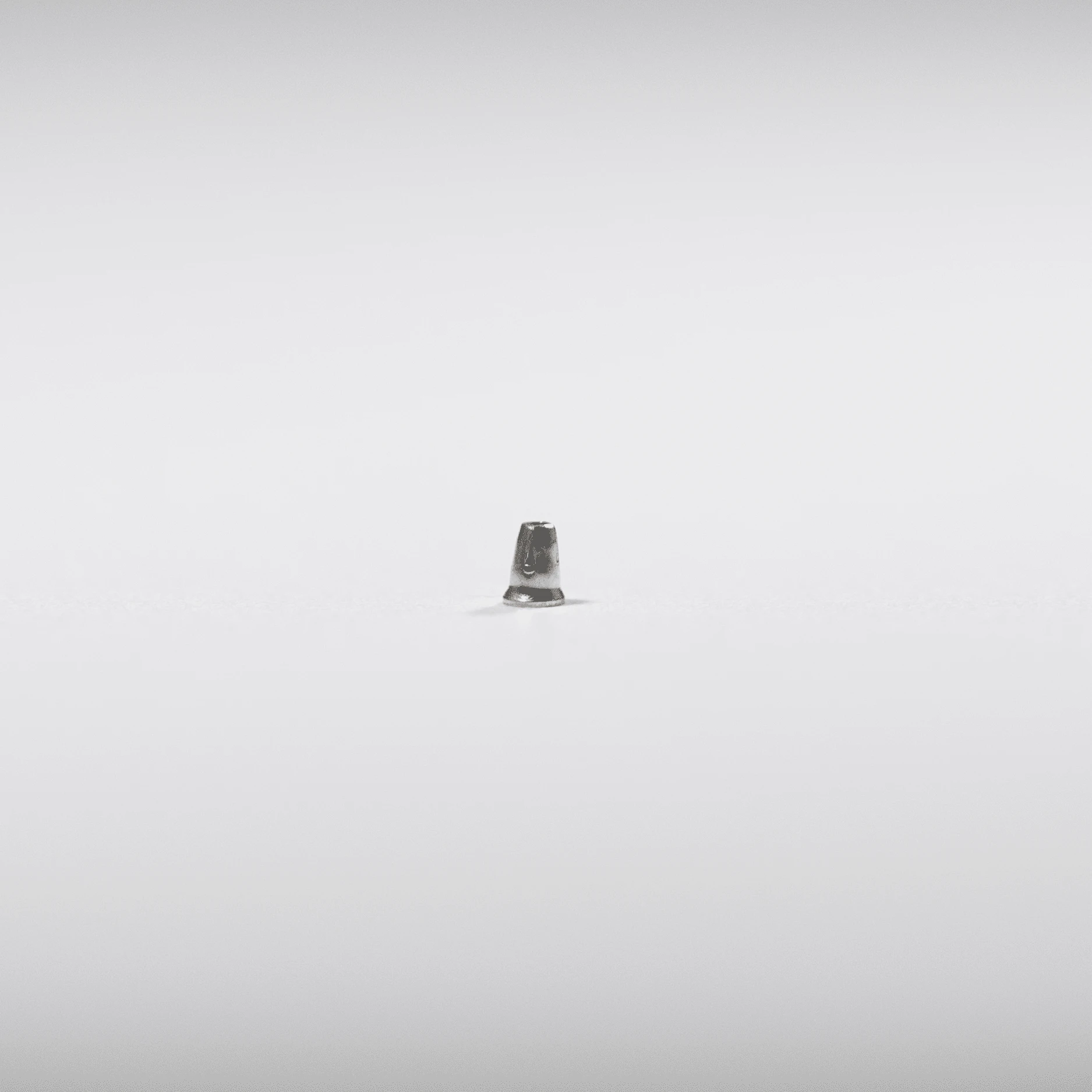

Bottom Entry
Features & Benefits
- High Current Rating, up to 7 Amps. depending on application
- Small footprint
- Low profile
- Can be either power or signal connection (with appropriate plating)
- High number of mating cycles
- Available in tape or bulk
- Ideal for demanding environments
Specification
| Packaging Type | Loose |
|---|---|
| Material Type | C17200 Beryllium Copper |
| Material Thickness | 0.005in (0.13mm) |
| Standard Finish | 100% Bright Tin over Copper |
| Current Rating | 7 Amperes |
| Mating Pin Size | 0.025in (0.64mm) Square or 0.025in (0.64mm) to 0.032in (0.81mm) Diameter Round Pins |

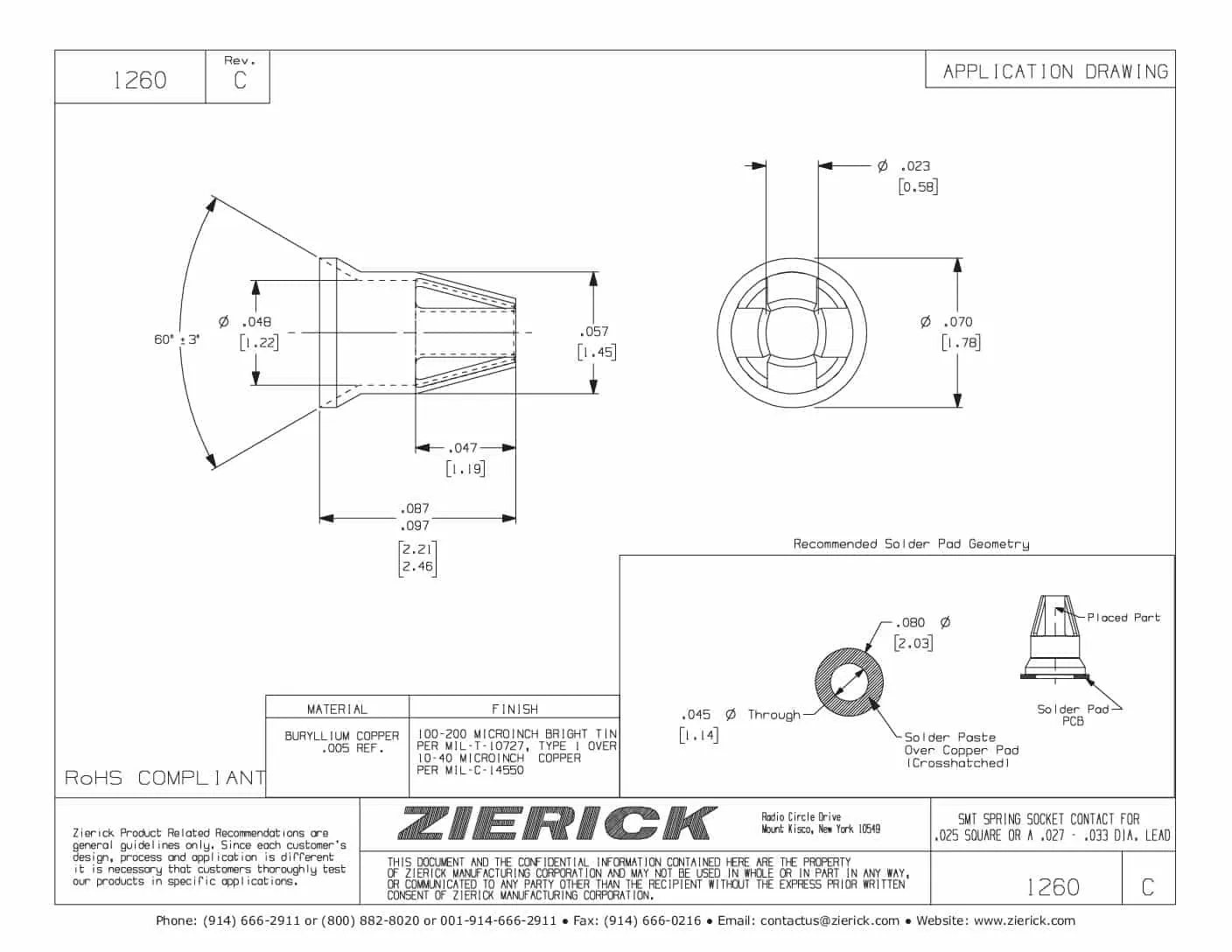

| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
