Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
SMT/TH
Features & Benefits
- This Tab/Quick Disconnect was designed for SMT or THT applications
- Ideal for demanding applications
- Applicable for SMT reflow process or THT wave soldering
- High retention forces
- Tabs don’t float during reflow
- Shoulder on the part provides a stand-off for the mating part from the PCB
- Retains typical through-hole Quick Disconnect Tab features
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
- Can be automated using standard tape feeders

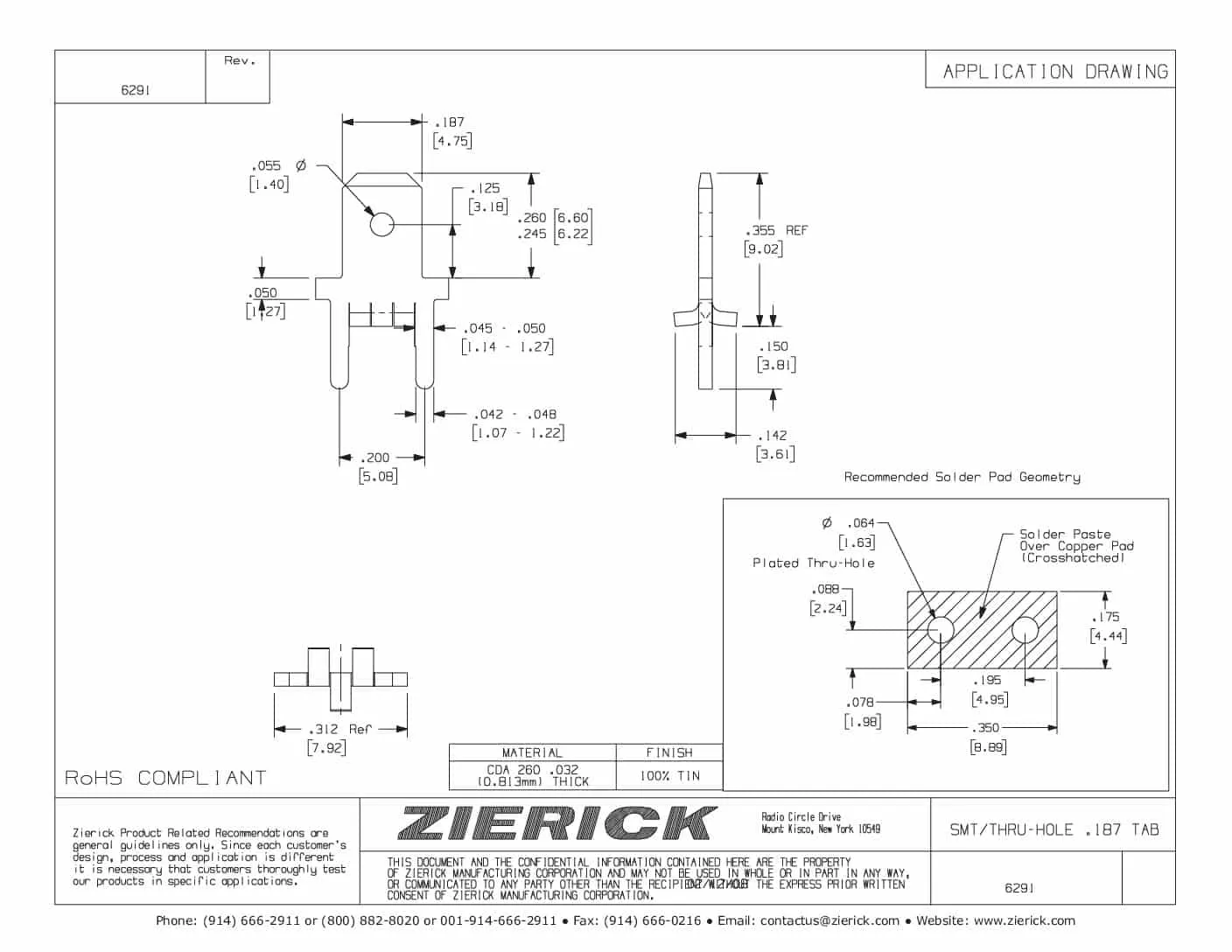

Specification
| Packaging Type | Reeled |
|---|---|
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 25 Amperes |
| Hole Dimension | 0.055" (1.408mm) hole |
| UL File Number | E146208 |
| Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses\\, call Zierick's product development department. | 1 |
