Tab/IDC For #19-18 AWG
Features & Benefits
ADDITIONAL RESOURCES
Information
SKU: 6205
Categories: Insulation Displacement Connectors (IDC)
Resources

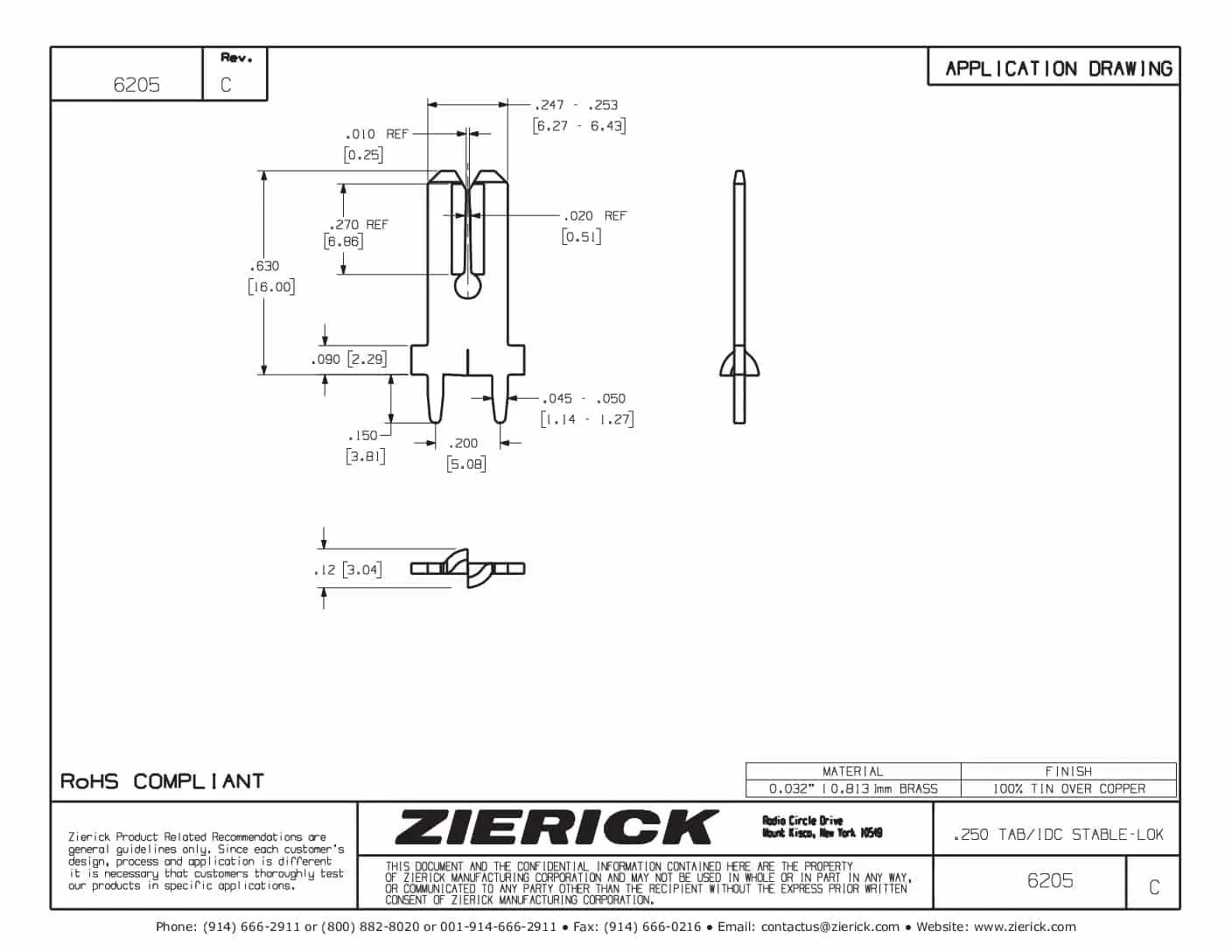

Prints: Additional:
Specification
| Packaging Type | Reeled |
|---|---|
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076mm) |
| #19-18 AWG Magnet Wire | 1 |
| Model 9700\\, 9700 XY | 1 |
