Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
For #24-18 AWG
Features & Benefits
ADDITIONAL RESOURCES
- Read about the Torsion IDC.
- View the IDC wire termination procedure.
Information
SKU: 6119
Categories: Insulation Displacement Connectors (IDC)
Resources

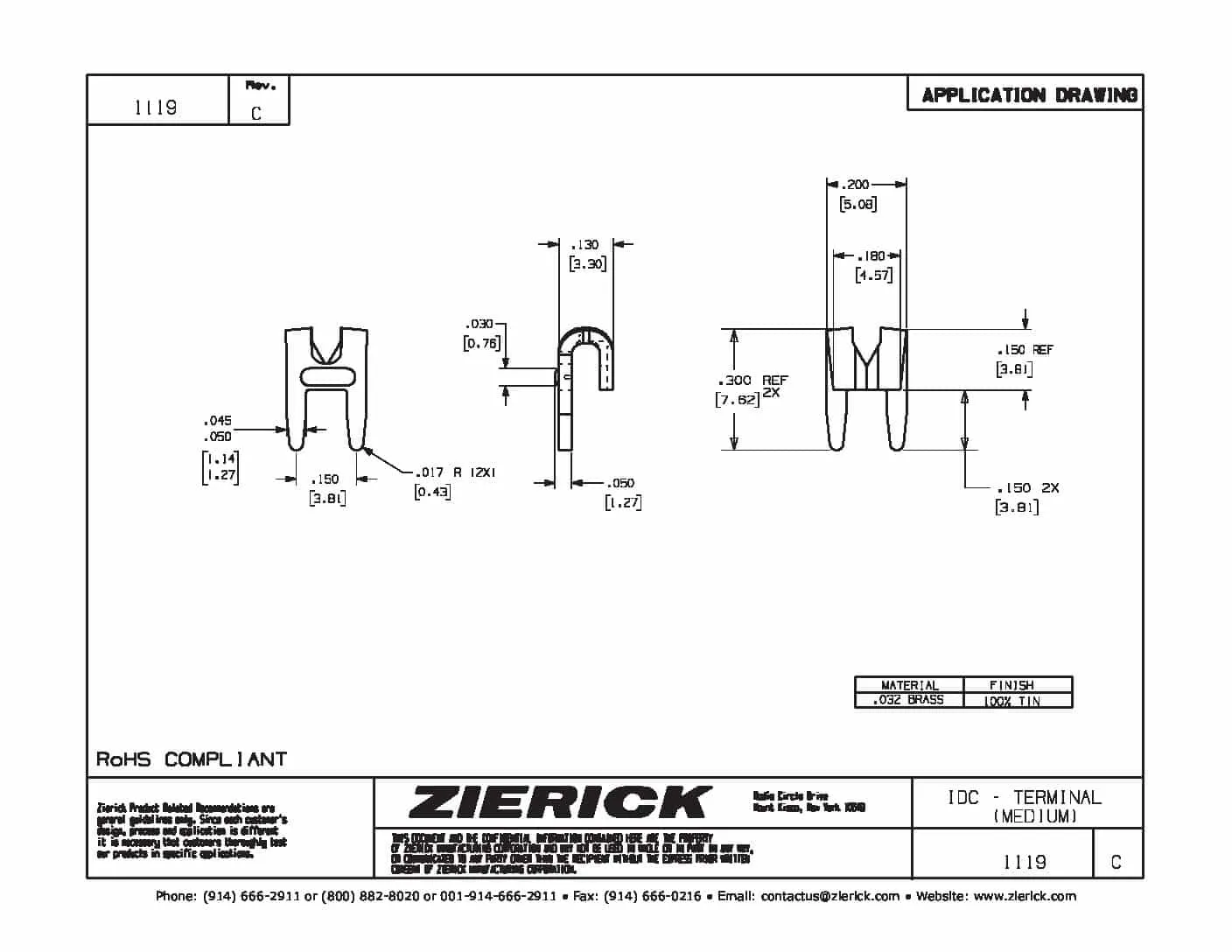

Prints: Additional:
Specification

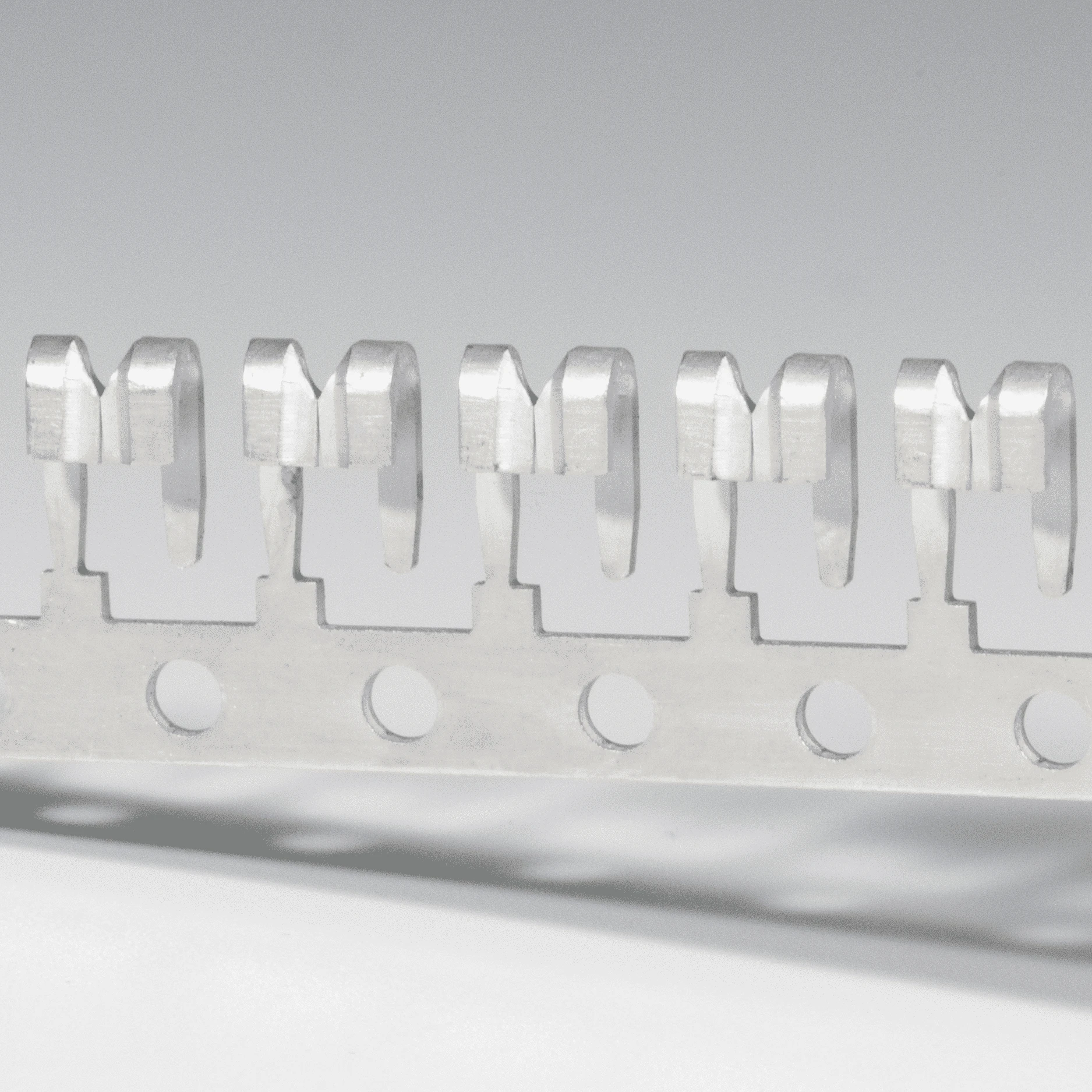

Packaging Type | Reeled |
---|---|
Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
Standard Finish | 100% Matte Tin over Copper (0) |
Current Rating | 20 Amperes |
Mounting Type | Outward or Inward Splay 0.062" (1.57mm) thick PCB |
Mounting Hole Diameter | 2 holes 0.058" ±0.003" (1.47mm ±0.076) on 0.150" (3.81mm) centers |
#24-18 AWG | 1 |
Model 9700\\, 9700 XY | 1 |
Consult factory. | 1 |
