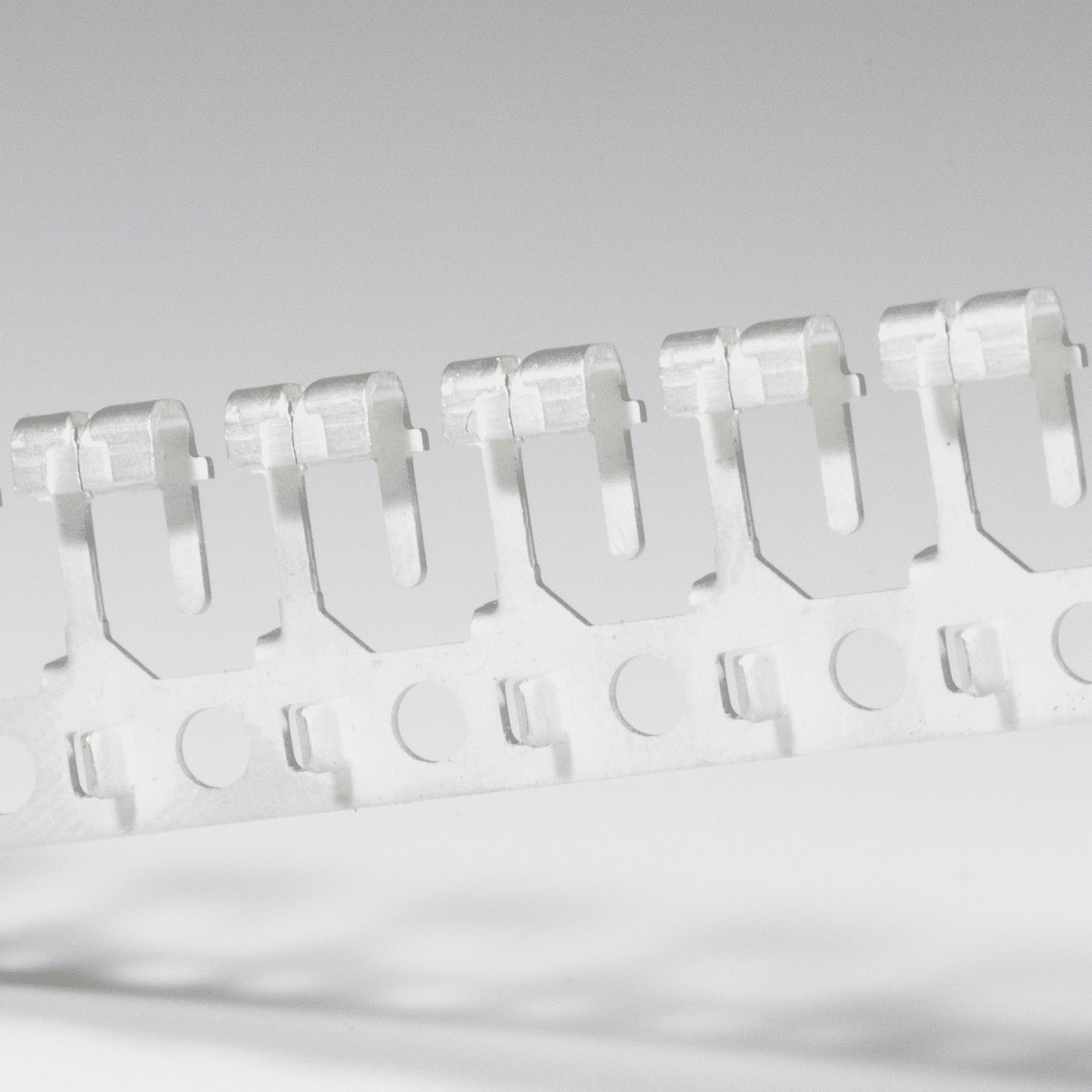

For #30-26 AWG
Features & Benefits
ADDITIONAL RESOURCES
- CAD download for Part Number 6114
- Read about the Torsion IDC.
- View the IDC wire termination procedure.
Information
SKU: 6114
Categories: Insulation Displacement Connectors (IDC)
Resources
Prints: Additional:
Specification
| Packaging Type | Reeled |
|---|---|
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mounting Type | Outward or Inward Splay Surface Mount Solder 0.062" (1.57mm) thick PCB |
| Mounting Hole Diameter | 2 holes 0.050" ±0.003" (1.27mm ±0.076mm) on 0.140" (3.56mm) centers |
| #30-26 AWG | 1 |
| Model 9700\\, 9700 XY | 1 |
| Consult factory. | 1 |
