Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.

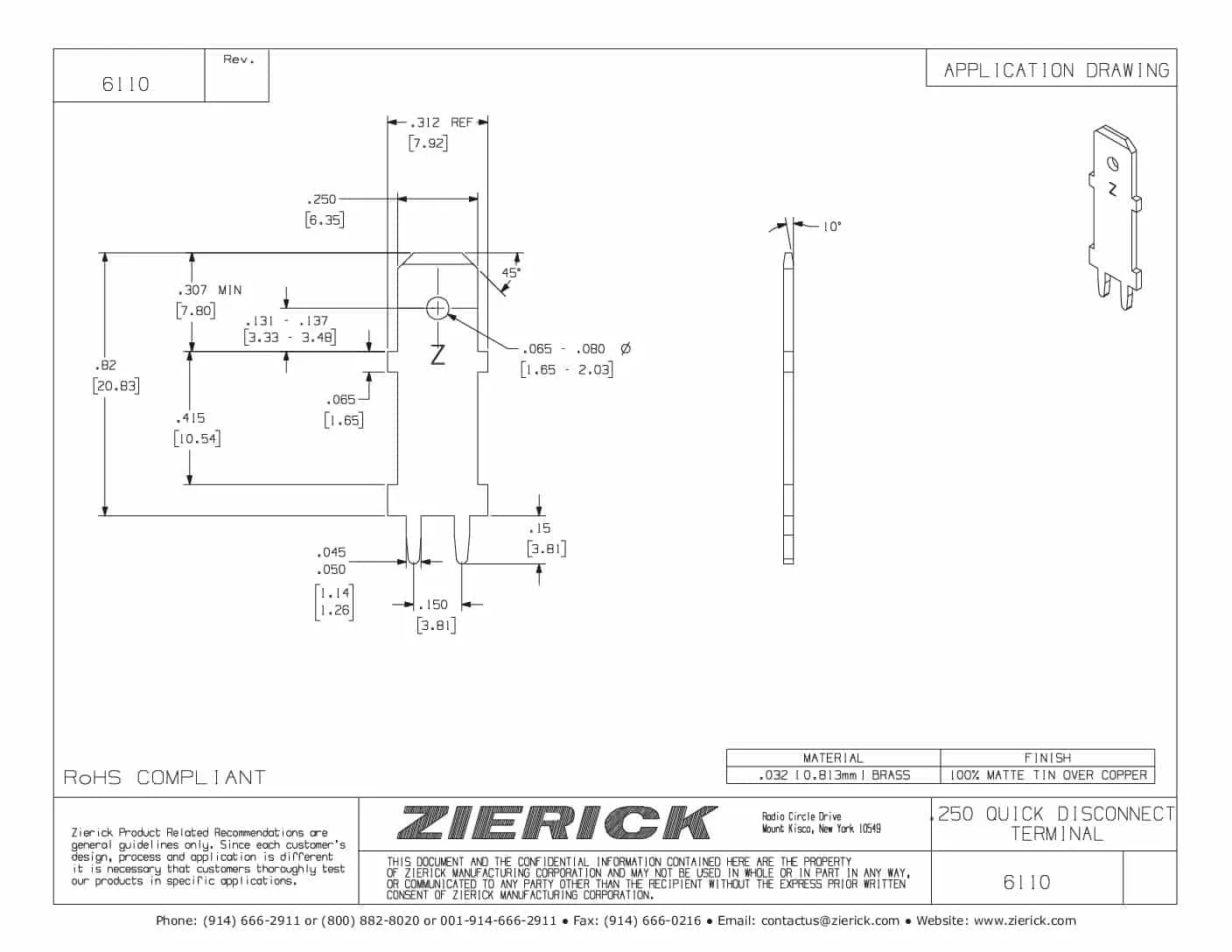

Press Fit, PN 6110
Features & Benefits
Specification
| Packaging Type | Reeled |
|---|---|
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward Splay |
| UL File Number | E146208 |
| 0.058" ±0.003" (1.47mm ±0.076) | 1 |
| Model 9700\\, 9700 XY | 1 |
