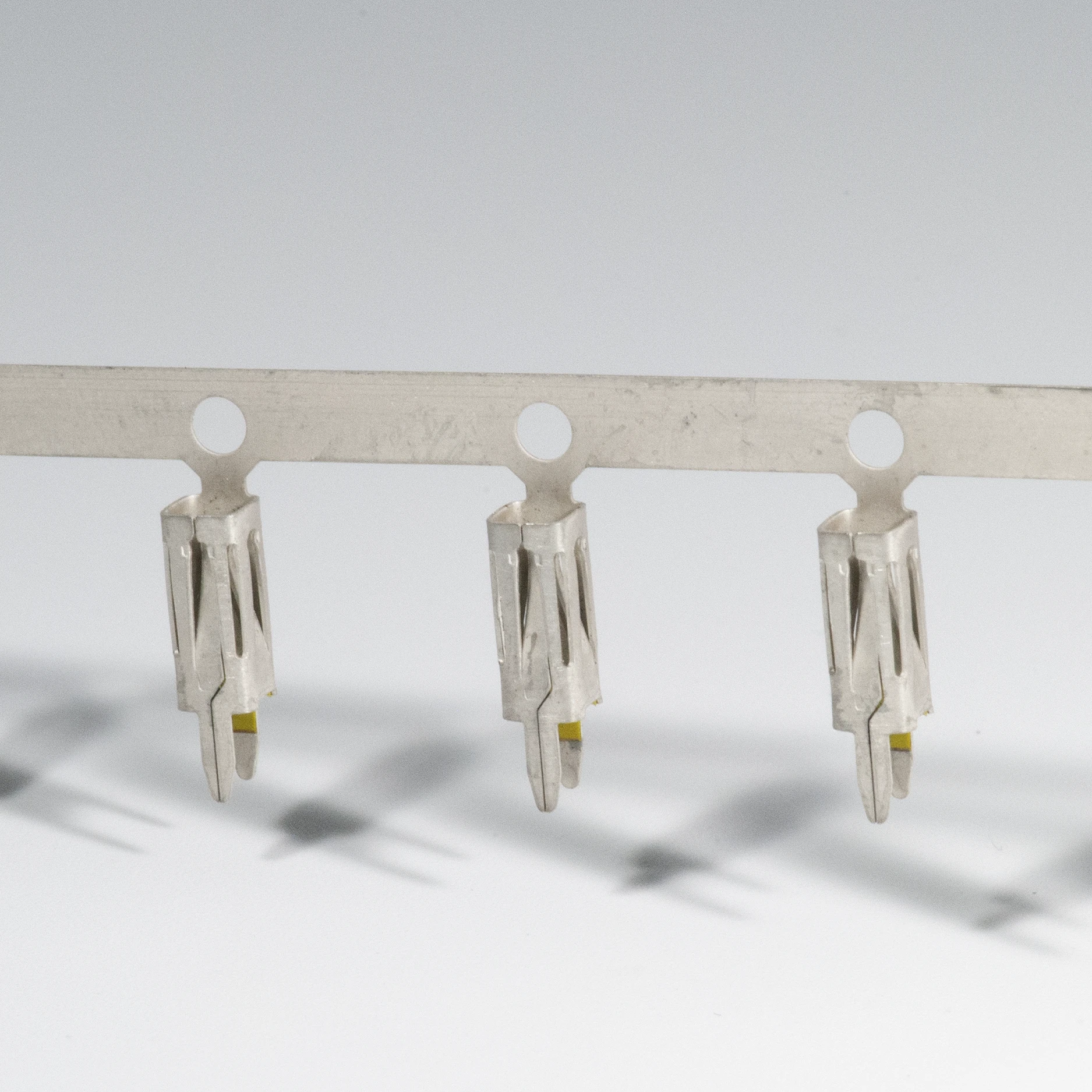

4-Beam Bottom Entry
Features & Benefits
Specification
| Packaging Type | Reeled |
|---|---|
| Material Thickness / Type | 0.010" (0.25mm) C51000 Phosphor Bronze |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mating Type | Vertical |
| TAPERESIST™ | Optional |
| 10mOhm Max | 1 |
| 0.060" (1.52mm) Rd. or Sq. / 0.095" (2.41mm) Rd. or Sq. | 1 |
| Application Dependent / Submit Mating Terminal Sample to Factory | 1 |
| Bottom | 1 |
| Outward Splay | 1 |
| -65° to 105°C | 1 |
| E361770 | 1 |
| 0.150" ±0.003" (3.81mm ±0.076mm) | 1 |
| Model 9700\\, 9700 XY | 1 |
