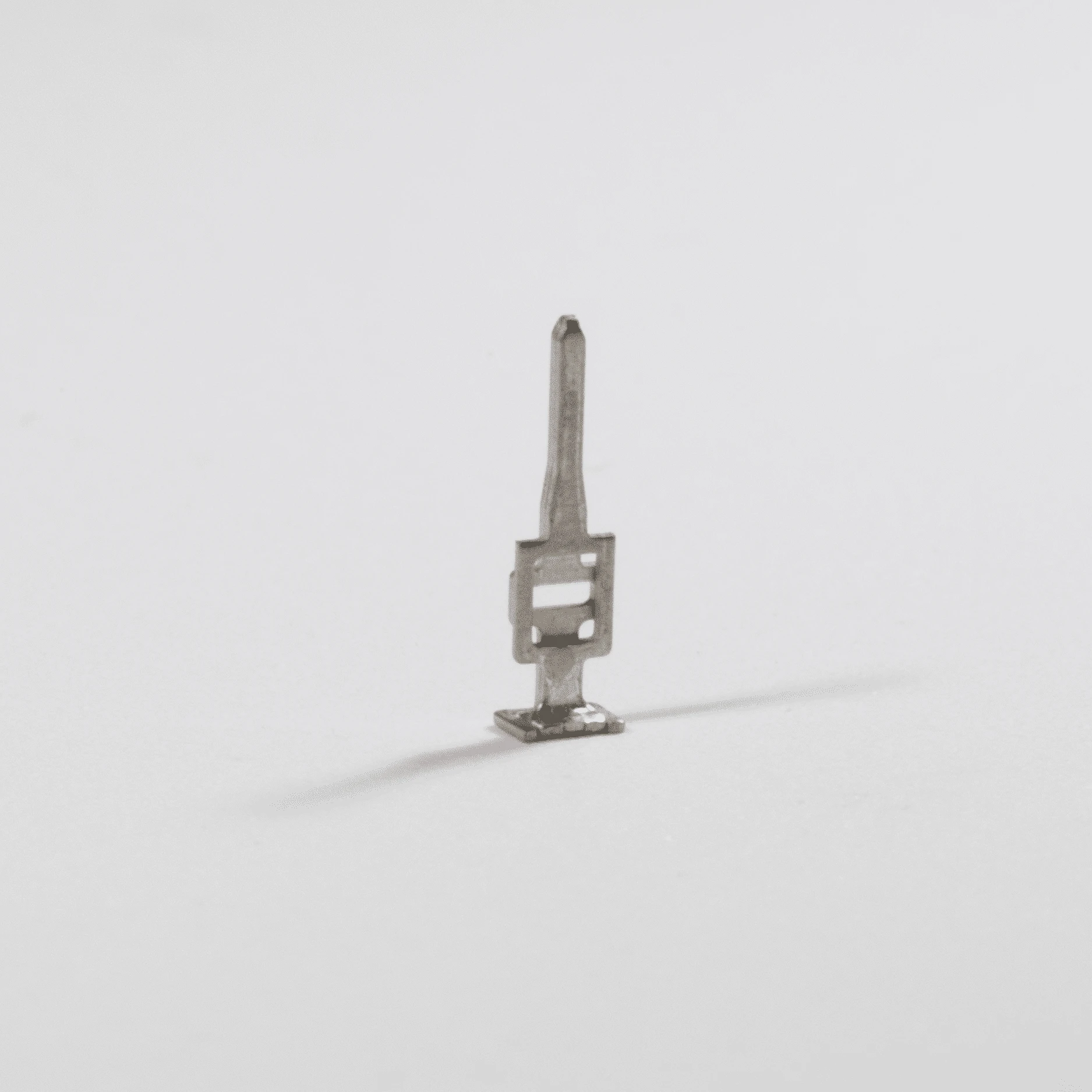

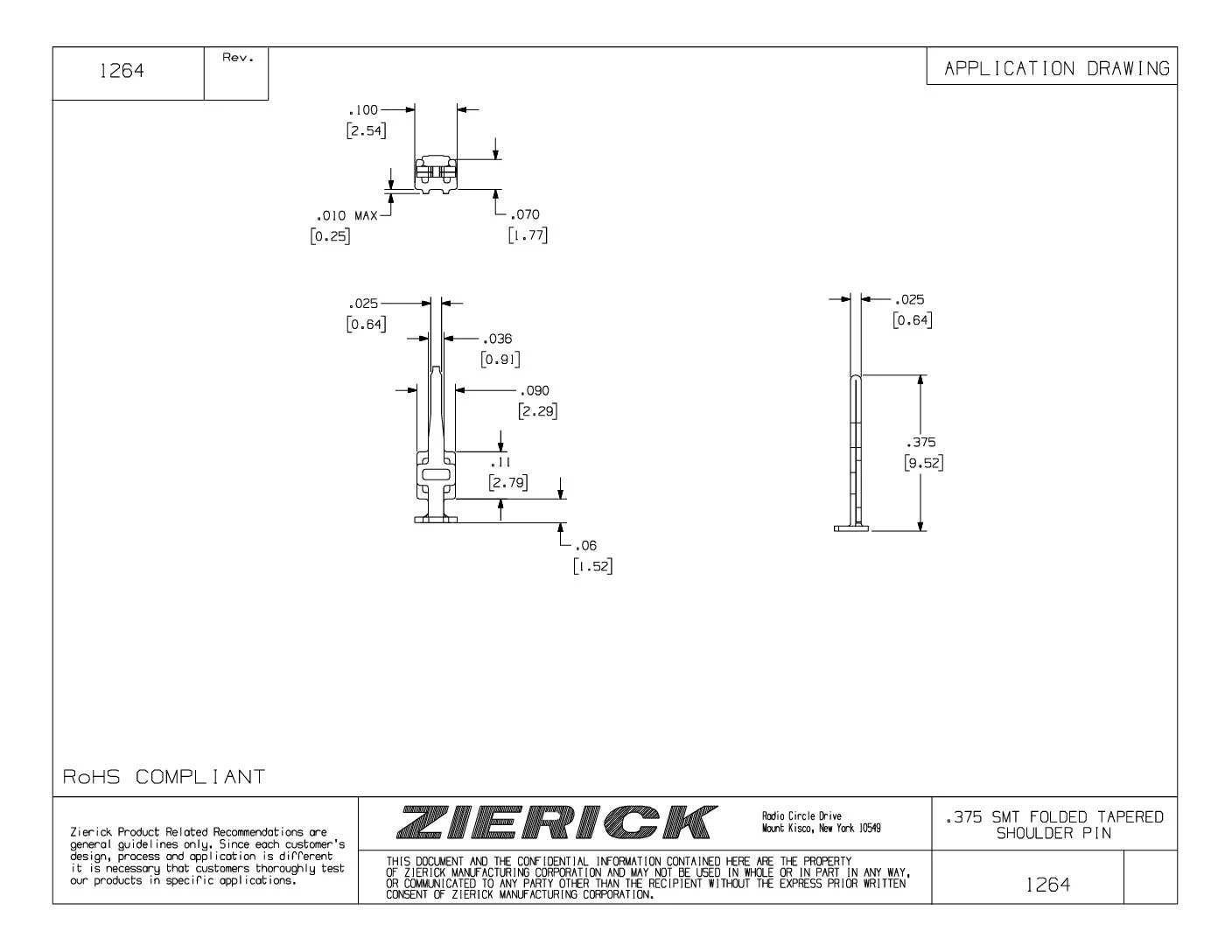

.375" Tall
Features & Benefits
- Pins provide Z-Axis (axial) compliancy to compensate for thermal expansion and contraction
- Applicable for parallel PCB stacking applications – pins can be placed on .100” x 120” on-center applications
- Individual pins can be randomly placed
- Pins don’t float during reflow
- Pins are reliably perpendicular
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
Specification
| Material Type | C15500 Copper & Silver |
|---|---|
| Material Thickness | 0.012in (0.30mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 8 Amperes |
| Total Length (Height) | 0.375in (9.52mm) |
| Patent | U.S. Patent Nos. 6, 997, 727 B1, 5, 730, 608, 5, 632, 629, 5, 695, 348, 5, 816, 868 and other U.S. and international patents |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
