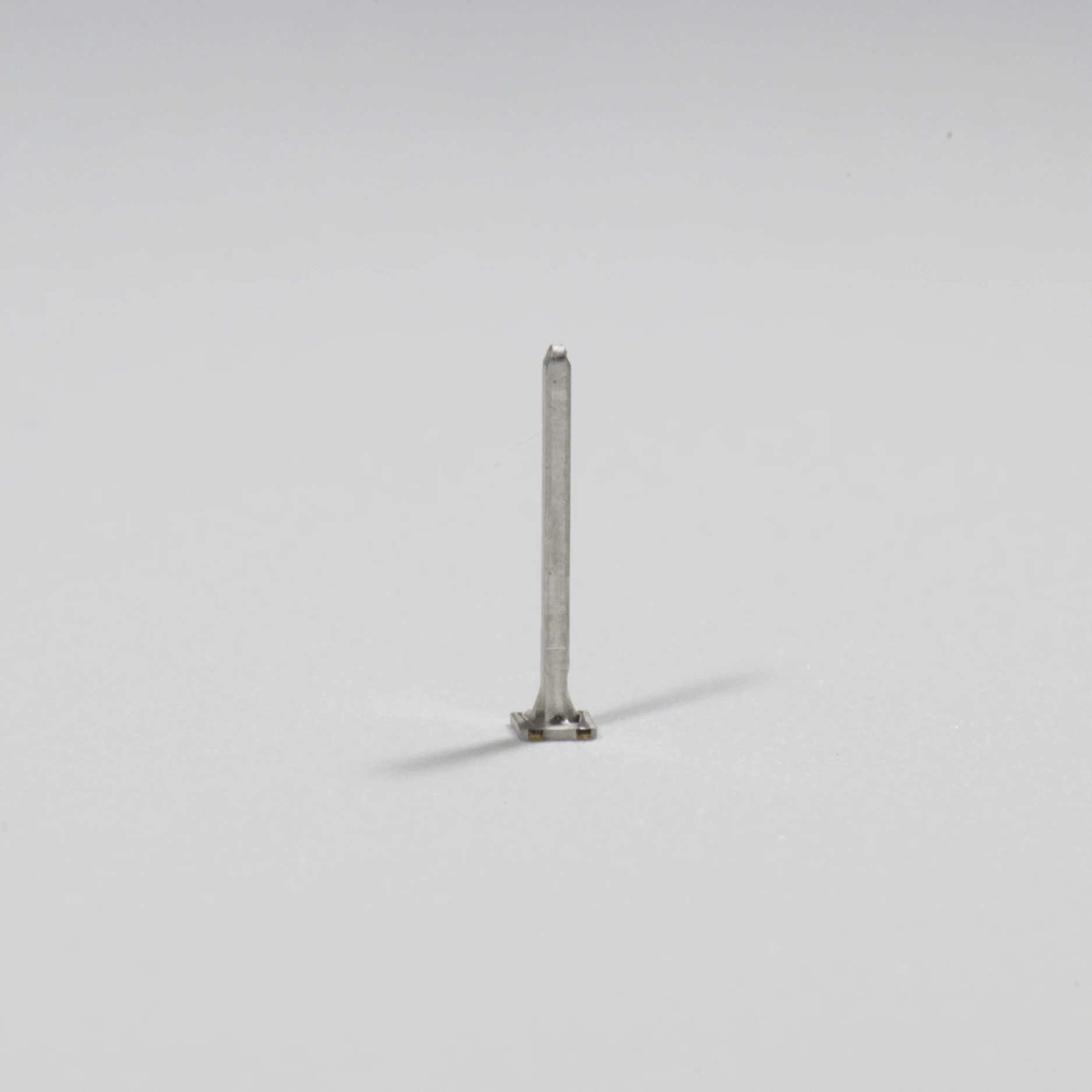

.375" Long
Features & Benefits
- Available in brass or copper alloy for high conductivity
- Applicable for .100” on-center applications
- Individual pins can be randomly placed
- Pins don’t float during reflow
- Pins are reliably perpendicular
- Available in two heights, .375” and .250”
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
Specification
| Material Type | C26000 Brass |
|---|---|
| Material Thickness | 0.012in (0.30mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 8 Amperes |
| Pin Length (L) | 0.375in (9.53mm) |
| Patent | U.S. Patent Nos. 5, 632, 629, 5, 695, 348, 5, 730, 608, 5, 816, 868 and other U.S. and international patents |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
