For .312" x .032" Tab
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | Pre-Finished 100% Hot Tin Dip. Material edges will be bare. (11) |
| Current Rating | >60 AMPS |
| Resistance Rating | 10mOhm Max |
| Mating Terminal Size | 0.312" x 0.032" (7.92mm x 0.81mm) Tab or Fuse |
| Top | 1 |
| Outward Double Splay | 1 |
| -65° to 85°C | 1 |

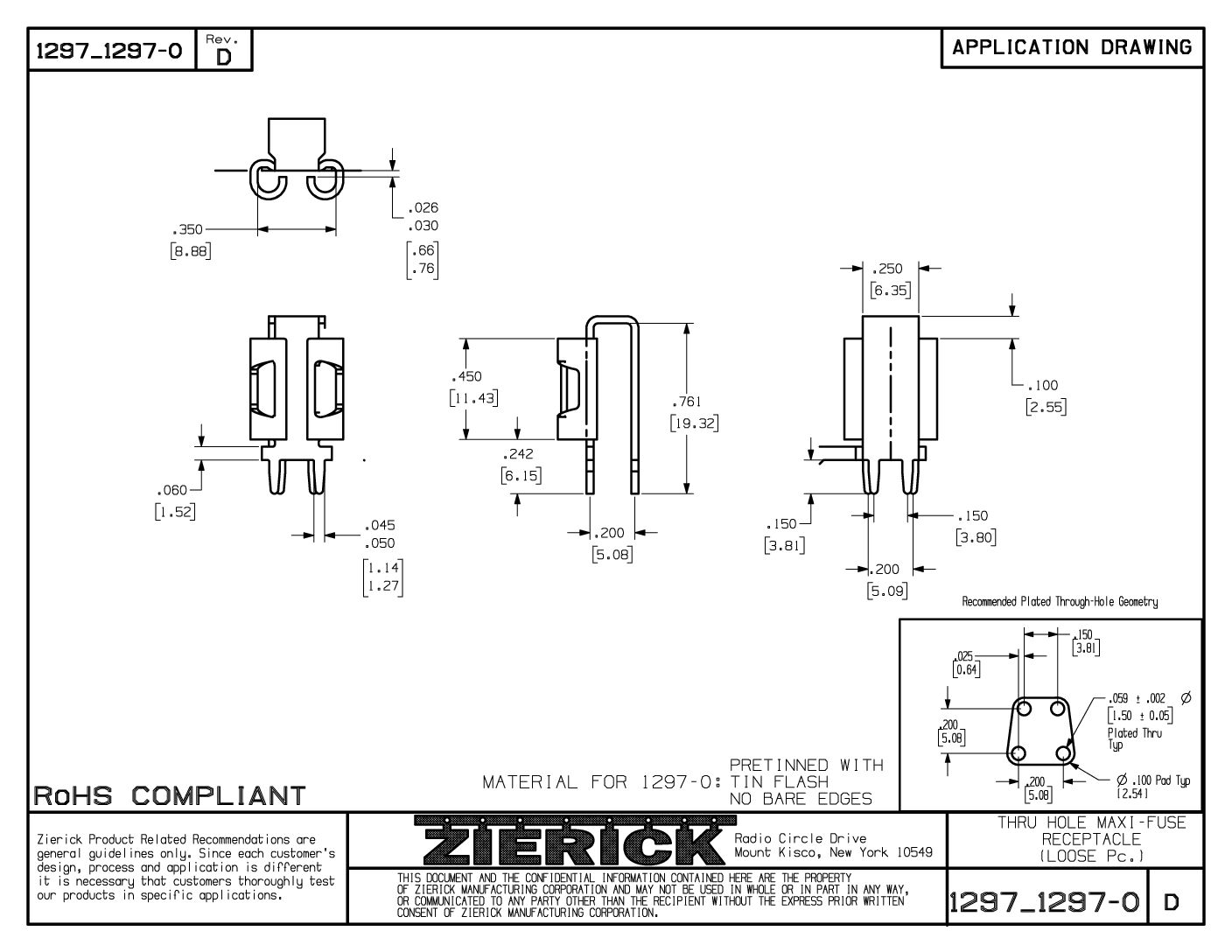

| 0.058±0.003 (1.47mm ± 0.076mm) 2 holes on 0.200"±0.003" centers (5.08mm ± 0.076mm)\\, 2 holes on 0.150"±0.003" centers (3.81mm ± 0.076mm) | 1 |
| 9.0 lbs. +/- 5.0 lbs. (40.03N +/- 22.24N) (with Steel Test Tab) | 1 |
| 16 lbs. +/- 5.0 lbs (71.17N +/- 22.24N) (with Steel Test Tab) | 1 |
