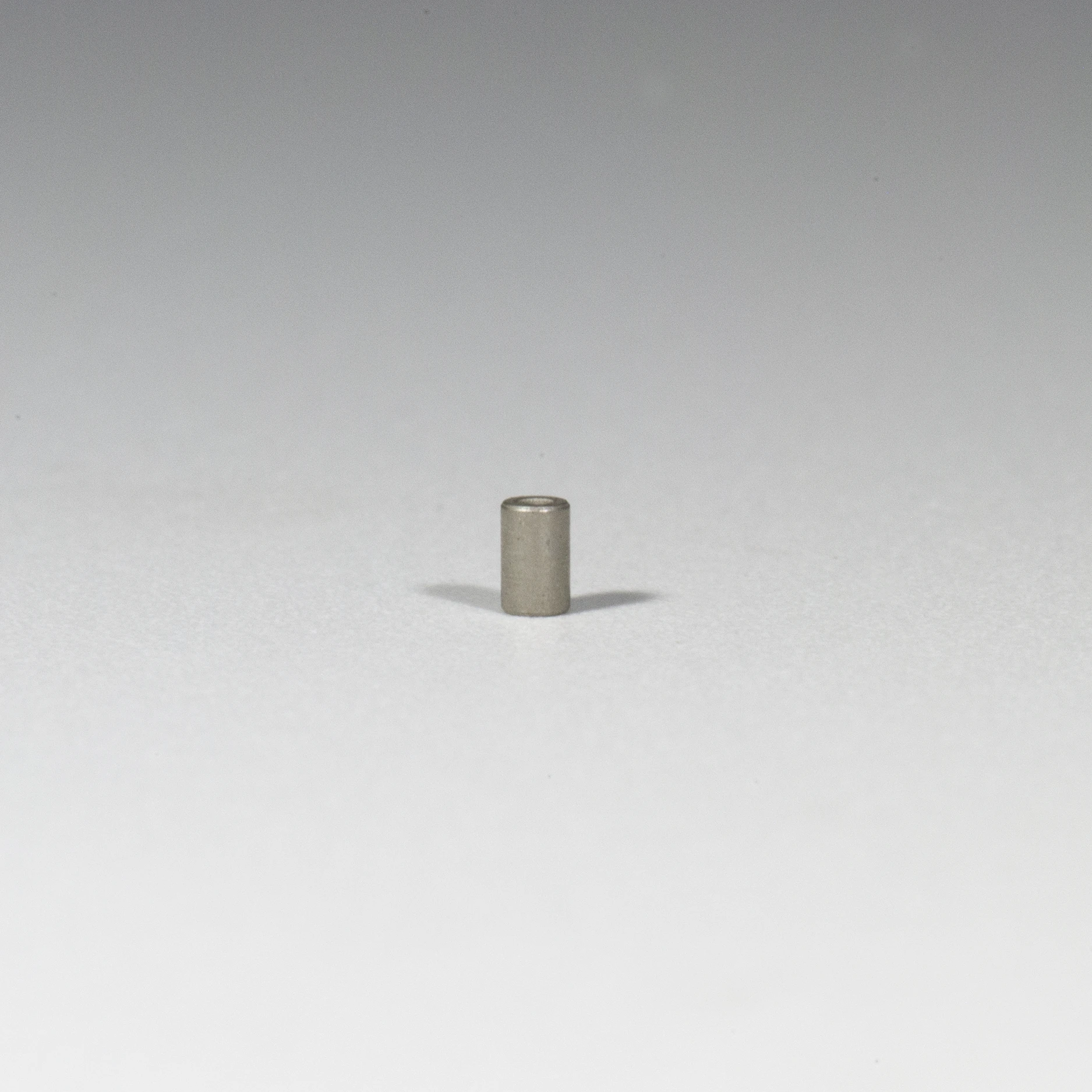

.062" x .181" Long
Features & Benefits
- Can be made to different lengths and diameters
- Self-centering-alignment problem eliminator
- Co-planarity within .001″
- Superior solder connection / joint

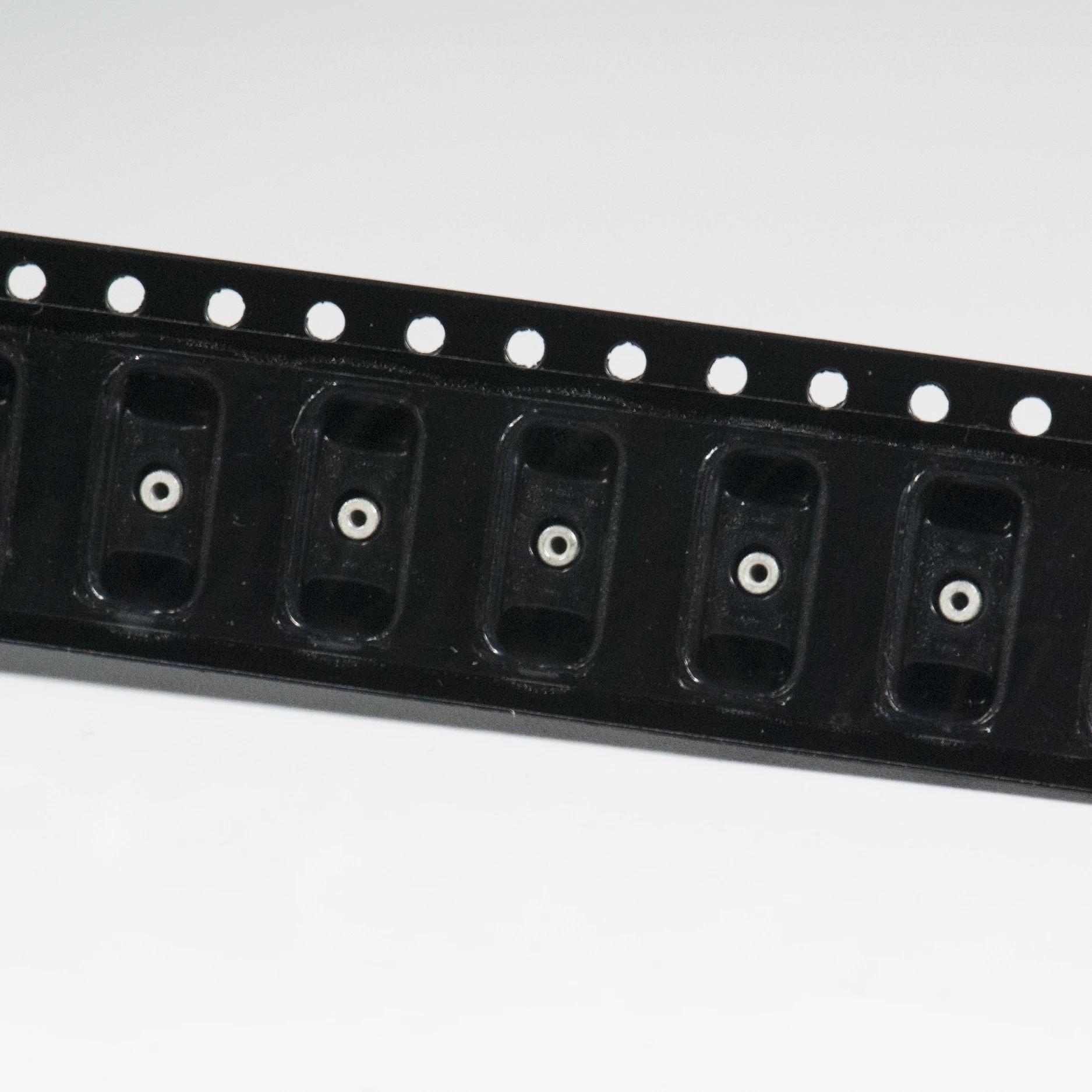

- Available in bulk / pallets / SMT tape
- Can be automated using standard tape feeders
Information
SKU: 1258-181-0
Categories: Board Stacking Connectors
Resources

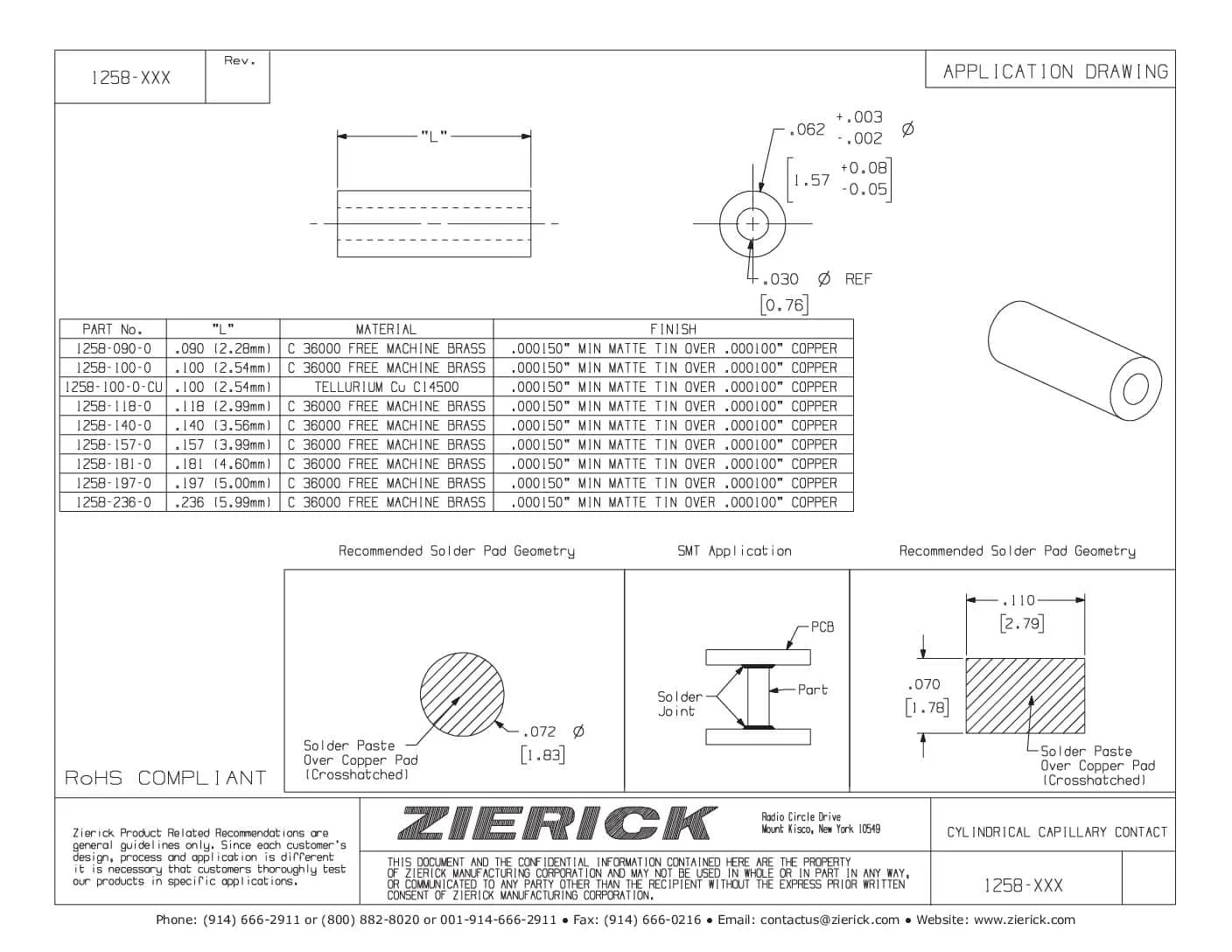

Prints: Additional:
- CAD downloads for 1258-157-0, 1258-181-0, 1258-197-0
Specification
| Packaging Type | Loose |
|---|---|
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Contact Material | C26000 Brass Cylinder Consult factory for optional materials. |
| Dimensions | .062 x .197 long cylinder |
| Termination Retention Force | 3.5 lbs per terminal |
| Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses\\, call Zierick's product development department. | 1 |
