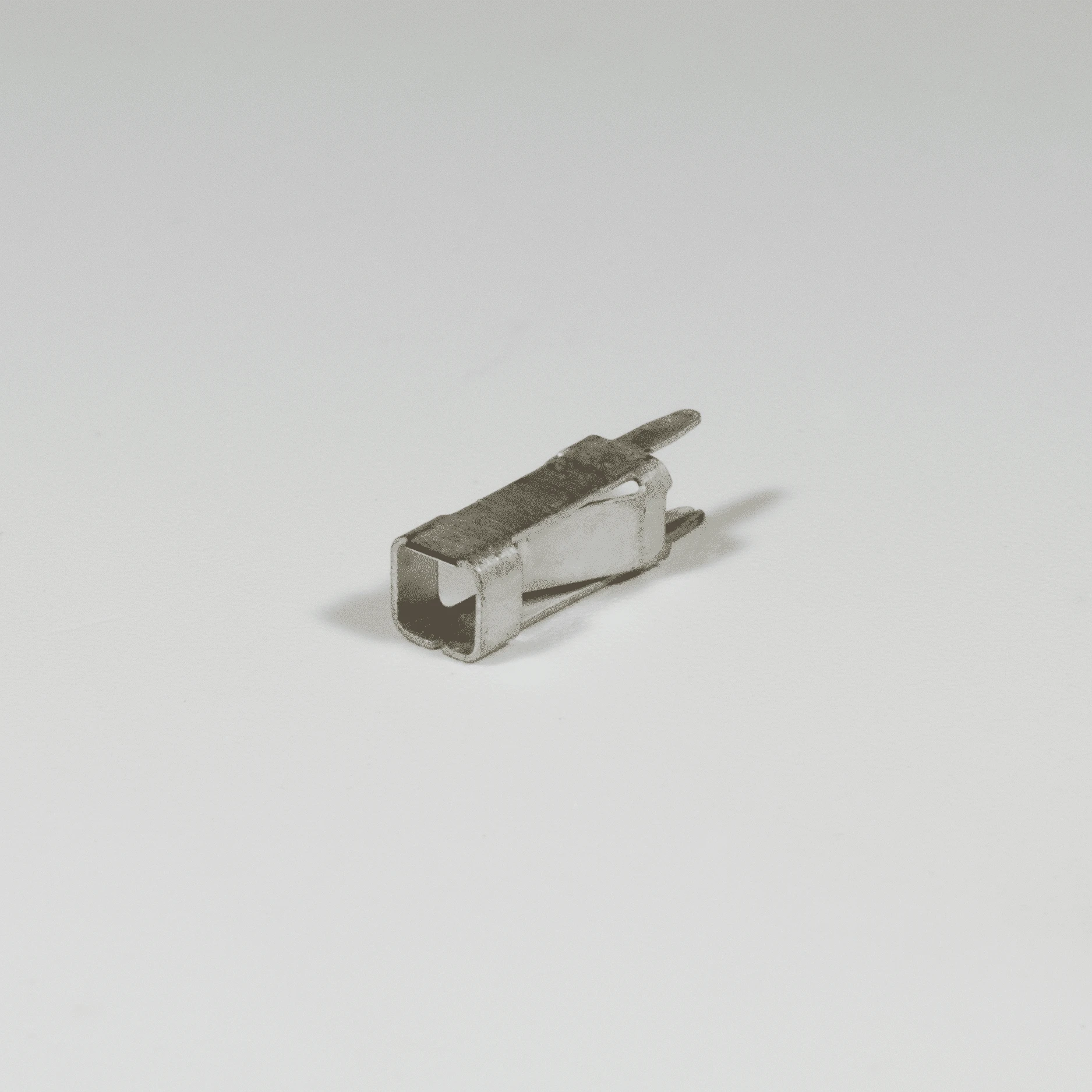

Bottom Entry
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.010" (0.25mm) C51000 Phosphor Bronze |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |

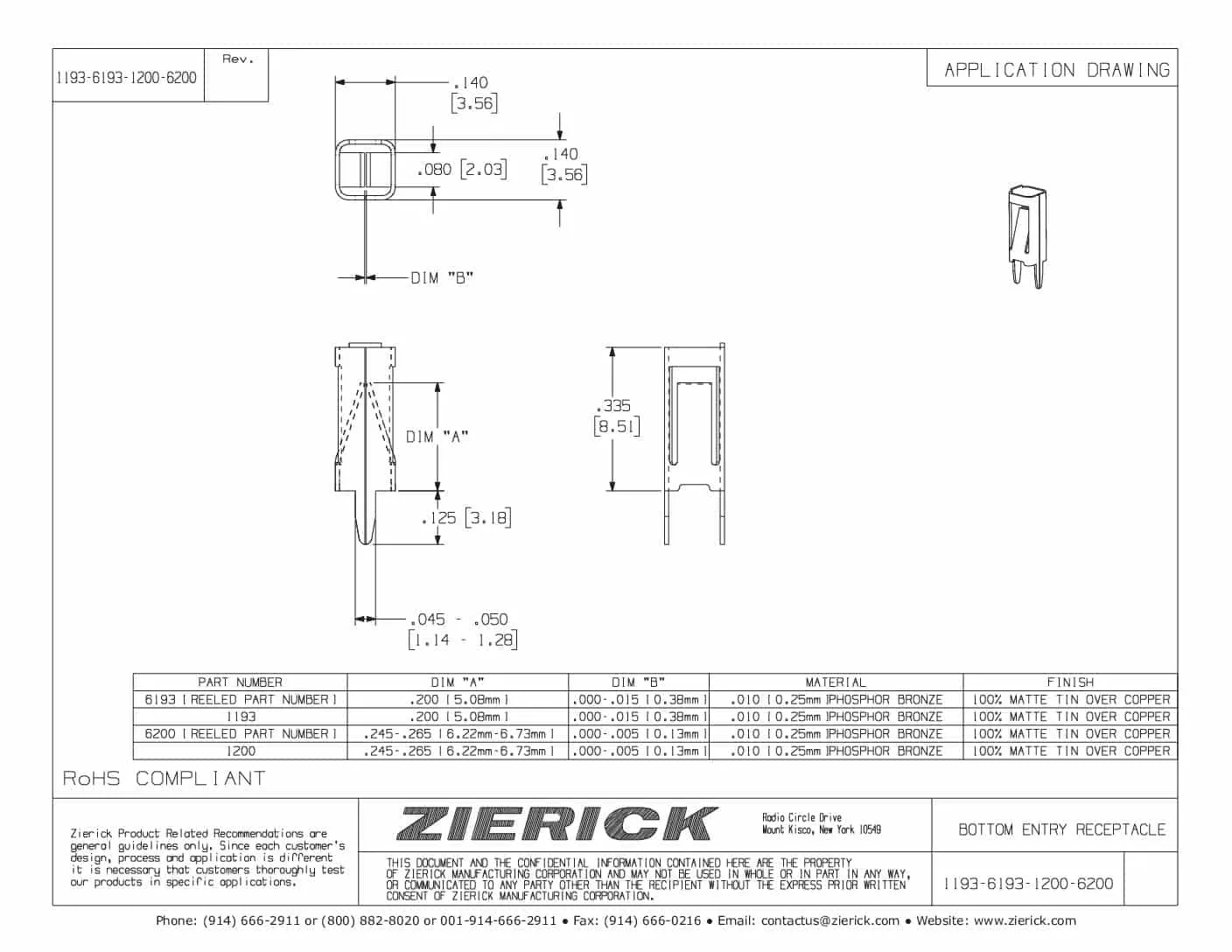

| Dim 'B' | 0.015" (0.38mm) |
| Dim 'A' | 0.200" (5.08mm) |
| Vertical | 1 |
| Optional (6193-TR) | 1 |
| 10mOhm Max | 1 |
| 0.025" (0.64mm) to 0.095" (2.41mm) Round or Square and 0.032" x 0.110" Blade [UL Recognition based on these mating terminals] | 1 |
| Application Dependent / Submit Mating Terminal Sample to Factory. | 1 |
| Bottom | 1 |
| Outward Splay | 1 |
| -65° to 105°C | 1 |
| E361770 | 1 |
| 0.150" ±0.003" (3.81mm ±0.076mm) | 1 |
| Consult Factory | 1 |
