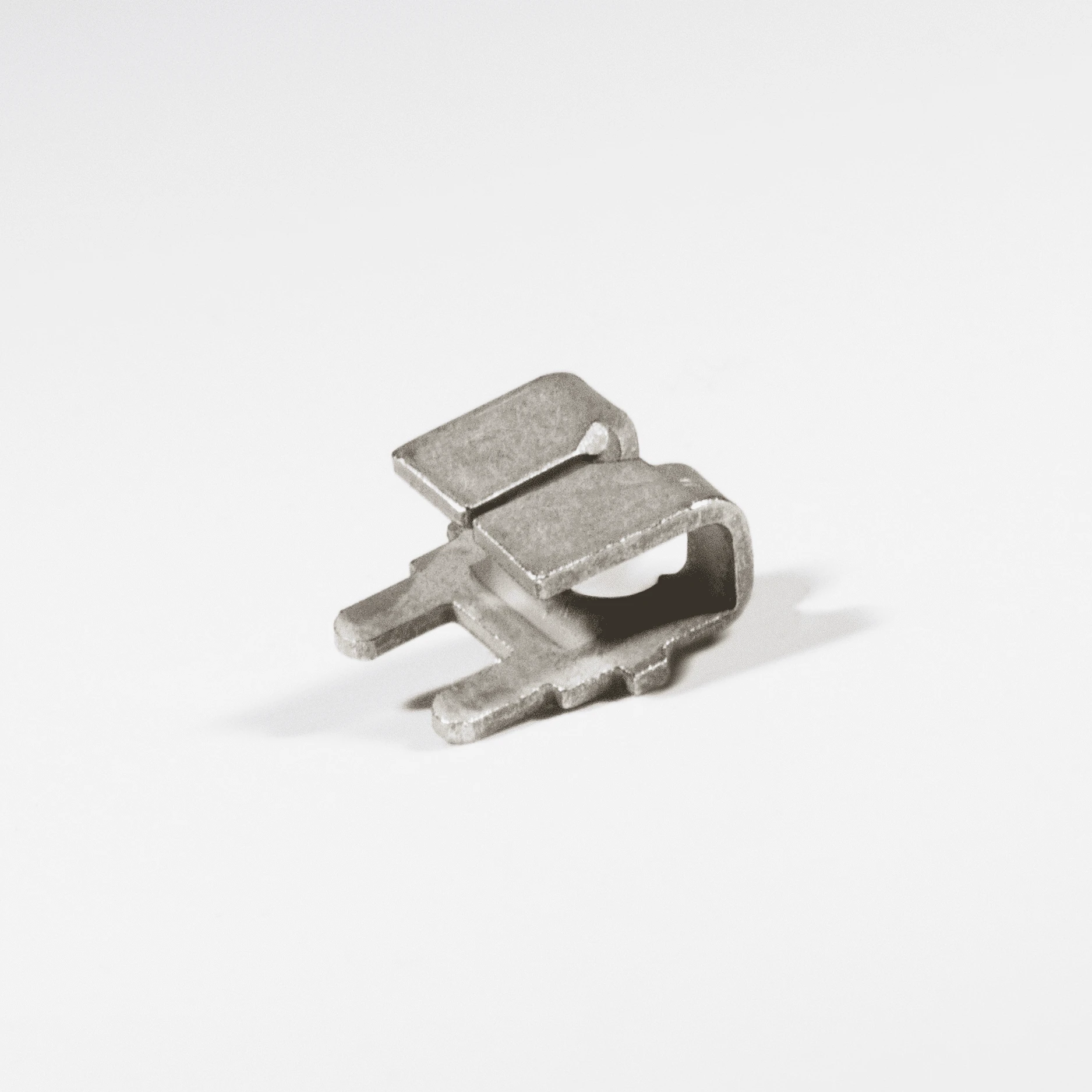

For #16-14 AWG
Features & Benefits
CURRENT RATINGS
| Wire Size – AWG (Type) | Current Rating/Amps | Current Rating/Amps (Canada) |
| 16 – Stranded | 17.0 | 15.0 |
| 16 – Solid | 17.0 | 17.0 |
| 14 – Solid | 22.0 | 22.0 |
| 14 – Stranded | 22.0 | 19.0 |

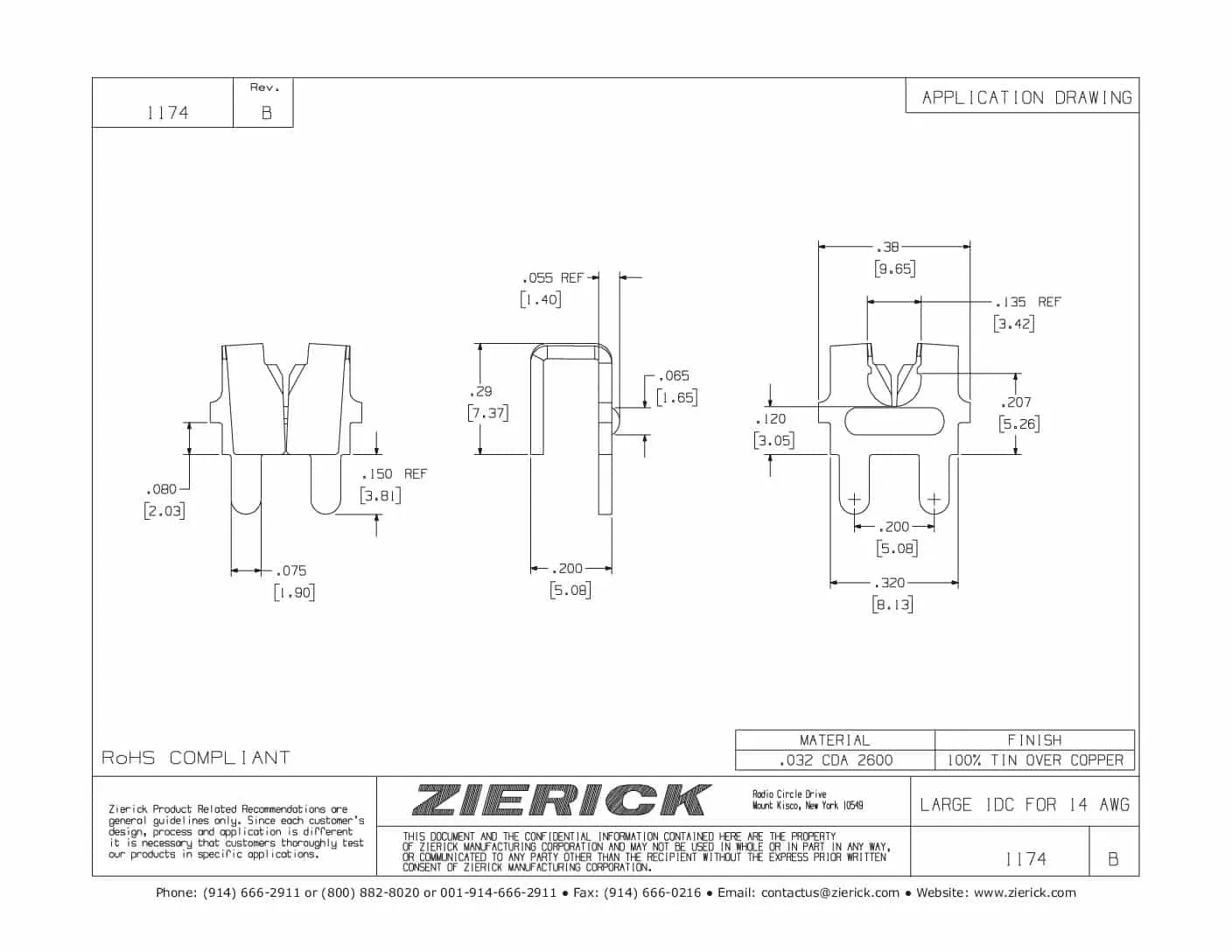

CAD download for Part Number 1174
- Read about the Torsion IDC.
- View the IDC wire termination procedure.
- View the Pneumatic wire insertion tool instructions.
Information
SKU: 1174
Categories: Insulation Displacement Connectors (IDC)
Resources
Prints: Additional:
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Mounting Type | Outward or Inward Splay |
| UL File Number | E361770 |
| Mounting Hole Diameter | 2 holes 0.080" ±0.003" (2.03mm ±0.076mm) on 0.200" (5.08mm) centers |
| #16-14 AWG | 1 |
| WTW-1174 | 1 |
| WTPPL-1174-1 | 1 |
