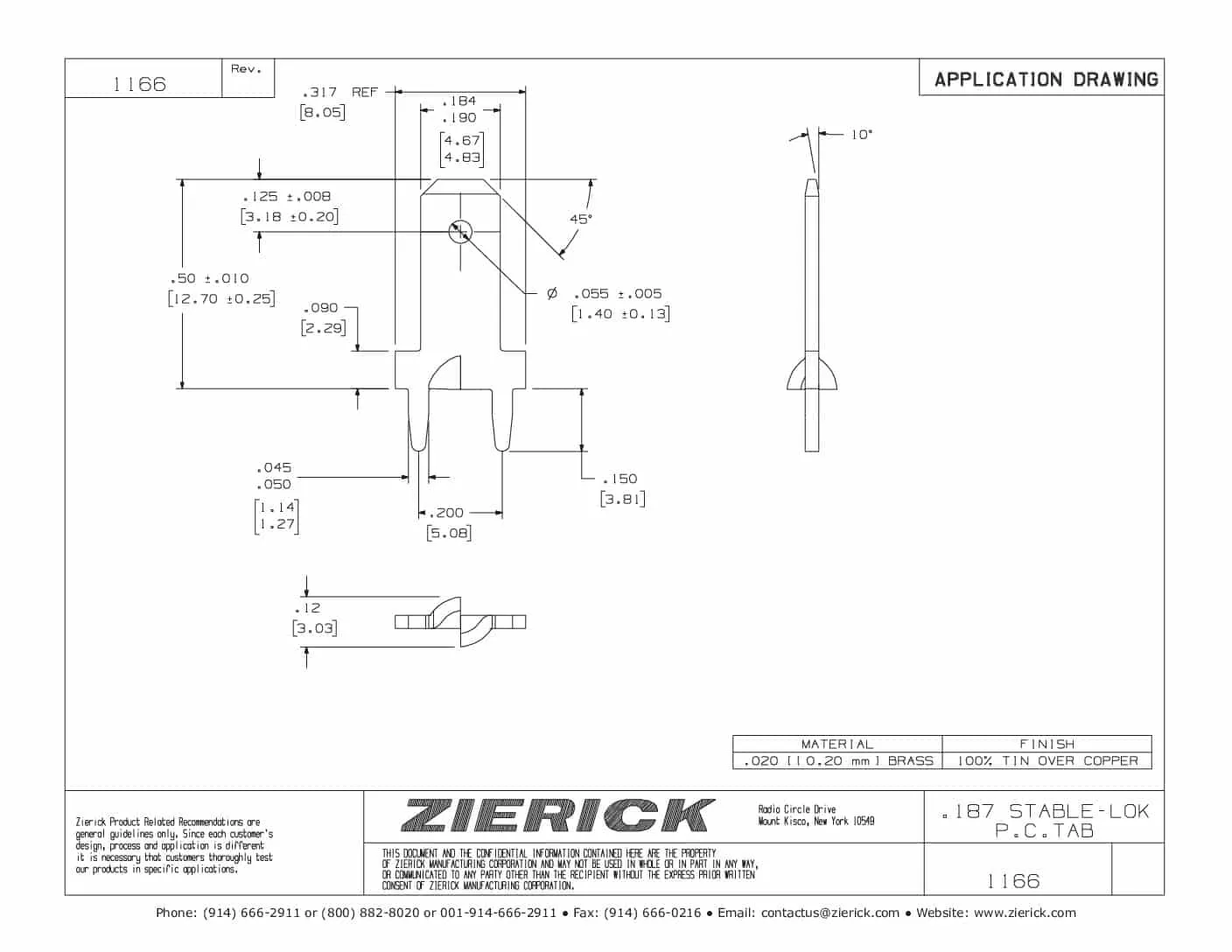

Press Fit, PN 1166
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 20 Amperes |
| Mounting Type | Outward or Inward Splay |
| UL File Number | E146208 |
| 0.058" ±0.003" (1.47mm ±0.076) | 1 |
| ZPT81-A | 1 |
