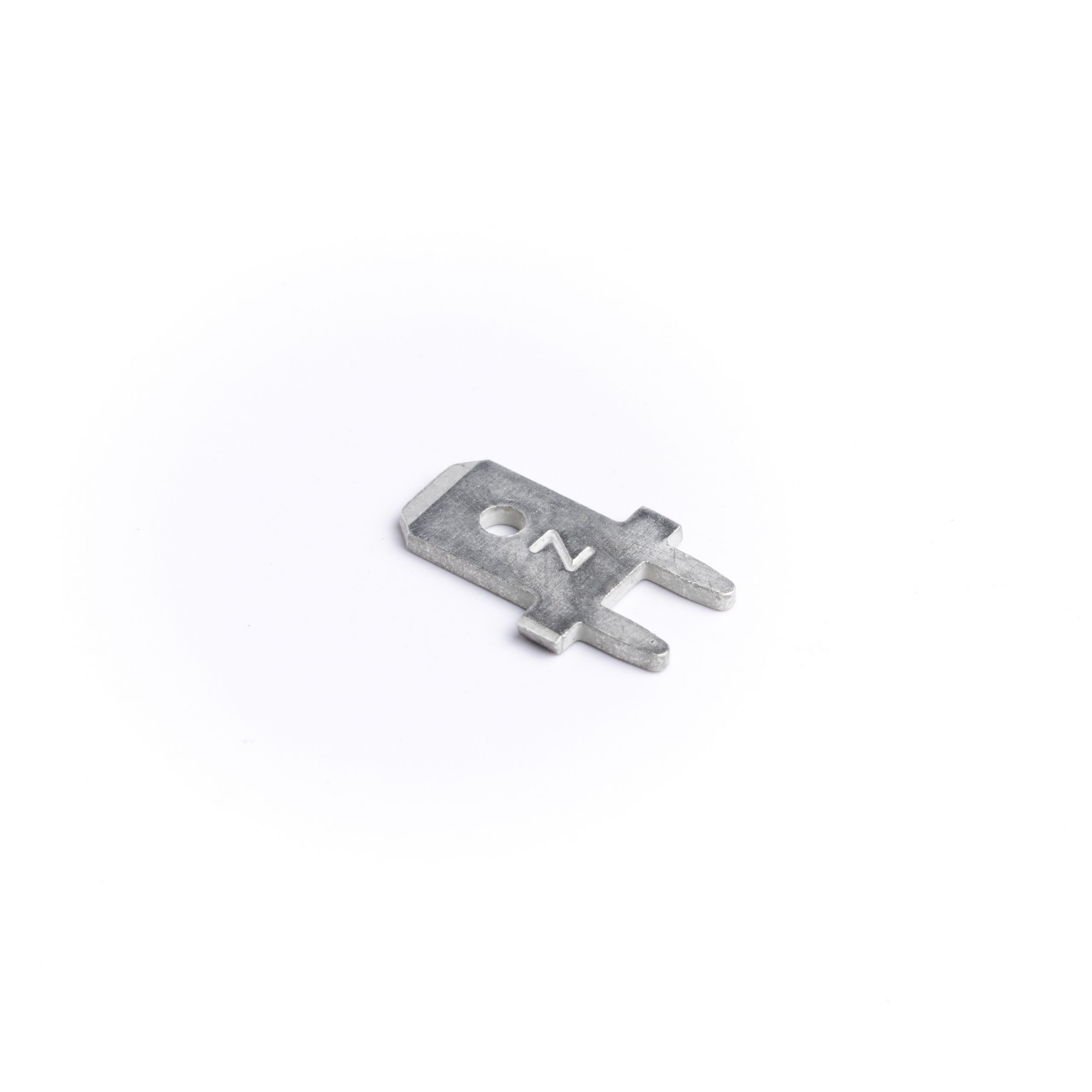

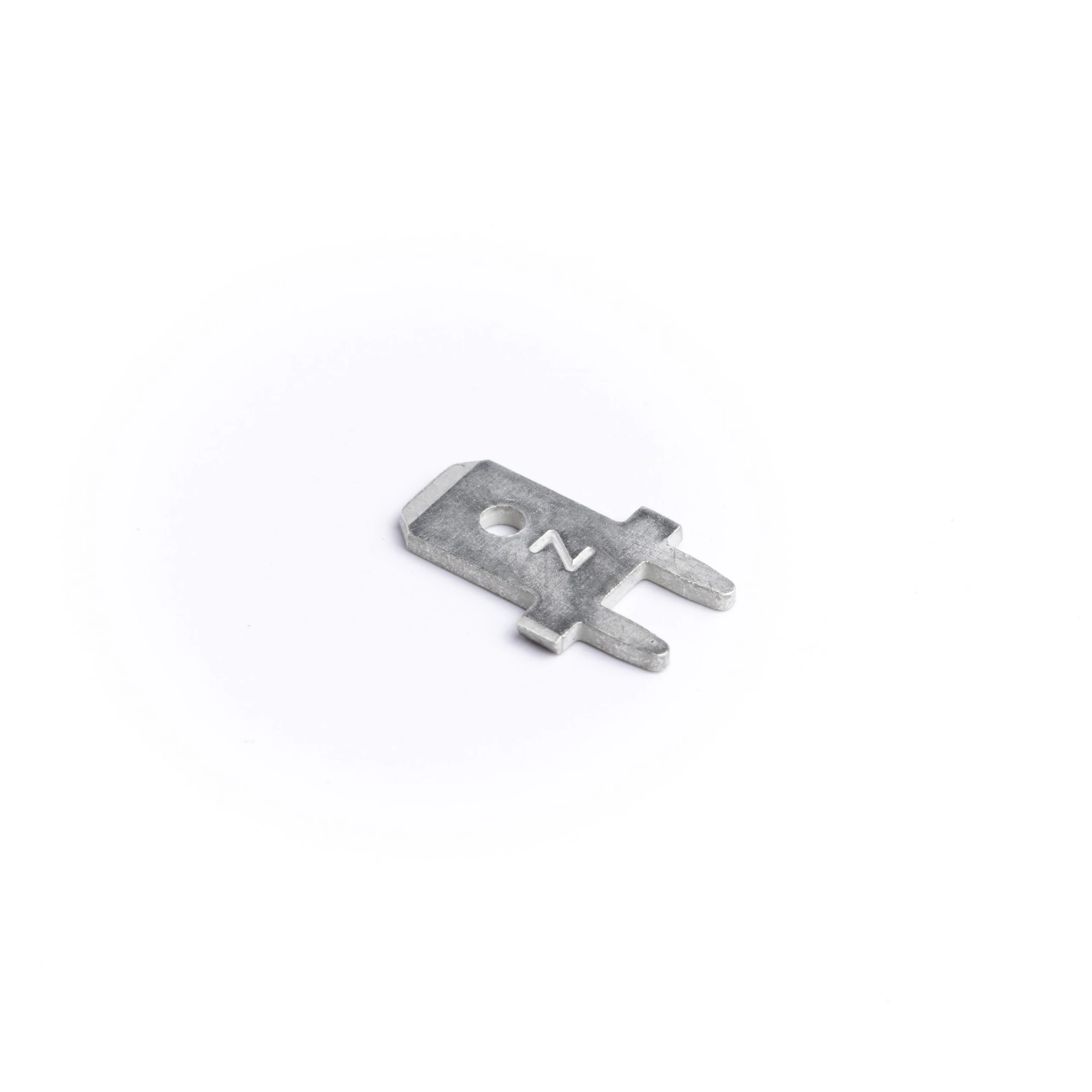

Press Fit, PN 1077

Features & Benefits
Item added to cart View Cart Checkout
Information
SKU: 1077
Resources

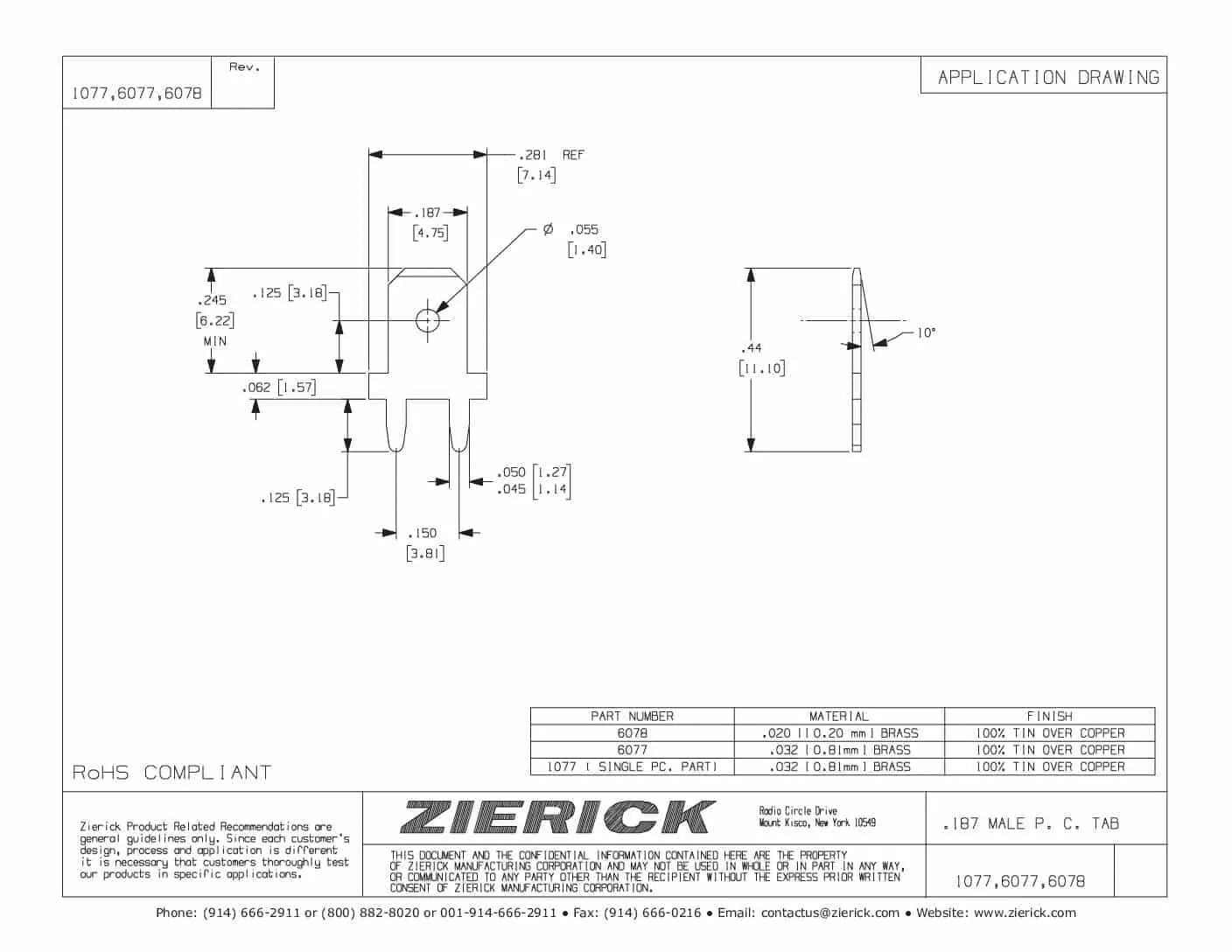

Prints: Additional:
Share:
Specification
Packaging Type

Loose

Material Thickness / Type

0.032" (0.81mm) C26000 Brass

Standard Finish

100% Matte Tin over Copper (0)

Current Rating

20 Amperes

Mounting Type

Outward or Inward Splay

UL File Number

E146208

0.058" ±0.003" (1.47mm ±0.076)

1

ZPT81-A

1

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
