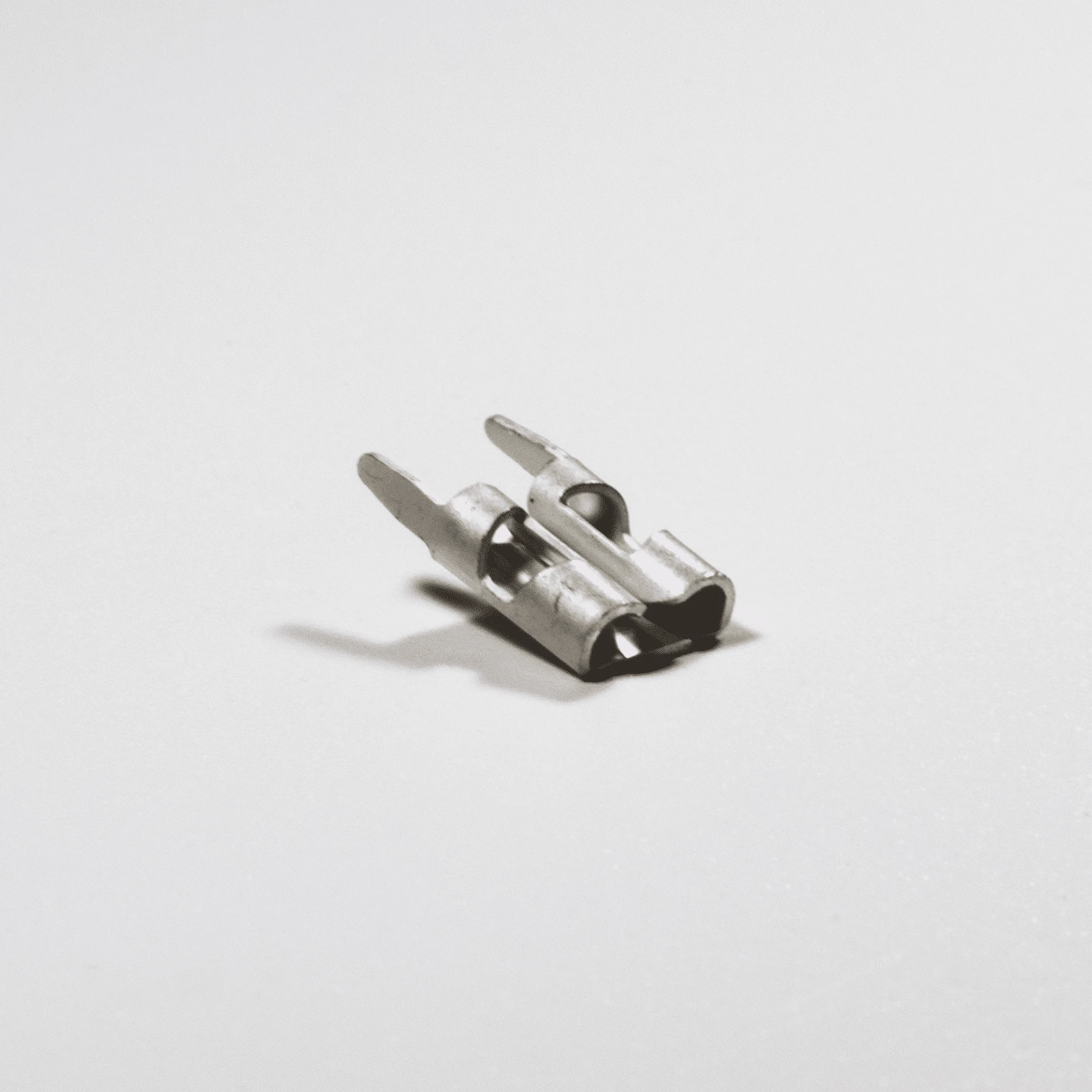

For .187" x .032" Tab
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 15 Amperes |
| Resistance Rating | 10mOhm Max |
| Mating Terminal Size | 0.187" x 0.032" (4.75mm x 0.81mm) Tab |
| Outward or Inward Splay | 1 |
| -65° to 85°C | 1 |
| 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers | 1 |
| ZPT81-A | 1 |
