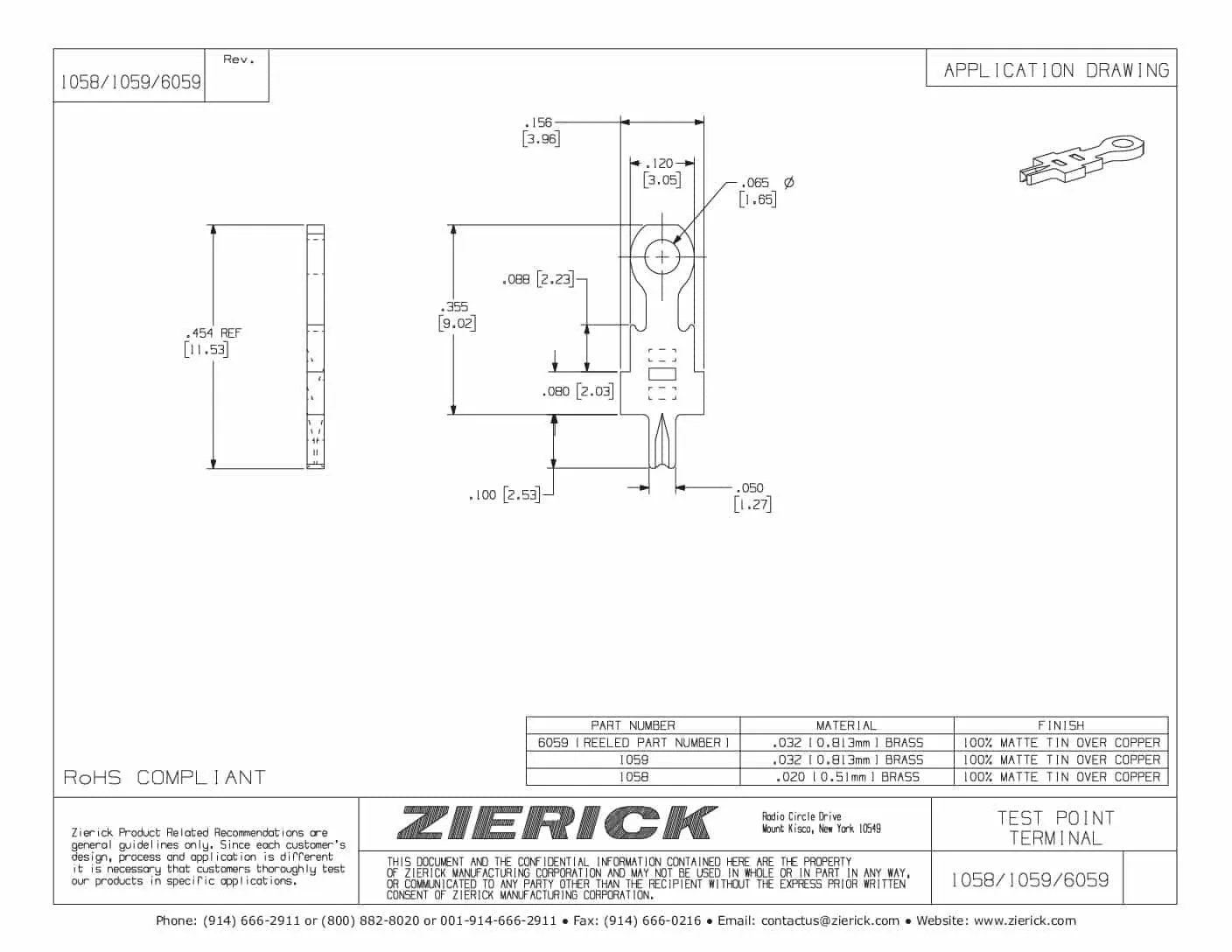

.065" Hole
Features & Benefits
Specification
| Packaging Type | Loose |
|---|---|
| Material Type | C26000 Brass |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mounting Type | Split Leg Splay |
| Mounting Hole Diameter | 0.046in ±0.003in (1.17mm ±0.076) |
| Applicator System | ZPT81-TP |
