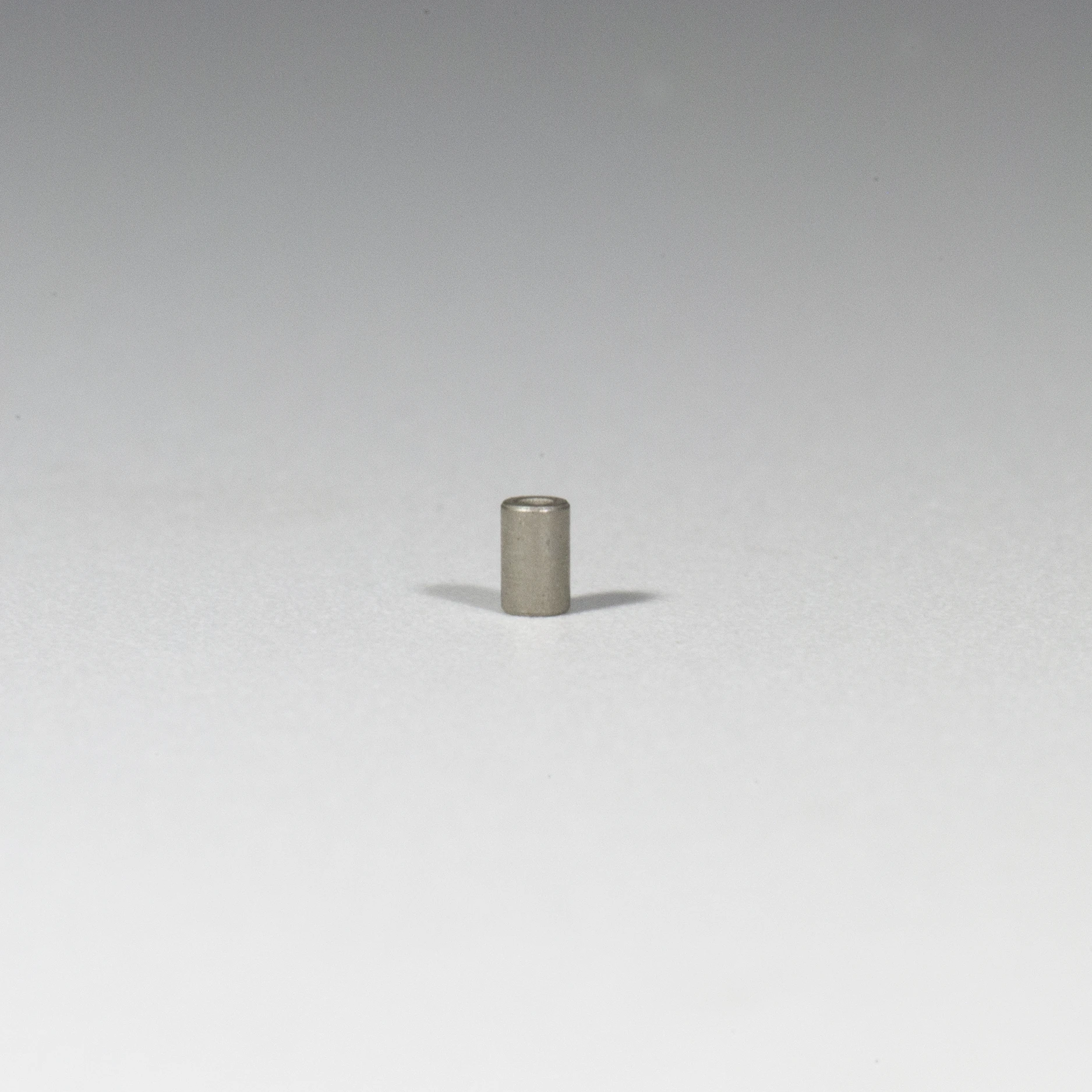

.062" x .118" Long
Features & Benefits
- Can be made to different lengths and diameters
- Self-centering-alignment problem eliminator
- Co-planarity within .001”
- Superior solder connection / joint

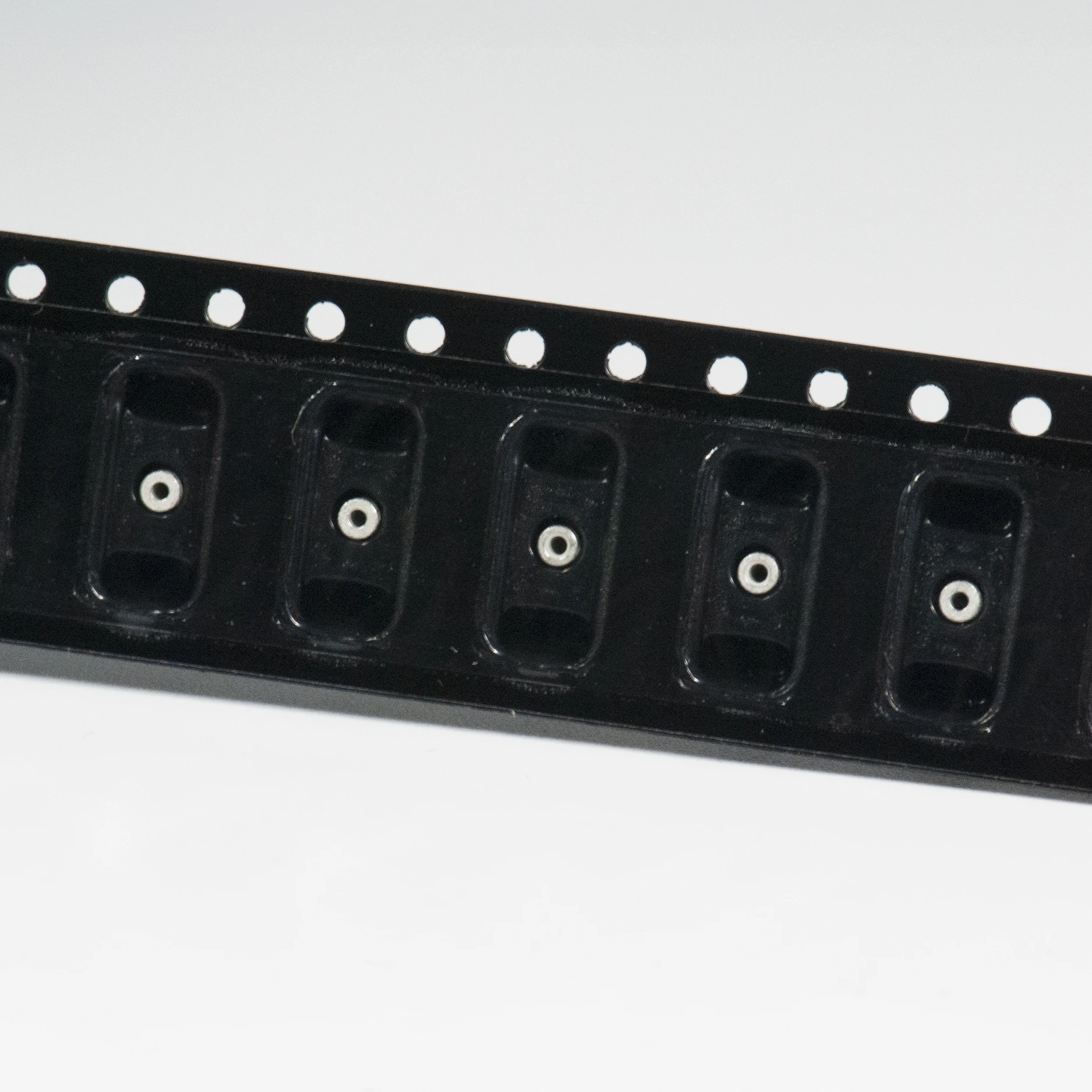

- Available in bulk / pallets / SMT tape
- Can be automated using standard tape feeders
Specification
| Material Type | 100% Matte Tin over Copper (0) |
|---|---|
| Current Rating | 10 Amperes |
| Contact Material | C26000 Brass Cylinder Consult factory for optional materials. |
| Dimnsions | .062 x .118 long cylinder |
| Termination Retention Force | 3.5 lbs per terminal |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
